Automation projects are no longer limited by controls and software alone; they increasingly depend on the strength, precision, and adaptability of the metal structures beneath them. As manufacturers reshore production, address labor shortages, and push for higher throughput, integrators must build robotic cells, conveyor systems, and inspection stations that fit tighter spaces while performing at higher speeds. Custom metal fabrication is becoming essential because standard components often cannot manage dynamic loads, vibration control, precision alignment, or compressed delivery schedules. This article examines why demand is rising, where custom fabrication adds the most value, and how OEMs and automation teams can use it to improve reliability, accuracy, and project execution.
Why Demand for Custom Metal Fabrication in Automation Is Rising
The global automation industry is experiencing an unprecedented surge in capital expenditure, driven by aggressive reshoring initiatives, labor shortages, and the relentless demand for higher manufacturing throughput. As automation integrators design increasingly complex systems, they are discovering that standardized, off-the-shelf structural components frequently fall short of meeting the rigorous dynamic loads, spatial constraints, and lifecycle requirements inherent to modern automated work cells. Consequently, custom metal fabrication has transitioned from a niche requirement to a critical foundational enabler for system integrators and Original Equipment Manufacturers (OEMs).
Market data indicates that custom fabricated components—ranging from heavy structural bases to intricate sensor brackets—now account for 15% to 25% of the total hardware bill of materials in advanced robotic assembly lines, particularly within the electric vehicle (EV) and semiconductor sectors. This shift underscores a fundamental reality in modern industrial engineering: the structural foundation of a machine is just as critical to its overall performance as the logic controllers and servo motors that drive it.
Robotics, Machine Vision, and Conveyor Integration
Integrating high-payload articulated robots, precision machine vision systems, and high-speed conveyors requires mounting structures that actively eliminate resonant frequencies and mechanical vibration. A standard extruded aluminum profile might suffice for a static display or lightweight guarding, but an industrial six-axis robot executing 120 cycles per minute with a 50 kg payload demands a profoundly rigid, custom-welded steel pedestal. If the base yields even slightly under high acceleration, the robot's end-of-arm tooling will miss its target, causing catastrophic process failures.
Furthermore, machine vision cameras require absolute positional stability; custom fabricated brackets with precision-machined mounting pads ensure that alignment tolerances remain within the critical ±0.05 mm threshold required for sub-millimeter inspection accuracy. Conveyor transitions, particularly those handling varied form factors or integrating with specialized sorting mechanisms like high-speed diverter gates, similarly necessitate custom chutes, structural transitions, and support frames that standard catalogs simply cannot provide. Custom fabrication allows these transitions to be highly optimized for specific product flow, minimizing bottlenecks and product damage.
OEM and Integrator Pressures Driving Customization
OEMs and system integrators face compounding pressures to minimize facility footprint while maximizing operational efficiency. End-users increasingly demand compact automation cells that can be retrofitted into existing brownfield facilities, severely restricting the available floor space. This spatial limitation forces integrators to design vertical or highly nested equipment layouts, which are virtually impossible to achieve using modular, pre-sized catalog hardware without creating unsafe interference zones.
Additionally, lead times for specialized automation equipment have tightened significantly. Integrators operating under rigid 16-to-24-week project delivery schedules often find that partnering with local, agile custom fabrication shops provides a more reliable supply chain than waiting on international shipments of proprietary structural components. Custom fabrication allows for parallel engineering execution, where structural frames are designed, welded, and painted simultaneously with the procurement of long-lead robotic controllers, programmable logic controllers (PLCs), and servo actuators. This concurrent workflow is essential for meeting strict factory acceptance testing (FAT) deadlines.
What Defines Custom Metal Fabrication for Automation Applications

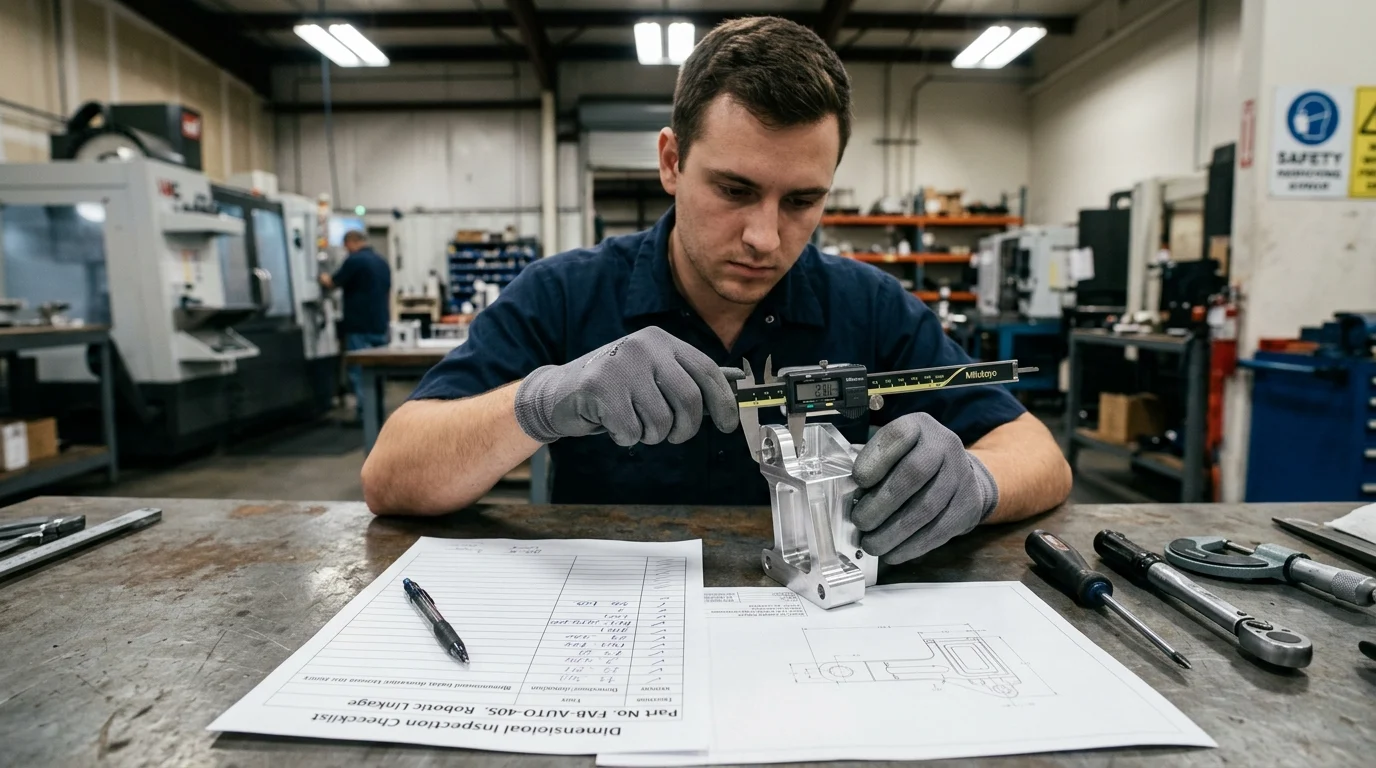

Custom metal fabrication for automation transcends general sheet metal work or standard structural steel framing. It is defined by its precise intersection with mechanical engineering and kinematics, requiring fabricators to deeply understand how their structural outputs directly impact the movement, accuracy, and longevity of the automated systems they support.
The baseline requirement in this sector is not merely static structural integrity, but dynamic dimensional stability under repetitive, multi-axis loads over millions of operational cycles. Every weld, bend, and machined surface must be executed with the final automated process in mind.
Key Components: Frames, Guards, Brackets, and Enclosures
The primary categories of custom fabricated automation components include structural base frames, complex safety guarding, precision sensor brackets, and specialized control enclosures. Base frames, often constructed from heavy-wall tubular carbon steel (such as ASTM A500 Grade B or C, offering yield strengths upwards of 46,000 psi), serve as the foundational anchor for robotic arms, indexing dials, and linear actuators. Safety guards require custom sheet metal and wire mesh integration to strictly comply with ISO 13857 machine safety standards while accommodating specific operator access points and light curtain integrations.
Precision brackets, typically laser-cut and CNC-folded from stainless steel or aerospace-grade aluminum, securely hold proximity sensors, pneumatics, and vision systems in tight spatial envelopes. Finally, custom enclosures are frequently required to house sensitive power distribution and control electronics in harsh industrial or washdown environments. These enclosures demand custom-welded seams and specialized gasketing to achieve NEMA 4X or IP69K ratings that standard off-the-shelf electrical boxes cannot reliably maintain, especially when customized cutouts for HMI panels and industrial air conditioners are required.
Material, Tolerance, Finish, Weld Quality, and Flatness Requirements
The technical specifications for automation fabrication are exceptionally stringent. Materials primarily include 1018/1020 carbon steel for heavy bases, 304/316 stainless steel for food-grade, pharmaceutical, or corrosive applications, and 6061-T6 aluminum for weight-sensitive moving components. Tolerances on machined mounting surfaces frequently demand ±0.002 inches (±0.05 mm) to ensure linear profile rails, ball screws, and servo actuators mount without binding or premature bearing wear.
Weld quality must strictly adhere to AWS D1.1 (Structural Welding Code) to prevent microscopic fatigue failures under continuous high-frequency vibration. Flatness is particularly critical; base plates for robotic pedestals often require thermal stress relieving followed by blanchard grinding to achieve a flatness of 0.005 inches per foot, ensuring the robot base does not warp when torqued down. Finishes are equally specialized, ranging from highly durable powder coating (often requiring a precise 2-3 mil dry film thickness) for carbon steel frames to multi-stage electropolishing for stainless steel components utilized in strict Class 100 aseptic cleanroom environments.
Where Custom Fabrication Outperforms Standard Automation Hardware
While modular aluminum extrusion systems (commonly known as T-slot profiles) are ubiquitous in factory environments due to their rapid assembly and reconfigurability, they present distinct and often critical limitations in high-performance automation. Custom metal fabrication significantly outperforms these standard solutions in scenarios demanding high rigidity, heavy payload capacity, and environmental resilience.
The decision to pivot from catalog hardware to custom fabrication is often driven by the physical limitations of friction-based modular joints and the long-term total cost of ownership associated with industrial machinery.
Custom vs. Catalog Parts Comparison
To clearly illustrate the technical divergence between custom fabrication and standard modular hardware, the following table compares key performance and operational attributes.
| Attribute | Standard Aluminum Extrusion (T-Slot) | Custom Welded Steel Fabrication |
|---|---|---|
| Rigidity / Joint Deflection | Moderate (relies on friction and localized fasteners) | High (metallurgically bonded, continuous joints) |
| Vibration Dampening | Poor (joints loosen over time due to micro-movements) | Excellent (continuous material path dissipates energy) |
| Hygienic Design & Washdown | Poor (open slots inherently trap debris and bacteria) | Excellent (continuous welds, ground flush, sloped surfaces) |
| Initial Engineering Time | Low (utilizes drag-and-drop proprietary CAD libraries) | High (requires detailed FEA, GD&T, and 2D drafting) |
| Aesthetic & Spatial Customization | Limited strictly to standard anodized linear profiles | Unlimited (custom geometries, bespoke powder coat colors) |
Standard catalog parts excel in rapid prototyping, temporary fixtures, and light-duty perimeter guarding, but they inherently rely on bolted connections. Under dynamic loads, these connections experience fretting and micro-movements. In stark contrast, a custom-welded and stress-relieved steel frame acts as a single monolithic structure, effectively eliminating the risk of alignment shifts during aggressive, continuous high-speed pick-and-place operations.
Cost, Lead Time, Rigidity, and Lifecycle Value
Analyzing the financial and operational metrics reveals a highly compelling case for custom fabrication in permanent, high-throughput automation cells. While the initial procurement and engineering cost of a custom welded steel frame might be 20% to 40% higher than a comparable modular T-slot aluminum frame, the lifecycle value heavily favors the custom approach. Modular frames subjected to multi-axis robotic forces often require quarterly maintenance protocols to retorque fasteners, incurring ongoing labor costs and scheduled machine downtime. Conversely, a properly welded and stress-relieved frame requires zero structural maintenance over its lifespan.
Lead times for custom heavy fabrication typically range from 4 to 8 weeks, which generally aligns seamlessly with the 12-to-20-week procurement cycle of the automation controllers and servo motors. Furthermore, the supreme rigidity of custom steel directly impacts the operational speed and profitability of the machine. A stiffer frame allows control engineers to tune servo loops for higher acceleration and deceleration rates without inducing mechanical resonance or settling time delays. This capability directly increases the overall parts-per-minute (PPM) throughput of the system, accelerating the return on investment (ROI) for the end-user.
How Buyers Should Specify and Source Custom Fabrication
Sourcing custom metal fabrication for complex automation systems requires a highly structured, engineering-driven procurement approach. Ambiguity in structural specifications inevitably leads to critical alignment issues on the assembly floor, costly and time-consuming rework, and severely delayed project commissioning.
Buyers, mechanical design engineers, and supply chain managers must collaborate closely to generate comprehensive technical data packages and thoroughly vet potential fabrication partners against the highly specific demands of the modern automation industry.
CAD Files, Drawings, Tolerances, and Finish Specifications
A complete and robust specification package begins with native 3D CAD models (typically exchanged in STEP or Parasolid formats) accompanied by fully dimensioned 2D manufacturing drawings. These drawings must utilize Geometric Dimensioning and Tolerancing (GD&T) according to ASME Y14.5 standards to explicitly define critical spatial relationships. For example, the parallelism between two linear guide rail mounting surfaces or the precise perpendicularity of a robot mounting flange relative to the main base frame must be strictly controlled.
Buyers must specify the exact material grade, required weld symbols (explicitly differentiating between continuous structural welds and intermittent stitch welding), and critical post-weld treatments like thermal stress relieving (vital before any precision machining occurs). Finish specifications must clearly dictate surface preparation requirements (e.g., abrasive blasting to SSPC-SP 10 near-white metal) and specific coating systems.
This includes exact RAL color codes, gloss levels, and required dry film thickness (DFT) ranges, typically specified strictly between 60 to 80 microns for standard industrial environments to prevent interference with threaded holes or mating surfaces.
Supplier Capability, Quality Control, and Production Capacity
Vetting a fabrication supplier requires a deep analysis of their specific capabilities and machinery relevant to heavy automation. A shop that excels at lightweight architectural metalwork or HVAC ducting will likely lack the massive precision machining centers required to mill mounting pads flat on a 15-foot welded gantry frame. Buyers should mandate that suppliers possess in-house heavy-plate laser or waterjet cutting, large-tonnage CNC press brakes with precision crowning compensation, and large-format CNC bridge mills.
Quality control protocols are equally critical; the fabrication supplier should hold an active ISO 9001:2015 certification. Furthermore, they must be capable of providing comprehensive First Article Inspection (FAI) reports, utilizing advanced Coordinate Measuring Machines (CMM) or FaroArm laser trackers to verify physical dimensions precisely against the original 3D CAD model. Production capacity must also be rigorously evaluated to ensure the supplier can handle the required Minimum Order Quantities (MOQs) and delivery schedules, whether the project demands a single highly complex prototype frame or a recurring blanket order of 50 standardized base frames per quarter.
Logistics, Compliance, and Installation Planning
Logistics and installation planning play a surprisingly substantial role in the sourcing strategy, particularly for large, monolithic automation frames that cannot be easily disassembled for transport. Buyers must proactively consider shipping constraints, oversize load permits, and the structural integrity of the heavy component during over-the-road transit. Fabricators should be contractually required to design and supply custom shipping skids or robust crating that prevents racking, twisting, or localized damage to the frame during flatbed transport on air-ride trailers.
Compliance with regional safety and environmental directives, such as RoHS for European deployments or specific seismic anchoring requirements for installations in high-risk zones (like California's Title 24), must be established early in the design phase. Installation planning involves specifying heavy-duty lifting lugs, precisely calculated center-of-gravity (CoG) markings, and leveling feet provisions directly into the fabricated design. These integrated features are essential to facilitate safe, balanced, and efficient crane rigging at the final plant location, minimizing costly downtime during facility integration.
How to Decide When Custom Fabrication Is the Right Choice
Deciding between off-the-shelf modular hardware and custom metal fabrication is a critical inflection point in the mechanical design phase of any automation project. This fundamental decision dictates the project's upfront capital expenditure, the engineering timeline, the physical footprint, and the ultimate operational limits of the deployed system.
Plant engineers, automation architects, and system integrators must employ a highly systematic evaluation process to determine the optimal structural strategy, balancing immediate costs against long-term operational resilience.
Decision Framework for Custom vs. Standard Solutions
The decision-making process can be effectively quantified by evaluating specific load profiles, environmental conditions, and anticipated production volumes.
| Decision Factor | Favor Standard Modular Hardware | Favor Custom Metal Fabrication |
|---|---|---|
| Dynamic Payload & Motion | Under 20 kg, slow acceleration, steady state | Over 20 kg, high-speed multi-axis, sudden stops |
| Environmental Conditions | Clean, dry, climate-controlled, ambient temp | Washdown, corrosive, high particulate, extreme heat |
| Machine Lifecycle & Uptime | Temporary fixtures, R&D, short-term production | Permanent installation (demanding 7 to 15+ years) |
| Space & Footprint Constraints | Flexible layout, ample facility floor space available | Highly constrained, requires complex nested geometry |
| Production Volume (Equipment) | One-off proof of concept, highly fluid design | Serial production of identical, standardized automation cells |
If the automation cell involves heavy articulated robots, high-speed linear servo actuators, or strict hygienic washdown requirements (such as in food processing), the framework heavily weights toward custom fabrication. Conversely, for lightweight material handling, temporary test fixtures, or projects where the mechanical design is highly fluid and likely to require significant structural changes during commissioning, standard modular profiles offer the necessary flexibility and speed of iteration.
Guidance for OEMs, Integrators, and Plant Engineers
For OEMs designing standardized, catalog automation products (such as a standardized robotic palletizing cell or a modular Laser Welding station), custom fabrication is almost always the correct strategic choice. The initial engineering and tooling costs are amortized over multiple unit sales, and a custom design provides a proprietary, highly polished, and robust appearance that modular hardware simply lacks.
System integrators building bespoke lines should default to custom fabrication for the core load-bearing structures and precision mounting surfaces of their cells, strategically utilizing modular hardware only for secondary, non-critical tasks like lightweight perimeter safety guarding or overhead cable routing. Plant engineers tasked with retrofitting existing production lines should conduct a thorough vibration and kinematic analysis. If existing modular frames exhibit a resonant frequency that aligns with the operating speed of newly installed servo equipment, replacing those inadequate structures with custom, mass-optimized fabricated steel is imperative. This proactive replacement prevents premature mechanical wear, ensures precise process repeatability, and guarantees the long-term reliability of the multi-million-dollar automation investment.
Frequently Asked Questions
Why is custom metal fabrication becoming more important in automation?
Automation systems are becoming faster, more compact, and more specialized. Custom fabricated frames, pedestals, brackets, and guards help integrators meet load, vibration, space, and lifecycle requirements that standard catalog components often cannot satisfy.
What automation components often require custom metal fabrication?
Common examples include robot bases, conveyor frames, machine vision brackets, guarding, sensor mounts, chutes, work cell structures, and precision mounting plates used in robotic assembly, inspection, packaging, EV, and semiconductor applications.
How does fabrication quality affect robotic automation performance?
Poorly designed or weak structures can flex, vibrate, or shift under acceleration. That can reduce robot accuracy, affect cycle times, and cause alignment problems in tooling, conveyors, and machine vision systems.
Why can’t integrators always use off-the-shelf aluminum profiles?
Standard profiles work well for light-duty structures, but high-payload robots, tight tolerances, compact layouts, and heavy dynamic loads often require welded steel, machined mounting surfaces, or purpose-built assemblies.
How does custom fabrication help with automation project timelines?
A responsive fabrication partner can build frames and structural components while controls, robots, and servo systems are being sourced. This parallel workflow can help integrators meet tight 16-to-24-week delivery schedules.
