Introduction
CNC bending is a digitally controlled forming process that turns flat sheet metal or tubing into precise angles, curves, and complex shapes with far less variation than manual methods. In modern manufacturing, it plays a central role in producing parts quickly, accurately, and at scale for industries ranging from automotive to electronics. This article explains how CNC bending works, what machines and materials it involves, and why it improves repeatability, reduces waste, and lowers production costs. It also sets CNC bending in the broader context of sheet metal and tube fabrication, so the technical details that follow are easier to evaluate.
How CNC Bending Shapes Modern Metal Manufacturing
Computer Numerical Control (CNC) bending has fundamentally transformed metal fabrication, replacing manual guesswork with software-driven precision. By integrating digital controls into press brakes and tube bending machinery, manufacturers can manipulate sheet metal and tubular profiles with unprecedented accuracy. This technological shift enables the rapid production of complex geometries that would be economically unfeasible or structurally inferior if assembled via welding or manual forming.
Why CNC bending improves throughput, repeatability, and cost
The integration of digital controls into bending machinery yields immediate gains in production efficiency and part consistency. CNC systems eliminate the need for operators to manually measure and adjust backgauges for every bend. Instead, servo-driven axes position the workpiece automatically, allowing multiple bends to be executed in rapid succession.
This automation significantly reduces downtime. Setup times frequently drop by as much as 60% compared to traditional manual machines. Furthermore, the repeatability of CNC algorithms ensures that the first part matches the thousandth part, driving scrap rates below 2% in well-optimized facilities. Consequently, the per-part cost decreases, making domestic manufacturing more competitive on a global scale.
Where CNC bending fits in sheet metal and tube fabrication
CNC bending technology is predominantly utilized in two distinct sectors of metal fabrication: sheet metal processingand tube forming. In Sheet Metal Fabrication, CNC press brakes utilize a punch and die to create linear bends across flat stock, forming enclosures, brackets, and panels. Conversely, CNC tube bending relies on rotary draw, roll bending, or vector forming techniques to manipulate round, square, or custom extruded tubing without collapsing the internal profiles.
| Feature | CNC Press Brake (Sheet Metal) | CNC Tube Bender (Tubular) |
|---|---|---|
| Primary Stock | Flat sheet or plate metal | Round, square, or rectangular tubes |
| Tooling Type | V-dies, punches, gooseneck tools | Mandrels, wiper dies, bend dies |
| Common Axes | Up to 8-axis backgauging | Multi-axis rotary and carriage feed |
| Typical Applications | Electronic enclosures, chassis | Roll cages, fluid lines, handrails |

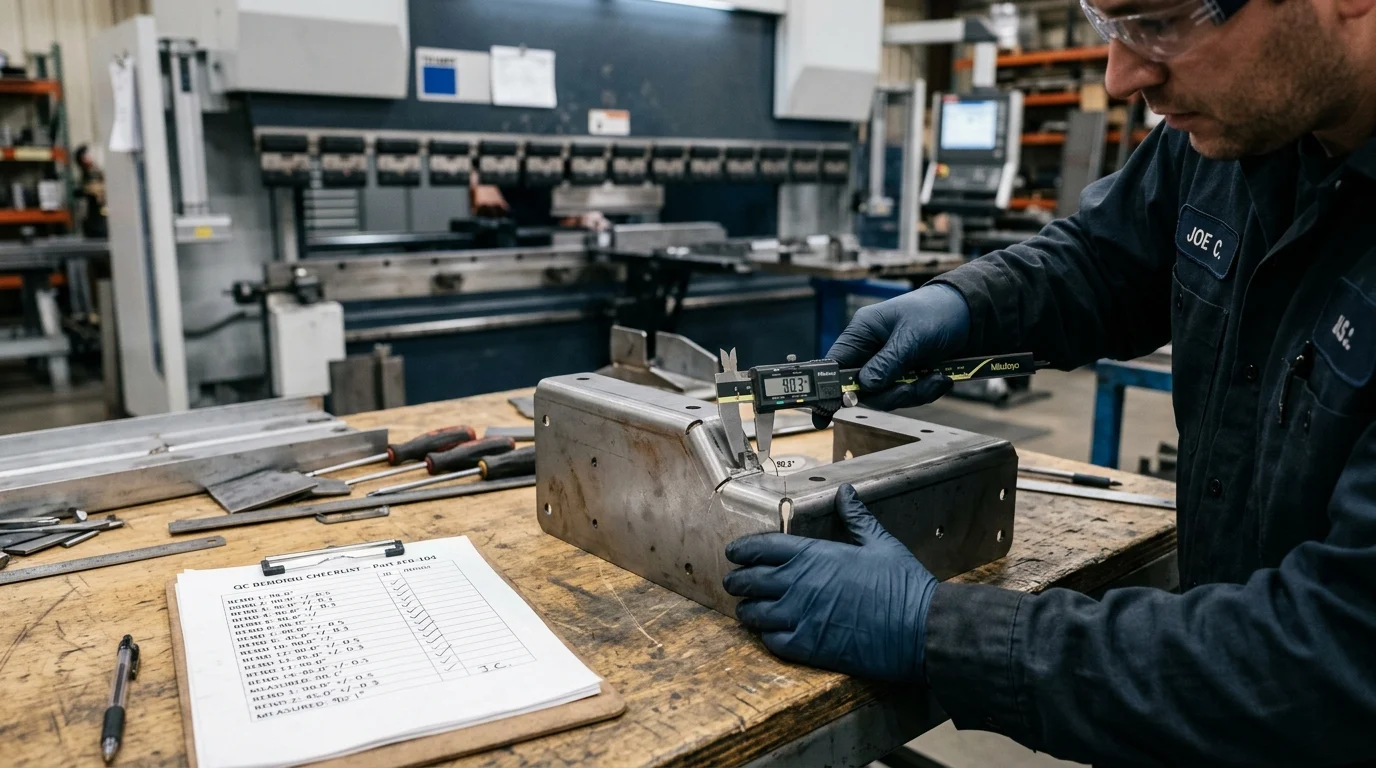

What CNC Bending Is and How It Works
At its core, CNC bending utilizes software-controlled mechanical, hydraulic, or electric force to permanently deform metal along a predetermined axis. The machine translates digital coordinates into physical movements, ensuring the precise application of tonnage to achieve the desired bend angle.
How programmed force, tooling, and backgauges control bends

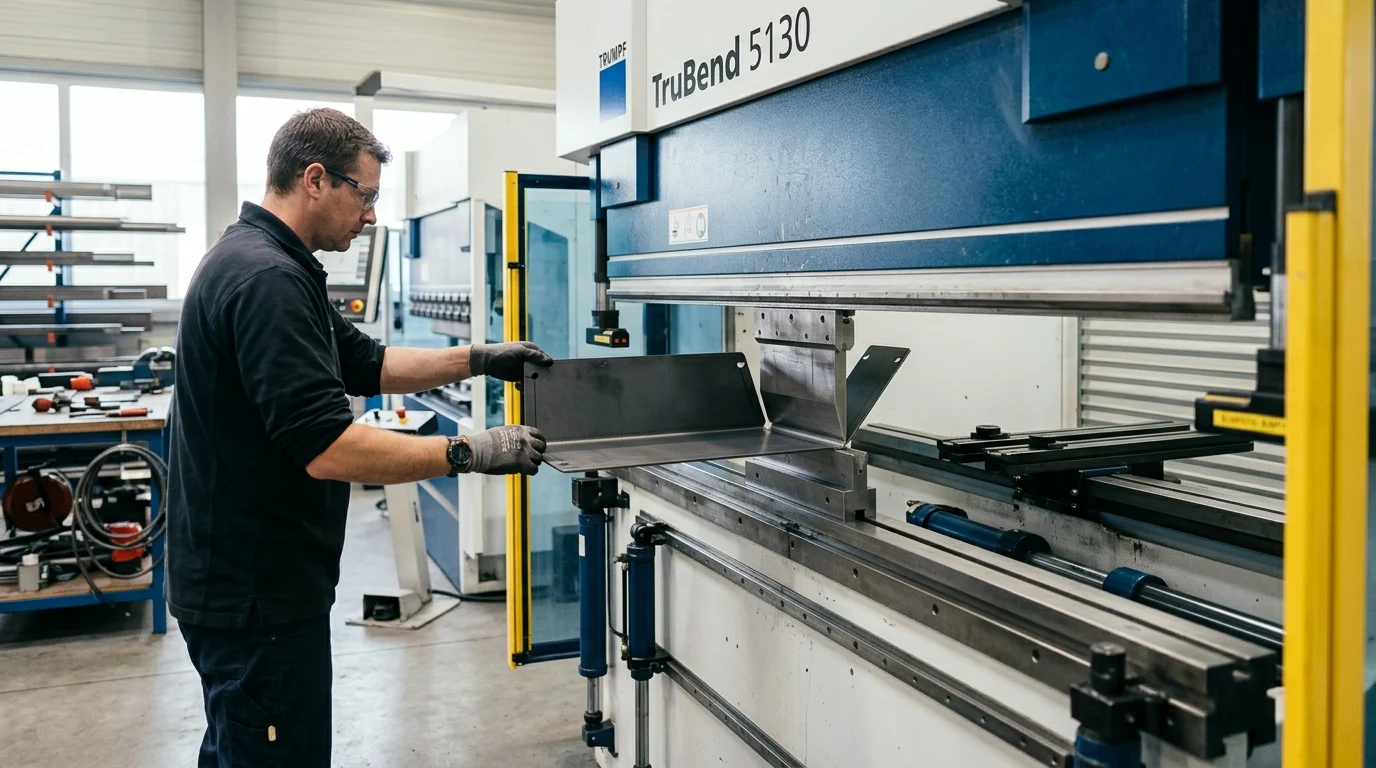

Press brakes rely on a coordinated system of hydraulic cylinders or electric servomotors to drive a punch into a V-die, forcing the metal to bend. The amount of force, or tonnage, is strictly regulated by the CNC controller based on the material's properties. Machine capacities can range from 40 tons for small electronics components to over 1,000 tons for heavy structural plating.
Equally critical are the CNC backgauges. These automated, multi-axis robotic arms position the metal prior to each stroke. Modern press brakes often feature 4-axis to 8-axis backgauges that move in X, Y, and Z planes, allowing operators to execute complex, multi-step bending sequences without putting the part down.
Which materials, thicknesses, radii, and tolerances are feasible
Material selection heavily influences bending feasibility and tooling requirements. Carbon steel, aluminum, and stainless steel are the most commonly processed metals. Thicknesses typically range from delicate 0.5 mm sheets up to heavy 25 mm plates, though extreme thicknesses require specialized heavy-duty tooling and immense tonnage.
Standard tolerances in modern CNC bending sit at ±0.5 degrees for bend angles and ±0.1 mm to ±0.25 mm for linear dimensions, depending on the material gauge. The achievable inside bend radius is dictated by the die opening; as a general rule, the minimum bend radius should equal the material thickness to prevent surface cracking, particularly in harder alloys like 304 stainless steel.
What process steps take parts from CAD data to formed components
The workflow begins with a 3D CAD model, which manufacturing engineers unfold into a flat pattern. During this stage, software calculates the K-factor—a mathematical ratio representing the location of the neutral axis within the material—to determine the exact flat blank size required to achieve the final 3D dimensions.
Once the flat pattern is cut via laser or punch press, the CAM software simulates the bending sequence. This offline programming identifies potential collisions between the part and the machine frame. After simulation, the program is sent directly to the CNC machine, where the operator loads the specified tooling and executes the bends according to recognized industrial standards.
How CNC Bending Compares with Manual and Alternative Methods
Evaluating fabrication methods requires comparing CNC bending against manual forming, progressive die stamping, and welded assemblies. While CNC bending offers a versatile middle ground, understanding its relative strengths and limitations is vital for optimizing production supply chains.
Which criteria matter most in process comparison
Production volume and part complexity represent the primary decision drivers when comparing manufacturing processes. Progressive die stamping requires substantial upfront capital for hard tooling but yields incredibly low per-part costs at high volumes. Stamping generally becomes economically viable at Minimum Order Quantities (MOQs) exceeding 10,000 units.
In contrast, CNC bending utilizes standard tooling (punches and V-dies) that can be swapped rapidly. This flexibility eliminates massive tooling investments, making CNC bending highly cost-effective for prototyping, low-volume runs, and medium-volume production ranging from 1 to 5,000 units. Furthermore, replacing a welded corner with a single CNC bend eliminates welding labor, consumable costs, and the need for secondary grinding operations.
How precision, speed, and flexibility differ across methods
Manual bending relies entirely on operator skill to set mechanical stops and measure angles, leading to higher variability and slower cycle times. CNC bending automates these variables, offering superior precision and speed.
| Process Characteristic | Manual Bending | CNC Bending | Progressive Stamping |
|---|---|---|---|
| Setup Time | High (30-60+ mins) | Low (5-15 mins) | Very High (Hours/Days) |
| Upfront Tooling Cost | Low | Low to Moderate | Very High ($10k - $100k+) |
| Production Speed | Slow (2-4 bends/min) | Fast (8-12 bends/min) | Extremely Fast (60+ parts/min) |
| Flexibility for Changes | Excellent | Excellent | Poor (Requires new die) |
| Best Volume Fit | 1 to 50 units | 50 to 5,000 units | 10,000+ units |
What Quality, Cost, and Production Risks Buyers Should Assess
Procuring CNC bent components requires a thorough evaluation of potential production risks and cost variables. Buyers must understand how material behaviors and supplier capabilities impact the final delivered product.
Which factors drive CNC bending cost
Cost in CNC bending is primarily dictated by machine cycle time, setup complexity, part handling, and tooling requirements. A part requiring six bends on different axes will cost significantly more than a simple right-angle bracket due to the increased handling time.
While standard V-dies incur no extra fees, complex geometries—such as deep channels, hems, or offset bends—may require custom tooling. Designing parts that necessitate custom punches can add $1,000 to $5,000 in upfront non-recurring engineering (NRE) costs. Standardizing bend radii across a part design minimizes tool changes, thereby reducing setup time and lowering the overall unit price.
How quality control and springback management affect outcomes
Springback—the tendency of sheet metal to return partially to its original flat shape after bending pressure is released—is a major quality risk. The degree of springback varies based on the material's yield strength, thickness, and grain direction.
To manage this, CNC machines utilize dynamic crowning and angle measurement systems. Operators must program the machine to overbend the material; for example, high-strength low-alloy (HSLA) steel often requires 2 to 4 degrees of overbending to achieve a perfect 90-degree final angle. Failure to account for springback results in out-of-tolerance parts and assembly failures downstream.
What compliance, documentation, and supplier checks are essential
Proper supplier vetting mitigates risks associated with poor quality control. Buyers should verify that a fabrication partner operates under a robust Quality Management System (QMS), frequently benchmarked against international standards. Checking a supplier's ISO certification ensures they maintain traceable processes for material handling and defect resolution.
Essential documentation includes Material Test Reports (MTRs) to verify alloy composition and First Article Inspection (FAI) reports to confirm dimensional accuracy before full production begins. Establishing acceptable defect rates (often targeted below 500 Parts Per Million) in the supplier agreement protects the buyer from excessive yield losses.
When CNC Bending Is the Right Choice
Identifying the optimal manufacturing process ensures long-term supply chain stability and product quality. CNC bending is not a universal solution, but it provides unmatched value when deployed in the correct operational context.
Which applications are best suited to CNC bending
CNC bending excels in the production of electronic enclosures, medical device chassis, automotive brackets, HVAC ducting, and architectural panels. It is highly advantageous for components that require multiple bends in varying directions, as the multi-axis backgauges can manipulate the part efficiently in a single handling step.
Financially, it is the undisputed choice for medium-volume production runs ranging from 50 to 5,000 units, where product designs may still undergo revisions. Because it relies on programmable software rather than hard tooling, engineers can push design updates to the factory floor without incurring the massive re-tooling penalties associated with stamping or casting.
What criteria help select the right CNC bending partner
Selecting a fabrication partner requires analyzing their technical capabilities, equipment portfolio, and engineering support. Buyers should look for facilities equipped with modern press brakes featuring at least 4-axis (preferably 6-axis) backgauges and automatic crowning systems, which guarantee consistent angles across long bends.
Additionally, partners who utilize offline 3D programming software can simulate bends before the metal hits the floor, reducing setup waste. Evaluating a supplier's capacity—specifically whether their machine tonnage aligns with the buyer's material thickness requirements—ensures that the partner can scale production reliably without stressing their equipment or compromising dimensional integrity.
Key Takeaways
- The most important conclusions and rationale for CNC Bending
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What is CNC bending in metal manufacturing?
CNC bending uses software-controlled press brakes or tube benders to form metal accurately. It replaces manual adjustments with programmed angles, backgauge positions, and force settings for consistent parts.
What materials can be CNC bent?
Common options include carbon steel, stainless steel, and aluminum. Typical thickness ranges from about 0.5 mm sheet to 25 mm plate, depending on machine tonnage, tooling, and bend radius.
How accurate is CNC bending?
Modern CNC bending commonly achieves about ±0.5° on bend angles and ±0.1 to ±0.25 mm on linear dimensions. Actual results depend on material type, thickness, tooling, and setup quality.
When should I choose CNC press brake bending instead of tube bending?
Use press brake bending for flat sheet parts like brackets, panels, and enclosures. Choose tube bending for round or square tubing used in frames, rails, fluid lines, or structural assemblies.
Can Mingli Metal support CNC bending from CAD files?
Yes. Based on the site’s metal fabrication focus, Mingli Metal can work from CAD drawings or flat patterns to plan tooling, calculate bend allowances, and produce formed sheet metal components.
