The Ultimate Sheet Metal RFQ Checklist for Reliable Quotes
Providing complete and accurate details in a sheet metal RFQ checklist improves quote speed and reliability.
- Detailed CAD models and specified tolerances cut down on guesswork.
- Clear welding instructions and hole callouts prevent production issues.
- Suppliers respond quickly when they receive all necessary information.
Key Takeaways
- Provide complete and accurate CAD files, detailed drawings, and a full Bill of Materials to help suppliers give fast and reliable quotes.
- Specify material types, finishes, tolerances, and clear part numbers to avoid confusion and ensure parts meet quality and performance needs.
- Include clear quantities, delivery schedules, and special instructions like welding or packaging to streamline production and prevent costly delays.
Sheet Metal RFQ Checklist: Essential Part Information
CAD Files and 2D Drawings
Accurate CAD files and clear 2D drawings form the foundation of any successful sheet metal RFQ checklist. Suppliers rely on these files to understand part geometry, features, and manufacturing requirements. Missing or incorrect CAD files often lead to quoting errors, delays, or even production issues. Automated quoting systems depend on precise CAD data to check manufacturability and calculate costs. When files lack details or contain errors, suppliers may need to pause quoting or request clarifications, which slows down the process.
Tip: Always include both 3D CAD files and detailed 2D drawings. 3D files show the overall shape, while 2D drawings highlight features like surface finish, hardware inserts, threaded holes, and part marking.
The table below summarizes the most common CAD file types and their roles in the quoting process:
| File Type | Description | Role in Sheet Metal Quoting |
|---|---|---|
| .DXF | 2D Drawing Exchange Format | Standard for flat part files and laser cutting |
| .DWG | AutoCAD 2D/3D Format | Used for detailed part specs and 2D drawings |
| .IGES | 2D/3D Data Exchange | Used for 3D files that can be flattened |
| .SAT | 3D ACIS Text Format | Imported for 3D images and production |
| .STEP/.STP | Neutral 3D CAD Format | Preferred for quoting and manufacturing |
| .SLDPRT | SolidWorks 3D Part File | Accepted, but less preferred than neutral formats |
| .x_t | Parasolid 3D Format | Used for 3D data exchange |
A combination of 3D CAD files (preferably .STEP or .STP) and detailed 2D drawings (.DXF or .DWG) gives suppliers the clearest picture for accurate quoting.
3D Component and Assembly Data
3D component and assembly data help suppliers visualize how parts fit together and function. These files allow design engineers and manufacturers to collaborate more effectively. 3D viewers support many CAD formats, making it easier for teams to review product files and spot potential issues early.
Integrating 3D data with systems like ERP and PLM automates the flow of information between sales, design, and manufacturing. This process reduces the need for repeated clarifications and ensures everyone works from the same set of specifications. Design automation tools can check if a part is manufacturable in real time, preventing costly mistakes.
- 3D data enables automatic unfolding and generation of DXF drawings for nesting and CNC cutting.
- Manufacturing teams receive standardized documentation with clear callouts and annotations.
- Real-time RFQ progress tracking supports better communication from engineering through pricing and quote submission.
By including complete 3D component and assembly data in the sheet metal RFQ checklist, companies streamline production and reduce bottlenecks.
Bill of Materials (BOM)
A detailed Bill of Materials (BOM) is essential for accurate quoting. The BOM lists every component, material, and hardware item needed for the assembly. Missing or incomplete BOMs cause confusion, delays, and errors in ordering or production.
A strong BOM should include:
- The CAD model of the top-level assembly, including all hardware.
- Material type and grade for each part.
- Desired finish details, such as powder coating or anodizing.
- Welding instructions, if needed.
- Tapped hole callouts with diameter and depth.
- Mating part tolerances for proper fit.
- Revision date or number in the file name.
- Alternate parts to address shortages.
- Pre-owned tooling information, if reusing existing tools.
- Notice of secured pricing or consigned inventory.
Note: Providing alternate part numbers helps avoid delays caused by stock issues. A complete BOM reduces back-and-forth communication and ensures timely production.
Part Numbers and Revision Levels
Clear part numbers and revision levels prevent confusion and ensure suppliers quote the correct version of each part. Suppliers need to know which revision to manufacture, especially when multiple versions exist. Including revision dates or numbers in file names and drawings helps everyone stay on the same page.
- Use consistent part numbering across all documents.
- Clearly mark revision levels on CAD files, BOMs, and drawings.
- Bundle files logically to avoid version mix-ups.
When companies follow these practices, they reduce errors and speed up the quoting process.
Quantities and Delivery Schedules
Specifying accurate quantities and clear delivery schedules allows suppliers to plan production efficiently. When companies provide this information up front, suppliers can manage material availability, schedule production, and offer better pricing.
- Accurate quantities help suppliers estimate material needs and labor.
- Clear delivery schedules allow suppliers to balance workloads and minimize lead times.
- Including both standard and expedited delivery options gives flexibility and helps control costs.
Tip: Unclear or changing quantities and schedules often increase lead times and costs due to inefficiencies and the need for expedited services.
A well-prepared sheet metal RFQ checklist always includes shop-ready drawings, technical specs, 3D CAD models, and required delivery dates. This approach reduces delays and ensures suppliers can meet project timelines.

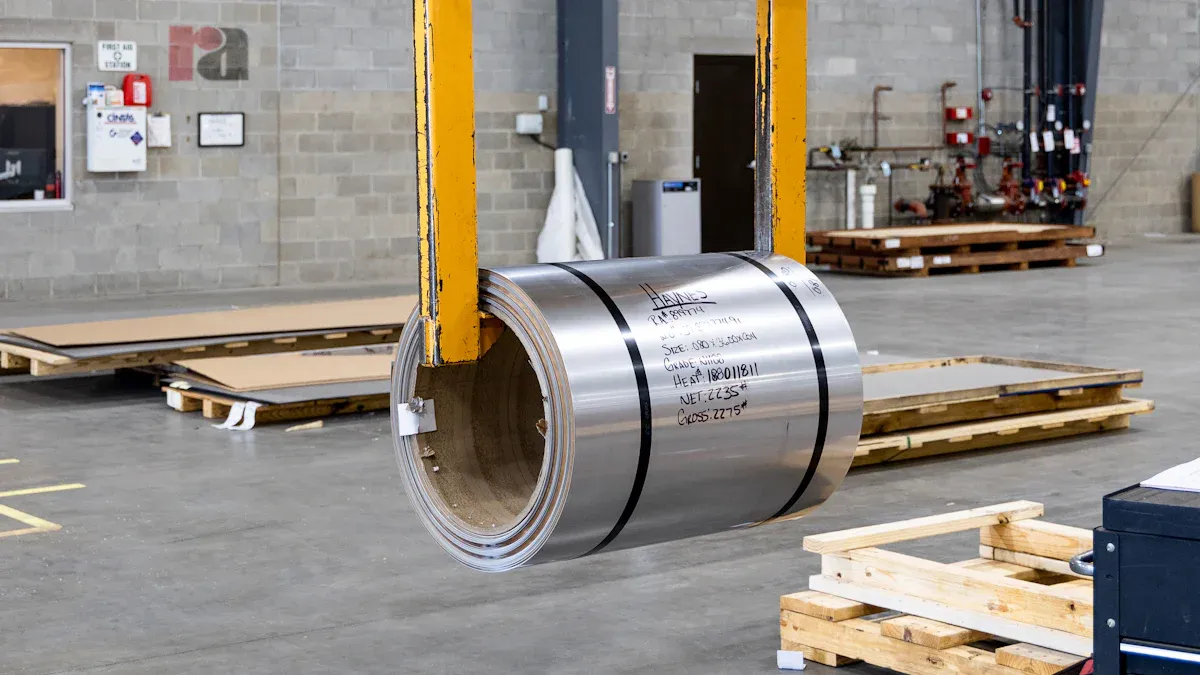

Sheet Metal RFQ Checklist: Material and Finish Requirements
Material Type and Grade
Specifying the correct material type and grade helps suppliers deliver accurate quotes and ensures the part meets performance needs. Steel, stainless steel, and aluminum appear most often in sheet metal RFQ checklist submissions. Each material offers unique properties for strength, corrosion resistance, or formability. The table below highlights common choices and their applications:
| Material Type | Common Grades / Alloys | Key Characteristics / Applications |
|---|---|---|
| Carbon Steel | A36, A1011, A1008, A572 | General use, high strength, cost-effective |
| Stainless Steel | 304, 316, 430 | Corrosion resistance, food-grade, magnetic properties |
| Aluminum | 6061, 5052, 3003, 5083 | Lightweight, marine use, easy to form and weld |
| Galvanized Steel | Hot-dipped, electro-galvanized | Furniture, handrails, corrosion resistance |
| Brass | High tensile strength | Decorative, musical instruments |
| Copper | Excellent conductivity | Electrical, radiators, decorative |
Steel remains the most popular choice due to its weldability and cost. Aluminum and stainless steel serve specialized needs in aerospace, medical, and food industries.
Material Thickness
Material thickness directly affects manufacturability and cost. Reducing thickness from 0.125" to 0.063" can cut material costs by half and speed up laser cutting. However, thinner materials may flex or bow, especially in large panels. For panels over 12" x 12", a minimum thickness of 0.090" prevents oil-canning. Structural parts require careful evaluation to avoid cracking or excessive deflection. Adding ribs or gussets increases rigidity with minimal cost. Choosing the right thickness balances strength, cost, and production speed.
- Avoid over-specifying thickness to control expenses.
- Test unsupported areas for flex to confirm suitability.
Surface Finish or Coating
Surface finish impacts both appearance and durability. Powder coating, anodizing, and bead blasting rank among the most requested finishes. Each finish adds time and cost to production. Powder coating, for example, increases lead time by up to two weeks and raises costs by 25-40%. Type II anodizing suits aluminum parts and adds 3-5 days. Bead blasting hides machining marks and costs less. Combining finishes should be reserved for parts needing multiple surface properties.
| Surface Finish | Use Case | Added Lead Time | Cost Impact / Notes |
|---|---|---|---|
| Powder Coating | Durable, corrosion resistant, aesthetic | 10-14 days | +25-40% cost; color availability affects timing |
| Type II Anodizing | Aluminum, corrosion resistance, color | 3-5 days | +15-25% cost; thickness affects dimensions |
| Bead Blasting | Texture, hides marks | Minimal | $5-15 per part; low impact on lead time |
| Hard Anodizing | Maximum corrosion resistance | 7-10 days | 2-3x cost of Type II anodizing |
Tip: Over-specifying finishes increases cost and delays. Clear finish callouts help vendors estimate lead times and avoid mistakes.
Color Specifications
Color requirements affect both quoting and manufacturing. Specifying color up front determines the finishing process, such as powder coating or anodizing. For visible parts, manufacturers must ensure a flawless finish. Processing all parts in one batch maintains color consistency, while mixing batches can cause shade variations. Internal parts without cosmetic needs allow for simpler, faster production and lower costs. Clear communication of color needs prevents rejects and inaccurate quotes.
Industry Standards or Codes
Industry standards ensure quality and safety. Common references include AWS D1.1 for welding, API 1104 for pipelines, and ASME codes for pressure vessels. These standards specify welding procedures, joint tolerances, and testing methods. Internal documents may define edge treatments, surface grain direction, and finish class. Quality assurance standards like ISO 9001 and PPAP help maintain process reliability and product consistency. Including these requirements in the sheet metal RFQ checklist reduces rework and improves product quality.
Sheet Metal RFQ Checklist: Tolerances and GD&T
Dimensional Tolerances
Dimensional tolerances set the limits for part size and shape. In Sheet Metal Fabrication, edge-to-edge tolerances often reach ±0.005 inches, while bend-to-bend tolerances typically fall around ±0.015 inches. These values depend on material type, thickness, and the number of bends. Tolerance stacking, where multiple tolerances add up, can affect the final accuracy of the part. Tighter tolerances increase costs due to more inspections, specialized equipment, and higher scrap rates. Loosening tolerances from ±0.010 to ±0.015 inches across bends can make manufacturing easier and more affordable. Designers should balance precision with cost by following standard guidelines in the sheet metal RFQ checklist.
Geometric Dimensioning and Tolerancing (GD&T)
Geometric Dimensioning and Tolerancing (GD&T) provides a clear framework for defining allowable variations in part features. GD&T covers shape, orientation, and position, not just size. This system helps engineers and suppliers understand exactly how a part should fit and function in an assembly. For example, GD&T ensures that holes align correctly and surfaces remain flat where needed. Using GD&T reduces confusion and misinterpretation, leading to fewer errors and better collaboration.
Critical Features and Inspection Points
Highlighting critical features and inspection points in the sheet metal RFQ checklist helps control quality and cost. Surface finish requirements and tight tolerances often need special attention. Inspection points should include initial setup, tool changes, and checkpoints during production. In-process inspections catch deviations early, while final inspections verify lot quality using sampling plans like Acceptable Quality Level (AQL). Important inspection criteria include which dimensions to check, when to inspect, and what acceptance levels to use.
Tip: Specify hold points such as Customer Source Inspection (CSI) or Government Source Inspection (GSI) for added quality oversight.
Special Testing or Inspection Requirements
Special testing and inspection requirements influence quoting and production. Visual inspections check for scratches and dents. Dimensional inspections use precise tools to confirm tolerances. Non-destructive testing, such as ultrasonic or radiographic methods, finds internal defects. Specialized tests like salt spray, drop, or temperature checks assess durability and environmental resistance. Orders with unique finishes or certifications require manual review and expert consultation, which can affect pricing and lead times. Including these requirements in the sheet metal RFQ checklist ensures reliable, high-quality parts.
Sheet Metal RFQ Checklist: Special Instructions
Welding or Joining Requirements
Clear welding and joining instructions help manufacturers deliver strong, reliable assemblies. Most RFQs specify welding symbols using AWS A2.4 standards. Notes often include details like "backing required" for butt joints and root opening dimensions between 0.1-0.3mm. Joint types and gap tolerances, usually within 0.1-0.2mm, ensure proper fit. Tack welds every 25-50mm along joints control distortion. Many projects require welding sequences based on AWS D1.1 to minimize heat distortion. Suppliers may need to meet certification standards, such as AWS or ISO 13485, and provide inspection results. TIG, MIG, and laser welding are common methods, each chosen for specific part needs.
Tapped Holes, Countersinks, and Inserts
Tapped holes, countersinks, and inserts add complexity and cost to sheet metal parts. Tapped holes, especially blind ones, need extra depth for full threads, which increases machining time and tool wear. Countersinks must match standard angles and sizes. Incorrect specifications can lead to expensive rework or even part remakes. Inserts and washers can fix issues with shallow or oversized countersinks but add height and assembly steps. Each added feature increases tooling, inspection, and assembly time. Good design balances performance with manufacturability to keep costs down.
Mating Part Tolerances or Assembly Notes
Specifying tolerances and assembly notes ensures parts fit together as intended. Manufacturers rely on clear assembly intent and hardware part numbers to size features like holes correctly. Assembly drawings and instructions clarify the process and expectations. Datum reference planes based on critical mating surfaces help maintain alignment. Listing supplier and part numbers for hardware avoids confusion and costly mistakes. These steps improve accuracy and streamline both inspection and assembly.
Assembly Instructions
Well-prepared assembly instructions prevent production errors. Submitting 3D CAD files that show bend lines and consistent material thickness helps simulate fabrication and catch mistakes early. Using preferred file formats, such as SolidWorks or STEP, ensures compatibility. Zipping multi-file assemblies and labeling them with revision numbers avoids missing references. Following the 4T rule—placing features at least four times the material thickness from bends—prevents deformation. Consistent bend radii reduce tooling changes and save costs. Detailed hardware specs, like self-clinching nuts, ensure correct placement.
Packaging and Shipping Instructions
Proper packaging and shipping instructions protect parts during transit. Packaging design considers part size, shape, and weight. Small, complex parts benefit from foam or blister boxes, while heavy items need sturdy plywood crates. Sheet metal parts are prone to bending and warping, so dividers or top placement in boxes prevent damage. Shipping methods depend on part size and assembly state. Bulk, kit, or assembled shipping affects packaging choices and costs. Fillers, separators, and weight limits keep parts safe. Corrosion prevention, such as vaporizing bags or coatings, maintains quality. Careful route planning and IoT sensors help manage delivery and avoid damage.
Sheet Metal RFQ Checklist: Streamlining the RFQ Process
Preferred Lead Times
Buyers who specify preferred lead times help suppliers plan production and allocate resources efficiently. Clear lead time expectations allow vendors to balance workloads and avoid bottlenecks. Suppliers can recommend realistic schedules and offer expedited options when needed.
Budget or Target Pricing
Setting a budget or target price in an RFQ guides suppliers to submit proposals that match financial constraints. Suppliers use this information to recommend cost-effective processes and materials. In the automotive industry, detailed cost modeling and target pricing reduced procurement costs by 15%. Clear quotation conditions, such as target pricing, reduce ambiguity and risk, leading to more accurate and competitive quotes.
Contact Information and Communication Preferences
Suppliers request multiple contact channels to ensure smooth communication. The table below lists common contact details:
| Contact Detail Type | Examples / Description |
|---|---|
| Physical Address | 63739 street lorem ipsum City, Country |
| Phone Numbers | +12 (0) 345 678 9, 800-272-7023, 509-536-4097 |
| info@company.com | |
| Social Media Platforms | Twitter, Facebook, LinkedIn, Skype |
| Specific Contact Options | Sales inquiries, distributor search, literature requests, customer service |
Software or File Format Requirements
Suppliers prefer specific file formats for RFQ submissions:
- STEP, SolidWorks, Parasolid, and IGES for 3D CAD files
- PDF for annotated drawings
- DXF for flat patterns
- Avoid STL files and screenshots
- Zip 3D models and 2D drawings together for clarity
Request for Design for Manufacturability (DFM) Feedback
Requesting DFM feedback allows suppliers to identify manufacturability issues early. Automated tools like DFMPro validate designs and support multiple CAD platforms. Early feedback improves quality, reduces costs, and shortens development cycles. Collaborative engineering discussions optimize designs for production.
Supplier Qualifications or Certifications
Quality assurance depends on supplier certifications:
- ISO 9001:2015 for quality management
- AWS D1.1 for welding standards
- ASME Section IX for pressure vessels
- AISC Certification for steel fabrication
- ANSI Standards for safety
- UL Certification for electrical components
- OSHA Compliance for workplace safety
Procurement Provisions and Contract Requirements
Buyers should include procurement terms such as payment schedules, warranty conditions, and delivery responsibilities. Clear contract requirements protect both parties and ensure smooth transactions.
Commonly Missed Details Checklist
A checklist helps buyers avoid common mistakes:
- Missing revision numbers
- Unclear material specifications
- Incomplete BOMs
- Lack of finish or color details
- Missing packaging instructions
Tip: Reviewing the sheet metal RFQ checklist before submission prevents costly errors and delays.
A complete sheet metal RFQ checklist helps companies get accurate and fast quotes. Teams who use this checklist for every project avoid costly mistakes. Readers can download a free template to simplify their process. Clear details and open communication with suppliers lead to better results.
FAQ
What file formats do sheet metal suppliers prefer for RFQs?
Suppliers prefer STEP, SolidWorks, and DXF files. These formats provide clear geometry and details for accurate quoting.
How does missing information affect sheet metal quotes?
Missing details cause delays and errors. Suppliers may request clarifications, which slows down the quoting process and increases costs.
Why should buyers specify material grade in the RFQ?
Material grade determines strength and performance. Suppliers need this information to select the right stock and provide reliable pricing.
