The Ultimate Guide to Optimizing Aluminum Sheet Metal Anodizing

Anodizing aluminum sheet metal is essential for enhancing its performance and durability. This process creates a robust, protective oxide layer on the surface. An optimized anodizing process offers significant advantages. It notably improves both corrosion and wear resistance. For instance, specific electrolyte compositions in anodizing aluminum sheet metal applications enhance corrosion resistance in simulated acid rain, reducing material dissolution. Combining anodizing with nickel electroplating can also achieve significantly higher wear life.

Key Takeaways

• Anodizing aluminum makes it stronger and last longer. It adds a protective layer that stops rust and wear.
• Good surface cleaning is very important before anodizing. This helps the protective layer stick well.
• There are different types of anodizing for different needs. Some make the metal hard, others make it colorful.
• Sealing the aluminum after anodizing is a key step. It closes tiny holes and makes the metal even more protected.
• Careful control of the process, like temperature and power, helps make the best anodized aluminum.

How Anodizing Aluminum Sheet Metal Works

Anodizing transforms the surface of aluminum sheet metal through a controlled electrochemical process. This process builds a durable, protective oxide layer. Understanding each step ensures optimal results.

Surface Preparation for Anodizing

Proper surface preparation is crucial for successful anodizing. It ensures the anodized layer adheres correctly and appears uniform. First, technicians perform initial cleaning. They use soap and water, then degrease the parts, often with solutions like Simple Green. This removes oils and dirt. A water-break test can confirm cleanliness. Next, chemical etching removes a thin surface layer and the native oxide film. This step often uses an alkaline process, which removes die lines and other surface defects, creating a smooth, even appearance. Etching can also make items more matte. After etching, de-smutting removes any black smut that forms on some alloys. This prepares the surface for the acidic anodic solution. Physical preparation methods like sanding, buffing, polishing, or abrasive blasting also remove imperfections and achieve desired finishes before chemical treatments.

The Electrochemical Anodizing Process

The core of anodizing involves an electrochemical reaction. Technicians immerse the prepared aluminum sheet metal into an electrolyte bath. The aluminum acts as the anode, and a cathode is also present in the bath. They then apply a direct electrical current. This current causes oxygen ions to release from the electrolyte. These ions react with the aluminum surface, forming a porous aluminum oxide layer. The thickness and density of this layer depend on factors like current density, electrolyte type, and processing time.

Optional Coloring Techniques

After forming the porous oxide layer, technicians can introduce color. Two primary methods exist for coloring anodized aluminum sheet metal. Dyeing involves immersing the anodized part in a dye bath. The porous oxide layer absorbs the dye, allowing for a wide range of colors, from light pastels to deep hues. Examples of dyes include Acid Red 88 for red or Acid Black 1 for grey. Electrolytic coloring, also known as two-step anodizing, offers another option. This method introduces metal salts, such as tin, nickel, or cobalt, into the pores during a second electrochemical step. It typically produces more durable, UV-resistant colors like bronze and black, making it suitable for outdoor and architectural applications.

Sealing for Enhanced Durability

After the anodizing process, the aluminum oxide coating remains porous. This porosity can allow contaminants to adhere to the surface. Sealing is a critical final step that closes these pores. This process significantly enhances the material's anti-corrosion properties and improves its decorative appearance. An alternative to standard sealing is impregnation. This method fills the coatings with specific substances. Impregnation primarily aims to improve the tribological properties of anodized elements, depending on porosity and adhesion.

The sealing process protects the aluminum component from corrosion and further wear. Anodized aluminum is known for its exceptional durability. The anodization process creates a protective layer highly resistant to corrosion, scratches, and wear. This protective barrier prevents direct contact with corrosive elements like moisture and chemicals. It extends the lifespan of products and makes them suitable for harsh environments. Proper sealing after anodizing aluminum sheet metal significantly extends its lifespan.

Several methods exist for sealing anodized aluminum:

• High-Temperature Sealing: This method uses hot deionized water or metal salt baths. It seals by hydrating the anodic coating, causing pores to swell and close. This approach is simple to maintain and environmentally friendly, as it avoids metallic ions. It works well for uncolored or electrolytically colored aluminum. However, it can be costly due to high-temperature maintenance and requires longer sealing times. It may also lead to sealing smut.
• Mid-Temperature Sealing: This technique employs metal salt solutions, such as nickel, magnesium, or cobalt, at temperatures 20-30°F lower than hot seals. It effectively prevents dye-bleed in colored parts. This method requires less sealing time, offering energy and cost savings. It prevents sealing smut and ensures consistent color, though analytical control is more challenging than with hot water seals.
• Room-Temperature (Cold) Sealing: Operating at 75-85°F, this method reduces energy costs. It typically uses nickel-fluoride-based chemistries. These chemistries plug pores and simultaneously etch the surface, improving bonding and adhesion while reducing smut. Cold sealing is more challenging to control than hot water seals and may require a hot water post-seal rinse. It is often considered for the highest quality seals.
• Specialized Sealing Methods: Other techniques include Teflon sealing, which improves lubricity, and two-step sealing, used for enhanced corrosion resistance.

Types of Anodizing for Aluminum Sheet Metal

Different applications require specific anodizing processes. Each type offers unique characteristics and benefits for aluminum sheet metal.

Type I: Chromic Acid Anodizing

Type I chromic acid anodizing produces the thinnest anodic coating. This coating is typically around 2.5 micrometers (0.0001 inches) thick. Despite its thinness, it provides excellent corrosion resistance, comparable to other anodizing methods. The coating usually appears darker, ranging from light gray to dark gray or brown, and does not color effectively with dyes. This process is ideal for parts requiring tight tolerances because it does not significantly alter dimensions. It also enhances drawing and forming processes.

Manufacturers frequently use Type I anodizing for aerospace components under high stress, such as landing gear. It also protects precision machined parts, welded assemblies, and serves as an excellent base for paint or primer. The aluminum oxide film creates a chemically active surface, improving paint adhesion and overall bond strength. This method performs best on aluminum with minimal alloying components. It is also suitable for components with tiny blind holes and for applications where complete electrolyte removal is critical for safety, such as parts used with explosives.

Type II: Sulfuric Acid Anodizing

Type II sulfuric acid anodizing is the most common method. It creates a protective aluminum oxide layer on aluminum substrates. This process is well-suited for applications needing hardness, abrasion resistance, and improved surface corrosion protection. It also serves as a good base for paint systems. The porous nature of the films before sealing allows for vibrant colored finishes.

Type II coatings typically range from 0.00007 to 0.001 inches thick, depending on the specific alloy and process. This process improves aesthetics, offers good wear and corrosion resistance, and increases the material’s ability to retain lubricants. It also provides electrical and thermal insulation. The thickness of the oxide layer can be controlled by adjusting voltage and time in the bath. Thicker layers are generally more durable and corrosion-resistant, while thinner layers are smoother and more aesthetically pleasing. This process produces a uniform protective layer with several benefits, including enhanced appearance and electrical insulation.

Type III: Hard Coat Anodizing

Type III hard coat anodizing produces exceptionally hard and durable finishes. This process significantly enhances wear resistance, often exceeding that of other hard coatings like electroless nickel or hard chrome. While there is no single typical hardness, Type III coatings can achieve a Rockwell C hardness of 50 to 60 (equivalent to 520–700 HV) under specific conditions. Harder and thicker coatings generally show better wear resistance.

These coatings offer superior wear resistance, as demonstrated by Taber abrasion testing. They also resist damage from corrosion and abrasion. The greater material hardness and thicker oxide layers make them well-suited for demanding applications. Type III anodizing is crucial for components requiring maximum durability and protection against harsh environments.

Specialized Anodizing Methods

Beyond the standard Type I, II, and III processes, several specialized anodizing methods address unique application requirements. These techniques offer distinct advantages for specific performance needs.

One such method is Phosphoric Acid Anodizing (PAA). Manufacturers primarily use PAA as a surface preparation for adhesive bonding, especially in the aerospace industry. This process creates a very thin, highly porous oxide layer. This porous structure provides an excellent mechanical key for adhesives, significantly improving bond strength and durability. PAA coatings typically measure less than 1 micrometer thick. They do not offer significant corrosion or wear resistance on their own. Instead, they optimize the aluminum surface for subsequent bonding operations.

Another advanced technique is Plasma Electrolytic Oxidation (PEO), also known as Micro-Arc Oxidation (MAO). This process forms ceramic-like coatings on aluminum and other light metals. PEO involves applying high voltages in an electrolyte, generating micro-arcs on the metal surface. These arcs create a dense, hard, and thick oxide layer with a crystalline structure. PEO coatings offer exceptional wear resistance, superior corrosion protection, and excellent thermal insulation properties. Engineers often specify PEO for components operating in harsh environments or requiring extreme durability, such as automotive parts, medical devices, and military equipment.

Boric-Sulfuric Acid Anodizing (BSAA) presents an environmentally friendly alternative to chromic acid anodizing (Type I). BSAA produces a thin, corrosion-resistant coating without using hexavalent chromium, a hazardous substance. This method provides similar corrosion protection to Type I anodizing. It also maintains tight dimensional tolerances. Industries adopt BSAA for aerospace components and other applications where environmental regulations restrict chromate use. These specialized methods expand the capabilities of aluminum sheet metal, allowing for tailored performance characteristics.

Optimizing the Anodizing Aluminum Sheet Metal Process

Achieving optimal results in anodizing aluminum sheet metal requires careful attention to several critical factors. These factors range from the initial material selection to precise control over the process parameters. Optimizing each step ensures the final product meets specific performance and aesthetic requirements.

Alloy Selection for Anodizing

The choice of aluminum alloy significantly impacts the anodizing process and the final coating properties. Different alloying elements react differently during anodization. This affects the quality, thickness, and appearance of the anodic film.

During anodizing, only aluminum forms anodic aluminum oxide (AAO). Alloying components, however, enrich the layer directly beneath the anode film. When these alloying components reach a critical concentration, they can oxidize or dissolve. This leads to a loose and porous oxide structure. For example, alloys with a higher copper content, such as 0.15 wt% in AA#1, reach this critical concentration almost immediately. This results in poorer mechanical properties and adhesion. In contrast, alloys with lower copper content, like 0.06 wt% in AA#2, reach this critical concentration at a greater depth (20–30 µm). This creates a more uniform and less porous AAO structure with improved mechanical strength and adhesion.

Alloy	Copper Content (wt%)	Pull-off Adhesion (N/mm²)	Peel Test Adhesion (N/mm)	Microhardness (HV)
AA#1	0.15	12	2.5	295
AA#2	0.06	27	5.5	489

Researchers have investigated the formation behavior of anodic oxide films on various alloys. These include:

• Pure Al
• AA1050
• AA2024
• AA5052
• AA6061
• AA7075

They analyzed film formation voltage-time curves, film growth rate, surface appearance, surface and cross-sectional morphologies, and hardness of the AAO films. This research helps understand the roles of alloying elements. Selecting the right alloy for anodizing aluminum sheet metal is a crucial first step for successful outcomes.

Coating Thickness Control

Precise control over coating thickness is essential for achieving desired performance characteristics. Various process parameters influence the final thickness of the anodized layer.

Methods for precisely controlling anodized coating thickness involve adjusting several process parameters:

1. Acid Type, Concentration, and Temperature: The type of acid (e.g., chromic, sulfuric), its concentration, and the temperature of the anodizing tank are critical. These factors influence the desired finish and color. For instance, low temperatures and acid concentrations yield a less porous and harder coating. Higher temperatures and acid content, along with longer immersion times, produce softer, more porous coatings.
2. Electrical Current and Voltage: A DC power source is used. Voltage typically remains between 18 and 24 volts for normal sulfuric anodizing. The amount of current applied varies depending on the surface area to be treated. It generally ranges between 12 and 16 amps per square foot of coverage. Surfaces closer to the cathode receive a thicker anodic coating.
3. Immersion Times: The duration of immersion in the anodizing tank directly impacts coating thickness. This typically lasts less than an hour under normal conditions.
4. Agitation: The electrolyte solution is agitated during the anodizing process. This ensures a uniform solution temperature, which contributes to consistent coating application.
5. Alloy Composition: Minor changes to the aluminum alloy itself can significantly affect the coating properties and thickness.

Industry standards ensure quality and consistency in anodized coatings. These specifications implicitly cover thickness requirements and measurement. Examples include:

• Military Anodizing Standards: MIL-A-8625 (Anodic Coatings for Aluminum and Aluminum Alloys), MIL-STD-171 (Standard for Finishing and Treating Surfaces).
• ASTM Anodizing Standards: ASTM B244-09 (Measurement of Thickness of Anodic Coatings on Aluminum with Eddy-Current Instruments), ASTM B487-85 (Measurement of Metal and Oxide Coating Thickness by Microscopical Examination), ASTM B137-95 (Measurement of Coating Mass Per Unit Area), ASTM B580-79 (Specification for Anodic Oxide Coatings on Aluminum).
• SAE International AMS (Aerospace Materials Specifications) Anodizing Standards: AMS2468, AMS2469 (Hardcoating treatment of aluminum alloys), AMS2471, AMS2472 (Anodic Treatment of Aluminum Alloys Sulfuric Acid Process), AMS-A-8625 (copy of MIL-A-8625).
• International Standards: ISO 7599 (General specifications for anodic oxide coatings on aluminium), ISO 8078, ISO 8079 (Anodic treatment of aluminum alloys – Sulfuric acid process), ISO 10074 (Specification for hard anodic oxidation coatings).
• BS, DIN, EN Anodizing Standards: BS/DIN EN 2101 (Chromic acid anodizing), BS/DIN 2284 (Sulfuric acid anodizing), BS/DIN 2536 (Hard anodizing), DIN EN ISO 7599 (Anodizing aluminum and aluminum alloys).

Masking and Selective Anodizing

Masking allows for selective anodizing, protecting specific areas of the aluminum sheet metal from the anodizing process. This technique is useful when certain parts require different finishes or remain electrically conductive.

Masking Material/Technique	Description/Application
Materials
Tapes	Adhesive tapes are designed to withstand anodizing. Technicians easily apply and remove them. They are trimmable. Tapes can lift or leak if not properly prepared.
Lacquers	Lacquers form a solid, impermeable barrier when cured. They are suitable for detailed or delicate applications. Lacquers require careful selection for chemical resistance and solvents for removal.
Waxes	Waxes are soft and pliable. Technicians apply them molten. They are good for filling voids or covering irregular surfaces. Waxes are easy to remove without residue. They may not withstand all chemicals and can contaminate tanks.
Plugging and Capping	Silicone or rubber plugs/caps protect threaded areas, holes, and recessed parts. They are reusable and cost-effective for large jobs. They are not suitable for flat surfaces.
Techniques
Brushing	Brushing applies a chemical mask directly for precision and control. This is especially useful around edges and tight spaces, ensuring sharp delineation. It often requires a template.
Pre-cut Shapes	Utilizing pre-cut masking materials streamlines processes. It provides consistency and repeatability in production environments.

Proper application of masking materials prevents the anodizing solution from reaching protected areas. This ensures the desired selective treatment. Choosing the correct masking material and technique depends on the part's geometry, the required precision, and the anodizing process parameters.

Jigging and Rack Design Considerations

Proper jigging and rack design are crucial for successful anodizing. They ensure uniform current distribution and consistent coating quality across all parts. Poor design can lead to uneven anodizing, inconsistent thickness, and defects.

Best practices for jigging and rack design ensure uniform current distribution during aluminum anodizing.

• Technicians must tighten secure parts. This ensures even electrolyte flow. It also prevents shadowing, which causes uneven current distribution.
• Custom jigs allow for precise and repeatable positioning. This is crucial for uniform exposure.
• Auxiliary anodes or shields help direct current flow. They minimize edge effects, a common cause of non-uniform anodizing.
• Careful management of current density and orientation is essential for even distribution, especially for larger parts.
• Agitation or controlled solution flow prevents uneven buildup on surfaces. This contributes to more uniform current delivery.
• Changing anode placements helps maintain consistent thickness for complex shapes.
• Rotating racks or controlled movement methods help maintain uniform exposure across the part's surface.

The material of the racks also matters. Titanium is often preferred due to its excellent conductivity and resistance to the anodizing bath. Aluminum racks can also be used, but they will anodize along with the parts, requiring frequent stripping.

Power Supply and Current Density Management

The power supply is the heart of the anodizing process. It delivers the direct current (DC) necessary for oxide layer formation. Precise control over voltage and current density directly impacts the quality and characteristics of the anodized coating.

A stable DC rectifier with programmable control is crucial. It allows precise regulation of current density, output voltage, and ramp-up profiles. A high power factor and low ripple rate are essential for uniform oxide film formation and process repeatability. The voltage range typically falls between 12 and 24 volts for baseline anodizing. This varies with the material and desired oxide layer thickness. A standard current density setting for general anodizing is 1-3 A/dm².

When alternating current (AC) converts to DC, the current flows in ripples. These ripples can cause electrochemical processes to slow or stop momentarily. The range of fluctuation in these ripples significantly impacts throwing power and plating quality. Higher ripple fluctuations lead to more exaggerated effects and uneven deposition, resulting in low quality. For instance, if the ripple drops below a minimum threshold, no material deposits. This leads to milky and dull deposits. A ripple factor of less than 5% is set to prevent excessive fluctuation that causes layer discrepancies. Using a switch-mode rectifier provides a steady current without dropping to zero. This significantly improves plating quality, especially for complex shapes. It ensures more even deposition and reduces defects like burns.

Excessive current density, typically above 3.0 A/dm² for hard anodizing, can lead to defects. These defects include burning, characterized by dark, rough, or powdery patches on the coating surface. This highlights the importance of maintaining optimal current density ranges to prevent quality issues. A large ripple coefficient also accelerates the temperature rise of the plating solution. This happens because increased harmonic components generate ohmic heat. Smooth DC helps maintain lower bath temperatures. To ensure a lower output ripple coefficient, the rectifier's working current should be close to its rated current. The rated output power supply voltage should also be selected to be near the maximum demand value.

Electrolyte Composition and Temperature Control

The electrolyte bath's composition and temperature are critical parameters. They directly influence the growth rate, porosity, hardness, and overall quality of the anodic oxide layer. Maintaining these factors within optimal ranges ensures consistent and high-performance results.

For optimal anodizing results, the ideal temperature range is typically between 10°C to 20°C. Within this range, the anodic oxide layer develops a porous structure suitable for dye absorption and sealing. An optimal sulfuric acid concentration of 15%-20% is crucial for balancing film thickness and durability. Higher concentrations can lead to faster film dissolution, reducing hardness and abrasion resistance. However, they may increase porosity, which is beneficial for coloring applications. The interplay between temperature and electrolyte concentration is vital. For instance, a high concentration at lower temperatures can hinder proper film formation.

For sulfuric acid anodizing, technicians typically maintain the electrolyte bath temperature between 18°C to 22°C (64°F to 72°F). Lower temperatures prolong the anodizing process and result in thinner coatings. Higher temperatures can accelerate the reaction and produce thicker oxide layers.

The concentration of the electrolyte also plays a significant role:

Property	Low Concentration	Optimal Concentration	High Concentration
Film Thickness	Moderate	Ideal	Reduced
Hardness	High	Optimal	Lower
Abrasion Resistance	Moderate	High	Low
Porosity	Low	Balanced	High

Careful monitoring and adjustment of both temperature and electrolyte concentration are essential for achieving the desired properties in the anodized coating.

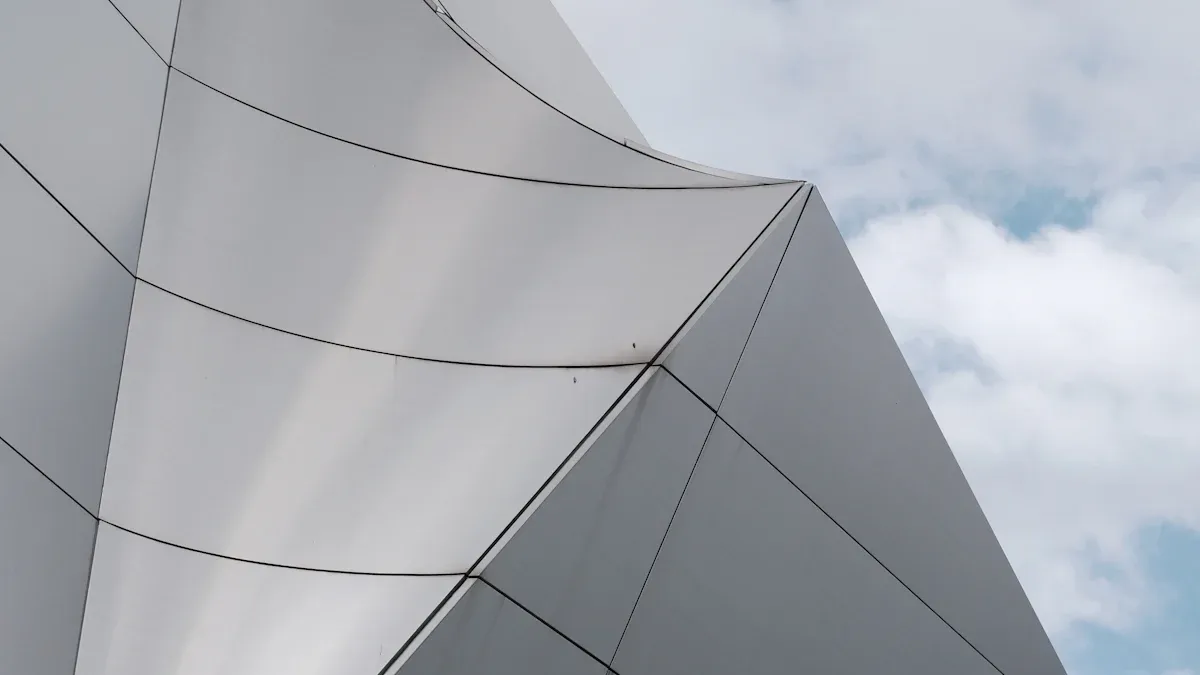

Benefits and Applications of Anodized Aluminum Sheet Metal

Enhanced Corrosion Resistance

Anodizing significantly improves aluminum's resistance to corrosion. The process creates a hard, protective oxide layer on the surface. This layer acts as a barrier against environmental elements. Laboratory testing demonstrated a novel treatment for anodized aluminum components. This treatment showed a 10-fold improvement in corrosion resistance compared to untreated surfaces. This enhancement makes anodized aluminum suitable for harsh environments.

Improved Wear Resistance

Anodized aluminum exhibits superior wear resistance. The hard oxide layer protects the underlying metal from abrasion and friction. For heavy-wear applications, Type III anodizing typically targets a coating thickness of 50-75 micrometers. This maximizes protection and hardness. Standard testing protocols for wear resistance evaluation for Type III anodizing include Taber abrasion testing. The table below compares wear resistance metrics:

Performance Metric	Type II (Conventional Anodize)	Type III (Hardcoat Anodize)
Abrasion Resistance	Moderate	Excellent
Coating Thickness	5 – 25 µm	25 – 100 µm
Surface Hardness	200 – 400 HV	600 – 700 HV

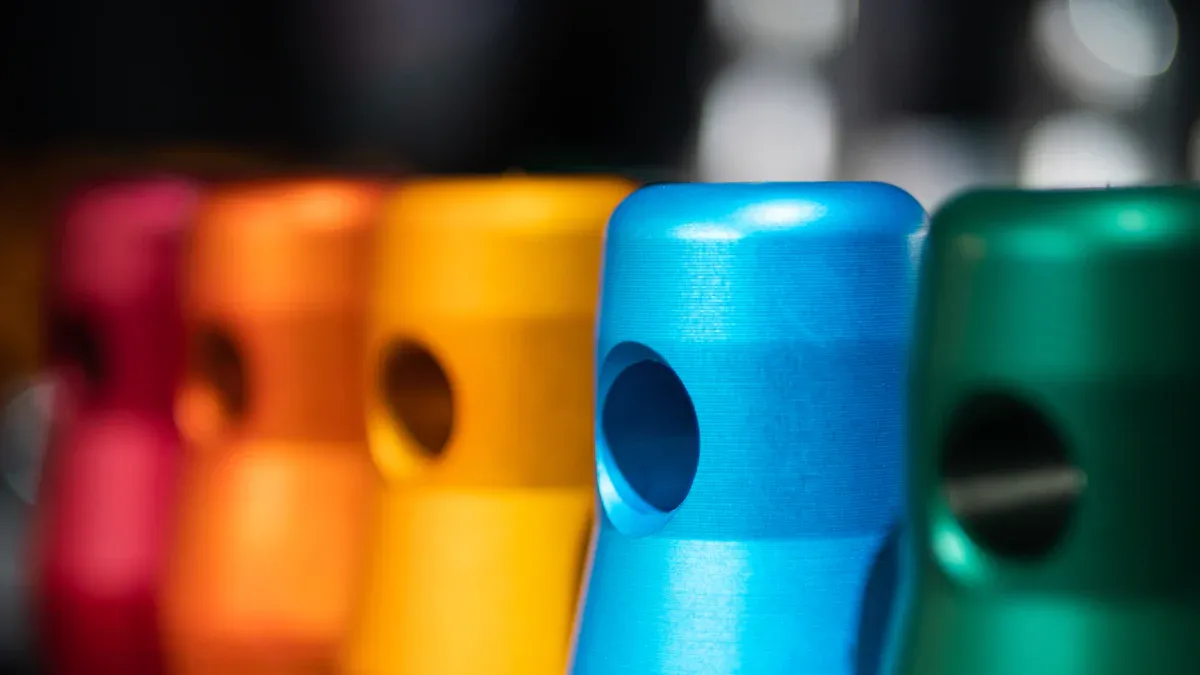

Aesthetic Appeal and Color Options

Anodized aluminum offers a wide range of aesthetic possibilities. It comes in various colors. These include:

• Black: Often used in electronics and automotive for a sleek appearance.
• Silver: Common in architectural elements and consumer products for a clean look.
• Bronze: Popular in architectural and furniture design for a warm, metallic finish.
• Gold: Desired for luxurious decorative applications.
• Red, Blue, Green, Purple: Vibrant colors for consumer electronics and sporting goods.

Custom colors are also achievable. Finishes can range from matte to glossy. Maintaining consistent color across batches requires careful attention to several factors. These include:

• Metal consistency: Use material from one 'lot' and avoid mixing aluminum alloys.
• Pre-finishing processes: Perform bending and forming before anodizing to prevent 'crazing'.
• Welding considerations: Heat from welding can cause localized discoloration. Use proper welding wire and low heat.
• Automated processes: Anodizers utilizing automation help reduce inconsistencies.
• Process control: Precise control of temperature, immersion time, and coloring agent concentration is essential.
• Quality control: Use numerical values, like the CIE method, for precise color specifications instead of visual samples.
• Communication: Effective communication with the anodizer helps address variations and achieve desired consistency.

Electrical Insulation Properties

Anodized aluminum sheet metal possesses excellent electrical insulation properties. The aluminum oxide layer formed during anodizing is non-conductive. This layer effectively prevents the flow of electricity. The thickness of the anodic coating directly influences its dielectric strength. Thicker coatings provide better insulation. This characteristic makes anodized aluminum valuable in applications requiring electrical isolation. For example, it protects electronic components from short circuits. It also serves as a dielectric in capacitors. This property enhances the safety and functionality of many electrical and electronic devices.

Key Industry Applications

Anodized aluminum sheet metal finds critical use across numerous industries. Its enhanced properties make it indispensable for product performance.

• Aerospace and Aviation: Anodized aluminum is crucial for aircraft components. It protects aircraft skins, hydraulic fittings, and structural parts from corrosion. It also improves fatigue resistance. Boric-sulfuric acid anodizing enhances paint adhesion on aircraft exteriors. Black anodized aluminum is common for aircraft interior components like seat parts, window frames, and trim. It also appears in lightweight structural components, instrumentation, controls, and avionic systems.

• Military and Defense: This material has broad applications in tactical gear. It is used for rail systems and mounts due to its lightweight and corrosion resistance. Vehicle components, such as armored trim and interior hardware, also utilize it. Optical equipment like binoculars and scopes, along with body armor, benefit from anodized aluminum.

• Automotive and Transportation: Anodizing improves both appearance and performance in vehicles. Hardcoat anodizing protects gears and pistons from wear. It also enhances exterior trim durability. The material is used in electric vehicles for heat sinks and battery components. This is due to its thermal conductivity and corrosion resistance. It is also utilized for wheels, engine components, performance parts, racing components, and exterior accents.

• Architecture and Construction: Anodized aluminum enhances building facades, windows, doors, and roofing systems. It offers excellent corrosion resistance and color stability. It meets architectural specifications for minimal color shift.

• Industrial Machinery: Manufacturers frequently use anodized aluminum in heavy equipment. This includes conveyors, automated systems, and packaging machinery for durability. It is also found in manufacturing equipment like robotic arms and jigs. Material handling systems and oil and gas equipment also benefit from its properties.

Quality Control and Troubleshooting Anodizing Aluminum Sheet Metal

Maintaining high quality in anodized aluminum sheet metal requires rigorous control and effective troubleshooting. This ensures the final product meets performance and aesthetic standards.

Coating Thickness Measurement

Accurate measurement of coating thickness is fundamental for quality control. The Eddy Current Method is the most common technique for this purpose. A probe with a coil generates a high-frequency field. This field interacts with the metallic conductor, producing eddy currents. These currents alter the probe coil's impedance. The change in impedance, which depends on the distance between the probe and the conductive substrate, converts into a digital reading of the coating thickness. Hand-held instruments with built-in or separate probes, as well as benchtop units, are available. Built-in probes suit continuous coil anodizing with large measurement areas. Separate probes work better for batch anodizing processes involving various part shapes and sizes.

For precise measurement of ultra-thin anodized layers on aluminum substrates, the MetriTec™ Coating Thickness Gauge M225 with the N1500 probe is recommended. All listed coating thickness gauges comply with ISO and ASTM standards.

Model/SKU#	Principles	Measuring Range	Best for
MetriTec™ Coating Thickness Gauge M220H ELCG220H	Fe: Hall Effect, NFe: Eddy current	0.0-5000μm	Conventional coating
MetriTec™ Coating Thickness Gauge M225+F500 ELCG0225-01	Magnetic Induction	0.0-500μm	Ultra-thin electroplated coating
MetriTec™ Coating Thickness Gauge M225+N1500 ELCG0225-02	Eddy current	0.0-1500μm	Ultra-thin anodized layer
MetriTec™ Coating Thickness Gauge M225+N2000 ELCG0225-03	Eddy current	0.0-2000μm	Large-area panel coating, PCB coating

ASTM Standard B 244 details factors influencing accuracy. These include distance to the edge, surface curvature, substrate thickness, heat treatment, surface roughness, and probe pressure.

Adhesion and Sealing Quality Checks

Evaluating adhesion and sealing quality ensures the durability and protective properties of the anodized coating. The ASTM B136-84 "Modified Stain Test" is a recognized quick method for checking seal quality. This procedure involves contacting the test area with nitric acid solution, rinsing and drying, then applying a special dye solution. After further rinsing and rubbing with pumice powder, technicians dry the area and visually examine it for dye retention. Coatings showing no dye stain or color change pass the test.

Common tests for evaluating adhesion and sealing quality, particularly under the AMS 2472 standard, include:

• Adhesion Testing: This in-process inspection verifies the robust adherence of the oxide layer to the underlying aluminum. This is critical for long-term durability.
• Salt Spray Testing: This post-processing test simulates harsh environmental exposure. It rigorously evaluates the coating's ability to withstand corrosion, indirectly indicating sealing quality.
• Microscopic Examination: Advanced microscopy allows analysis of the oxide layer structure. It confirms proper formation and uniform dye distribution, contributing to overall coating quality and durability.

Addressing Uneven Coatings and Color Variations

Uneven coatings and color variations can compromise both the appearance and performance of anodized aluminum. Identifying root causes and implementing rectifications is essential.

Defect	Appearance	Root Cause	Rectification (Prevention/Solution)
Uneven Color Density	Light and dark areas across the same part	Non-uniform current distribution or rack shadowing	Optimize part positioning, use auxiliary anodes, adjust rack geometry, add current shields
Color Bleeding	Colors running or mixing outside intended areas	Electrolyte contamination or excessive voltage	Maintain electrolyte purity, control voltage ramping, replace contaminated solution, reduce voltage
Streaking and Banding	Linear color variations following current flow patterns	Inconsistent current density or solution agitation	Improve solution circulation, maintain uniform spacing, install better agitation system, adjust rack spacing
Color Mismatch Between Batches	Same parts showing different colors from different runs	Temperature variations or electrolyte aging	Maintain ±2°F temperature control, regular bath analysis, standardize cooling system, implement batch tracking
Patchy Coloration	Random light and dark spots across surface	Surface contamination or incomplete cleaning	Improve degreasing process, extend cleaning times, re-clean parts, upgrade cleaning chemistry
Oil Staining	Dark spots that resist color absorption	Inadequate degreasing or recontamination after cleaning	Use vapor degreasing, minimize handling after cleaning, strip and re-clean with stronger alkaline cleaner
Water Staining	Light patches or rings where water dried on surface	Hard water rinses or inadequate drying before anodizing	Use deionized water for final rinse, control drying conditions, acid pickle to remove water spots, improve rinse quality
Thickness Variation	Glossy and matte areas indicating different coating thickness	Current density variations or timing inconsistencies	Apply 720 rule calculations, maintain consistent timing, recalibrate timing systems, verify current distribution
Temperature Shock Marks	Linear patterns corresponding to rapid temperature changes	Moving parts between baths with large temperature differences	Minimize temperature differentials (<20°F), pre-warm parts, install temperature equalization tanks
Electrolyte Contamination Effects	Dull colors, poor color acceptance, or unusual tinting	Metal contamination (iron, copper) or organic impurities	Regular bath analysis, carbon filtration systems, purify electrolyte through electrolytic cleaning or replacement
pH-Related Color Shifts	Colors appearing different than intended (e.g., blue shifting purple)	pH drift in coloring solutions or rinse carryover	Monitor pH every 4 hours, control rinse water quality, adjust pH with appropriate buffers, improve rinse efficiency
Seal Quality Issues	Colors fading quickly or showing poor weather resistance	Inadequate sealing temperature or time	Maintain sealing bath at 200-212°F for 15-30 minutes, re-seal at proper conditions, verify seal quality with dye test

Preventing Pitting and Corrosion

Preventing pitting and corrosion defects is crucial for the long-term integrity of anodized aluminum. Anodic treatment builds an oxide layer on the aluminum surface. This layer enhances its natural protection against corrosion, scratches, and wear. However, its effectiveness decreases above 80°C/176°F. Alodine treatment complements this process. It forms a transparent chromate conversion coating. This coating improves resistance to moisture and chemicals. It also enhances paint adhesion.

Sealants are also vital. Anodized aluminum has a porous oxide layer. Sealants, such as silicone, polyurethane, or epoxy, close these pores. This strengthens resistance, prevents staining, and adds properties like water resistance or UV protection. Galvanic isolation prevents galvanic corrosion. Regularly inspect and maintain physical barriers like rubber gaskets or plastic spacers between dissimilar metals. These barriers are prone to wear and damage.

During the anodizing process, several practices prevent pitting. Check water quality to address chloride contamination, precipitated salts, and algae residue. Review seal chemistry temperature and seal pH. Manage alloy types, sharp machined edges, and chemistry contaminants to prevent galvanic corrosion. Solutions include managing rinsing, using sacrificial anodes, and reviewing tooling. Prevent fallout corrosion by improving material handling and controlling moisture in part storage areas. Use DI water for all tanks after pretreatment to reduce chlorides. Minimize exposure to etch fumes by managing crane lift times and improving ventilation.

Post-Anodizing Care and Handling

Proper post-anodizing care and handling maintain coating integrity and appearance. Routine cleaning involves mild soapy water and a soft cloth. For stubborn stains, a non-abrasive sponge or soft-bristle brush works gently. Avoid abrasive cleaners, scrubbing pads, bleach, or ammonia. Instead, opt for pH-neutral cleaners and microfiber cloths.

Regularly inspect products for surface scratches, dents, or signs of corrosion. For minor surface scratches, clean the area. Apply anodizing touch-up paint matching the product's color with a cotton swab or fine brush. Let it dry. Then, gently smooth the area with a soft cloth. Seek professional help for major repairs or when scratches penetrate the anodized layer. Apply clear lacquer or sealant to anodized surfaces for an additional protective barrier against environmental factors. Conduct regular inspections to identify and address potential issues early.

---

Successful anodizing requires meticulous surface preparation, including thorough cleaning and degreasing. Precise control during the electrochemical process, such as monitoring current and temperature, ensures uniform coating. Sealing the anodized layer is essential for long-term durability and protection. Future trends point towards advanced automation, eco-friendly processes, and nanotechnology integration. These innovations will enhance efficiency, sustainability, and surface properties.

FAQ

What is the primary purpose of anodizing aluminum sheet metal?

Anodizing primarily creates a durable, protective oxide layer on aluminum. This layer significantly enhances the material's corrosion resistance. It also improves wear resistance and provides a surface suitable for decorative finishes.

Can all aluminum alloys be anodized effectively?

No, not all aluminum alloys anodize with equal effectiveness. The alloy's composition, especially its copper content, greatly influences the quality and properties of the anodic film. Certain alloys yield more uniform and robust coatings.

Why is sealing an important step in the anodizing process?

Sealing closes the porous oxide layer formed during anodizing. This crucial step prevents contaminants from entering the coating. It significantly enhances the material's corrosion resistance and improves its overall durability and appearance.

What are the main differences between Type II and Type III anodizing?

Type II (sulfuric acid) anodizing produces thinner, softer coatings. It is common for decorative purposes and moderate wear. Type III (hard coat) anodizing creates thicker, much harder coatings. It offers superior wear and corrosion resistance for demanding applications.

How does anodizing enhance the aesthetic appeal of aluminum?

Anodizing allows for a wide range of colors. The porous oxide layer absorbs dyes, creating vibrant finishes. It also provides various surface textures, from matte to glossy. This process offers significant design flexibility for aluminum products.
