The Ultimate Guide to 7 Materials for Effective Sheet Metal Bending
Selecting the right Sheet Metal Bending materials significantly impacts the performance and durability of finished products. Effective materials exhibit characteristics such as strength, corrosion resistance, and formability. Understanding these properties benefits various applications, ensuring optimal results in industries ranging from aerospace to medical equipment.
Key Takeaways
- Selecting the right Sheet Metal Bending material is crucial for performance and durability. Steel alloys are often the best choice due to their strength and cost-effectiveness.
- Aluminum alloys are lightweight and offer excellent formability, making them ideal for applications where reducing weight is essential, such as in aerospace.
- Stainless steel provides exceptional corrosion resistance and durability, making it suitable for harsh environments like food processing and marine applications.
Steel Alloys
Steel alloys play a crucial role in Sheet Metal Bending due to their strength and versatility. These materials are widely used in various industries, particularly in automotive and construction applications. Steel alloys offer excellent formability, making them ideal for complex shapes and designs.
Several types of steel alloys are commonly utilized in Sheet Metal Bending. The following table highlights some of the most widely used steel alloys, their applications, and key characteristics:
| Steel Alloy | Application | Characteristics |
|---|---|---|
| DP590 | Auto floor paneling, body sides, cowls, fenders | High strength and formability |
| DP790 | Auto body structures requiring high energy absorption | Designed for reinforcement structures |
| DP980 | BIW applications | Exceptional strength and stiffness |
| DP1180 | Passenger safety compartments | Excellent crashworthiness |
| DP1270 | Safety cage components (rockers, A/B pillars) | High strength and resistance to deformation |
| Martensitic Steel | Cross members, bumper reinforcement | High strength and impact resistance |
Steel alloys also exhibit varying yield strengths and ductility. For instance, mild steel typically has a yield strength of 200-300 MPa, while high carbon steel can reach 600-700 MPa. This range allows engineers to select the appropriate alloy based on specific project requirements.
Tip: Galvanized steel is known for its corrosion resistance due to a zinc coating. This feature makes it a popular choice in construction and industrial applications.

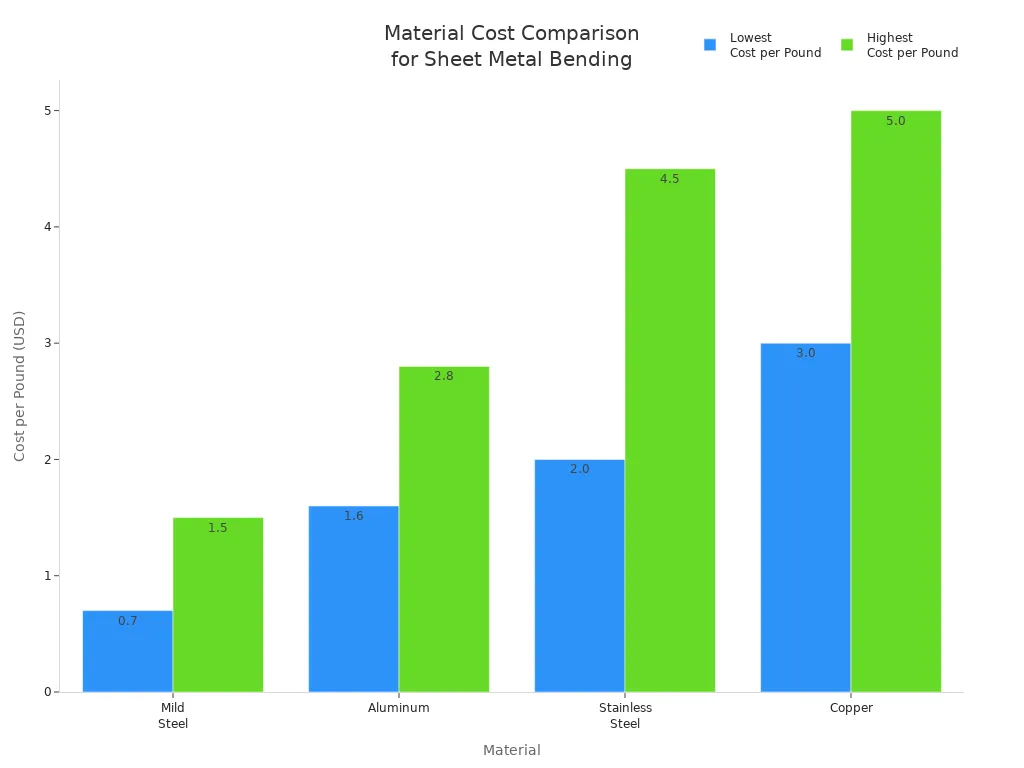

In terms of cost-effectiveness, steel alloys generally outperform other materials for large-scale projects. Mild steel remains the least expensive option, while aluminum and stainless steel incur higher costs but may offer long-term savings through reduced maintenance.
Overall, the selection of steel alloys as Sheet Metal Bending materials ensures durability and performance across various applications.
Aluminum Alloys
Aluminum alloys are essential materials for Sheet Metal Bending, particularly in industries such as aerospace and automotive. Their lightweight properties and high strength-to-weight ratio make them ideal for applications where weight reduction is crucial. These alloys exhibit excellent formability, allowing for easy fabrication of complex shapes.
Several grades of aluminum alloys are commonly used in Sheet Metal Bending. The following table outlines some of these grades along with their mechanical properties:
| Aluminum Alloy | Primary Alloying Element | Bendability | Strength Characteristics | Corrosion Resistance |
|---|---|---|---|---|
| 3003 | Manganese | Excellent | Good | Good |
| 5052 | Magnesium | Good | Moderate-to-High | Excellent |
| 6061 | Magnesium and Silicon | Moderate | High | Moderate |
The advantages of using aluminum alloys in aerospace applications include:
- Lightweight properties that contribute significantly to fuel efficiency.
- Durability in high-stress environments, including temperature and pressure extremes.
- High electrical conductivity, making them suitable for various electrical applications.
Additionally, aluminum alloys require less frequent maintenance and have a longer service life compared to other materials. Their versatility allows for the creation of complex and precise structures, making them a cost-effective alternative in many scenarios.
Tip:Proper selection of alloy hardness can prevent cracking during the bending process, ensuring optimal performance in Sheet Metal Bending materials.
Stainless Steel
Stainless steel is a popular choice for Sheet Metal Bending due to its exceptional properties. This material offers remarkable strength and durability, making it suitable for various applications. Industries such as food processing, marine, and chemical manufacturing frequently utilize stainless steel for its reliability.
One of the key advantages of stainless steel is its corrosion resistance. The chromium-rich surface forms a passive oxide layer, which enhances its ability to withstand harsh environments. This property allows stainless steel to endure exposure to saltwater and harsh chemicals. As a result, it proves ideal for applications in challenging conditions. Notably, 316 stainless steel is renowned for its excellent corrosion resistance and ability to maintain integrity under high temperatures.
The following table highlights the most common grades of stainless steel used in Sheet Metal Bending along with their typical applications:
| Grade | Applications |
|---|---|
| 304 | Kitchen equipment, food processing, architectural applications |
| 316 | Marine and chemical processing applications due to excellent corrosion resistance |
While stainless steel offers numerous benefits, it does come with a higher cost compared to other materials like mild steel. However, its durability and long lifespan contribute to its cost-effectiveness, especially in environments where corrosion is a concern.
Tip: When selecting stainless steel for sheet metal bending, consider the specific grade based on the application requirements. This choice can significantly impact performance and longevity.
Overall, stainless steel stands out as a reliable option among sheet metal bending materials, particularly for projects demanding strength and resistance to environmental challenges.
Copper Alloys
Copper alloys are vital materials in sheet metal bending due to their unique properties. These alloys, such as C110, exhibit excellent electrical and thermal conductivity. This high conductivity makes them essential in electronics and electrical engineering. Additionally, the thermal conductivity of copper alloys aids in effective heat dissipation during bending processes. This feature enhances their usability in various applications.
The most common copper alloys used for sheet metal bending include:
- Brasses: Known for good strength and ductility.
- Copper-Nickel Alloys: Excel in seawater corrosion resistance.
- Copper Chromium Zirconium: Offers high strength at elevated temperatures.
- Oxygen-Free High Conductivity Copper: Provides excellent electrical conductivity.
- Electrolytic Tough Pitch Copper: Recognized for its high purity.
- Nickel Aluminum Bronze: Noted for superior wear resistance.
Malleability plays a crucial role in the precision of sheet metal bending processes. It allows copper alloys to deform without breaking, which is essential for achieving precise bends. The high malleability of copper ensures that it can handle intricate bending operations while maintaining tight tolerances. This property reduces defects during the bending process, making copper alloys a preferred choice for complex designs.
Tip: When selecting copper alloys for bending, consider their ductility and malleability to ensure optimal performance in your projects.
Overall, copper alloys stand out as effective sheet metal bending materials, combining strength, conductivity, and formability for various applications.
Titanium Alloys
Titanium alloys are increasingly recognized for their exceptional properties in sheet metal bending. These materials are particularly advantageous in aerospace and medical applications due to their impressive strength-to-weight ratio and excellent corrosion resistance. The following table outlines the key advantages of using titanium alloys in these industries:
| Advantage | Explanation |
|---|---|
| Lightweight | Reduces fuel use and improves efficiency |
| Strong under stress | Supports safety in structural parts |
| Corrosion-resistant | Withstands harsh air, water, and space environments |
| Heat-resistant | Performs well in engines and high-speed flight |
| Long-lasting | Cuts down on repair and replacement costs |
Titanium alloys exhibit a tensile strength of approximately 1,170 MPa and a density of 4.43 g/cm³. These characteristics make them suitable for demanding applications where performance and safety are critical.
However, the cost of titanium alloys can be a significant factor in their selection. They are generally 3-10 times more expensive than aluminum, depending on the grade and market conditions. The higher costs arise from complex extraction and processing methods, limited supply, and specialized production facilities. Despite these initial expenses, the durability and corrosion resistance of titanium can lead to long-term economic benefits, especially in applications where maintenance and replacement costs are high.
Tip: When considering titanium alloys for sheet metal bending, weigh the initial costs against potential long-term savings in maintenance and durability.
Magnesium Alloys
Magnesium alloys are increasingly popular in sheet metal bending due to their lightweight and strong characteristics. With a low density of just 1.738 g/cm³, magnesium alloys are lighter than both aluminum and steel. This property makes them ideal for applications where reducing weight is crucial. Additionally, magnesium alloys exhibit excellent corrosion resistance. A protective magnesium oxide layer forms on their surface, enhancing durability in various environments.
The high strength-to-weight ratio of magnesium alloys allows engineers to use them in demanding applications. They also possess good castability and machinability, which facilitates the creation of complex shapes. Common wrought magnesium alloys include:
| Alloy | Composition (Al, Zn) | Young's Modulus (GPa) | Yield Stress (MPa) |
|---|---|---|---|
| AZ31 | 3% Al, 1% Zn | 48 | 170 |
| AZ61 | 6% Al, 1% Zn | N/A | N/A |
| AZ80 | 8% Al, 0.5% Zn | N/A | N/A |
These alloys typically demonstrate a proof stress ranging from 160 to 240 MPa and a tensile strength between 180 and 440 MPa. The ZAXME11100 alloy, developed recently, shows promising results with a tensile elongation of 31% and a yield strength of 270 MPa after aging treatment. This makes it suitable for automotive applications.
However, safety considerations are essential when working with magnesium alloys. They can be flammable, especially when machined at elevated temperatures. To mitigate fire hazards, users should employ sharp cutting tools and avoid tight clearance angles. Proper handling and disposal of magnesium chips are crucial to prevent ignition.
Tip: Always use explosion-proof vacuum systems to safely remove magnesium chips and dust during machining.
Overall, magnesium alloys serve as effective sheet metal bending materials, combining lightweight properties with strength and versatility.
High-Strength Low-Alloy (HSLA) Steel
High-Strength Low-Alloy (HSLA) steel is a crucial material in sheet metal bending, particularly in the automotive industry. This type of steel combines enhanced strength with reduced weight, making it ideal for various applications. HSLA steel offers several benefits that contribute to its popularity:
- Improved fuel efficiency: Lighter automotive components reduce vehicle mass, leading to lower energy consumption.
- Enhanced strength: HSLA steel provides structural integrity and safety, especially in vehicle doors and side panels.
- Good weldability and formability: These properties are essential for creating complex automotive parts.
In addition to these advantages, HSLA steel exhibits exceptional durability. It withstands harsh conditions, making it suitable for long-lasting automotive applications. The cost efficiency of HSLA steel also stands out, as its properties lead to reduced overall manufacturing and maintenance costs.
The mechanical properties of HSLA steel further enhance its effectiveness in sheet metal bending. The following table summarizes these properties:
| Property | Description |
|---|---|
| High Yield Strength | Allows the material to withstand higher loads before deforming, essential for bending applications. |
| Ultimate Tensile Strength | Ensures the material can endure significant stress without breaking during forming processes. |
| Good Formability | Facilitates the shaping of the steel into various forms without compromising its integrity. |
| Toughness | Provides resistance to cracking and failure during bending, enhancing durability in applications. |
| Grain Size Refinement | Increases yield strength by reducing grain size, improving the material's performance in bending. |
| Directional Characteristics | Affects bending behavior, with treatments available to reduce cracking risks in specific orientations. |
Overall, HSLA steel serves as an effective choice among sheet metal bending materials, combining strength, durability, and cost-effectiveness for automotive manufacturing.
Selecting the appropriate sheet metal bending materials is crucial for achieving optimal results. Each material offers unique characteristics that influence performance. For instance, steel alloys provide strength, while aluminum alloys excel in lightweight applications. Understanding mechanical properties such as strength and ductility helps in making informed choices.
When choosing materials, consider factors like cost, corrosion resistance, and intended use. Balancing these elements ensures successful project outcomes and enhances manufacturing efficiency.
Tip: Always evaluate project requirements before finalizing material selection to avoid common mistakes, such as neglecting bend allowances or flange sizes.
FAQ
What is the best material for sheet metal bending?
Steel alloys are often the best choice due to their strength, formability, and cost-effectiveness.
How does aluminum compare to steel in bending applications?
Aluminum is lighter than steel, making it ideal for applications where weight reduction is crucial, but it may be less strong.
Are titanium alloys worth the cost for bending?
Yes, titanium alloys offer excellent strength-to-weight ratios and corrosion resistance, making them valuable for high-performance applications despite their higher cost.
