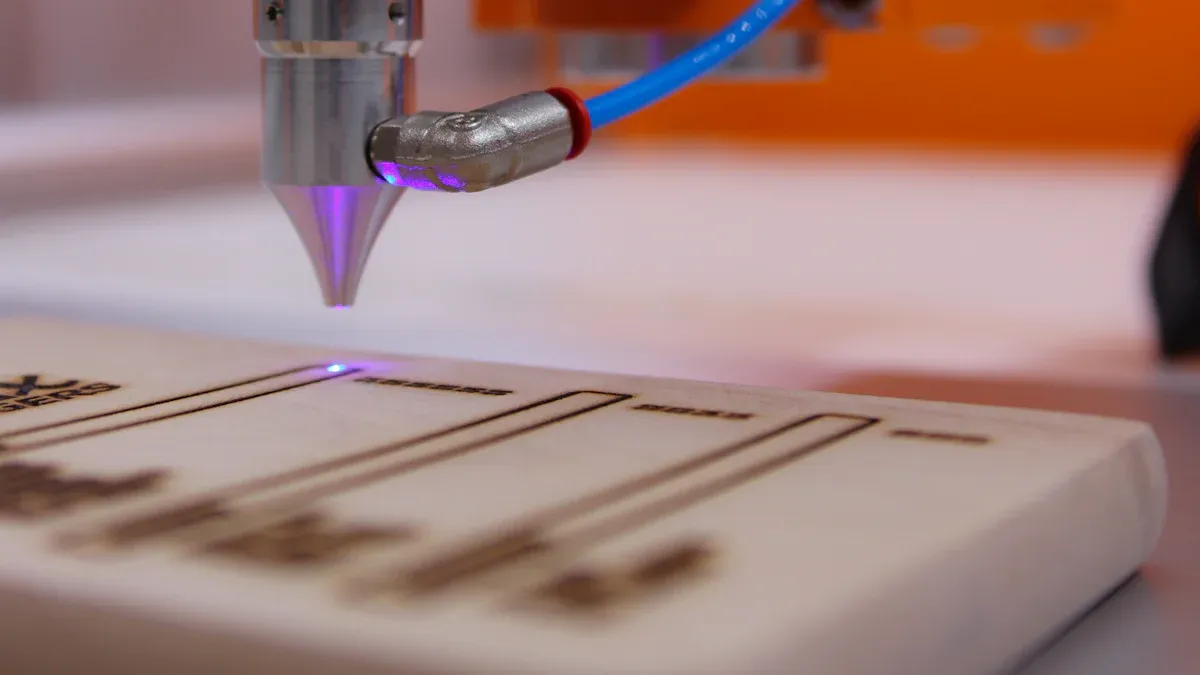

The Science Behind Zero Warping in Laser Cutting Using Nitrogen
Manufacturers rely on Precision Laser Cutting to produce flat, distortion-free parts. Nitrogen gas prevents warping by reducing heat and oxidation during the process.
- One manufacturer reported warping in 30% of its grease filters, but after changes, this dropped to 5%.
Warped parts increase waste and raise scrap rates, impacting efficiency.
Key Takeaways
- Nitrogen gas significantly reduces warping in laser cutting by managing heat and preventing oxidation, leading to higher quality parts.
- Using nitrogen results in cleaner edges, which eliminates the need for extra cleaning before painting or welding, saving time and resources.
- Manufacturers should prioritize nitrogen for Precision Laser Cutting to achieve minimal warping and superior edge quality, despite higher operating costs.

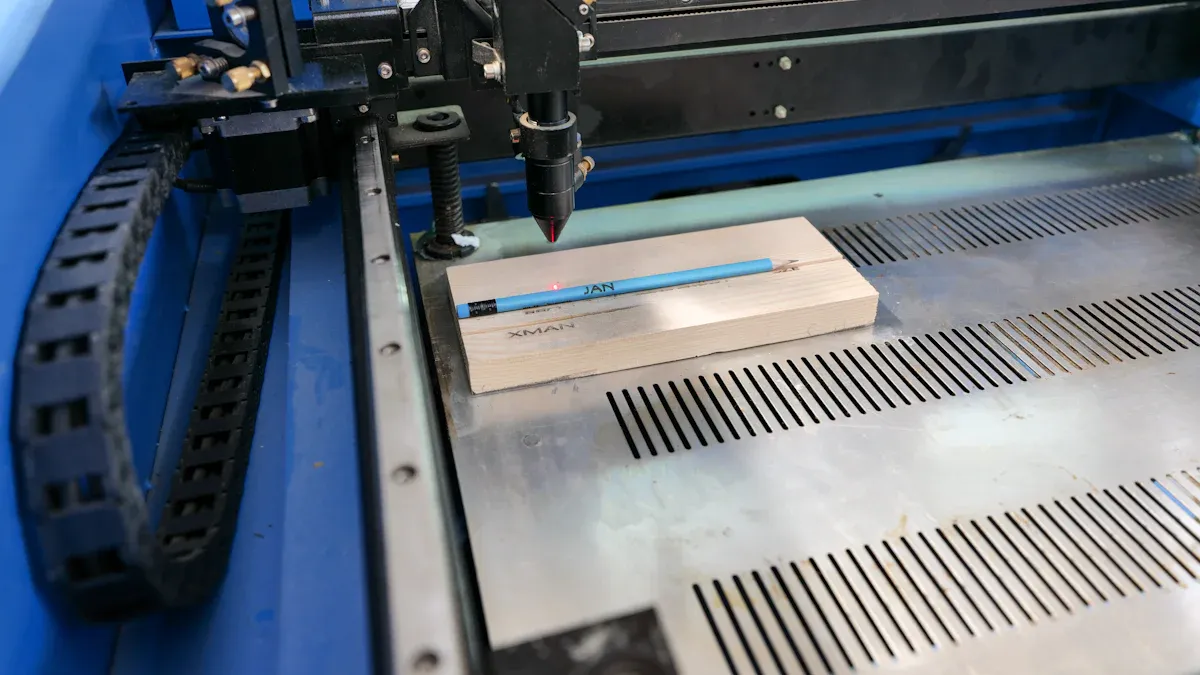

Precision Laser Cutting: Why Materials Warp and How Nitrogen Solves It
What Is Material Warping?
Material warping describes the distortion that happens when heat affects a material unevenly. In Precision Laser Cutting, the laser applies intense heat to a small area. This heat causes the material to expand and contract. If the heat spreads unevenly, the material develops internal stresses. These stresses can bend or twist the part, leading to visible warping. Precision Laser Cutting aims to control these effects by focusing the beam and reducing the heat-affected zone. This approach helps keep parts flat and accurate.
Causes of Warping in Thermal Cutting
Several factors can cause warping during thermal cutting processes:
- Local heating makes the material expand and contract, creating residual stress and uneven deformation.
- Material thickness and cutting parameters affect how stable and uniform the process remains.
- Excessive heat input increases the heat-affected zone, raising the risk of distortion.
- Sharp temperature differences cause uneven expansion and contraction, which leads to deformation.
- Removing large sections of material from flat sheets can unbalance internal stresses, especially when about half the material is removed.
Tip: Engineers often design parts and cutting paths to distribute heat evenly and minimize material removal in sensitive areas. This strategy helps reduce the risk of warping during Precision Laser Cutting.
Nitrogen’s Effect on Heat Management and Cooling
Nitrogen plays a key role in managing heat during Precision Laser Cutting. While the cooling effect of nitrogen is small compared to the laser's power, it still helps maintain the quality of the cut. Nitrogen prevents oxidation and supports a clean edge. The gas also helps remove molten material quickly, which allows the laser to cut faster and more efficiently.
| Mechanism | Effect on Thermal Distortion |
|---|---|
| Enhanced heat transfer | Rapidly removes heat from the cutting area, lowering material temperature and preventing deformation due to overheating. |
| Effective slag removal | Prevents slag accumulation, allowing the laser beam to act more effectively and increasing cutting speed. |
| Maintenance of material properties | Ensures cutting precision and reduces the need for adjustments due to thermal deformation. |
Manufacturers also find that using nitrogen can lead to compressive residual stresses on the surface, which improves the toughness and stability of the part. This benefit is especially important for industries that demand high accuracy and flatness.
Preventing Oxidation and Minimizing the Heat-Affected Zone
Nitrogen acts as an inert shield during Precision Laser Cutting. It blocks atmospheric oxygen from reaching the molten edge. This barrier prevents oxidation, resulting in a cleaner and brighter cut. The absence of oxidation means parts do not need extra cleaning before painting or welding.
| Assist Gas | Heat-Affected Zone Characteristics | Additional Notes |
|---|---|---|
| Nitrogen | Creates a narrow HAZ, prevents oxidation, resulting in clean cuts with superior edge quality. | Ideal for aluminum, mild steels, and UHSS automotive steels. |
| Oxygen | Produces additional heat, leading to a wider HAZ and oxidized edges. | Can result in lower gas consumption but may slow cutting speed. |
| Argon | Narrow HAZ but can be brittle in certain materials like Martensite steel. | Higher specific heat can remove heat faster than nitrogen. |
Nitrogen creates a non-reactive environment, which keeps the heat-affected zone narrow. This feature is critical for Precision Laser Cutting because it helps maintain tight tolerances and flatness. Using nitrogen also reduces surface roughness by about 25%, making it ideal for parts that require a high-quality finish.

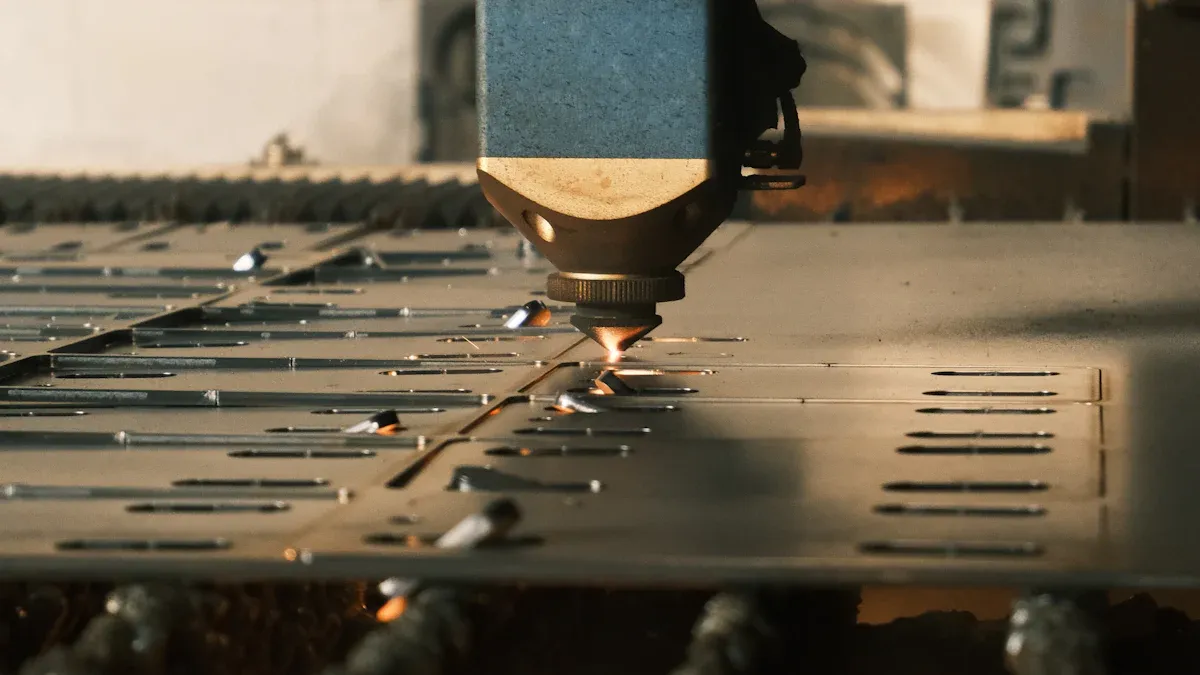

Nitrogen vs. Other Methods: Achieving Flat, Distortion-Free Parts
Oxygen-Assisted Laser Cutting Compared to Nitrogen
Oxygen-assisted laser cutting remains a popular choice for many manufacturers, especially when working with thick steel. However, this method introduces several challenges for those seeking flat, distortion-free parts. Oxygen reacts with the heated metal, creating an exothermic reaction that adds extra heat to the cutting zone. This additional heat can increase the risk of warping and oxidation, which affects both the flatness and surface quality of the finished part.
- Cutting speed and oxygen pressure play a critical role in determining the quality of the cut, including kerf width and surface roughness.
- Lower gas pressure can help reduce the width of the heat-affected zone (HAZ) and kerf, resulting in a better surface finish.
- Oxygen can produce high-quality cuts in ultra-low carbon steel when operators use optimal scanning speeds and specific gas pressures.
- Inert gas-assisted cutting, such as with nitrogen, is more likely to produce dross compared to oxygen, which can impact surface quality.
A direct comparison of warping and edge quality between oxygen and nitrogen assist gases highlights the differences:
| Assist Gas | Warping Level | Edge Quality | Oxidation |
|---|---|---|---|
| Oxygen | Higher | Moderate | Increased |
| Nitrogen | Lower | Improved | Reduced |
Manufacturers often choose nitrogen for Precision Laser Cutting when they require minimal warping and superior edge quality. Nitrogen’s inert properties prevent oxidation, resulting in cleaner, brighter edges and less post-processing. Oxygen, while sometimes more cost-effective for thick steel, tends to increase the risk of distortion and surface discoloration.
Plasma Cutting and Its Limitations
Plasma cutting offers a fast and effective way to cut thick materials, but it comes with notable limitations regarding part flatness and dimensional accuracy.
- Plasma cutting achieves tolerances of ±0.5-1.5 mm, which is less precise than other methods like laser cutting.
- This method works best for thicker materials, but the increased heat input can compromise part flatness and precision.
A comparison of heat input and warping potential between plasma and laser cutting methods shows clear differences:
| Cutting Method | Heat-Affected Zone | Warping Potential |
|---|---|---|
| Plasma Cutting | Larger | Higher |
| Laser Cutting | Smaller | Lower |
Plasma cutting generates a larger heat-affected zone, which increases the likelihood of warping. The process also produces more fumes and emissions, raising environmental and workplace safety concerns. Nitrogen-assisted Precision Laser Cutting, by contrast, uses less energy and produces less waste, making it a cleaner and more accurate option for manufacturers who demand tight tolerances and flat parts.
Advantages of Nitrogen for Improved Part Flatness and Tighter Tolerances
Nitrogen-assisted Precision Laser Cutting delivers several key advantages for manufacturers who require flat, distortion-free parts with tight tolerances.
- Nitrogen prevents oxidation, which enhances edge quality and reduces the need for post-processing.
- The process produces cleaner edges, allowing for immediate downstream operations such as painting or welding.
- The laser’s precise beam melts or vaporizes material only along the desired cut path, resulting in smooth and consistent edges.
Nitrogen-assisted systems also support better environmental outcomes. Laser cutting with nitrogen consumes less energy than plasma or oxy-fuel cutting and generates minimal emissions and waste. Plasma cutting, in contrast, can release harmful metal fumes and gases, while oxygen increases oxidation and surface discoloration.
Manufacturers should consider the cost implications of using nitrogen. Nitrogen can cost upwards of $16.00 per hour, making it a significant expense, especially for thicker materials. High-pressure air systems offer a more economical alternative for some applications, and oxygen may be more cost-effective for very thick steel. However, when the priority is precision, flatness, and minimal warping, nitrogen remains the preferred choice.
Regular maintenance is essential for nitrogen-assisted laser cutting systems. Operators must prevent contaminants from entering the machine by changing filters and checking the nitrogen supply line. Clean, dry nitrogen at the correct pressure ensures optimal performance and extends the life of the equipment.
Note: Nitrogen-assisted precision laser cutting stands out for its ability to deliver flat, distortion-free parts with superior edge quality and minimal post-processing. Manufacturers who value accuracy and consistency often choose nitrogen, despite the higher operating costs, because it supports the highest standards of part quality.
Nitrogen-assisted laser cutting gives manufacturers zero warping and high precision. The process offers several key benefits:
| Benefit | Description |
|---|---|
| Oxidation Prevention | Nitrogen keeps edges clean and free from oxidation. |
| Consistency in Cutting | High-purity nitrogen ensures repeatable, quality results. |
| Better Edge Quality | Smoother, cleaner cuts reduce post-processing and risk of warping. |
Manufacturers seeking distortion-free, accurate parts should choose nitrogen for superior results.
FAQ
What materials benefit most from nitrogen-assisted laser cutting?
Stainless steel, aluminum, and mild steel show the best results. Nitrogen keeps edges clean and flat, making these metals ideal for precision manufacturing.
Does nitrogen-assisted laser cutting require extra cleaning after cutting?
No. Nitrogen prevents oxidation, so parts come out clean. Manufacturers can skip extra cleaning before painting or welding.
How does nitrogen affect the cost of laser cutting?
Nitrogen increases operating costs. However, it reduces waste and post-processing, which can save money for manufacturers who need high-quality, flat parts.
Tip: Choosing nitrogen pays off for industries that demand tight tolerances and superior surface quality.
