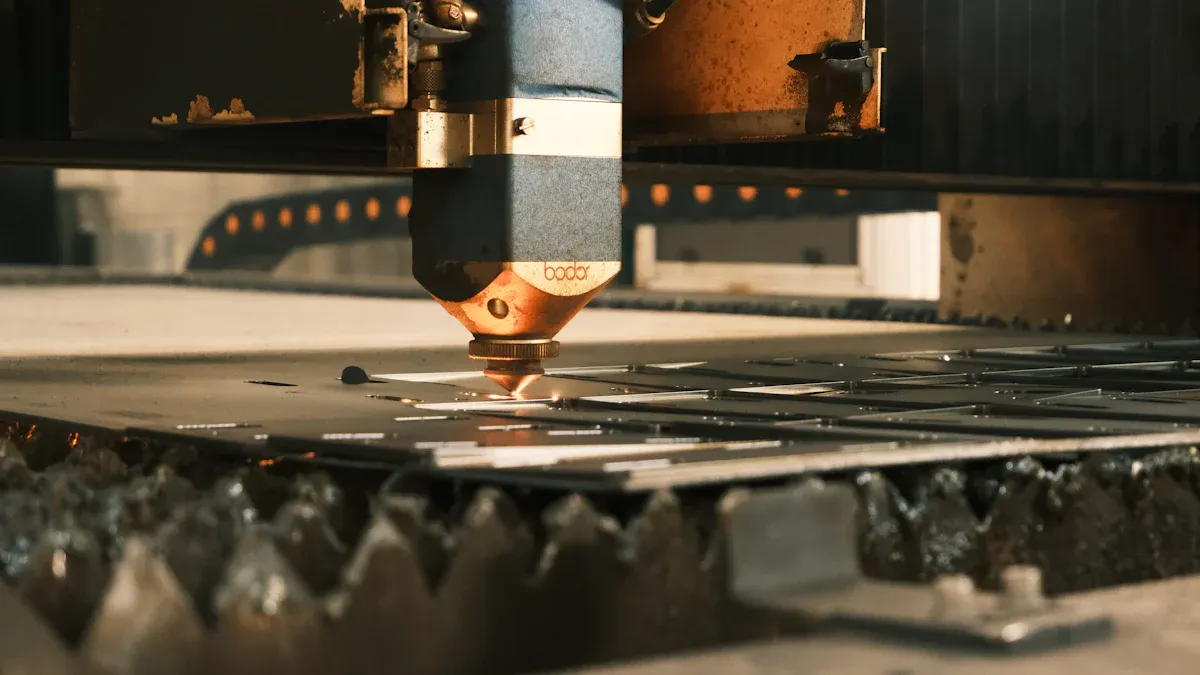

Smart Nesting The Key to Reducing Sheet Metal Material Waste

Smart nesting is crucial for minimizing material waste in sheet metal production. Traditional CNC machining processes, for instance, convert approximately 15-30% of metal materials into scrap. Optimizing part arrangement directly enhances profitability and operational efficiency. Companies achieve significant improvements with advanced solutions. One manufacturer reduced scrap rates by 25% and decreased lead times by 20% through optimized part layouts, including nesting. Advanced sheet metal nesting optimization offers immediate, tangible benefits for a company's bottom line.

Key Takeaways

• Smart nesting helps factories use less metal. It arranges parts on a sheet to reduce waste.
• Advanced software makes nesting better. It uses special tools like true-shape nesting and common-line cutting.
• Smart nesting saves money. It lowers the cost of materials and makes production faster.
• Using smart nesting helps the environment. It means less waste and less energy used.
• Companies should use smart nesting. It helps them do better than other businesses.

Understanding the Impact of Sheet Metal Nesting Optimization

What is Efficient Sheet Metal Nesting?

Efficient sheet metal nesting involves strategically arranging parts on a sheet of raw material. This process aims to maximize material usage and minimize waste. It is more than just fitting pieces together. It requires adherence to specific principles for optimal results.

1. Large Parts First: Fabricators prioritize placing larger or higher-priority components first. This prevents smaller parts from creating wasted space.
2. Minimum Edge Margins: Maintain a 3-5mm distance from the sheet's edge. This prevents warping and ensures cut quality. Thicker materials (20mm+ steel) or high-power cutting require 5-8mm.
3. Inter-Part Spacing: Implement 1-3mm spacing between parts. This avoids thermal interaction. Reflective materials like aluminum need 2-4mm due to heat dissipation.
4. Grain Direction Alignment: Align parts with the material's rolling direction for bending. This prevents a 20-30% strength reduction and cracking.
5. Pierce Point Optimization: Position pierce points away from critical dimensions. Place them in the thickest sections of the material. This minimizes quality rejects.

Why Traditional Nesting Methods Fall Short

Traditional nesting methods often rely on manual placement or basic software algorithms. These approaches frequently result in suboptimal layouts. They struggle with complex part geometries and varying production demands. Manual nesting is time-consuming and prone to human error. Basic software may not consider all critical factors like grain direction or thermal effects. This leads to higher scrap rates and increased material costs. Companies miss opportunities for significant savings.

The Direct Correlation Between Nesting and Material Costs

Nesting efficiency directly impacts raw material costs in Sheet Metal Fabrication. It minimizes scrap. When designers create parts with nesting in mind, they adjust dimensions to fit standard sheet sizes. This reduces the amount of wasted material. This reduction in scrap directly translates to lower material expenses. Effectivesheet metal nesting optimization is a critical factor in controlling production costs. It directly influences a company's profitability.

Advanced Strategies for Maximizing Material Utilization

Fabricators employ advanced strategies to push material utilization further. These methods go beyond basic nesting. They leverage sophisticated algorithms and production insights. Companies achieve significant gains in efficiency and cost savings.

Mixed-Part Nesting for Diverse Production Needs

Mixed-part nesting involves arranging different part types on a single sheet of material. This approach is highly effective for diverse production needs. It significantly increases material utilization and throughput. When nesting software mixes an optimal variety of parts, it finds more efficient layouts. This reduces the amount of scrap material.

For example, dynamic nesting combined with machine management can drastically cut the number of sheets needed for a production run. Some companies have seen reductions from 130 sheets to just 69 sheets. This leads to substantial material savings and improved productivity. Nesting software can also analyze required tools. If tool conflicts arise, the software automatically splits turret configurations. This groups as many parts as possible. It can also recommend tool changes to allow more parts to nest together.

A greater amount and variety of parts, such as 50-60 different parts instead of 4-5, provide more opportunities for nesting software. This helps increase material utilization. This is especially beneficial for job shops. They often have less control over the types of parts they produce. Nesting also allows grouping small parts within a single nest. These parts can be specifically tagged for easy handling. This helps when moving them to the next department or for powder coating and precision metalwork. Keeping small parts together reduces the risk of misplacement or loss. It also streamlines the finishing process. This minimizes setup time and improves overall throughput.

Common-Line Cutting for Shared Edges

Common-line cutting is a powerful technique. It involves arranging parts so they share a cut line. The laser or plasma torch cuts along this shared edge only once. This method offers several advantages. It reduces cutting time significantly. The machine does not need to cut the same line twice. This also minimizes material waste. Less material is removed between parts. Common-line cutting is particularly effective for parts with straight edges. It can also apply to parts with similar contours. This strategy maximizes the number of parts on a sheet. It also extends the life of cutting consumables.

Dynamic Part Rotation for Optimal Layouts

Dynamic part rotation allows nesting software to rotate parts at any angle. This is different from fixed-angle rotations (like 0, 90, 180, 270 degrees). Dynamic rotation provides much greater flexibility. The software can find the absolute best fit for each part on the sheet. This maximizes material usage. It fills small gaps that fixed rotations might leave empty. This capability is crucial for complex geometries. It also helps when dealing with a wide variety of part shapes. Dynamic rotation ensures that every available space on the sheet contributes to production. This reduces scrap and improves overall efficiency.

Remnant Management and Skeleton Optimization Techniques

Effective remnant management is crucial for minimizing waste. Even with highly optimized nests, usable offcuts often remain. Without proper tracking, these remnants accumulate and become waste. Advanced software systems catalog and retrieve remnants in real-time. This enables their use in future nests. Companies avoid starting new sheets unnecessarily.

Nesting with reusable remnants is a key strategy. This approach focuses on maximizing sheet utilization. It also creates offcuts that can be reused. A robust system is necessary for tracking, storing, and managing these remnants. An effective strategy for managing scrap involves designing nests to intentionally produce usable remnants. For instance, leaving rectangular scraps for reuse is a recommended practice. An aerospace company successfully implemented this. They nested parts to generate large, reusable rectangular pieces. They then repurposed these pieces for prototypes. This reduced their net waste to just 5%.

Skeleton optimization complements remnant management. The skeleton is the leftover material after cutting all parts from a sheet. Optimizing the skeleton means reducing its size and complexity. This often involves cutting internal features or smaller parts from within the skeleton itself. Some advanced systems can even identify sections of the skeleton that are large enough to be considered new remnants. This further reduces waste. Efficient skeleton management ensures that fabricators extract every possible piece from the raw material.

Bridging and Chain Cutting for Continuous Production

Bridging and chain cutting are advanced techniques. They enhance efficiency and reduce production time. Bridging connects multiple parts with small, uncut tabs. This keeps them attached to the sheet or to each other. The machine cuts around the entire group of parts. This reduces the number of pierces. Fewer pierces mean less wear on consumables. It also speeds up the cutting process. Operators can easily break apart the bridged components after cutting.

Chain cutting takes this concept further. It involves cutting multiple parts in a continuous path. The laser or plasma torch does not lift between parts. It moves directly from one part's cut end to the next part's start. This creates a "chain" of parts. Chain cutting significantly reduces non-cutting time. It minimizes machine acceleration and deceleration cycles. This extends the life of cutting nozzles and electrodes. Both bridging and chain cutting contribute to a more continuous and faster production flow. They maximize machine uptime and throughput.

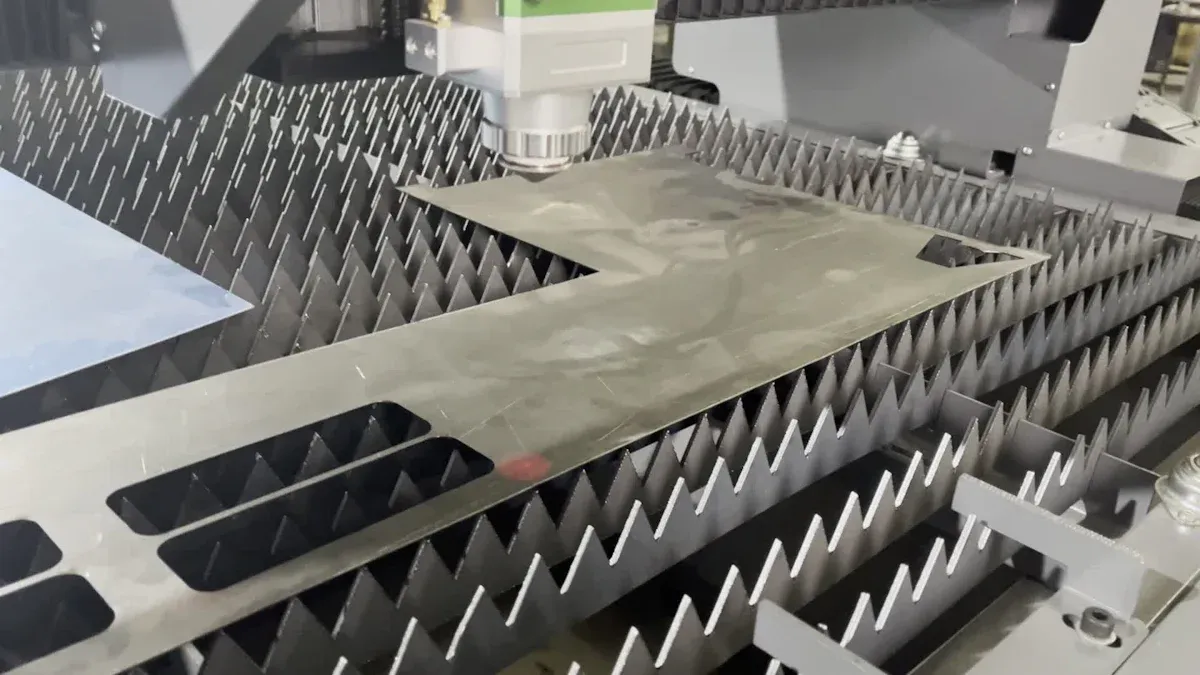

Leveraging Technology for Superior Sheet Metal Nesting Optimization

Modern manufacturing relies heavily on technology. Advanced software solutions are crucial for achieving superior sheet metal nesting optimization. These tools move beyond basic manual methods. They offer sophisticated capabilities. These capabilities drive efficiency and cost savings.

Key Features of Advanced Nesting Software

Advanced nesting software provides many tools. These tools help fabricators maximize material use. They also streamline production. The software supports various file types. It can import DXF and DWG files. It also converts 3D CAD models into flat patterns. This makes file handling easy.

Users can manually arrange parts. The software offers intuitive drag, drop, bump, and rotate functions. 'Snap' features ensure precise part placement and spacing. Automatic nesting significantly reduces programming time. It often cuts time from minutes to seconds. True shape nesting uses the actual part geometry. It interlocks parts. This maximizes material usage. It performs better than rectangular nesting.

The software allows nesting constraints. It can prohibit or permit nesting inside parts. It also includes automatic part interference detection. Visualization and editing features are available. Color-coding helps identify parts. Users can edit lead-in/out positions and properties within the nest. Tool path control is also possible. It provides control over cut direction and sequencing for each part. The software includes simulation. It shows an animated cutting sequence.

Job management features handle different material types. They also manage thicknesses and sheet sizes. The software automatically creates separate jobs. Some advanced applications offer 'Nesting System Optimization'. This considers available parts and different plate sizes. It achieves the highest material utilization. The software employs algorithms. These algorithms automatically arrange parts. They consider geometry, material constraints, and cutting parameters. This creates efficient layouts. It emphasizes experimenting with different part orientations. This minimizes scrap. It also maximizes parts per sheet. Nesting constraints account for factors like material grain direction. They also consider cutting sequence and part preferences. This prevents issues like warping and cutting errors. Nesting order optimization determines the best sequence. It minimizes tool changes and traverse time. It groups similar parts for efficiency. Continuous review is important. Regularly reviewing and updating nesting strategies helps. It adapts to evolving production needs and part designs.

Artificial Intelligence and Machine Learning in Nesting

Artificial intelligence (AI) and machine learning (ML) algorithms greatly enhance nesting efficiency. Advanced AI nesting techniques reduce material waste. They dynamically adjust cutting paths. This happens based on algorithmic detection. It also compensates for localized variations in material properties. These systems optimize raw material utilization. They sometimes lead to savings averaging around 8%.

AI-powered CAD/CAM software helps engineers. It automatically creates optimal sheet layouts. This minimizes waste. It also maintains part integrity. AI nesting algorithms can reduce raw material usage by up to 15%. This compares to manual layout methods. AI-powered nesting and layout algorithms analyze sheet sizes. They also analyze cutting paths. This minimizes scrap. It can increase material utilization by 10–20%. This significantly lowers raw material costs. The use of artificial intelligence in CAD/CAM software is decisive. It reduces scrap. Automatic learning optimizes the placement and cutting of pieces. This significantly reduces waste generation. It also lowers plant costs.

Seamless Integration with CAD/CAM Systems

Seamless integration between nesting software and CAD/CAM systems offers many benefits. It improves manufacturing processes. This integration connects nesting software with ERP applications. It transforms engineering CAD bills of material. These become ERP bills of material, routings, and items. The system captures production information from nesting software. This feeds into ERP jobs and work orders. This improves manufacturing material planning. It also enhances scheduling and costing.

The integration supports a continuous improvement process. It includes regular automatic updates. Robust and encrypted software architectures ensure security. They also protect data. Scalable storage systems provide automatic and regular data backups. Easy integration with other tools and services happens via APIs. This reduces dependence on powerful local hardware. It also allows real-time collaboration among multiple users.

Benefits include faster file transfer and computing. It also reduces operating costs. Workflows become streamlined. Learning curves are shorter. Remote accessibility is also a key advantage. This comprehensive integration ensures a more efficient and cost-effective production environment.

Calculating the Return on Investment for Nesting Software

Investing in advanced nesting software represents a strategic decision for any Sheet Metal Fabrication business. Companies must understand the financial benefits to justify this investment. Calculating the return on investment (ROI) provides a clear picture of how the software contributes to profitability. Many businesses typically see significant savings and a return on investment within the first year of implementing nesting software. The exact timeframe varies based on the operational scale and material costs of each company.

Advanced nesting software delivers substantial cost reductions. These solutions can lead to combined savings of 10–40% or more. Factors like part complexity and production volume influence these percentages. Material utilization rates also show dramatic improvement. They can increase from a typical 60–70% to as high as 85–95% with advanced nesting solutions. For example, one metal fabricator achieved a 33% direct reduction in material costs. They implemented advanced nesting, reducing sheet usage from 63 to 42 for a regular job. This demonstrates the tangible impact on the bottom line.

The ROI calculation involves several key components. Companies first identify the initial investment. This includes software licensing, implementation costs, and training expenses. Next, they quantify the savings generated by the software. These savings come from reduced material waste, decreased production time, and lower labor costs. Increased material utilization directly translates into less raw material purchased. Faster processing times mean higher throughput and more completed orders. Reduced errors and rework also contribute to cost savings. By comparing the total savings against the initial investment, businesses determine their ROI. A positive ROI indicates a successful investment. It shows the software pays for itself and generates additional profit.

Implementing Smart Nesting: Best Practices and Avoiding Pitfalls

Companies achieve maximum benefits from smart nesting through careful planning and execution. They must adopt best practices and avoid common pitfalls. This ensures a smooth transition and sustained improvements.

Conducting a Comprehensive Material Waste Audit

A comprehensive material waste audit forms the foundation for effective waste reduction. It helps identify current waste streams and their sources. First, teams plan and prepare. They set clear objectives, define the audit scope, and gather necessary equipment. This includes protective gear and measurement tools. Next, they examine records. They collect and analyze hauling invoices, disposal receipts, and previous waste reports. This reveals spending patterns and disposal frequencies. A facility walk-through follows. Teams systematically tour the facility. They document container locations, sizes, and fill levels. They observe disposal habits and identify unique waste streams. Then, a waste sort occurs. Teams conduct a hands-on sorting process. They select representative waste samples. They categorize materials, weigh each category, and calculate percentages. Data analysis and opportunity identification come next. Teams analyze collected data. They identify waste patterns and opportunities for improvement. They prioritize recommendations based on implementation difficulty and return on investment. Finally, routine follow-up audits are crucial. They monitor progress and compare current data with baseline measurements. This helps adjust strategies proactively.

Selecting the Right Nesting Software Solution

Choosing the correct nesting software solution significantly impacts material utilization and production costs. The effectiveness of nesting algorithms directly influences overall production efficiency. Advanced algorithms consider part orientation, material grain direction, and machine cutting parameters. They include true-shape nesting for irregularly shaped parts and common-line cutting. This reduces material consumption and cutting time. Companies must conduct a thorough needs assessment. They analyze current workflows and future production requirements. They prioritize material database accuracy. This ensures the integrity of property-dependent calculations. They also evaluate vendor support and industry fit. They assess the vendor's track record and support quality. They request demos and trial access. This allows hands-on usability testing. They check for API and third-party integration options. This verifies compatibility with existing systems.

Training Your Production Team for Proficiency

Proper training ensures the production team can fully leverage new nesting software. A structured training program provides comprehensive instruction on all relevant software modules. This empowers operators to use advanced features effectively. Well-trained personnel understand how to optimize nesting parameters. They know how to customize settings like part spacing and grain direction. This maximizes material utilization and minimizes scrap. Training also covers troubleshooting common issues. It helps maintain efficient operations. Continuous learning opportunities keep the team updated on new software capabilities. This ensures ongoing proficiency and adaptation to evolving production needs.

Establishing Continuous Improvement Processes

Companies achieve maximum benefits from smart nesting through careful planning and execution. They must adopt best practices and avoid common pitfalls. This ensures a smooth transition and sustained improvements. Establishing continuous improvement processes is vital for sustained efficiency gains. Organizations regularly review and optimize workflows. They invest in advanced nesting software, such as SigmaNEST or NestFab, for automated optimization and reporting. This allows them to leverage material grades and types, understanding properties like grain direction.

Teams consider part orientation and nesting patterns, experimenting with rotational and mirror nesting for better results. They batch similar parts together to reduce machine setup time. Dynamic nesting automatically adjusts layouts when production conditions change. Optimizing cutting paths minimizes tool movements, reducing cutting time and machine wear. Monitoring and analyzing performance helps identify areas for improvement. This includes tracking material usage, waste, and machine performance. Automation in nesting optimization, through CNC machines and robotic arms, enhances accuracy and speeds up production. Empowering the workforce through regular training keeps teams updated on tools and technologies. This fosters innovation by encouraging employee suggestions. Companies also optimize material usage by implementing real-time inventory tracking and setting up recycling workflows. They leverage data for continuous improvement, monitoring KPIs like material waste and machine uptime. Embracing lean manufacturing principles, such as Just-in-Time production, aligns material procurement with schedules and eliminates non-essential steps.

Overcoming Common Implementation Challenges

Implementing smart nesting solutions presents several challenges. Nesting problems are inherently complex. They are classified as NP-hard, meaning they are at least as challenging as NP problems. The two-dimensional rectangular nesting problem is NP-complete. This complexity increases when dealing with irregular parts. The problem also involves considerable variability depending on part types, containers, and constraints. Common simplifications in literature, such as avoiding part convexity or restricting free rotations, highlight the difficulty of real-world scenarios. An additional significant challenge involves nesting irregularly shaped parts onto irregular surfaces like leather. These surfaces contain varying quality areas, defects, and holes that dictate part positioning and complicate optimization.

Organizations face other common hurdles during implementation:

Challenge	Solution
Initial Implementation Costs and Resource Allocation: Upfront costs for equipment, software, and training can be significant, and allocating sufficient resources can be difficult.	Conduct a cost-benefit analysis to demonstrate long-term advantages, secure stakeholder support, and explore funding options.
Data Management and Analysis for Nested PM: Generating vast amounts of data from inspections and monitoring requires efficient management and analysis tools and expertise.	Implement a robust CMMS or EAM software to streamline data organization, scheduling, and reporting. Utilize data analytics tools for pattern identification and predictive maintenance.
Overcoming Resistance to Change and Embracing a Proactive Maintenance Culture: Shifting from traditional to Nested PM requires cultural change, which can face resistance from maintenance teams.	Involve personnel in decision-making, implement gradual transitions with pilot projects, and recognize/reward proactive maintenance practices to foster a culture of change.

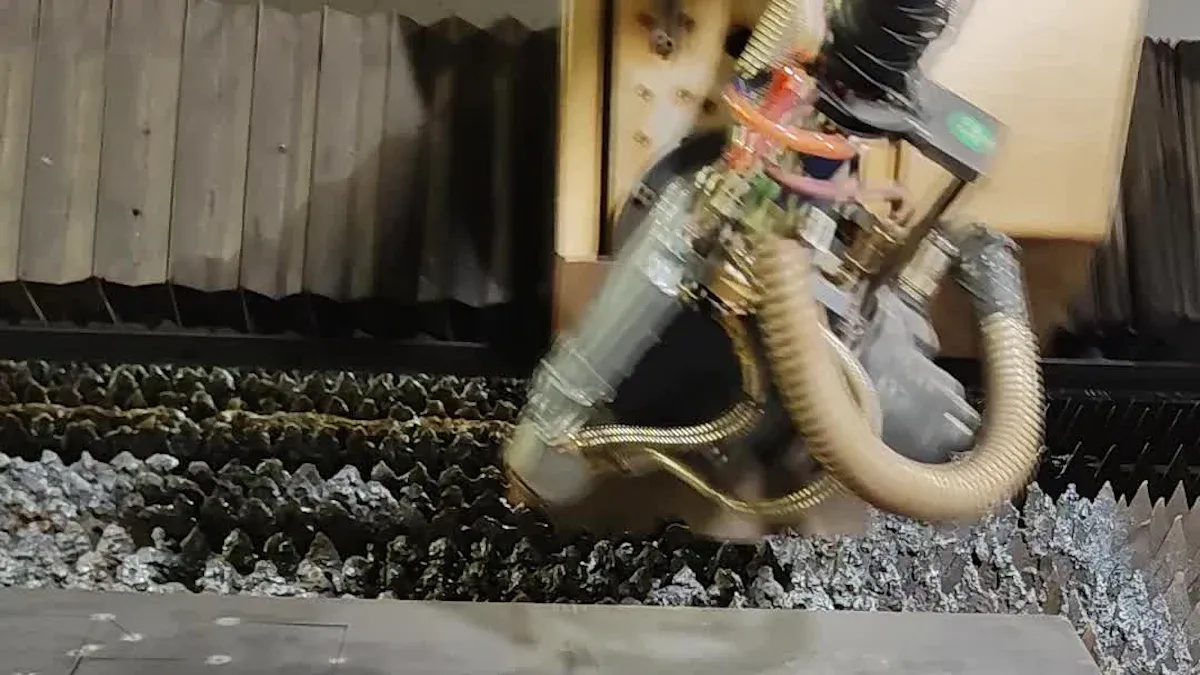

Measurable Benefits of Adopting Smart Sheet Metal Nesting Optimization

Adopting smart nesting practices brings significant, quantifiable advantages to sheet metal fabrication. These benefits directly impact a company's financial health and operational footprint. Businesses experience improvements across various key performance indicators.

Significant Reduction in Raw Material Costs

Smart nesting directly reduces raw material costs. It maximizes the use of each sheet. This minimizes scrap material. Companies see substantial savings. For example, automated nesting significantly outperforms manual methods.

Optimization Technique	Quantifiable Reduction/Improvement
Automated Nesting vs. Manual	5-15% less waste
Automated Nesting Material Utilization	Up to 95%
Common-Line Cutting	8-12% improved efficiency
True Shape Nesting	10-15% improvement in material yield
Overall Nesting	20-30% minimization of material waste

These figures show how advanced techniques lead to less waste. They ensure fabricators get the most out of every sheet. This directly lowers purchasing expenses.

Increased Production Efficiency and Throughput

Smart nesting significantly increases production efficiency and throughput. It optimizes material utilization. It also streamlines various stages of the fabrication process. This technique minimizes waste and maximizes usable space. It directly addresses efficiency and cost control goals. By reducing unused material, manufacturers extract more value from each sheet. This is crucial for expensive materials like stainless steel or aluminum.

• Automation to Streamline Handling: A UK medical equipment manufacturer integrated nesting with an automated sorting line. This reduced labor time by 35%.
• Common-Line Cutting for Efficiency: A Canadian manufacturer used common-line cutting for rectangular components. This cut laser time by 15% and reduced scrap by 6%.
• Multi-Head Cutting for Speed: A Chinese automotive supplier deployed a dual-head laser system. This doubled production speed when combined with optimized nesting.

These examples show how smart sheet metal nesting optimization reduces scrap, lowers costs, and speeds up cutting. It arranges parts to maximize material usage. Advanced strategies like dynamic nesting adapt to real-time orders. Genetic algorithms refine layouts for optimal material use. Cloud-based nesting centralizes optimization across multiple facilities.

Improved Sustainability and Environmental Impact

Smart sheet metal nesting offers significant environmental benefits. It aligns with global sustainability goals. Companies reduce their ecological footprint.

• It reduces material waste by maximizing sheet usage. This leads to less scrap metal and conserves raw materials.
• It lowers energy consumption. It optimizes cutting paths to minimize unnecessary machine movements. This reduces power usage for laser cutters and CNC machines.
• It contributes to a reduced carbon footprint due to decreased energy consumption.
• It aligns with environmental regulations. It strengthens corporate responsibility efforts. This enhances a company's reputation.
• It improves resource efficiency by generating less scrap. This also avoids costs associated with scrap disposal and recycling.

These improvements demonstrate a commitment to responsible manufacturing. They also provide economic advantages.

Enhanced Competitive Advantage in the Market

Smart nesting provides a significant competitive advantage in the sheet metal manufacturing market. Businesses gain an edge by optimizing their production processes. They achieve higher efficiency and lower costs. This allows them to offer better prices and faster turnaround times to customers.

Embracing the use of automatic nesting software in sheet metal manufacturing opens doors to a whole new level of efficiency, productivity, and cost savings. The initial investment in nesting software can often see a payback within a matter of months due to the time saved from streamlining and automation, and will ultimately lead to a stronger, more competitive business. For an industry where time is indeed money, the right nesting software is an investment well worth considering.

Companies that adopt advanced nesting solutions streamline their operations. They reduce waste and improve overall output. This translates into several key benefits:

• Efficiency and Productivity: Automated nesting procedures significantly reduce staff time spent on layout calculations.
• Material Optimization: It minimizes scrap and enables the use of remnants, directly reducing material expenses.
• Tool Path Optimization: It calculates the fastest machine movements and reduces tool changes, extending machine lifespan and improving part quality.
• Dynamic Nesting: This allows real-time adjustments to layouts, saving recalculation time.
• Remnant Management: It automatically creates and manages remnants, ensuring minimal offcuts.
• Compatibility and Standardization: It works with various CNC machines and allows standardization across multiple machine brands, streamlining operations and reducing training complexities.

These operational improvements directly enhance a company's market position. They can produce parts more quickly and at a lower cost. This allows them to bid more competitively on projects. They also deliver products faster than rivals. Higher quality parts, resulting from optimized tool paths, build customer trust. This leads to repeat business and a stronger reputation. Ultimately, smart nesting transforms a business into a more agile and profitable entity. It secures its place as a leader in the competitive Sheet Metal Fabrication industry.

---

Smart nesting fundamentally transforms sheet metal operations. It significantly reduces waste. Companies should begin implementing advanced nesting now. This unlocks immediate cost savings. Investing in smart nesting is a strategic imperative. It ensures future growth and sustainability. This approach to sheet metal nesting optimization secures a competitive edge.

FAQ

What is smart nesting in sheet metal fabrication?

Smart nesting arranges parts on a metal sheet. It uses advanced software. This process maximizes material use. It minimizes scrap. This improves production efficiency.

How does smart nesting reduce material waste?

Smart nesting uses algorithms. These algorithms fit parts tightly together. They consider part shapes and orientations. This leaves less unused material. It directly lowers raw material costs.

What are key features of advanced nesting software?

Advanced software offers true-shape nesting. It includes dynamic part rotation. It also has common-line cutting. Remnant management is another key feature. These tools optimize layouts.

Can small businesses benefit from smart nesting?

Yes, small businesses benefit greatly. Smart nesting reduces material costs for any size operation. It improves efficiency. This helps them compete effectively.
