Revolutionizing Sheet Metal Welding Techniques in 2025
Advanced Sheet Metal Welding techniques fundamentally transform high-strength sheet metal assemblies. These innovations overcome traditional material joining limitations. Manufacturers now achieve unprecedented strength, efficiency, and design flexibility. The Sheet Metal Welding market reflects this significant industry transformation. Experts project its value to reach USD 2.3 billion by 2033, growing from an estimated USD 1.45 billion in 2024. This growth underscores the impact of core innovations. The broader global sheet metal market also shows robust expansion, as illustrated below.
Key Takeaways
- New welding methods make metal parts stronger and lighter. This helps make better cars and other products.
- Advanced welding like laser and friction stir welding works well with strong metals. These methods make very precise and clean welds.
- Modern welding uses robots and AI. This makes welding faster and more accurate. It also helps find problems quickly.
- New welding techniques use less energy and create less pollution. This helps protect the environment.
- These new welding technologies allow for more creative designs. They also help join different types of metals together.
The Evolving Landscape of Sheet Metal Welding Challenges
Complexities in High-Strength Material Weldability
High-strength materials present significant challenges for welding processes. The evolving landscape of sheet metal welding techniques must address these complexities. High-strength aluminum alloys are particularly difficult to weld. Transverse solidification cracking occurs in the weld fusion zone. This happens when the material is in a semi-solid state. These cracks are oriented differently from typical centerline cracks. They link to elongated temperature distribution and induced tensile strain during cooling. Lack of fusion (LOF) is another critical defect. It appears in Electron Beam Welding (EBW). LOF means adjacent weld beads or the weld metal and base metal fail to fully fuse. This creates an unbonded interface. Causes include beam misalignment, incorrect focus, and improper joint preparation. LOF acts as a stress concentrator. It significantly reduces joint toughness.
Advanced high-strength steels (AHSS) also pose difficulties. They are more susceptible to cracking compared to mild steels. Controlling the temperature gradient through preheating is crucial. This prevents rapid heating and cooling, which cause cracking. Preheating also reduces hydrogen levels, minimizing hydrogen-induced cracking. Maintaining the correct interpass temperature is essential. It prevents a large heat-affected zone (HAZ). The HAZ is prone to cracking. It also preserves the steel's mechanical properties. Metallic coatings, such as Al-Si, further complicate resistance spot welding of these steels.
Industry Demand for Lighter, Stronger Assemblies
The industry demands lighter, stronger assemblies. This push aims for better fuel economy and longer electric vehicle (EV) range. This demand accelerates the use of Advanced High-Strength Steel (AHSS), Aluminum, and Magnesium. These materials form a multi-material mix strategy. Specific EV applications include battery enclosures. These are large, complex, and structurally critical housings. They often use high-strength steel or aluminum. Redesigned front crumple zones also use innovative sheet metal structures. Lightweight vehicles require less energy to move. This leads to reduced fuel consumption and a smaller carbon footprint. Materials like aluminum and high-strength steel alloys are favored. They offer lightweight properties and excellent strength-to-weight ratios. This allows for thinner, lighter components with high structural integrity. Digital engineering tools, such as generative design and topology optimization, drive radical weight reductions. They reshape components based on load paths.

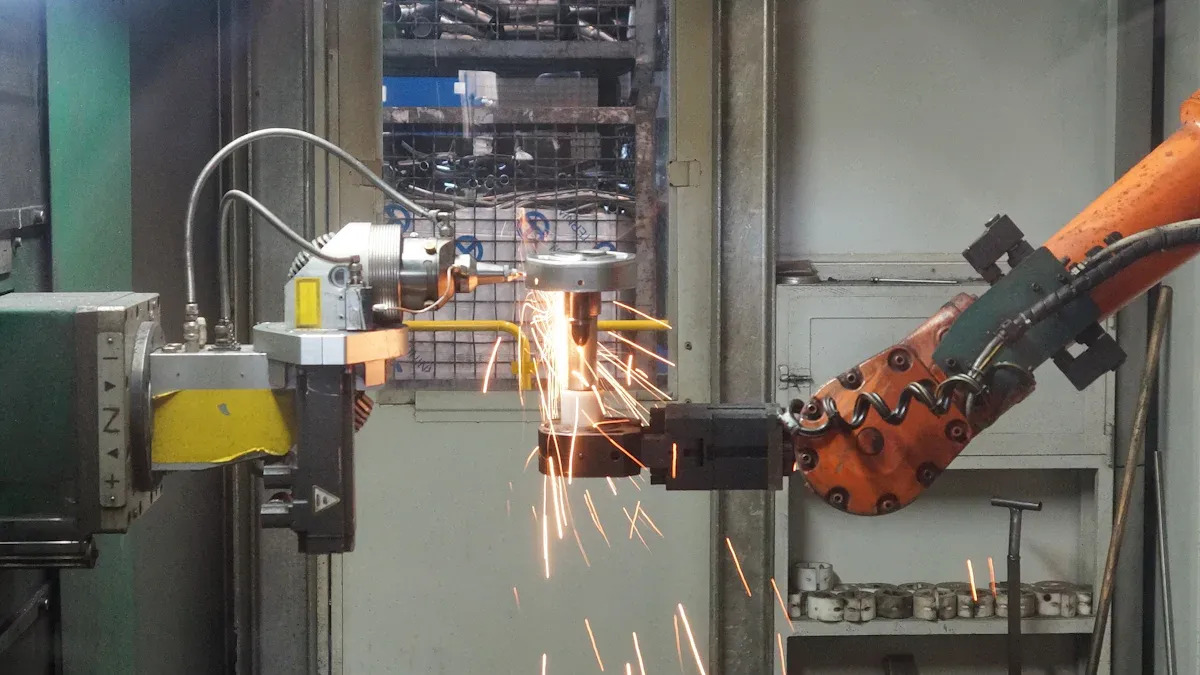

Cutting-Edge Sheet Metal Welding Techniques for 2025
Manufacturers constantly seek innovative sheet metal welding techniques to meet the demands for lighter, stronger, and more complex assemblies. The year 2025 brings significant advancements across several key welding processes. These innovations enhance precision, strength, and efficiency.
Advanced Laser Welding Techniques for Precision
Laser Welding stands out for its exceptional precision and speed, especially for thin sheet metals. Fiber Laser Welding machines offer numerous advantages. They create a small heat-affected zone, which significantly reduces distortion compared to traditional TIG welding. This is crucial for precise fabrications. Fiber lasers also operate four times faster than TIG welding, improving production times. They are easier to learn and perform, requiring only a steady hand for consistent results.
Fiber lasers are safe for reflective materials like aluminum, unlike CO2 lasers. They also produce smooth, consistent welds, minimizing defects such as undercuts and burn-through. This often eliminates the need for grinding or polishing, speeding up delivery. Fiber lasers are compatible with dissimilar metals, allowing for welding combinations like copper to aluminum.
Advanced Laser Welding achieves superior joint strength. For example, 304L Stainless Steel (15% Mo doped) shows a tensile strength of 767.2 MPa. Undoped 304L Stainless Steel achieves 588.3 MPa. Elongation also improves significantly. Doped 304L Stainless Steel reaches 37.2%, while undoped material achieves 25.6%.
Fiber Laser Welding machines integrate into smart manufacturing environments. They offer real-time monitoring and feedback. This provides crucial data on weld quality, heat input, and cycle times. This data-driven approach allows engineers to make quick adjustments. It maintains consistent output, improves product quality, and enhances operational transparency and traceability.
Friction Stir Welding (FSW) for High-Strength Alloys
Friction Stir Welding (FSW) is a solid-state joining process. It produces superior welds with greater mechanical strength compared to conventional welding methods that involve melting. FSW joints exhibit higher tensile and fatigue strength. This results from the solid-state nature of the process. It eliminates issues associated with melting and solidification.
The lower thermal impact of FSW reduces distortion. This leads to more accurate and precise welds. FSW avoids defects like porosity and inclusions by not melting base materials. This preserves their original properties and enhances structural integrity. The process creates a fine-grain microstructure. This improves mechanical properties such as strength, fatigue resistance, and toughness. Friction stir welded joints in aluminum alloys show high strength efficiency, often exceeding 83%. This is due to the absence of weld defects and uniform material mixing.
Enhanced Resistance Spot Welding (RSW) Innovations
Resistance Spot Welding (RSW) remains a cornerstone in automotive manufacturing. Innovations focus on enhancing weld quality, consistency, and electrode life. Adaptive control systems significantly improve RSW quality. They enhance joint mechanical performance and nugget size stability. These systems also reduce surface sticking and damage at weld points. They extend electrode service life by three times or more. This also substantially expands the range of weldable materials.
Adaptive control systems in resistance welding use specialized hardware and software. They precisely adjust welding parameters in real-time. This ensures each weld performs within tight quality tolerances. These systems integrate real-time inspection with the control of each weld. This saves time, improves overall quality, and guarantees inspection and documentation for every weld. This integrated approach helps maintain high levels of welding throughput while ensuring consistent quality.
Innovations also include new electrode materials. Researchers investigate the use of CuAg0.1 electrode caps. This is an innovative approach to resistance spot weld AW-7075 aluminum alloys. These advancements contribute to more reliable and efficient RSW processes.
Cold Metal Transfer (CMT) and Pulsed MIG/MAG Welding Advances
Cold Metal Transfer (CMT) and advanced Pulsed MIG/MAG welding represent significant leaps in arc welding technology. These processes offer enhanced control and precision, especially for thin gauge sheet metal applications. CMT welding provides improved control over the welding environment. This is particularly beneficial for delicate materials. It welds ultra-light gauge sheets, as thin as 0.3 mm. This process does not require weld-pool backing support. CMT achieves stable arc conditions. It mechanically adjusts arc length. This adjustment is independent of the workpiece surface or welding speed.
CMT significantly reduces thermal input. This leads to spatter-free metal transfer. It welds various materials, including steel and aluminum, with thicknesses as low as 0.3 mm. This technique effectively joins thin sheets. It features a lower distortion rate. CMT's low heat input mitigates common issues. These issues include burn-through and distortion. Conventional high-heat welding techniques often cause these problems on thin austenitic steels.
CMT produces quality welds on all stock metals. This includes thin-gauge materials previously unweldable. It reduces costs through faster weld times and lower reject rates. This expands the range of materials available for enclosure designs. CMT generates only one-tenth of the heat compared to MIG welding. This significantly reduces heat input. It allows for full seam welding of most corner geometries without warpage. This is due to reduced heat and inherent joint stability. These advancements in Sheet Metal Welding techniques offer manufacturers greater flexibility and efficiency.
Electron Beam Welding (EBW) for Critical Applications
Electron Beam Welding (EBW) is a high-energy density process. It excels in critical applications requiring deep penetration and high-quality welds. EBW uses a focused beam of high-velocity electrons. This beam melts and fuses materials. It operates in a vacuum environment. This prevents contamination and ensures superior weld integrity.
EBW achieves impressive penetration depths. For copper, it reaches up to 30 mm. The resulting joint strength is robust, often reaching 264 MPa. This represents approximately 95% of the base material's strength. EBW also effectively reduces porosity. Using oscillation, it decreases porosity by 30%. The beam current significantly influences weld quality. It accounts for 81% of the variance. For dissimilar joints, optimal beam positioning is crucial. Offsets of 0.4–0.5 mm achieve the best results. This method achieves strengths of 250 MPa in dissimilar material combinations.
| Characteristic | Value (for Copper) |
|---|---|
| Penetration Depth | Up to 30 mm |
| Joint Strength | Up to 264 MPa |
| Joint Strength (vs. Base Material) | Approximately 95% |
| Porosity Reduction (with oscillation) | 30% |
| Beam Current Influence on Weld Quality | Accounts for 81% of variance |
| Optimal Beam Positioning (dissimilar joints) | 0.4–0.5 mm offsets |
| Achieved Strength (dissimilar joints) | 250 MPa |
These characteristics make EBW ideal for aerospace, medical, and nuclear industries. These sectors demand the highest levels of reliability and performance. EBW's ability to create narrow, deep welds with minimal heat input reduces distortion. It also preserves the material's mechanical properties.
Benefits of Modern Sheet Metal Welding Techniques
Modern Sheet Metal Welding techniques offer significant advantages across manufacturing sectors. These advancements lead to stronger products, more efficient production, and greater design possibilities.
Superior Joint Strength and Weld Integrity
Advanced welding processes create joints with exceptional strength and integrity. Techniques like Friction Stir Welding (FSW) produce welds that often surpass the base material's strength. Electron Beam Welding (EBW) also delivers deep penetration and minimal defects, ensuring robust connections. These methods reduce the likelihood of failures under stress. They also enhance the overall durability and lifespan of assembled components. Manufacturers achieve reliable performance even in demanding applications.
Increased Production Efficiency and Cost Reduction
Modern welding innovations dramatically boost production efficiency. Automated welding systems, especially robotic arc welding, significantly reduce production cycle times. This increased capacity allows manufacturers to accept larger contracts and meet tighter deadlines. Robotic systems also achieve much higher arc-on times compared to manual methods.
| Welding Method | Arc-On Time |
|---|---|
| Manual Welding | 30-40% |
| Robotic Welding | 60-80% |
This leads to greater output and shorter lead times. Reduced rework and consistent quality also lower overall manufacturing costs.
Greater Design Freedom and Material Compatibility
Advanced Sheet Metal Welding techniques unlock unprecedented design freedom. Laser welding, for example, creates fine, intricate welds. Its focused beam allows welding in narrow spaces. This increases design flexibility, especially for delicate components. Robotic systems like the SevenAxis TrackWeld Station offer seven degrees of freedom. This allows them to adapt to complex geometries and precisely handle various joint types. They ensure accurate welds even in intricate tasks. Additive manufacturing (3D printing) further expands design possibilities. It enables the creation of complex geometries previously unattainable with conventional welding. These capabilities allow engineers to innovate without traditional manufacturing constraints.
Reduced Environmental Impact of Welding Processes
Modern sheet metal welding techniques significantly reduce environmental impact. Manufacturers prioritize sustainability in their operations. Advanced laser welding systems notably decrease energy consumption compared to traditional methods. This reduction directly translates to a smaller carbon footprint. Laser welding minimizes energy usage, which helps the environment. It also lowers operational costs for businesses.
Advanced lasers operate with high efficiency. They deliver powerful beams while requiring less energy. This efficiency contributes to lower overall energy requirements for welding processes. For example, laser welding typically consumes significantly less energy than older, conventional welding techniques. This leads to substantial savings and environmental benefits.
Other advanced techniques also contribute to a greener manufacturing process. Friction Stir Welding (FSW), a solid-state process, avoids melting materials. This reduces fume generation and the need for ventilation systems. Cold Metal Transfer (CMT) welding also operates with very low heat input. This minimizes spatter and harmful emissions. These innovations collectively support more sustainable manufacturing practices. They help industries meet environmental regulations and reduce their ecological footprint. The shift towards these cleaner processes benefits both the planet and production efficiency.

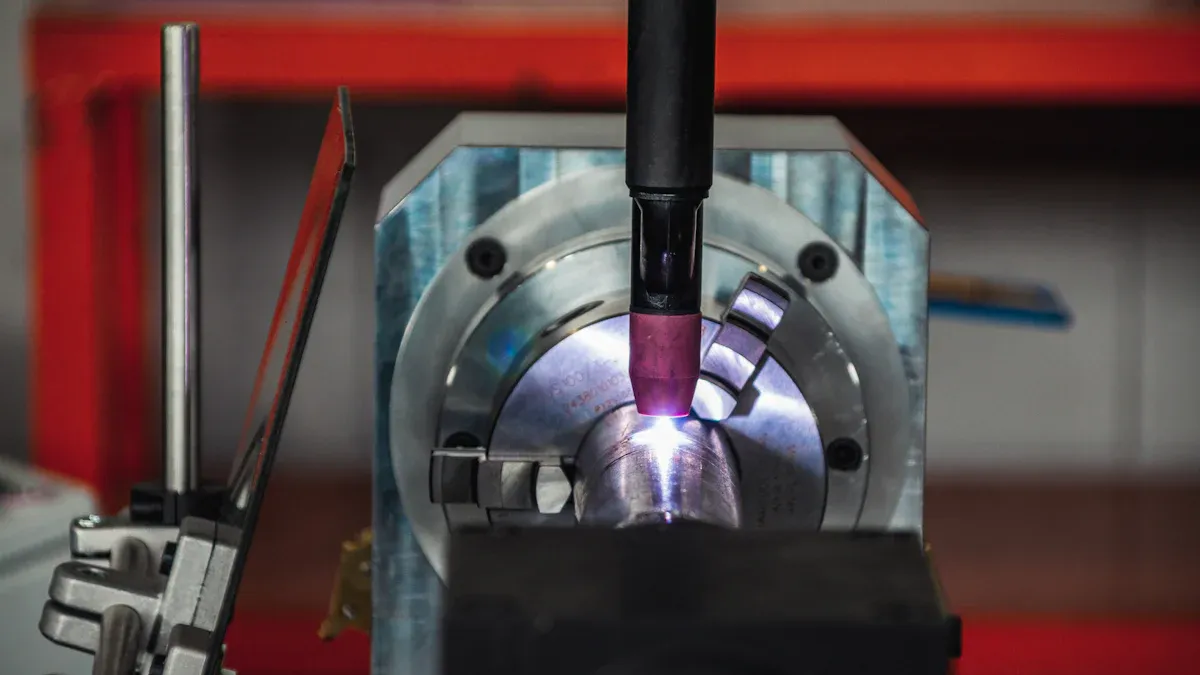

The Future Trajectory of Sheet Metal Welding Techniques
Automation, Robotics, and AI in Welding
Automation and robotics are rapidly transforming welding operations. The automotive and transportation sector leads in robotic welding adoption. It holds 52% of the market share in 2024. This sector relies on robotic welding for uniform welds, high productivity, and mass production. The construction sector shows the highest projected Compound Annual Growth Rate (CAGR) at 15.2%. Global infrastructure projects and increased automation for structural components drive this growth.
| Industry/Region | Market Share (2024) | CAGR (Projected) |
|---|---|---|
| Automotive and Transportation | 52% | N/A |
| Construction | N/A | 15.2% |
| North America | 36% | N/A |
| Asia-Pacific | 31% | N/A |
| Europe | 29% | N/A |
Artificial intelligence (AI) further enhances welding processes. AI identifies various weld defects. These include porosity, cracks, and incomplete fusion. It uses advanced imaging and algorithms. AI also optimizes welding parameters. It analyzes defect trends and predicts quality. Deep learning models, trained on millions of welds, achieve high detection accuracy. For instance, AI vision systems provide immediate feedback. They detect defects within 100 milliseconds. This allows for 100% inspection of every weld. AI integrates with process control. It automatically adjusts parameters based on defect trends. This reduces scrap and improves efficiency.
Hybrid Welding Processes and Multi-Material Joining
Hybrid welding processes combine different welding methods. They offer superior results for complex applications. Laser-arc hybrid welding is a prominent example. It simultaneously applies an electric arc and a laser beam to the same weld pool. This process merges the deep penetration capabilities of laser welding with the gap-bridging ability of arc welding. It also improves the weld cap profile. Shielding gases and filler wire stabilize the arc. They enhance weld quality, especially for thicker or less precise joints.
The 'ÖkoHybrid' project develops a new process for hybrid laser-arc welding with thick wire. This process combines gas metal arc welding (GMAW) of thick wire with laser beam welding. It uses an additional laser beam to accelerate and stabilize the process. This technique targets fine-grain structural steels up to 20 mm thick. It aims to bridge large seam gaps with fewer layers. It uses 3 mm thick wires. This increases efficiency and resource effectiveness. These advanced sheet metal welding techniques enable manufacturers to join diverse materials. They create stronger, lighter, and more complex assemblies.
Advanced welding innovations fundamentally reshape modern manufacturing. These developments are not mere improvements; they represent transformative shifts in sheet metal assembly. The next generation of high-strength sheet metal products is now possible. New sheet metal welding techniques accelerate progress across various industries. They set new performance and efficiency benchmarks for product development and production.
FAQ
What challenges do high-strength materials pose for welding?
High-strength materials present several welding difficulties. They are prone to cracking, such as transverse solidification cracking in aluminum alloys. Advanced high-strength steels (AHSS) require careful temperature control to prevent cracking. Lack of fusion (LOF) can also occur, reducing joint toughness. These complexities demand precise welding techniques.
How do advanced laser welding techniques enhance precision?
Advanced laser welding offers exceptional precision. It creates a small heat-affected zone, which minimizes material distortion. Fiber lasers operate quickly and produce smooth, consistent welds. They also integrate real-time monitoring and feedback. This ensures consistent quality and allows for quick adjustments during production.
What benefits do automation and AI bring to welding?
Automation and AI significantly improve welding operations. Robotic welding increases productivity and ensures uniform welds. AI identifies weld defects like porosity and cracks using advanced algorithms. It also optimizes welding parameters in real-time. This reduces scrap, improves efficiency, and enhances overall weld quality.
How do modern welding techniques contribute to environmental sustainability?
Modern welding techniques significantly reduce environmental impact. Advanced laser welding systems decrease energy consumption, lowering the carbon footprint. Solid-state processes like Friction Stir Welding reduce fume generation. Cold Metal Transfer (CMT) welding operates with low heat input, minimizing spatter and harmful emissions. These methods support greener manufacturing.
