Revolutionizing Auto Weight How Sheet Metal Components Lead the Way in 2025

Sheet metal components play a pivotal role in achieving significant vehicle weight reduction targets by 2025. Manufacturers increasingly rely on advanced automotive lightweight sheet metal solutions. The future of automotive design fundamentally hinges on these innovative materials and their applications. They enable the creation of lighter, more efficient vehicles. This strategic shift addresses evolving industry demands and consumer expectations.

Key Takeaways

• Lighter cars save fuel and reduce pollution. They also drive better. This helps car makers meet new rules.
• New metal materials make cars lighter. These include strong steel, aluminum, and mixed materials. They help build better cars.
• New ways to make car parts help too. These include special shaping, welding, and stamping. They make parts strong and light.
• Lightweight metal is important for electric cars. It helps make batteries lighter. This allows cars to go farther.
• Computers and smart factories will make car parts even better. They will help design and build lighter cars. This will happen faster and with less waste.

The Imperative for Automotive Lightweighting

Driving Fuel Efficiency and Emissions Reduction

Automotive manufacturers prioritize reducing vehicle weight. This strategy directly improves fuel efficiency. Lighter vehicles require less energy to move, consuming less fuel. This reduction also significantly lowers harmful emissions. Governments worldwide implement stricter environmental regulations. These regulations push the industry towards more sustainable practices. Lightweighting vehicles offers a clear path to meet these critical environmental goals.

Enhancing Vehicle Performance and Dynamics

Lightweighting vehicles offers significant performance advantages. A lighter vehicle accelerates faster. It also handles better. Reducing the vehicle's gross weight means it needs less power to overcome driving resistance. This leads to improved acceleration. Lighter vehicles also exhibit superior handling characteristics. Reducing mass alters critical vehicle parameters. These include the inertia matrix, weight distribution, and the height of the center of gravity. Such changes directly influence tire forces, stability, and overall handling behavior. This results in a more responsive and agile driving experience.

Meeting Evolving Regulatory Standards

Stringent regulatory requirements for fuel efficiency and emissions reduction compel automotive manufacturers to adopt lightweight materials in vehicle design. This pressure to meet increasingly strict standards is a primary driver for implementing lightweighting strategies. Governments globally have enacted regulations concerning emission standards and fuel economy. These regulations necessitate that automotive Original Equipment Manufacturers (OEMs) increase their use of lightweight materials. This includes composites, lightweight metals, and plastics. The direct relationship between vehicle weight and fuel consumption impacts emission compliance. For example, the CAFE Standards require passenger cars to achieve an average of 49 MPG by 2025. Light trucks must reach 37 MPG across total sales. The EPA also mandates stricter CO2 emission limits, measured in grams per mile. They enforce caps on nitrogen oxides (NOx), particulate matter (PM), and volatile organic compounds (VOCs). The continued development of advanced automotive lightweight sheet metal plays a crucial role in meeting these demanding targets.

Advanced Automotive Lightweight Sheet Metal Materials

Automotive manufacturers actively seek innovative materials. These materials help reduce vehicle weight. Advanced automotive lightweight sheet metal materials offer significant solutions. They provide strength, durability, and reduced mass. This section explores key advancements in these materials.

High-Strength Steel Innovations

Steel remains a foundational material in vehicle construction. However, traditional steel is heavy. Innovations in high-strength steel (HSS) and ultra-high-strength steel (UHSS) changed this perception. These advanced steels offer superior strength. Manufacturers can use thinner gauges of these steels. This reduces overall vehicle weight. At the same time, they maintain or even improve crash safety performance. Examples include advanced high-strength steels (AHSS) like dual-phase (DP) steels and complex-phase (CP) steels. They provide excellent formability and energy absorption. This makes them ideal for safety cages and structural components. These steels allow engineers to design lighter body structures. They do not compromise occupant protection.

Aluminum Alloys for Structural Components

Aluminum alloys are crucial for lightweight vehicle design. They offer an excellent strength-to-weight ratio. This property allows for significant weight reduction. Reduced weight enhances fuel economy. It also improves overall vehicle performance. The inherent strength of aluminum contributes to improved safety for both drivers and passengers. Aluminum finds wide use in various automotive applications. These include engines, transmissions, suspension systems, wheels, brake components, and frames. It is the second most commonly used metal in the automotive industry after steel.

Aluminum Alloy Series	Key Characteristics	Specific Structural Applications in Vehicles
6000 Series	Alloyed with silicon and magnesium, heat treatable	Hoods, doors, trunks, roofs
5000 Series	Alloyed with magnesium, non-heat treatable, good corrosion resistance, good welding characteristics, moderate-to-good strength	Truck trailers, non-critical automotive parts
3000 Series	Alloyed with manganese, moderate strength, good formability and workability	Piping, heat insulators

Emerging Hybrid Sheet Metal Composites

Hybrid sheet metal composites represent the next frontier in lightweighting. These materials combine different substances. They leverage the best properties of each component. This creates materials with superior performance.

• Fiber metal laminates (FMLs) are one type. They consist of thin metal sheets and layers of fiber-reinforced resin. FMLs offer excellent fatigue resistance. They also provide damage tolerance and impact resistance. These properties surpass those of monolithic metal alloys.
• Bayer developed a hybrid plastics/metal technology. This technology has been in series production cars for six years. The Audi A6 first incorporated this technology in 1998. Its roof frame featured this innovation. This resulted in a 30% weight reduction (300g) compared to an all-sheet metal version. Trucks also use this technology. The Mercedes-Benz Actros radiator grille flap is an example. Manufacturers explore its use for instrument panel cross beams, floors, and chassis.
• GE Advanced Materials offers Hydroplast technology. It combines injection molding with hydroformed tubular steel parts. Smartlok technology joins plastic and metal components.
• BASF's collar forming method joins molded plastic components and sheet metal. It mechanically presses a collar from the metal into the plastic. This offers more design freedom. It also provides better mechanical properties than in-mold assembly.

Various types of hybrid composites offer distinct advantages:

• Carbon Fiber Reinforced Hybrid Composites: These combine carbon fibers with polymers or metals. They create lightweight structures. They have high strength-to-weight ratios. This makes them ideal for automotive and aerospace applications.
• Natural Fiber Hybrid Composites: These use plant-based fibers like jute, hemp, flax, and bamboo. They combine them with synthetic materials. They offer weight reduction, good mechanical properties, and environmental benefits. Automotive interior components often use them.
• Metal Matrix Hybrid Composites: These blend lightweight metals like aluminum and magnesium. They use reinforcements such as ceramic particles or other fibers. They achieve significant weight reduction. They also provide superior specific strength and stiffness. The aerospace and automotive industries benefit from them.
• Polymer-based Hybrid Nanocomposites: These incorporate nanoscale fillers. Examples include carbon nanotubes, graphene, and nanoclays. They integrate these into polymer matrices. This leads to substantial weight reduction. It also enhances mechanical strength with minimal material addition.
• Sandwich Structure Hybrid Composites: These employ lightweight core materials. Foams, honeycombs, and balsa wood are examples. They place these between composite face sheets. This maximizes weight reduction. It also maintains structural integrity. They provide excellent bending stiffness and strength-to-weight ratios. Aerospace, marine, and transportation sectors use them.

Automakers actively implement these advanced materials. BMW's 'LifeDrive' Architecture combines carbon fiber reinforced plastic (CFRP) with aluminum and high-strength steel. Their hybrid composite B-pillars reduce weight by 35%. They also exceed crash performance requirements. Volkswagen's 'Smart Composites' Program integrates carbon fiber, glass fiber, and natural fiber reinforcements. They use thermoplastic and thermoset matrices. Their hybrid composite door modules achieve a 40% weight reduction compared to steel equivalents. They meet all safety requirements.

These hybrid materials offer numerous benefits:

• High Stiffness and Strength-to-Weight Ratio: They are significantly lighter than traditional metals. This allows for greater design flexibility. It is essential for weight optimization in automotive manufacturing.
• Corrosion Resistance: Their resistance is extremely high. This makes them ideal for use in corrosive environments. It also eliminates the need for additional coatings in automotive applications.
• Thermal Efficiency and Energy Savings: They have superior thermal properties. They provide better protection from extreme temperatures. They maintain form and function where traditional metals might weaken. This also helps reduce energy consumption.
• Durability: Their superior durability allows use in harsh environments. This includes extreme temperatures. It extends the life of components.
• Cost Savings: They offer cost savings over traditional metals and Fiber-Reinforced Polymers (FRP). This is due to reduced parts, pieces, and labor time for fabrication and installation. It also reduces manufacturing costs in automotive applications.

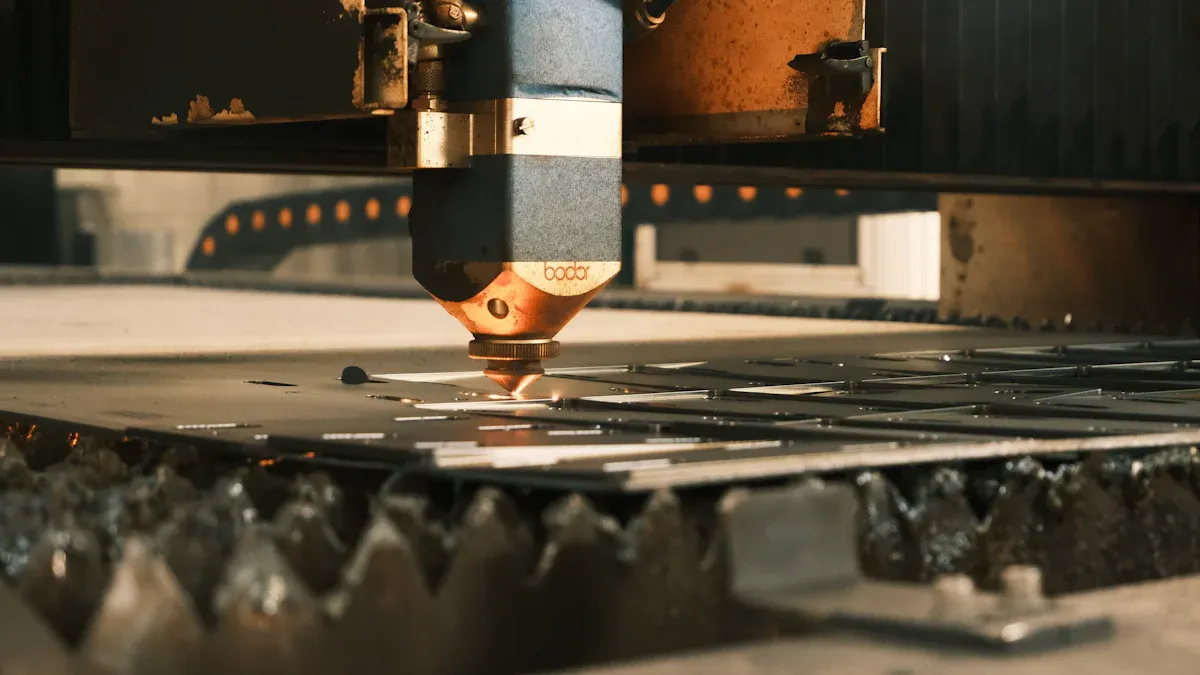

Innovative Manufacturing for Lightweight Sheet Metal

Automotive manufacturers constantly seek advanced techniques to produce lighter, stronger vehicle components. Innovative manufacturing processes are crucial for shaping advanced sheet metal materials effectively. These methods enable the creation of complex geometries and optimized structures.

Precision Hydroforming Techniques

Precision hydroforming is a key advanced metal forming process. It uses high-pressure fluids to shape metals into intricate designs. This technology is vital for the automotive industry. It reduces weight and increases strength in components. Manufacturers produce complex geometries with exceptional precision. This applies to chassis components and structural reinforcements.

Hydroforming allows manufacturers to achieve unparalleled precision and structural integrity. It shapes metal sheets to the exact contours of the die. High hydraulic pressure ensures seamless and distortion-free parts. This results in a superior fit. It also reduces the need for additional machining. Material failure is minimized, enhancing overall reliability and performance.

A significant advantage of hydroforming is its ability to accommodate intricate designs. It creates lightweight solutions. It shapes metals into complex geometries without compromising structural integrity. This contributes to lighter vehicles, better fuel economy, and improved handling. Hydroforming provides components with a superior strength-to-weight ratio and exceptional durability. It forms complex shapes while maintaining material integrity. Utilizing lightweight materials like aluminum and advanced high-strength steels, hydroformed parts offer improved performance and reduced fuel consumption. They do not compromise structural integrity.

Hydroforming technology enables manufacturers to produce complex structural parts. These parts can achieve up to a 30% weight reduction compared to conventional stamped components. This efficiency improves vehicle performance. It also supports the industry’s shift toward fuel efficiency and emission reduction.

• Tube hydroforming is widely used for components like space frames, engine cradles, and roof rails. It enables continuous cross-sections with fewer joints. This process supports tight radiuses and variable wall distribution. This optimizes load paths and reduces mass. Automakers value consistent geometric repeatability. They also appreciate simplified fixture strategies that enhance downstream welding and joining.
• Sheet hydroforming addresses complex panel geometries and structural skins. It reduces springback compared to conventional stamping. This improves surface quality for exterior or semi-structural parts.
• The use of aluminum in hydroforming enables significant mass reduction. It maintains structural rigidity. This makes it attractive for EV frames, crash members, and roof systems.

Advanced Laser Welding and Joining

Advanced Laser Welding techniques are crucial for meeting the demand for lighter, more fuel-efficient vehicles. They enable stronger, yet lighter, welds. Laser Welding provides high control. It allows the joining of various materials with minimal heat distortion. This is vital for maintaining the integrity of lightweight alloys and advanced composites.

Laser Welding is crucial in the body-in-white (BIW) stage. It joins thin sheets of steel or aluminum with minimal distortion. This leads to lighter and stronger vehicle bodies. It also improves fuel efficiency and crash performance.

Key advantages of advanced Laser Welding in the automotive industry include:

• Precision: It ensures exact and consistent welds. This enhances structural integrity and performance. It achieves smaller, more intricate welds with micron-level precision for tight tolerances.
• Speed: It is faster than traditional methods. This increases production speed and reduces labor costs. It can be up to 10 times faster than conventional spot welding. It reduces cycle times and boosts productivity.
• Quality: It causes less distortion and warping due to concentrated heat input. It minimizes the visible heat-affected zone around welds. This results in a minimal Heat Affected Zone (HAZ). It focuses heat precisely, minimizing warping and damage.
• Versatility: It adapts to various materials and thicknesses. This includes lightweight metals like aluminum.
• Automation Compatibility: It integrates seamlessly with robotic systems. This ensures consistent, high-volume manufacturing. It is easily integrated with automated manufacturing lines for enhanced consistency.
• Aesthetics: It creates aesthetically pleasing surface finishes.
• Non-contact nature: The welding process is non-contact.

These benefits contribute to higher-quality, lightweight vehicles. They offer improved fuel efficiency and safety.

Tailored Blanks for Optimized Design

Tailored blanks represent a significant advancement in sheet metal manufacturing. They optimize material usage and reduce weight in automotive body structures. Tailored products allow for placing strength, thickness, and corrosion protection attributes exactly where needed for part function. This removes unnecessary weight.

Tailored blanks offer several key benefits:

• Precise Material Placement: Tailor Laser Welded Blanks (TLWB) enable the precise placement of material strength where it is most needed. This supports lightweight construction and structural integrity.
• Optimized Nesting: For parts with large cutouts, such as door rings and window frames, converting to tailored blanks enables more efficient nesting of individual components. This reduces blank width requirements and material waste.
• Elimination of Reinforcement Parts: Instead of stamping a primary part and a separate reinforcement, tailored products directly incorporate the required strength and thickness. This removes the need for additional parts, stamping, inventory, and spot welding.
• Part Consolidation: Tailored products can combine the functions of multiple distinct parts that would otherwise need to be joined. This simplifies assembly and potentially reduces material.
• Weight Savings from Weld Flange Removal: Conventional body-in-white construction requires flat weld flanges for spot welding. Tailored products combine multiple parts, eliminating the need for these flanges and their associated weight.

"This happens because we reduce the amount of material consumption [and] because we are able to weld different thicknesses and different grades," explained Tandon, highlighting the efficiency of tailored blanks.

TLWB reduces raw material usage. It also minimizes offcuts and scrap. It achieves significant vehicle weight savings without compromising safety or crash performance.

Hot Stamping and Forming Processes

Hot stamping, also known as press hardening, represents a transformative manufacturing technique for producing high-strength steel automotive components. This process involves heating steel blanks to high temperatures, forming them in a die, and then rapidly cooling them. This method significantly enhances the material's strength. It allows manufacturers to create parts that are both lighter and stronger. This is crucial for modern vehicle design.

Hot stamping offers numerous specific benefits for high-strength steel automotive parts:

1. It achieves exceptional ultimate tensile strength in the as-formed state, reaching up to 1,500 MPa. This process also allows for the formation of complex geometries.
2. Manufacturers can reduce component weight. They use thinner gauge sheet metal while maintaining structural integrity and crash performance.
3. The process minimizes the need for joining operations, such as welding or fastening. This simplifies assembly.
4. Parts exhibit less spring back and warping. This improves dimensional accuracy.
5. It reduces part defects like cracks and splits. This enhances product quality.
6. The process requires reduced press tonnage compared to cold forming. This can lower manufacturing costs.
7. Engineers can tailor material properties by part zone. This allows for optimized performance in specific areas. For example, controlling the cooling rate introduces daughter phases like bainite, ferrite, and pearlite. This achieves lower strength and improved ductility for better energy absorption in areas like B-pillars.
8. It improves as-received microstructures of the steel.
9. The process requires fewer operational steps to produce a finished product. This streamlines manufacturing.

The high strength achieved through hot stamping comes from a fully martensitic phase transformation. This occurs during in-die quenching. This transformation provides excellent intrusion resistance. It also maintains structural integrity during impacts. Car manufacturers can use thinner-gauge sheets due to the material's strength. This leads to further vehicle weight reduction. Hot stamping is ideal for producing parts critical for crashworthiness. These include B-pillars, bumper beams, and door intrusion beams.

This advanced forming method benefits the environment. It reduces material consumption during production. It also lowers fuel consumption during driving due to lighter vehicles. Hot stamping enables the manufacture of very thin gauges. This further reduces the weight of manufactured parts. The ability to tailor mechanical properties within different regions of a single continuous part is a significant advantage. This allows for optimized energy absorption and safety performance.

Benefits and Challenges of Lightweight Sheet Metal Adoption

Automotive manufacturers gain many advantages from using lightweight sheet metal. However, they also face significant hurdles. Understanding these aspects helps the industry move forward.

Performance Gains and Cost Considerations

Lightweight sheet metal directly improves vehicle performance. Cars accelerate faster and handle better. Reduced weight also leads to better fuel efficiency. This saves consumers money on gas. Manufacturers also meet stricter emission standards more easily. Initial costs for advanced materials and manufacturing processes can be higher. However, long-term operational savings often offset these investments. For example, using automotive lightweight sheet metal reduces fuel consumption over the vehicle's lifetime. This provides a strong economic incentive.

Design Complexity and Manufacturing Hurdles

Designing with lightweight sheet metal introduces new complexities. Engineers must optimize material use to maintain structural integrity. They need to ensure crash safety. New materials often require specialized manufacturing techniques. These include advanced welding and forming processes. Setting up these processes demands significant investment. Manufacturers also need skilled labor to operate new machinery. These factors can slow down adoption rates.

Material Selection and Supply Chain Dynamics

Choosing the right lightweight material is critical. Engineers select materials based on strength, weight, cost, and formability. High-strength steels, aluminum alloys, and hybrid composites each offer unique benefits. This variety complicates material sourcing. Manufacturers must ensure a stable supply chain for these specialized materials. Fluctuations in material availability or cost can impact production schedules and budgets. Building reliable partnerships with suppliers becomes essential.

The Future of Automotive Lightweight Sheet Metal by 2025

Integration with Electric Vehicle Architectures

Electric vehicles (EVs) demand significant lightweighting. This improves range and efficiency. Automotive lightweight sheet metal components are crucial for EV architectures. Manufacturers use them for battery enclosures, chassis, and body structures. These materials help offset the weight of heavy battery packs. They ensure structural integrity and crash safety. The industry will see continued innovation in sheet metal applications for EVs. This supports longer driving ranges and enhanced performance.

Smart Manufacturing and AI-Driven Optimization

Smart manufacturing and artificial intelligence (AI) will revolutionize sheet metal production. AI optimizes design for manufacturability (DFM). This streamlines production and balances cost, quality, and speed. AI-powered analysis tools scan design files. They identify weak points or potential production disruptors. This provides immediate feedback to designers. It also reduces time to market. Predictive quality analytics, driven by AI, identify patterns in data. They anticipate and correct issues before they lead to scrap or rework. AI also streamlines sourcing. It matches designs to appropriate suppliers. This considers machine capabilities, materials, and historical performance. AI predicts lead times and identifies risks. Furthermore, AI assists in simulating various manufacturing methods. It determines the optimal combination of cost, timing, and resources. AI highlights design elements that might increase production costs. AI-driven tools optimize material utilization. They use strategic nesting. This maximizes the number of parts on standard sheets. AI also controls springback in hairpin forming for electric motors. It proposes new damper locations when springback is out of tolerance. AI predicts forming limits for new product geometries. It uses machine-learning based classifiers.

Continuous Material Evolution and Research

The automotive industry will continue to see advancements in sheet metal materials. Researchers develop new alloys and hybrid composites. These materials offer even greater strength-to-weight ratios. They also improve durability and corrosion resistance. Focus areas include sustainable materials andadvanced joining techniques. These innovations will further enhance vehicle performance and safety. They also contribute to environmental goals. Ongoing research ensures sheet metal remains a leading solution for lightweighting beyond 2025.

---

Sheet metal components prove indispensable for automotive lightweighting, significantly driving vehicle efficiency and performance. Continuous advancements in materials and manufacturing processes solidify sheet metal's leading role in modern vehicle design. The industry's unwavering commitment to innovative sheet metal solutions will profoundly shape the future of mobility, extending its impact well beyond 2025.

FAQ

Why is automotive lightweighting crucial?

Lightweighting improves fuel efficiency and reduces emissions. It also enhances vehicle performance and dynamics. Manufacturers meet strict regulatory standards by making cars lighter. This strategy benefits both the environment and drivers.

What advanced sheet metal materials are leading the way?

High-strength steels and aluminum alloys are key. Emerging hybrid sheet metal composites also offer superior performance. These materials provide strength with less weight. They allow for innovative vehicle designs.

How do manufacturing innovations contribute to lightweighting?

Precision hydroforming shapes complex parts. Advanced Laser Welding creates strong, light joints. Tailored blanks optimize material use. Hot stamping strengthens steel components. These processes enable lighter, more durable vehicles.

How will sheet metal integrate with electric vehicle architectures?

Sheet metal components are vital for EV battery enclosures and chassis. They offset battery weight. This supports longer driving ranges and improved efficiency for electric vehicles. Manufacturers rely on these materials for future EV designs.
