Mastering the Art of Titanium Sheet Metal Welding for Aerospace Applications
Welding titanium sheet metal plays a crucial role in aerospace applications. This material offers exceptional strength-to-weight ratios and corrosion resistance. Precision and control in welding processes ensure strong, reliable joints. Aerospace engineers prioritize these factors to enhance safety and performance in flight.
Key Takeaways
- Titanium's high strength-to-weight ratio and corrosion resistance make it ideal for aerospace components, enhancing safety and performance.
- Proper shielding gas, like argon, is crucial in titanium welding to prevent oxidation and ensure strong, reliable welds.
- TIG welding is preferred for its precision and cleanliness, while MIG welding offers speed for high-volume production.

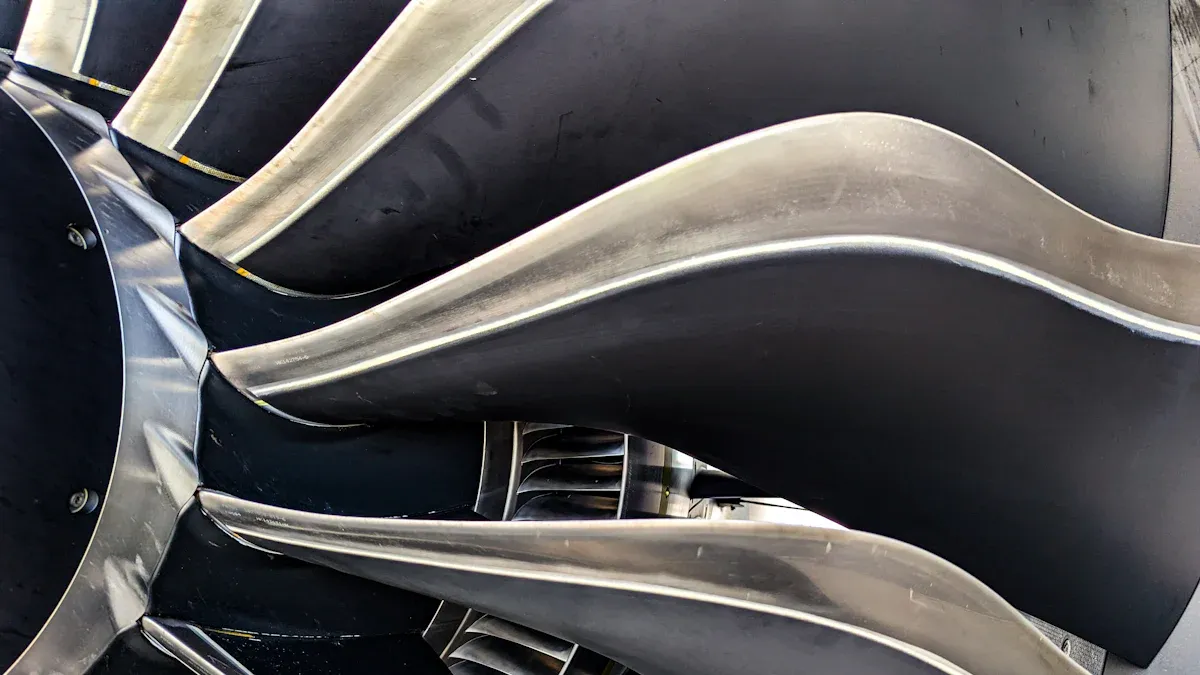

Understanding Titanium
Material Properties
Titanium stands out as a premier material in aerospace applications due to its unique properties. Key characteristics include:
- High strength-to-weight ratio: This property is essential for constructing lightweight and durable aircraft components.
- Corrosion resistance: Titanium prevents degradation in extreme environmental conditions, which is crucial for aerospace applications.
- Ability to withstand high temperatures: It maintains structural integrity in high-temperature environments, important for jet engines and rocket components.
These properties make titanium an ideal choice for various aerospace components, enhancing performance and safety.
Challenges in Welding Titanium
Welding titanium presents several challenges that require careful consideration. The high melting point and low thermal conductivity of titanium alloys can complicate the welding process. These properties can lead to:
- Overheating during welding.
- Rapid heating and cooling, which causes thermal stresses.
Thermal stresses can result in distortion, cracking, or warping of the weld.
Moreover, titanium is highly susceptible to contamination. Proper shielding is crucial to prevent oxygen contamination during the welding process. When titanium reacts with oxygen at temperatures between 500-800°F, it can lead to embrittlement. This emphasizes the need for effective shielding gas to protect the weld puddle until temperatures drop below this threshold.
The following table summarizes common issues encountered when welding titanium:
| Issue | Description |
|---|---|
| Contamination | Proper shielding is crucial to prevent oxygen contamination during the welding process. |
| Embrittlement | Poor quality titanium can lead to embrittlement and cracking, especially in the heat-affected zone. |
Understanding these challenges is vital for successful welding titanium sheet metal in aerospace applications.
Welding Techniques for Titanium Sheet Metal
Welding titanium sheet metal requires specific techniques to ensure strong and reliable joints. Two primary methods dominate the aerospace industry: TIG (Tungsten Inert Gas) welding and MIG (Metal Inert Gas) welding. Each method has its advantages and limitations, making them suitable for different applications.
TIG Welding
TIG welding is the most commonly used method for joining titanium and its alloys. This technique offers several benefits, making it a preferred choice in aerospace applications.
- Precision and Cleanliness: TIG welding allows for precise control over the weld pool, resulting in clean and aesthetically pleasing welds.
- Versatility with Materials: This method works well with various thicknesses of titanium sheet metal.
- No Flux or Filler Splatter: TIG welding does not produce slag, which simplifies post-weld cleanup.
- Defined Control over Heat Input: Welders can adjust the heat input, reducing the risk of overheating and distortion.
- Aesthetic Appeal: The clean appearance of TIG welds is often critical for visible components in aerospace applications.
However, TIG welding does have limitations:
| Advantages of TIG welding | Limitations of TIG welding |
|---|---|
| Precision and Cleanliness | Slow Welding Speed |
| Versatility with Materials | Limited Penetration on Thick Materials |
| No Flux or Filler Splatter | Complexity and Skill Requirement |
| Defined Control over Heat Input | Sensitive to Contaminants |
| Aesthetic Appeal | Equipment Cost |
Due to these factors, TIG welding accounts for a significant percentage of aerospace titanium welds, making it a vital technique in the industry.
MIG Welding
MIG welding is another method used for welding titanium sheet metal. While it is less common than TIG welding, it offers distinct advantages, particularly in production environments.
MIG welding is faster and more efficient, making it ideal for high-volume production. It can handle thicker materials better than TIG welding, which is beneficial for certain aerospace components. However, the quality of MIG welds may not always match that of TIG welds.
| Feature | MIG Welding | TIG Welding |
|---|---|---|
| Weld Strength | Produces strong welds | Generally stronger |
| Weld Speed | Faster, ideal for high production | Slower, requires more time and skill |
| Weld Appearance | Produces good welds; not always critical for appearance | Creates clean, aesthetically pleasing welds, ideal for visible workpieces |
MIG welding is suitable for applications where speed is essential, but it may not provide the same level of precision as TIG welding.
Other Methods
In addition to TIG and MIG welding, other methods exist for welding titanium sheet metal. These include:
- Electron Beam Welding (EBW): This method uses a focused beam of electrons to melt the metal. It offers deep penetration and minimal heat-affected zones, making it suitable for thick materials.
- Laser Beam Welding (LBW): Similar to EBW, LBW uses a laser to create a concentrated heat source. This technique allows for high-speed welding with excellent control over the weld pool.
- Plasma Arc Welding (PAW): PAW provides a stable arc and is effective for welding thin titanium sheets. It combines the benefits of both TIG and MIG welding.
Each of these methods has unique advantages and applications, allowing engineers to choose the best technique for specific aerospace projects.
Critical Process Controls in Titanium Welding
Pre-Weld Preparation
Effective pre-weld preparation is essential for successful welding titanium sheet metal. It involves several critical steps to ensure optimal results. The following table outlines key categories and details for pre-weld preparation:
| Category | Details |
|---|---|
| Safety Precautions | Wear a welding helmet, leather gloves, and a flame-resistant jacket. Work in a ventilated area. Keep a fire extinguisher nearby. |
| Equipment Requirements | Use a TIG welder with AC/DC capability, high-frequency start, and pulse options. Invest in pure tungsten electrodes and ceramic nozzles. |
| Material Preparation Techniques | Clean surfaces with acetone or alcohol, use stainless steel wire brushes, and ensure tight fit-up to reduce oxidation risk. |
Shielding Gas Selection
Choosing the right shielding gas significantly impacts the quality of titanium welds. Argon is the most commonly used gas due to its inert properties. It prevents oxidation, stabilizes the welding arc, and minimizes defects. The table below summarizes the impact of shielding gas on titanium welds in aerospace applications:
| Impact of Shielding Gas on Titanium Welds in Aerospace Applications | Description |
|---|---|
| Prevents Oxidation | Argon creates an inert atmosphere that protects the weld from atmospheric contamination, essential for structural integrity. |
| Stabilizes the Welding Arc | The inert environment provided by argon helps maintain a stable arc during the welding process. |
| Minimizes Defects | Argon helps reduce porosity and inclusions, which are critical for the quality of welds in aerospace applications. |
Heat Control
Proper heat control during welding is crucial. Excessive heat can lead to warping, cracking, and reduced mechanical properties. Conversely, insufficient heat may prevent proper fusion. Key considerations include:
- Warping or cracking: Excessive heat can cause thermal expansion and contraction.
- Overheating: This can make the metal brittle, reducing its strength and ductility.
- Lack of fusion: Insufficient heat may result in weak welds.
Post-Weld Treatments
Post-weld treatments enhance the durability and corrosion resistance of titanium welds. Common treatments include:
- Stress relieving or recrystallization: Recommended for complex parts or multiple pass welds to remove welding stresses.
- Post-weld heat treatment: Not usually necessary for commercially pure titanium grades.
These treatments ensure that the metal can handle repeated stresses, vibrations, and impacts without cracking. For metastable beta alloys, starting with the material in an annealed condition and following with solution treatment and aging enhances weld strength and ductility.
Quality Assurance in Titanium Welding
Quality assurance plays a vital role in ensuring the integrity and reliability of welded titanium components in aerospace applications. Effective quality assurance involves rigorous inspection methods, thorough testing for weld integrity, and meticulous documentation and compliance with industry standards.
Inspection Methods
Aerospace standards mandate various inspection methods to evaluate the quality of titanium welds. These methods help detect flaws that could compromise structural integrity. The following table summarizes key inspection techniques:
| Inspection Method | Description |
|---|---|
| Time-of-Flight Diffraction (TOFD) | An advanced ultrasonic technique used for detecting flaws in welds. |
| Phased Array Ultrasonics | Another advanced ultrasonic method that provides detailed imaging of weld integrity. |
| Radiographic Testing (RT) | A non-destructive method using X-ray or gamma-ray to identify internal defects in welds. |
| Positive Material Identification (PMI) | A verification process to confirm the chemical composition of titanium used in welds. |
| Penetrant Testing (PT) | A method to detect surface defects by applying a liquid penetrant and revealing cracks under UV light. |
| Hydrostatic Testing | A pressure test to assess the strength and integrity of welded tubes by evaluating their resistance to leaks. |
These inspection methods ensure that welds meet the stringent requirements of aerospace applications.
Testing for Weld Integrity
Non-destructive testing (NDT) techniques are crucial for evaluating the integrity of titanium welds. These methods help identify potential defects that could compromise the safety of aerospace components. Effective NDT techniques include:
- Ultrasonic Testing (UT): This method utilizes high-frequency sound waves to identify internal flaws in welds. It is particularly effective for detecting subsurface defects in titanium.
- Radiographic Testing (RT): This technique employs X-rays or gamma rays to visualize internal structures. It is useful for detecting defects such as porosity and lack of fusion.
Implementing these testing methods ensures that manufacturers can maintain high safety standards in their welding processes.
Documentation and Compliance
Documentation and compliance are essential for maintaining quality assurance in titanium welding. Proper documentation ensures reproducibility, traceability, and verifiability of welds. The following table outlines key document types used in the welding process:
| Document Type | Purpose |
|---|---|
| WPS (Welding Procedure Specification) | Defines how a weld must be performed, including joint type, filler, position, and parameters. |
| PQR (Procedure Qualification Record) | Records test results proving that the WPS produces acceptable welds. |
| WPQ (Welder Performance Qualification) | Certifies that the welder can produce quality welds following the WPS. |
Compliance with standards such as AWS D17.1 is critical. Stringent testing and documentation are required for all welds under Class A requirements. Failure to adhere to proper procedures can lead to severe consequences, including loss of contracts or accreditation. Regulatory bodies like the FAA and EASA oversee compliance, ensuring that aerospace manufacturers meet safety and quality standards.
Mastering titanium welding techniques significantly impacts the safety and performance of aerospace components. Key benefits include:
- Strong, lightweight joints that resist corrosion.
- Maintenance of mechanical properties under extreme conditions.
- Enhanced overall performance through precise welding practices.
Continuous learning is vital. Programs like those offered by nexAir provide essential training for aerospace welders. Staying updated on techniques ensures welders maintain high standards in this specialized field.
FAQ
What is the best welding method for titanium in aerospace?
TIG welding is preferred for its precision and cleanliness, making it ideal for aerospace applications.
How does contamination affect titanium welding?
Contamination can lead to embrittlement and cracking, compromising the integrity of the weld.
Why is shielding gas important in titanium welding?
Shielding gas prevents oxidation, stabilizes the arc, and minimizes defects, ensuring high-quality welds.
