Innovative Sheet Metal Welding Techniques for Aerospace Applications
Advanced welding techniques, including various sheet metal welding techniques, play a crucial role in aerospace applications. They significantly enhance the quality of components by ensuring strong, reliable joints. These methods also improve production efficiency. For instance, they reduce thermal distortion and allow for the welding of dissimilar materials. This innovation leads to lighter, more fuel-efficient aircraft.
Key Takeaways
- Advanced welding techniques like TIG, MIG, and laser welding enhance precision and control, ensuring strong joints in aerospace components.
- Using innovative methods reduces production time and costs, allowing manufacturers to meet tight schedules while maintaining high quality.
- Material compatibility is crucial; techniques like electron beam welding effectively join dissimilar metals, essential for modern aircraft design.

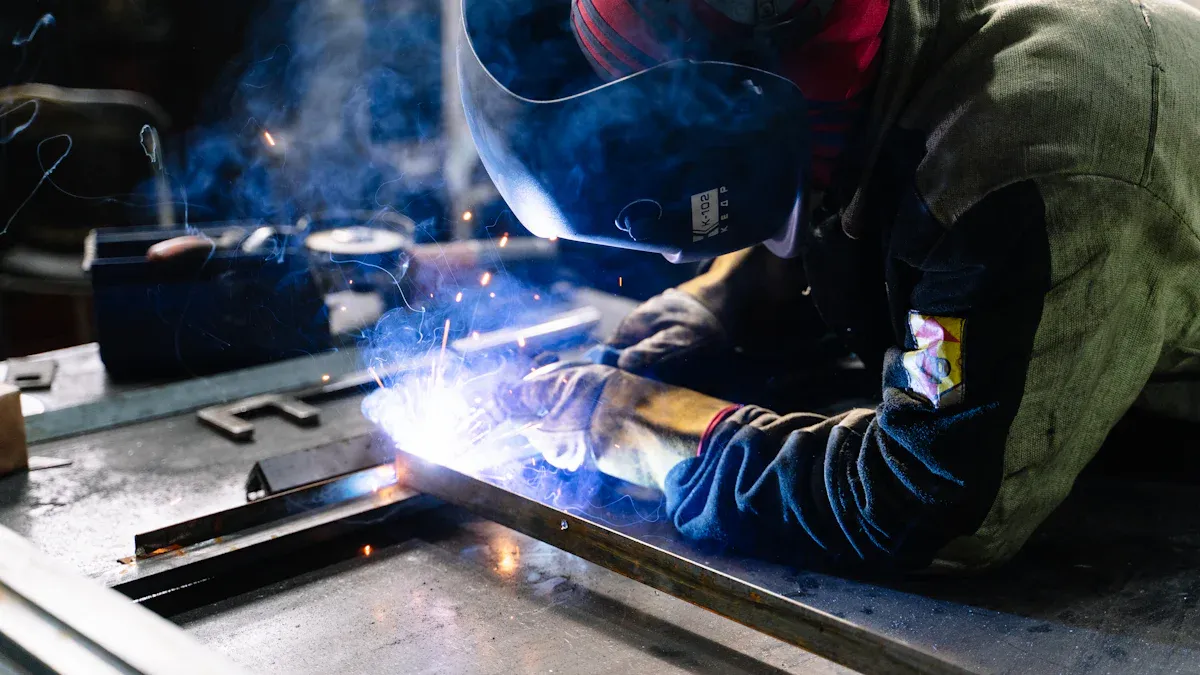

Advanced Sheet Metal Welding Techniques
TIG Welding
TIG (Tungsten Inert Gas) welding stands out for its precision and control. This method employs a non-consumable tungsten electrode to produce the weld. Operators can adjust the heat input meticulously, making TIG welding ideal for thin materials often used in aerospace components.
- Common Applications:
- Aircraft components made from lightweight materials.
- Complex geometries requiring high precision.
TIG welding produces high-quality, clean welds with minimal spatter. However, it demands a high skill level from operators, making it less accessible for beginners. The technique excels in applications where structural integrity is paramount.
| Aspect | TIG welding | MIG welding |
|---|---|---|
| Welding Process | Non-consumable tungsten electrode | Consumable wire electrode |
| Precision and Control | High precision and control | Less precision |
| Common Applications | Thin materials, complex geometries | Structural components, thicker materials |
MIG Welding
MIG (Metal Inert Gas) welding is another widely used method in aerospace applications. This technique utilizes a consumable wire electrode, allowing for faster welding speeds compared to TIG.
- Advantages:
- Suitable for thicker materials.
- Easier to learn and use, making it accessible for many operators.
MIG welding is efficient for high-volume production tasks. However, it may produce more spatter and defects compared to TIG welding. Despite these limitations, MIG welding remains popular due to its speed and versatility.
| Aspect | MIG welding | TIG welding |
|---|---|---|
| Weld Strength | Generally strong, can be enhanced with techniques | Generally stronger due to focused arc and minimal defects |
| Weld Speed | Faster, suitable for high-volume tasks | Slower, prioritizes precision and aesthetics |
Laser Welding
Laser Welding employs a high-energy laser beam to create precise welds. This method is particularly effective for thin materials, producing narrow, deep welds with minimal distortion.
- Key Benefits:
- High degree of accuracy and precision.
- Low heat input, preserving the structural integrity of components.
- Versatile for various materials and thicknesses.
Laser Welding is increasingly favored in aerospace applications due to its ability to create clean and strong welds with minimal defects. This technique aligns well with the industry's stringent specifications.
Electron Beam Welding
Electron Beam (EB) welding is a high-precision method that uses a focused beam of electrons to create welds. This technique is essential for producing high-strength, defect-free welds in critical aerospace components.
- Applications:
- Structural components like fuselage sections and wing assemblies.
- Turbine engine manufacturing, where minimal distortion is crucial.
- Fuel system components requiring leak-tight welds.
EB welding's ability to join dissimilar metals makes it invaluable in aerospace. However, safety considerations are paramount, including proper equipment installation and operator training.
- Safety Considerations:
- Proper installation in ventilated workshops.
- Training for operators to prevent accidents.
Friction Stir Welding
Friction Stir Welding (FSW) is a solid-state process that generates frictional heat to mix materials at the joint interface. This technique produces strong joints with fine microstructures, making it ideal for aerospace applications.
- Advantages:
- Minimal defects and low shrinkage.
- Environmentally friendly, producing no fumes or gases.
- Capable of joining challenging materials like aluminum and magnesium alloys.
FSW is particularly effective for dissimilar metals, combining the best properties of different materials. This capability enhances the durability and performance of aerospace structures.
| Benefit | Description |
|---|---|
| Strong joints | Produces strong joints with fine microstructure and low shrinkage, ensuring durability. |
| Minimal defects | Yields welds with minimal defects, enhancing the quality of the joint. |
| Environmentally friendly | Does not produce fumes or gases, making it a cleaner option compared to traditional methods. |
Advantages of Advanced Techniques
Precision and Control
Advanced sheet metal welding techniques offer exceptional precision and control, crucial for aerospace applications. Techniques such as laser welding utilize high-energy lasers to achieve remarkable accuracy. This method is particularly effective for small, intricate components and thin materials. The limited heat-affected zone (HAZ) reduces thermal distortion, preserving the integrity of the welded parts.
- Benefits of Precision and Control:
- High-energy lasers provide exceptional precision.
- Ideal for small, intricate components and thin materials.
- Reduced thermal distortion due to a limited heat-affected zone.
| Technique | Benefits |
|---|---|
| Laser Brazing | Precise control of heat input, reduces distortion, minimizes post-welding processes. |
| Ultrasonic Welding | Enables rapid joining of dissimilar materials, resulting in stronger and more durable welds. |
| Laser Beam Welding (LBW) | Limits thermal distortion, suitable for complex geometries, enhances production efficiency. |
| Electron Beam Welding | Offers deep penetration, minimal heat-affected zone, and excellent weld quality. |
Robotic welding systems further enhance precision by providing consistent control over welding parameters. These systems ensure accurate welds by utilizing advanced sensors and algorithms that monitor and adjust the welding process in real-time.
Speed and Efficiency
Speed and efficiency are paramount in aerospace production. Advanced welding techniques significantly reduce welding time, enhancing overall productivity. For instance, laser welding can lead to an impressive reduction in post-welding process time, with some instances showing an 87% decrease.
- Key Points:
- Advanced techniques enable faster welding processes.
- Minimal heat-affected zones contribute to quicker operations.
- Enhanced productivity through reduced welding time.
These improvements allow manufacturers to meet tight production schedules while maintaining high-quality standards. The ability to quickly produce strong, reliable welds translates into more efficient assembly lines and reduced lead times.
Material Compatibility
Material compatibility is another advantage of advanced welding techniques. Techniques like electron beam welding and laser welding excel in managing the challenges posed by various aerospace metals and alloys.
- Key Features:
- Electron Beam Welding: Manages rapid temperature fluctuations in materials with high thermal conductivity.
- Laser Welding: Provides solutions for welding challenges in aerospace applications.
These methods effectively join dissimilar materials, which is essential in aerospace engineering. For example, TIG welding is ideal for creating strong, clean welds in aluminum and titanium alloys, commonly used in aircraft structures.
Cost-Effectiveness
Cost-effectiveness is a critical consideration in aerospace manufacturing. Advanced welding techniques can lead to significant savings in both time and resources. By reducing the need for extensive post-weld treatments and minimizing defects, these methods lower overall production costs.
- Advantages:
- Reduced need for post-weld treatments.
- Lower defect rates lead to fewer rework costs.
- Efficient use of materials reduces waste.
The initial investment in advanced welding equipment may be higher, but the long-term savings and improved production efficiency often justify the costs. Manufacturers can achieve a competitive edge by adopting these innovative techniques.

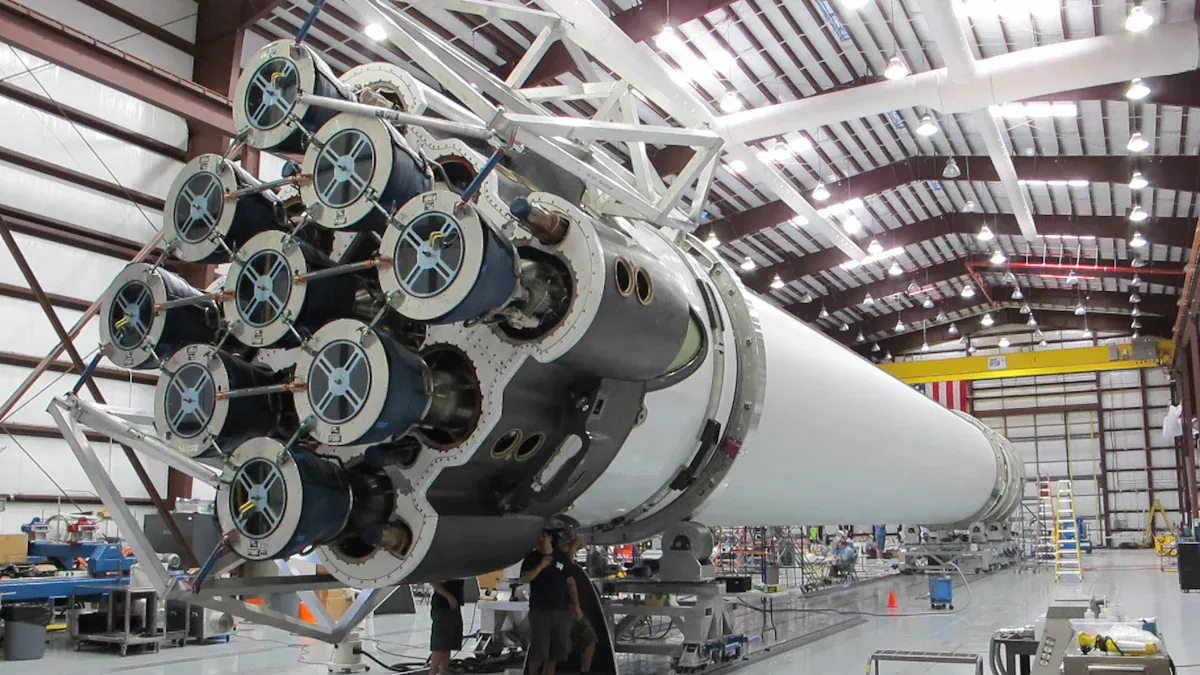

Material Considerations in Aerospace
Common Aerospace Metals
Aerospace applications rely heavily on specific metals due to their unique properties. The most common metals used in aerospace sheet metal fabrication include:
- Aluminum: This metal is lightweight and corrosion-resistant, making it ideal for various aerospace applications. Its excellent strength-to-weight ratio contributes to fuel efficiency.
- Steel: Valued for its strength and durability, steel often serves in structural components of aircraft. It provides the necessary support and integrity for critical parts.
These metals dominate the market due to their essential roles in the aerospace and defense sectors.
Alloy Selection
Alloy selection plays a crucial role in determining the appropriate welding techniques for aerospace manufacturing. Different alloys present unique challenges that must be addressed to maintain structural integrity. For instance, some alloys can be fusion welded, while others may require specialized methods like friction welding. The choice of metals significantly impacts the aircraft's performance throughout its lifespan. Therefore, manufacturers must carefully consider alloy properties when selecting welding techniques.
Heat Treatment Effects
Post-weld heat treatment (PWHT) significantly influences the mechanical properties of aerospace alloys. For example, aluminum alloys such as AA7075 and AA7039 benefit from PWHT, which enhances tensile strength and fatigue crack growth behavior. Research indicates that naturally aged joints of AA7039 exhibit superior mechanical properties, while solution-treated joints show lower performance. The retrogression and reaging (RRA) process also improves tensile strength in AA7075 alloys compared to as-welded and T6 treated samples. These treatments ensure that welded components meet the rigorous demands of aerospace applications.
Optimizing Sheet Metal Welding Processes
Equipment Calibration
Equipment calibration plays a vital role in ensuring the quality and consistency of welds in aerospace applications. Proper calibration guarantees that machines operate at the correct parameters, such as heat, speed, and pressure. Regular calibration is essential to meet stringent industry standards. This proactive approach helps prevent issues that could compromise weld quality, ensuring reliable and durable welds.
Joint Design
Effective joint design maximizes strength while minimizing weight in aerospace sheet metal assemblies. Best practices include:
| Practice | Description |
|---|---|
| Superplastic Forming (SPF) | Allows alloys to be stretched into intricate shapes at elevated temperatures, creating lightweight structures with fewer fasteners. |
| Weld-friendly designs | Ensure easy access to weld joints and minimize complex angles to enhance manufacturability. |
| Design for disassembly | Incorporate features like tabs, flanges, or slots for accurate and secure joining without additional fixtures. |
| Rivets and fasteners | For parts needing disassembly, design for rivets, screws, or bolts to ensure secure joining. |
These practices enhance manufacturability and contribute to the overall performance of aerospace components.
Post-Weld Treatments
Post-weld treatments significantly enhance the fatigue life of welded aerospace components. These treatments help reduce residual stresses and promote uniform thermal expansion. Key benefits include:
- PWHT allows cracks to propagate in a stable manner, enhancing fatigue behavior.
- After PWHT at 750 °C, the fatigue performance of the weld region can match that of the base metal.
- The process refines microstructure, balancing hardness and toughness, which is crucial for operational demands.
By implementing these treatments, manufacturers can ensure that their welded components meet the rigorous demands of aerospace applications.
Advanced sheet metal welding techniques, such as laser beam welding and friction stir welding, offer significant benefits. They enhance precision, reduce weight, and improve efficiency in aerospace applications.
Future trends include:
- Increased automation and robotics for precision.
- Smart technologies for real-time monitoring.
- A focus on sustainability through green welding practices.
Continuous innovation remains essential for maintaining competitiveness. It ensures compliance with stringent quality standards and addresses challenges in aerospace manufacturing.
| Welding Technique | Key Benefits | Applications in Aerospace |
|---|---|---|
| Laser Beam Welding (LBW) | Fast, narrow, deep welds; no filler material; lightweight | Used on various materials including titanium and aluminum alloys |
| Flash Welding | Extremely strong welds; time and cost-effective; no special surface prep | Used in aircraft wings and fuselages, jet engines, landing gear |
| Friction Stir Welding | Cost-effective; no filler materials; reduces weight by eliminating fasteners | Better for the environment and finances |
| Electron Beam Welding | High speeds; precise welds; minimizes thermal distortion | Suitable for titanium alloys used in aircraft |
