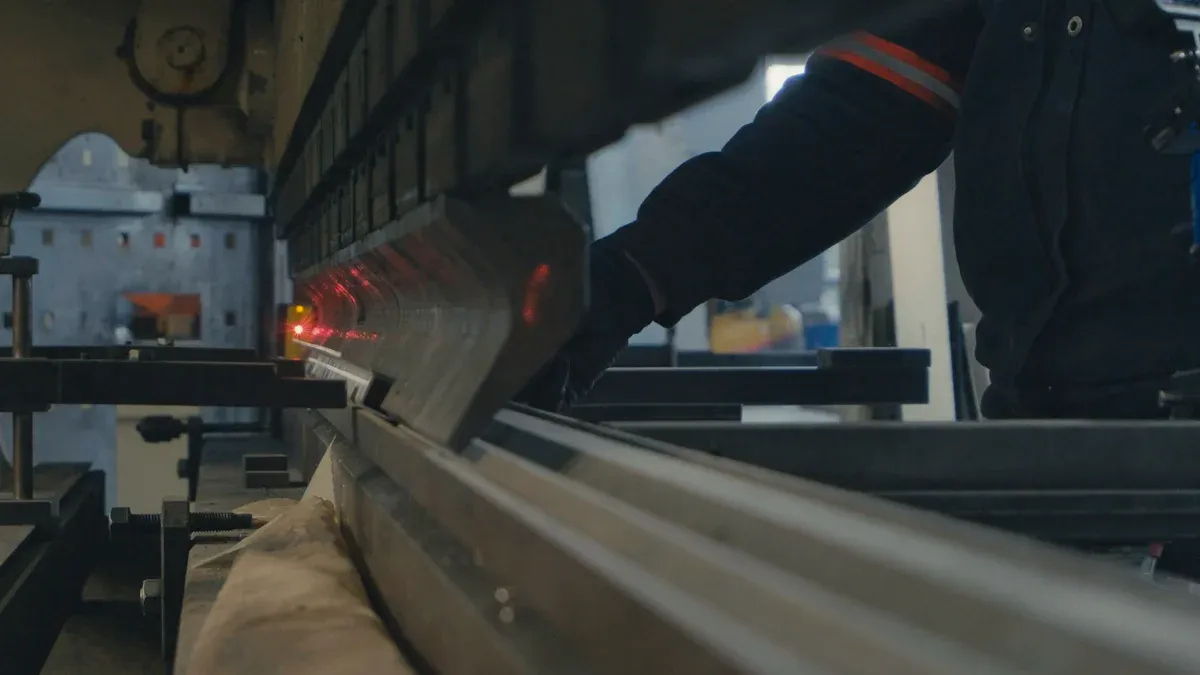

Innovative Sheet Metal Bending Techniques for Precision Manufacturing
Precision plays a crucial role in Sheet Metal Bending, as even minor errors can lead to significant issues in the final product. Innovative Sheet Metal Bending techniques enhance manufacturing efficiency by streamlining processes and reducing waste. Recent advancements show a clear correlation between these techniques and improved production outcomes, making them essential for modern manufacturers.
Key Takeaways
- Advanced Sheet Metal Bending techniques, like air bending and coining, enhance manufacturing efficiency and precision.
- Choosing the right bending method and tooling is crucial for achieving high accuracy and reducing waste in production.
- Industries such as aerospace and automotive benefit significantly from these techniques, leading to improved product quality and cost savings.
Advanced Sheet Metal Bending Techniques
Sheet Metal Bending techniques have evolved significantly, allowing manufacturers to achieve high precision and efficiency. Below are some of the most advanced methods currently in use.
Air Bending
Air bending is a widely used technique that allows for quick adjustments in bend angles without the need for retooling. This method involves using a punch to create a bend in the sheet metal while leaving a gap between the punch and die. Although air bending is faster and adaptable, it can introduce springback issues, which may affect accuracy. Typical tolerances for air bending range from +/-0.5° to +/-1°, influenced by factors such as material thickness and hardness.
Tip: To achieve better accuracy with air bending, manufacturers should carefully select the bending radius and consider the material's properties.
Bottoming
Bottoming is another effective bending technique that reduces springback, enhancing accuracy. In this method, the punch presses the metal against the die, ensuring a tight fit. This process allows for angular overbending, which compensates for springback. The powerful force applied during bottoming ensures that the metal conforms precisely to the die shape.
- Advantages of Bottoming:
- Improved accuracy compared to traditional bending methods.
- Reduced springback, leading to more reliable bends.
Coining
Coining is a high-precision bending method that minimizes springback by pressing the metal sheet into the die with significant force. This technique ensures that the metal conforms exactly to the shape of the die, resulting in consistent and accurate bends. Coining is particularly useful for applications requiring tight tolerances, such as in the automotive and electronics industries.
- The metal sheet is placed on the die.
- A punch exerts high tonnage to press the metal sheet, ensuring it conforms to the shape of the die.
- This process enhances precision and allows for small inside radii.
V-Bending
V-bending employs a V-shaped punch and die to create bends ranging from 30° to 180°. This technique is distinct from others due to its ability to produce tight bend radii, making it suitable for applications like car body panels. V-bending is commonly used in architectural fabrications and kitchen equipment, where finish and overall appearance are critical.
- Common Applications:
- Decorative architectural panels.
- Kitchen equipment manufacturing.
Rotary Bending
Rotary bending is ideal for creating complex shapes with continuous curves. This method minimizes distortion and surface damage, making it suitable for high-volume production. The technique allows for bends greater than 90 degrees, which is beneficial for intricate designs.
| Benefit | Description |
|---|---|
| Creates Complex Shapes | Ideal for producing parts with continuous curves or bends. |
| Minimal Distortion | Helps reduce material deformation that may occur in other bending methods. |
| High-Speed Production | Suitable for high-volume production with fast cycle times. |
Roll Bending
Roll bending uses rollers to form curves in sheet metal. This technique is effective for producing cylindrical shapes and is commonly used in the automotive and structural components industries. The maximum thickness of sheet metal that can be processed varies by material, with steel and aluminum typically reaching up to 12 mm.
| Material | Maximum Thickness |
|---|---|
| Steel | 12 mm |
| Stainless Steel | 10 mm |
| Aluminium | 12 mm |
Folding
Folding is a precise method that ensures high accuracy through controlled bending processes. It minimizes human error and maintains consistent dimensions across multiple bends. Advanced computerized control systems guide the folding process, resulting in exceptional precision and quality.
- Limitations of Folding:
- Part geometry can complicate access to the bend.
- Folding machines may lack the tonnage capacity for high-force operations.
Tools and Equipment for Precision Bending
CNC Press Brakes
CNC press brakes are essential for achieving high-Precision Sheet Metal Bending. These machines automate the bending process, significantly enhancing production speed and consistency compared to manual methods. Key features of CNC press brakes include:
| Feature | Description |
|---|---|
| Automatic Backgauge System | Adjusts the backgauge position automatically based on the bending program, enabling exact bending processes. |
| Multi-Axis Control | Allows for more complex bending operations and polygonal bending through the control of multiple axes. |
| Touchscreen Control Panel | Provides an intuitive interface for operators to input commands and monitor the bending process. |
| Bending Angle Measurement System | Ensures accuracy and consistency in bending results through precise angle measurement. |
| Automatic Tool Change | Enables quick switching and adjustment of different bending tools to accommodate varying requirements. |
| Advanced Safety Features | Equipped with light curtains and interlock systems to protect operators during operation. |
These features contribute to customization, efficiency, and reduced manual labor, making CNC press brakes a preferred choice in modern manufacturing.
Hydraulic Benders
Hydraulic benders excel in handling thick or high-strength sheet metals. Their robust design allows for high bending capacity and versatility, making them suitable for various applications. Key advantages include:
- High bending capacity and versatility.
- Precise and consistent bending performance.
- Enhanced safety features, including lock-out/tag-out procedures and regular hydraulic hose inspections.
These benefits ensure that hydraulic benders maintain accuracy while promoting workplace safety.
Tooling Considerations
Selecting the right tooling is crucial for optimal results in Precision Sheet Metal Bending. Important aspects include:
| Aspect | Description |
|---|---|
| Material and Bend Radius | Choosing the right punch and die based on material properties minimizes defects. |
| Bending Methods and Tooling | Different methods require specific tooling designs for effective results. |
| Maintenance and Inspection | Regular inspection of tooling for wear ensures accuracy and longevity. |
| Precision in Calculations | Accurate calculations of bend allowance are essential for meeting design specifications. |
| Technique Selection | Choosing the right bending method depends on material type and production volume. |
Proper tooling selection directly impacts the quality and efficiency of Sheet Metal Bending techniques, ensuring that parts are produced accurately and quickly.
Applications and Benefits of Bending Techniques
Aerospace Industry
Advanced sheet metal bending techniques play a vital role in the aerospace industry. Manufacturers utilize these methods to create components that are both lightweight and strong. Key applications include:
- Structural Components: These techniques produce fuselage frames and bulkheads, which provide essential strength while minimizing weight.
- Enclosures and Cabinets: They protect avionics and scientific instruments from environmental factors, ensuring reliable operation.
- Ducting and Ventilation Systems: These systems are crucial for air distribution and maintaining environmental conditions in aircraft and spacecraft.
- Engine Components: Parts like compressor casings and turbine shrouds benefit from precise bending, enhancing performance and safety.
Innovative bending methods also improve safety and performance in aerospace components. For instance, bend-forming minimizes material loss compared to traditional machining methods. This reduction is crucial for producing lightweight components. Additionally, these methods allow for the creation of components in a single piece, enhancing structural integrity and reducing assembly complexity. Advanced materials like titanium and composites can be precisely shaped, leading to improved fuel efficiency and overall performance in aircraft.
Automotive Manufacturing
In the automotive sector, advanced sheet metal bending techniques significantly enhance manufacturing efficiency and product quality. The benefits include:
- Increased Structural Strength: Bending adds rigidity to sheet metal, allowing it to endure heavy loads without deformation.
- Design Flexibility: Manufacturers can create complex geometries, essential for unique automotive designs.
- Weight Reduction: By reducing the need for additional fasteners, bent metal parts contribute to lighter components, supporting fuel efficiency.
- Enhanced Safety: Precision bending ensures parts fit accurately, contributing to vehicle safety by providing stability in impact zones.
- Cost-Effectiveness: Bending reduces assembly time and material waste, resulting in more economical production processes.
Innovative bending methods have also reduced production costs in the automotive sector. The following table summarizes key factors contributing to cost savings:
| Evidence | Explanation |
|---|---|
| CNC technology | Enhances efficiency and accuracy, reducing production time and costs. |
| Digital bending simulations | Allows for design visualization and iteration, saving time and reducing material waste. |
| Robotic press brakes | Increases precision and repeatability, ensuring consistent part quality and flexibility in production. |
| High-speed press brakes | Cuts cycle times in half, boosting productivity and enabling just-in-time manufacturing. |
| Bio-based lubricants | Contributes to sustainable manufacturing by reducing reliance on fossil fuels. |
Electronics Enclosures
Precision sheet metal bending techniques are crucial for creating durable and flexible electronics enclosures. The benefits include:
- Design Flexibility: Modern fabrication processes accommodate various thicknesses, dimensions, and materials, enhancing design possibilities.
- Intricate Designs: Bending, slicing, and perforating sheet metal allows for the creation of complex designs, providing significant customization options.
- High Accuracy: Precision enclosures ensure components fit snugly, minimizing damage from shock or vibration.
- Robust Protection: Sheet metal enclosures offer protection against environmental factors like dust, moisture, and temperature extremes, enhancing the longevity of electronic devices.
Furthermore, precision sheet metal fabrication allows for intricate designs that were difficult to achieve with traditional methods. Designers can adjust product size and form using CAD programs, enabling more customization without compromising durability.
Innovative sheet metal bending techniques significantly enhance manufacturing efficiency and quality. Techniques such as air bending, bottoming, and coining streamline complex fabrication tasks. They enable faster project completion without compromising quality. Manufacturers should adopt these methods to achieve a high degree of accuracy in their operations. Embracing these advancements will lead to improved outcomes in precision manufacturing.
