Innovative Approaches to 3D Tube Laser Cutting for Designers
3D Tube Laser Cutting significantly transforms design processes at Mingli Metal Products Co., Ltd. This technology allows designers to create complex geometries that traditional methods cannot achieve. It enables the execution of multiple cuts in a single setup, enhancing efficiency. The global Tube Laser Cutting Machine Market, valued at USD 7.13 billion, is projected to grow to USD 11.34 billion.
Key Takeaways
- 3D tube laser cutting enhances design flexibility, allowing for intricate shapes and complex geometries that traditional methods cannot achieve.
- Integrating 3D tube laser cutting with other manufacturing processes boosts efficiency, reduces waste, and increases productivity.
- This technology significantly reduces production costs by minimizing material waste and optimizing machine usage, making it a cost-effective choice for manufacturers.

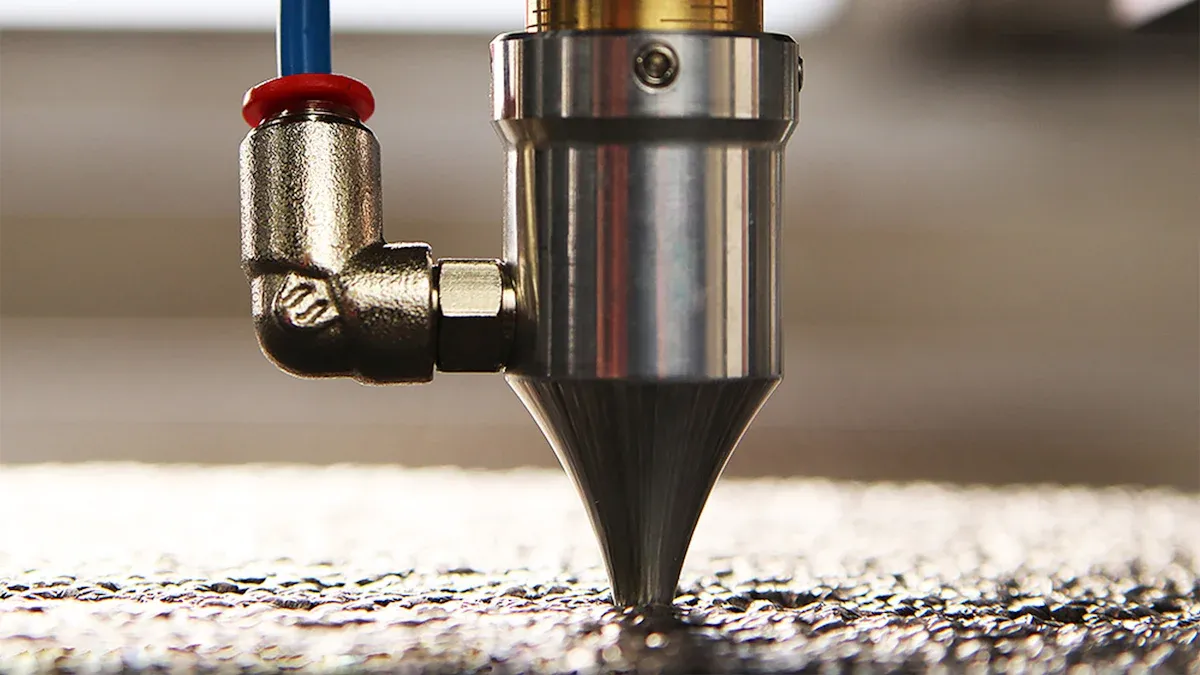

Key Features of 3D Tube Laser Cutting
Multi-Axis Capabilities
The multi-axis capabilities of 3D tube laser cutting machines significantly enhance their functionality. These machines can operate along multiple axes, allowing for intricate cuts and complex geometries. The following table outlines the main specifications of current multi-axis 3D tube laser cutting machines:
| Feature | Specification |
|---|---|
| Power | 3000w-60kw |
| Working width (mm) | 6m, 9m, 12m, 24m |
| X-axis machining stroke | 0-300mm |
| Y-axis machining stroke | 0-11000mm |
| Z-axis machining stroke | 0-180mm |
| Axes of motion | 5 or 6 axes |
| 3D cutting capability | Complex 3D cuts |
| Flexibility | Various tube shapes |
| Design flexibility | Complex cuts and joints |
The ability of the 3D tube laser cutting machine's head to move freely along the X, Y, and Z axes, as well as rotate and tilt, allows for cutting at various angles and along curves. This versatility is crucial for creating complex shapes and intricate designs directly from the tube. Designers benefit from this feature as it enables them to achieve high precision in complex geometries without the need for additional processes.
Integration with Other Manufacturing Processes
Integrating 3D tube laser cutting with other manufacturing processes offers numerous advantages. This integration leads to improved efficiency in tube processing and enhances precision, which reduces waste. The following points highlight the documented benefits of this integration:
- Faster complex cuts compared to traditional methods.
- Ability to bypass machining processes for certain parts.
- Increased productivity through integration with forming processes.
- Competitive advantage over firms using outdated equipment.
By combining 3D tube laser cutting with other techniques, manufacturers can achieve high precision for intricate designs, especially in small diameters. This approach not only streamlines production but also enhances overall design flexibility, allowing designers to explore innovative solutions.

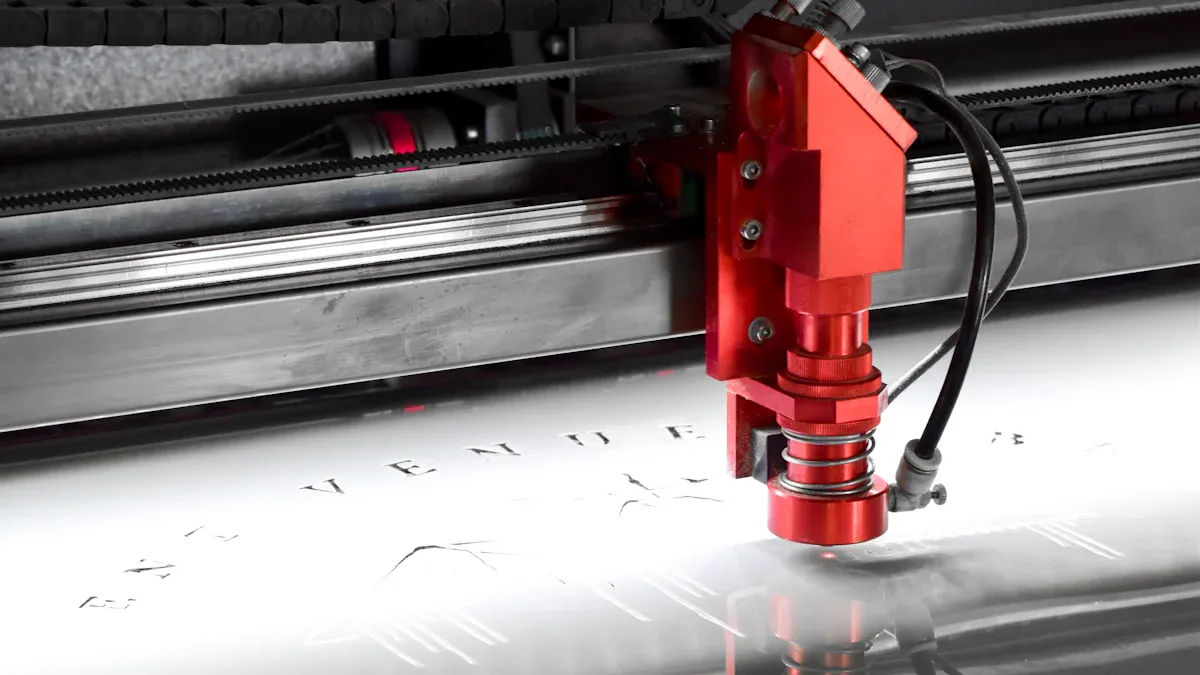

Advantages of 3D Tube Laser Cutting Techniques
Enhanced Efficiency
3D tube laser cutting significantly boosts efficiency in manufacturing processes. This technology allows for rapid and precise cuts, which leads to faster production times. Studies show that cutting with a waiting time can increase the maximum cutting speed by 22% under constant laser power. Furthermore, a step-like increase in cutting speed mode enhances the maximum cutting speed by 39% compared to traditional constant-speed cutting methods.
- Laser cutting machines optimize operational efficiency.
- Automation integrates laser cutting with material handling systems, reducing manual intervention.
- Automatic loading and unloading systems enhance efficiency, especially for large volumes of identical pieces.
These advancements enable manufacturers to meet tight deadlines without sacrificing quality. The swift and precise nature of laser cutting significantly increases production rates compared to traditional methods.
Cost-Effectiveness
The cost-effectiveness of 3D tube laser cutting is evident in various aspects of production. Companies adopting this technology can enhance cutting efficiency and reduce expenses by up to 50%. The precision of laser cutting minimizes material waste, leading to further cost reductions.
- No-CAD tube laser cutting machines lower operational costs by reducing the need for expensive CAD specialists.
- Faster setups lead to increased machine uptime and improved material yield.
Additionally, 3D tube laser cutting optimizes material usage, allowing for efficient nesting of parts. This capability reduces waste and contributes to overall cost savings. The technology's ability to produce high-quality, intricate parts is crucial for industries like aerospace and automotive.
Design Flexibility
Design flexibility is one of the standout features of 3D tube laser cutting. This technology enables designers to create intricate and unconventional designs that are difficult to achieve with traditional methods.
- The multiple cut-bend technique allows for radius bends using multiple V-shaped cutouts, enhancing design flexibility.
- CNC tube laser cutting machines can produce intricate cuts and designs that would be difficult or impossible to achieve with traditional cutting methods.
3D tube laser cutting machines offer unmatched precision when working with complex tube and pipe shapes. They ensure exact cuts with minimal errors, making them ideal for high-tolerance industries. This capability facilitates the creation of complex geometries directly from the tube, representing a significant advancement over traditional flat Metal Cutting methods.
Technical Specifications of 3D Tube Laser Cutting Systems
Cutting Speed and Precision
Cutting speed and precision are critical factors in 3D tube laser cutting systems. Precision refers to the machine's ability to make identical cuts to exact measurements across multiple pieces. Accuracy measures how closely the actual cuts conform to design specifications. This distinction is vital for ensuring high-quality outputs in laser cutting projects.
- Enhanced Precision and Accuracy: 3D tube laser cutting machines provide exceptional precision for complex shapes, minimizing errors and ensuring high-quality cuts.
- Higher Production Efficiency: These machines operate faster than traditional methods, significantly reducing production time and improving overall throughput.
To fully leverage the benefits of laser tube cutting, expertise in design for manufacturability and precision operation is essential. Poorly designed parts can lead to increased costs and delays, negatively impacting both quality and throughput.
Material Compatibility
3D tube laser cutting systems can process a variety of materials, allowing for the cutting of complex shapes with high precision. Common materials include:
- Stainless Steel: 304 and 316 Welded and Seamless
- Aluminum: 6061 Extruded and Drawn
- Alloy Steel: 4130 Seamless
- Steel: A513 DOM, HREW, and CREW
Material properties significantly affect the cutting process. For instance, thicker materials require longer cutting times, while harder materials may slow production rates.
| Material Property | Effect on Cutting Process |
|---|---|
| Thickness | Longer cutting time for thicker materials |
| Hardness | Slower production rates for harder materials |
Software Integration
Software integration enhances workflow efficiency in 3D tube laser cutting operations. Various software platforms streamline programming and control of cutting machines. Some popular options include:
| Software Platform | Features |
|---|---|
| TubePro | User-friendly interface, supports various tube shapes, integrates with CAD, optimizes cutting paths, advanced simulation tools. |
| Lantek Flex3d Tubes | Comprehensive features, supports complex geometries, excellent CAD integration, 3D simulation of cutting process. |
| BySoft 7 | Powerful design and simulation capabilities, real-time machine control, ideal for complex projects. |
| Mazak Smart System | Advanced CAD integration, cutting path optimization, real-time monitoring, intuitive interface. |
Integrating CAD/CAM software automates processes and optimizes cutting paths. This integration reduces manual intervention and improves precision, enhancing overall workflow efficiency.
Adopting 3D tube laser cutting technologies offers numerous benefits for designers. They experience:
- Exceptional precision and consistency
- Significantly faster processing speeds
- Remarkable design flexibility for complex geometries
- Reduced material waste
- Lower labor costs due to automation
Designers should explore these innovations to enhance their projects. Improved design outcomes and production efficiency await those who embrace this cutting-edge technology.
| Evidence Type | Description |
|---|---|
| Case Study | Ahmed Al-Farsi's experience with tube laser cutting machines led to a 5-10% reduction in raw material waste, resulting in significant annual savings. |
| Efficiency Improvement | Clients like Ahmed have reduced cycle times for intricate components by over 60-70%, enabling them to meet tight deadlines and take on larger projects. |
| Operational Efficiency | The Tube Laser Cutting Machine Configurator improved customization and decision-making, leading to optimized processes and cost savings. |
FAQ
What materials can 3D tube laser cutting machines process?
3D tube laser cutting machines can process materials like stainless steel, aluminum, alloy steel, and various types of carbon steel.
How does 3D tube laser cutting improve design flexibility?
This technology allows designers to create intricate shapes and complex geometries that traditional methods cannot achieve, enhancing overall design possibilities.
What are the main benefits of integrating software with 3D tube laser cutting?
Integrating software streamlines programming, optimizes cutting paths, and reduces manual intervention, leading to improved precision and workflow efficiency.
