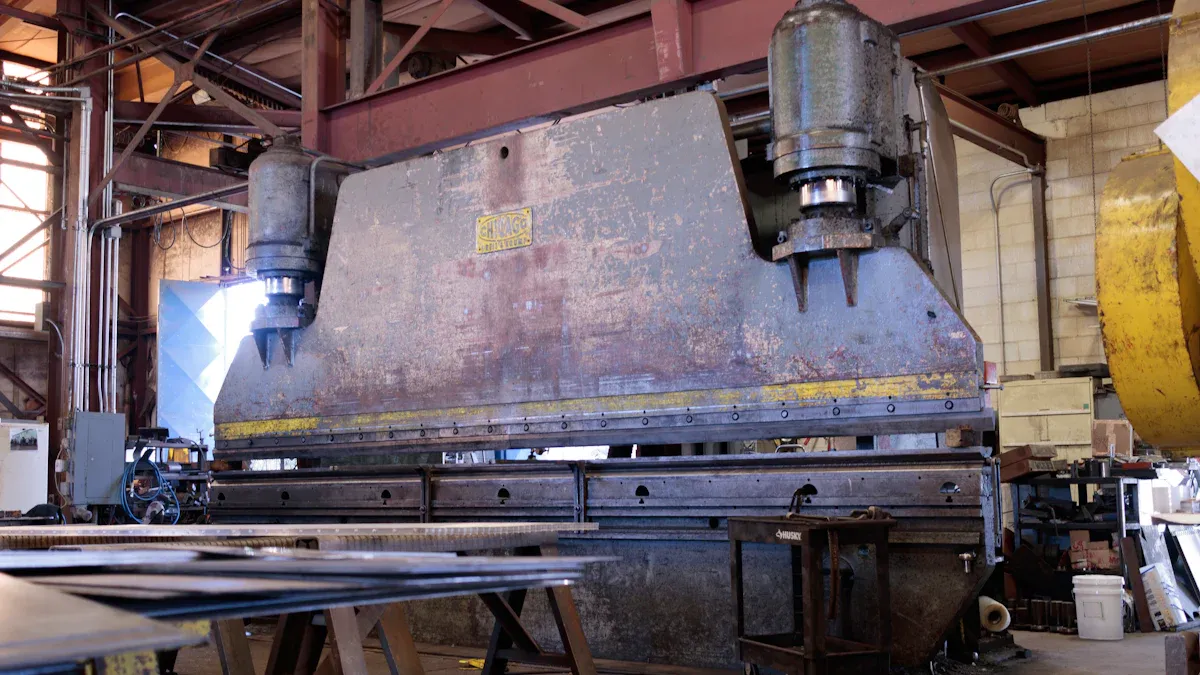

How to Set Up Your CNC Press Brake for Optimal Performance
Proper setup of a CNC press brake is crucial for achieving an accuracy of ±0.1mm. Accurate parameters significantly enhance production quality by ensuring consistent bending operations. Regular maintenance and adjustments are essential to maintain this accuracy over time. Following best practices leads to optimal CNC press brake optimization.
Key Takeaways
- Regular calibration of your CNC press brake is essential. It ensures precise bending operations and prevents inaccuracies caused by wear or misalignment.
- Selecting high-quality tooling is crucial for achieving consistent bend angles. Proper tooling reduces waste and improves overall production quality.
- Maintaining a clean and well-maintained machine environment enhances performance. Regular inspections and cleaning prevent wear and ensure safety.
Key Factors Affecting CNC Press Brake Optimization
Machine Calibration
Machine calibration plays a vital role in achieving precise bending operations. Proper calibration ensures that the CNC press brake operates within specified tolerances. This accuracy directly influences bend angles and dimensions. Regular calibration and maintenance prevent inaccuracies that arise from mechanical wear, misalignment, or incorrect settings.
To maintain optimal performance, operators should follow these steps:
- Inspect the press brake for wear, damage, or misalignment in critical components like rams, back gauges, and guide rails.
- Clean the machine thoroughly to remove dirt, debris, and contaminants that may affect performance.
- Check hydraulic systems for leaks or air pockets to maintain consistent pressure distribution.
Utilizing effective calibration methods enhances precision. The following table outlines some of the most effective calibration methods and the tools used:
| Calibration Method | Tools/Equipment Used |
|---|---|
| Dial gauge or test indicator | Essential for checking geometric tolerances such as slide-to-bed parallelism and backgauge rail straightness. |
| High-precision digital protractor | Provides fast angle readings for verifying bend angles. |
| Laser alignment system | Measures machine straightness, parallelism, and squareness with high accuracy and efficiency. |
| Tonnage monitoring system | Monitors bending tonnage in real-time to protect tooling and prevent overload. |
| Test dies with certified accuracy | Evaluates overall performance using finely ground dies for test bends, providing insights into machine accuracy. |
Tooling Selection
Tooling selection significantly impacts bending accuracy and repeatability in CNC press brake processes. High-quality punches and dies with proper hardness and precise geometries ensure consistent bend angles. Even small wear patterns or misalignments in tooling can produce measurable variations in the finished parts.
When selecting tooling, consider the following factors:
- The type of tools employed in CNC bending systems influences bending angles. Smaller tools generally facilitate larger bending angles.
- Custom tools allow for tighter tolerances and more precise bends, enabling the production of complex shapes and angles. They also reduce waste and improve productivity, leading to better finish quality and less material damage.
For different sheet metal thicknesses, the following criteria are recommended for selecting press brake tooling:
| Criteria | Description |
|---|---|
| Bending Material | The type of metal affects the die opening, bending radius, and bending angle based on its thickness. |
| Rule of 8 | The V-opening die should be eight times the thickness of the material for optimal bending. |
| V Opening and Radius | The V opening influences the internal radius; ideally, it should equal the thickness of the material. |
| Thicker Plates | Require a V-opening of 10 times the thickness to prevent cracking due to reduced ductility. |
Sheet Metal Properties
Variations in sheet metal properties, such as thickness and hardness, significantly affect CNC press brake performance. Thicker materials require more powerful press brakes and specific tooling to avoid issues like cracking or deforming. Harder materials, such as stainless steel, necessitate higher tonnage and specialized tooling compared to softer materials like mild steel.
Consistency in material thickness is crucial for achieving even and accurate bends. Variations can lead to inconsistencies in the final product. Operators should always consider the following:
- Thicker materials require more tonnage and specific tooling.
- Harder materials necessitate specialized tooling for effective bending.
- Maintaining uniformity in material thickness ensures better bending accuracy.
By focusing on these key factors, operators can enhance CNC press brake optimization and achieve superior production quality.
Bending Operation Techniques for Accuracy
Proper Setup Procedures
Proper setup procedures are essential for achieving accuracy in CNC press brake operations. Operators must follow specific steps to ensure consistent bending results. The table below outlines key setup procedures and their descriptions:
| Setup Procedure | Description |
|---|---|
| Bending Force | Adjust tonnage to match material type, thickness, and tooling characteristics for consistent force application. |
| Bending Speed | Use slower speeds for thicker materials to maintain accuracy; faster speeds may cause inconsistencies. |
| Sequence Planning | Plan bending sequence carefully for complex parts to avoid interference and maintain alignment. |
| Operator Training | Regular training helps operators identify inaccuracies and adjust settings dynamically. |
| Quality Control | Implement SPC and in-line measurement systems to monitor and ensure accuracy throughout the process. |
| Tooling Selection | Choose appropriate die width and punch profile to prevent angle deviations and surface imperfections. |
| Accurate Material Preparation | Ensure uniformity in material thickness and cleanliness to avoid variations in bend angles. |
| Compensation for Springback | Use over-bending and material-specific adjustments to counteract springback effects. |
Following these procedures minimizes setup errors that can lead to bending angle inaccuracies. Incorrect tooling and machine calibration can result in assembly issues and functional defects. Therefore, operators must prioritize these setup procedures to enhance CNC press brake optimization.
Bending Sequence Optimization
Optimizing the bending sequence is crucial for improving efficiency and accuracy in CNC press brake operations. A well-planned sequence reduces workpiece repositioning and handling, which can lead to errors. Here are effective strategies for optimizing bending sequences:
- Plan and optimize bending sequences to minimize workpiece repositioning and handling.
- Efficient sequencing reduces cycle times and increases overall productivity.
- Utilize software tools that can simulate and optimize bending sequences.
- Staged bending aims to streamline the process for optimal part flow by performing as many bends as possible with the fewest number of tool setups.
- Arrange tools for the most efficient and suitable bend sequence to minimize unnecessary movements.
After programming the staged-bending procedure offline, operators can simulate the forming procedure using 3-D images. This simulation ensures an efficient bending process. Using tools lined up for easy left-to-right movement allows operators to perform bends efficiently. Software assists in creating a bending sequence that minimizes tool changes and maximizes productivity.
Force and Speed Adjustments
Adjusting force and speed is vital for achieving accurate bends in CNC press brake operations. These parameters must adapt to changes in material properties to ensure consistent results. Here are key considerations for force and speed adjustments:
- CNC press brakes can adjust bending parameters in real time to accommodate changes in material thickness, hardness, and formability.
- This adaptability ensures that every bend meets the required specifications, even when the material properties vary.
- Adjusting the pressure exerted by the press brake is crucial for achieving uniform bends, especially with materials that have varying properties.
- Advanced press brakes can automatically adjust pressure in real-time, ensuring consistent bending across the entire length of the material.
By focusing on these bending operation techniques, operators can significantly enhance CNC press brake optimization and achieve superior production quality.
Environmental Considerations for Performance
Temperature Control
Temperature control is essential for maintaining the precision of CNC press brakes. Fluctuations in temperature can alter the properties of metals, leading to deformation during the bending process. Variations can also cause expansion or contraction of materials, resulting in dimensional deviations. To mitigate these issues, operators should maintain a recommended temperature range of 60°F to 80°F (15°C to 27°C) and humidity levels around 50%. Special attention to temperature control is necessary in extreme environments to ensure consistent performance.
Vibration Minimization
Vibration can significantly impact the accuracy and longevity of CNC press brakes. Misalignment during metal bending often occurs due to vibrations, leading to inaccuracies and increased scrap material. Research indicates that inaccuracies can reach up to 0.1 millimeters, which is critical in precision industries. To minimize vibrations, operators should implement several strategies:
- Secure clamping of both the tool holder and the workpiece.
- Use damping techniques to absorb vibrations.
- Optimize tool paths to avoid sudden changes that induce chatter.
- Maintain machine rigidity through regular maintenance.
By addressing vibration issues, operators can enhance CNC press brake optimization and reduce costs associated with tool wear and inaccuracies.
Cleanliness and Maintenance
Regular cleaning and maintenance are vital for sustaining CNC press brake performance. A clean environment prevents wear and tear on critical components, ensuring the machine's longevity. It also enhances workplace safety by reducing hazards from debris. Operators should adhere to a structured maintenance schedule, which allows for early detection of potential issues. Key maintenance routines include:
- Conducting visual inspections for wear, damage, or misalignment.
- Regularly calibrating components like the back gauge.
- Ensuring cleanliness to maintain high precision in operations.
By prioritizing cleanliness and maintenance, operators can achieve optimal performance and extend the lifespan of their CNC press brakes.
To optimize CNC press brake parameters, operators should follow best practices such as:
| Category | Best Practices |
|---|---|
| Machine Setup | Follow manufacturer guidelines and perform trial runs with scrap material. |
| Programming and Control | Understand the programming interface and input parameters accurately. |
| Operational Techniques | Master bending techniques and practice proper tool handling. |
| Quality Assurance | Use measurement tools for verification and implement quality checks throughout the process. |
Regular maintenance is crucial for sustained accuracy. Daily checks and calibration help prevent small issues from escalating. Operators should implement the discussed strategies to enhance performance and achieve superior production quality.
FAQ
What is the ideal temperature range for operating a CNC press brake?
The ideal temperature range is between 60°F to 80°F (15°C to 27°C) for optimal performance.
How often should I calibrate my CNC press brake?
Operators should calibrate the CNC press brake regularly, ideally every few months or after significant use.
What factors affect the bending accuracy of sheet metal?
Bending accuracy depends on material thickness, tooling quality, and machine calibration. Consistency in these areas is crucial.
