How to Reduce Springback in Sheet Metal: 5 Simple Steps

Reducing springback in sheet metal is crucial for maintaining precision in fabrication. Springback can distort parts after forming, leading to increased design efforts and production costs. By addressing this issue, manufacturers can enhance efficiency, minimize waste, and improve overall product quality.

Key Takeaways

• Select materials with lower yield strength to minimize springback. This choice allows for more plastic deformation, leading to better shape retention.
• Implement techniques like overbending and coining to counteract springback. These methods help ensure the final product meets design specifications.
• Monitor bending speed closely. Slower speeds can reduce internal stress, leading to less springback and improved accuracy in the final shape.

Understand Material Properties to Reduce Springback Sheet Metal

Importance of Material Selection

Selecting the right material is vital for reducing springback in sheet metal. Different materials exhibit varying properties that influence their behavior during bending. Key factors include:

• Yield Strength: Materials with lower yield strength tend to experience less springback. A lower yield strength allows for more plastic deformation, which minimizes elastic recovery.
• Elastic Modulus: This property measures the stiffness of a material. A higher elastic modulus generally results in reduced springback, as the material resists deformation.
• Strain Hardening Exponent: This value indicates how a material hardens as it deforms. A higher strain hardening exponent can lead to reduced springback, as the material becomes less prone to elastic recoil.
• Anisotropy: Materials that exhibit anisotropic behavior may have different springback characteristics based on their orientation. Understanding this can help in selecting the appropriate material for specific applications.

The following table summarizes the material properties that influence springback:

Analyzing Yield Strength

Yield strength plays a crucial role in determining the amount of springback experienced during the bending process. Stronger materials, characterized by higher yield strength, typically exhibit greater springback. This occurs because they possess a higher tendency to return to their original shape after deformation.

Manufacturers should consider the following points regarding yield strength:

• Higher Yield Strength Equals More Springback: As yield strength increases, the likelihood of experiencing springback also rises. This relationship necessitates careful material selection to achieve desired tolerances.
• Typical Yield Strength Values: Common sheet metals used in manufacturing have varying yield strength values. For instance, mild steel ranges from 200 to 350 MPa, while high carbon steel can reach up to 700 MPa. Understanding these values helps in selecting materials that minimize springback.

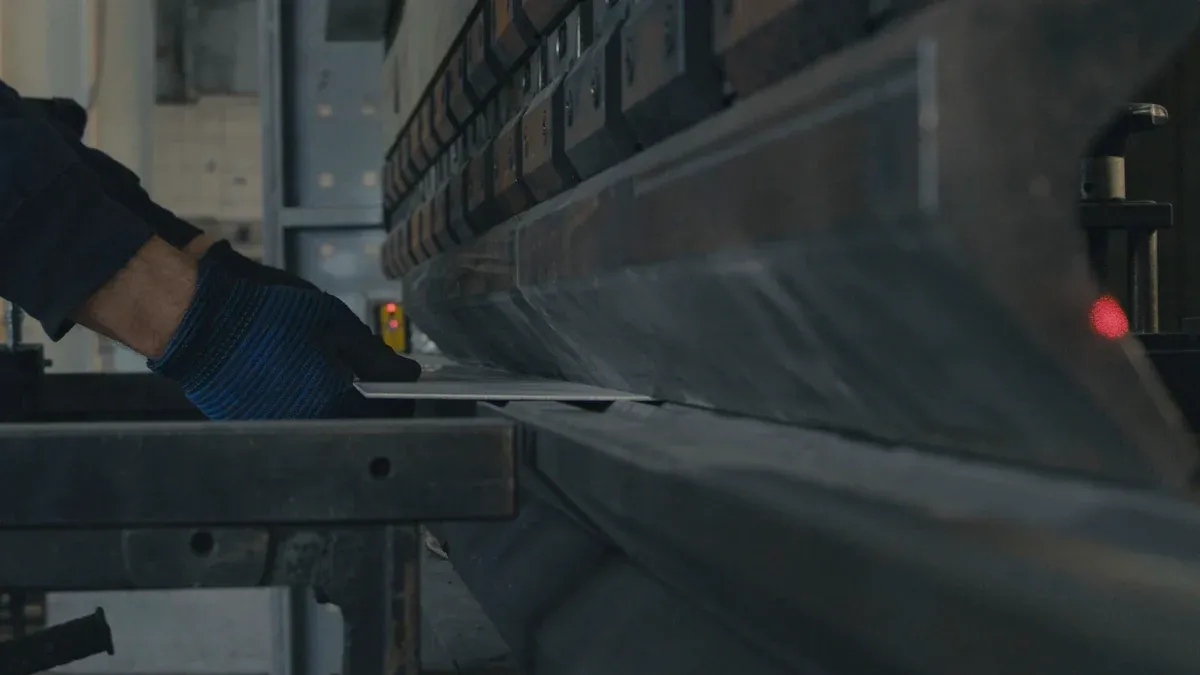

Optimize Bending Techniques to Reduce Springback Sheet Metal

Choosing the Right Die Design

Selecting the appropriate die design significantly impacts the amount of springback experienced during the bending process. Various die designs can effectively reduce springback in sheet metal forming. Here are some proven techniques:

1. Overbending: This technique involves intentionally bending the part to a more acute angle than required. By doing so, manufacturers can compensate for the expected springback, ensuring the final shape meets specifications.

2. Coining/Staking: This method applies high compressive pressure to plastically deform the material. The result is a reduction in springback, as the material undergoes permanent deformation.

3. Hot Stamping: Heating the steel blank before bending and rapidly quenching it can stabilize the part. This process minimizes springback, leading to more accurate final shapes.

4. Die Design Compensation: Utilizing simulation-driven approaches allows manufacturers to predict and neutralize springback before it occurs. This proactive strategy enhances accuracy and reduces the need for adjustments post-bending.

Research supports the importance of die geometry in influencing springback. A study titled "Effect of Die and Punch Geometry on Spring Back in Air Bending of Electrogalvanized CR 4 Steel" investigates how different geometries affect springback in Sheet Metal Bending processes. Another study, "Effect of Die and Punch Radius on Springback of Stainless Steel Sheet Metal in the Air V-die Bending Process," examines the impact of die and punch radii on springback. These findings highlight the critical role of die design in achieving desired outcomes.

Adjusting Bending Angles

Adjusting bending angles is another effective strategy to reduce springback in sheet metal. Skilled fabricators often modify the angle of the bend to account for springback. Here are some key considerations:

• Higher yield strength leads to greater springback, which affects shape accuracy.
• A lower elastic modulus results in more noticeable springback, impacting the final shape.
• Allowing reasonable tolerances on bend angles can accommodate normal variations in the material.
• Communication with manufacturers is essential for designs requiring tight bend angles.
• Simulation software can predict springback and adjust the press brake accordingly.

By implementing these adjustments, manufacturers can enhance the accuracy of their final products. Techniques like overbending ensure that the final shape aligns with design specifications, even in the presence of springback.

Control Bending Speed to Reduce Springback Sheet Metal

Effects of Speed on Springback

Bending speed significantly influences the degree of springback in sheet metal. Faster bending speeds tend to increase springback due to heightened internal stress. This stress causes the metal to revert to its original shape after bending, leading to angular deviations that complicate corrections. Key points regarding speed effects include:

• Increased speed results in a thick, undeformed middle zone within the material.
• This undeformed zone enhances elastic recovery, leading to more pronounced springback.
• A trade-off exists between minimizing springback and achieving uniform thickness during the bending process.

Recommended Speed Settings

Manufacturers can determine optimal speed settings for specific sheet metal processes by considering various factors. The following table summarizes how different factors affect springback:

To effectively reduce springback in sheet metal, manufacturers should aim for a stamping speed of around 3000 mm/s, with an edge pressure of 2000 N. These settings help balance speed and quality, ensuring optimal results.

Implement Pre-Bending Methods to Reduce Springback Sheet Metal

Using Heat Treatment

Heat treatment serves as an effective method to reduce springback in sheet metal. By increasing the temperature during the forming process, manufacturers can achieve several benefits:

• Reduced Springback: Higher temperatures help decrease springback and cracking.
• Enhanced Formability: Pre-compression and annealing treatments improve the material's ability to deform without returning to its original shape.
• Twinned Structures: During roll bending, the inner bend area develops more twinned structures than the outer area, which contributes to reduced springback.

However, caution is necessary. Excessively high temperatures may lead to grain coarsening, negatively impacting mechanical properties. Therefore, manufacturers must find a balance to optimize results.

Applying Mechanical Pre-Bending

Mechanical pre-bending involves applying force to the sheet metal before the final bending operation. This technique effectively reduces springback, especially in thicker materials. The following methods illustrate its effectiveness:

• Pre-Bending Techniques: These methods can significantly lower springback compared to other strategies.
• Flexible Stretch Bending: This method shows moderate effectiveness in reducing springback.
• Analytical Modeling: While useful, its effectiveness can vary based on the specific application.

The table below summarizes the effectiveness of various methods in reducing springback:

By implementing these pre-bending methods, manufacturers can achieve greater accuracy and efficiency in their sheet metal forming processes.

Test and Adjust to Reduce Springback Sheet Metal

Importance of Prototyping

Prototyping plays a crucial role in reducing springback in sheet metal. Early evaluation of springback during part feasibility focuses on optimizing designs. Manufacturers should consider the following steps:

• Evaluate Product Feasibility: Assess the design and addendum feasibility to ensure the part meets specifications.
• Utilize Simulation Techniques: Accurate material information is essential for reliable results. Proper meshing and control parameters must align with the sheet metal and die face.
• Conduct Process Simulations: Simulations should mirror the production plan, considering clearance and binder gaps.
• Analyze Springback After Each Operation: This analysis helps in understanding how each step affects the final product.

One effective method for evaluating springback is the Demeri Split Ring Test. This test quantifies the tendency of materials to springback after forming. Its simplicity allows for accurate measurement without sophisticated equipment. By comparing materials at the same thickness, manufacturers can rank their springback tendencies.

Continuous Monitoring and Adjustments

Continuous monitoring is vital for managing springback during production. Manufacturers can employ various techniques to track springback effectively:

• Digital Image-Based Laser Tracking: This method integrates image processing technology for real-time data acquisition during bending processes.
• Linear Variable Differential Transformers (LVDT): These devices provide precise displacement measurements, aiding in springback analysis.
• Inertia Measurement Units (IMU): IMUs track changes in position and orientation, enhancing understanding of springback behavior.
• Laser Sensors: These sensors measure the springback angle with a demonstrated measurement error of ± 0.25°.

By implementing these monitoring techniques, manufacturers can make informed adjustments to their processes, ultimately leading to a reduction in springback in sheet metal.

Reducing springback in sheet metal involves five essential steps:

• Understand material properties.
• Optimize bending techniques.
• Control bending speed.
• Implement pre-bending methods.
• Test and adjust processes.

Applying these techniques leads to improved product accuracy, reduced waste, and enhanced efficiency. Manufacturers should embrace these strategies and share their experiences. Feedback from industry professionals highlights the effectiveness of these methods, emphasizing the importance of continuous improvement in metalworking practices.

FAQ

What is springback in sheet metal?

Springback refers to the tendency of metal to return to its original shape after bending, affecting the accuracy of the final product.

How can I measure springback?

Manufacturers can measure springback using techniques like the Demeri Split Ring Test or digital image-based laser tracking for precise results.

Does material thickness affect springback?

Yes, thicker materials generally exhibit different springback behavior, often resulting in greater springback compared to thinner sheets.
