How to Optimize Your Fabrication Process with Laser Cutting and CNC Bending
Laser cutting CNC bending integration plays a crucial role in optimizing fabrication processes. This integration enhances efficiency and accuracy, leading to an improved overall workflow. By combining CAD/CAM software with CNC bending, companies gain design flexibility and production efficiency. Additionally, laser cutting minimizes material waste, which is essential for effective resource utilization.
Key Takeaways
- Integrating laser cutting and CNC bending enhances precision, reducing errors and improving product quality.
- Adopting advanced software can cut setup times by up to 50%, leading to faster production and lower costs.
- Comprehensive training for staff on new technologies boosts productivity and minimizes mistakes in fabrication.

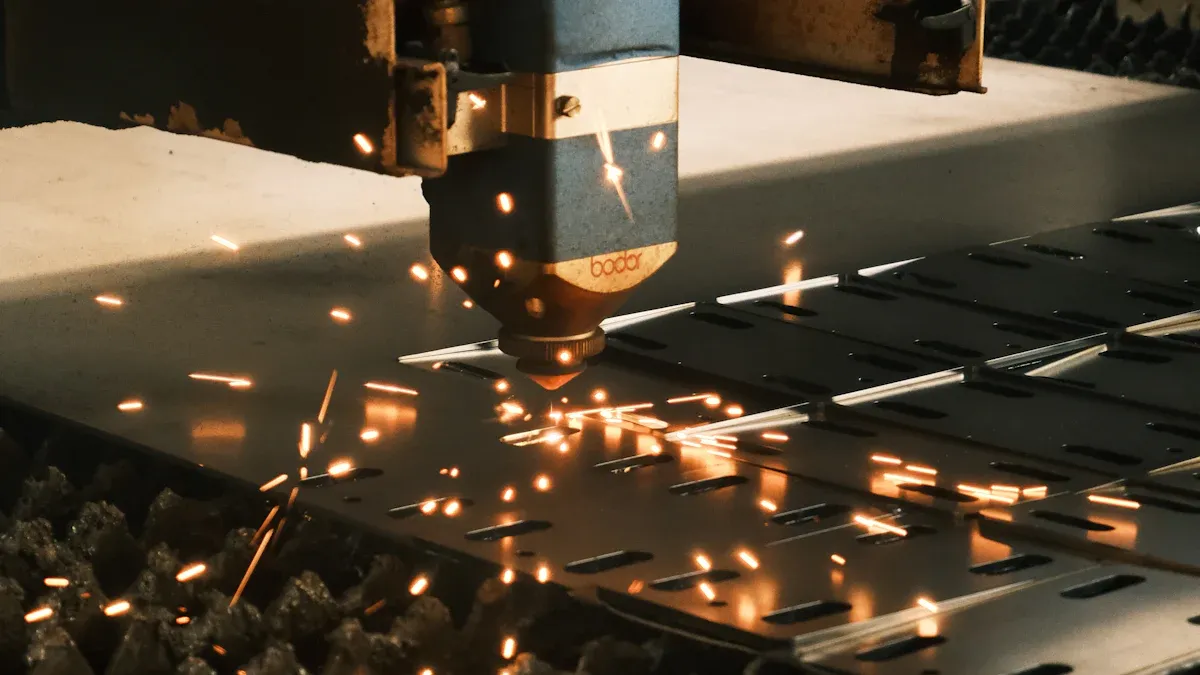

Benefits of Laser Cutting CNC Bending Integration
Enhanced Precision
The integration of laser cutting and CNC bending significantly improves precision in fabrication processes. Laser cutting technology offers micron-level accuracy, which minimizes errors and reduces the need for rework. This high level of precision ensures that components fit together seamlessly, enhancing the overall quality of the final product. Automated systems further contribute to this precision by eliminating human errors during the fabrication process. As a result, manufacturers can achieve consistent results, which is crucial for maintaining high standards in production.
Increased Efficiency
Integrating laser cutting CNC bending integration leads to remarkable efficiency gains. For instance, the use of advanced software, such as Lantek Bend, has resulted in a 50% reduction in set-up times for press brakes. This software not only streamlines the setup process but also eliminates human errors, contributing to overall efficiency savings. Additionally, automated systems enable faster cutting cycles, which increases production speed and shortens lead times. Companies adopting these technologies often report paybacks in less than a year, thanks to reduced downtime and improved process control.
- Key Efficiency Benefits:
- Precision and consistency achieved through automation.
- Increased production speed leading to higher throughput.
- Lower labor requirements, allowing personnel to focus on other tasks.
Cost-Effectiveness
Integrating laser cutting technology into manufacturing operations results in significant cost reductions. CNC fiber laser cutting enhances efficiency by allowing cutting speeds that can reach up to 3 meters per minute, thereby reducing production time. Moreover, advanced software optimizes material usage, minimizing waste and supporting sustainable practices. This not only lowers costs but also enhances profitability. Labor costs decrease as automated processes require less manual intervention, and energy consumption is lower compared to traditional methods.

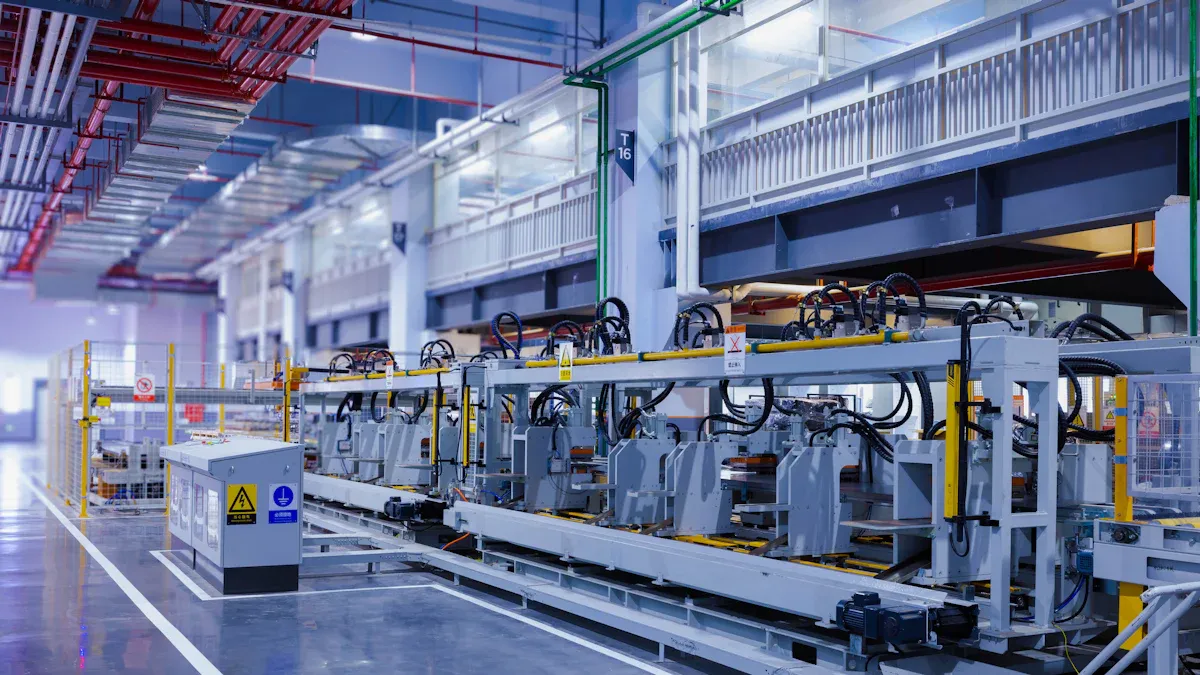

Steps for Effective Laser Cutting CNC Bending Integration
Assessing Your Current Workflow
To begin the integration of laser cutting and CNC bending, companies must assess their current workflow. This evaluation helps identify areas for improvement and potential bottlenecks. Key performance indicators (KPIs) play a vital role in this assessment. Companies should focus on:
- Tolerance Benchmarking: Ensure compliance with design specifications.
- Advanced Metrology Tools: Utilize these tools for improved precision.
- CNC Control Systems: Implement these systems for enhanced repeatability.
A comprehensive overview of relevant KPIs can be summarized in the following table:
| KPI | Description |
|---|---|
| Efficiency Metrics | Measures the speed and effectiveness of the fabrication process. |
| Precision Calibration | Assesses the accuracy of bending operations to meet design specifications. |
| Waste Reduction | Evaluates the amount of material waste generated during the fabrication process. |
| Ongoing Support | Importance of technical support and training for maintaining operational efficiency. |
Identifying common workflow bottlenecks is equally important. Issues such as manual denesting, poor workflow organization, and communication problems can hinder efficiency. Addressing these challenges early on sets the stage for a smoother integration process.
Choosing the Right Equipment
Selecting the appropriate equipment is crucial for successful laser cutting CNC bending integration. Companies should consider several technical specifications when making their choices:
| Specification Type | Description |
|---|---|
| Material Types | Identify the primary materials to be cut, as different lasers are optimized for different materials. |
| Thickness Range | Determine the range of material thicknesses to influence the required power output of the laser. |
| Precision and Quality | Assess the level of precision and quality needed for finished products. |
| Production Volume | Consider production volume to determine necessary cutting speed and efficiency. |
| Power Output | Match power output with the thickness and type of materials being processed. |
| Cutting Speed | Select a machine with a cutting speed that balances efficiency with quality. |
| Beam Quality | Ensure the machine offers the required beam quality for precision and smoothness of cuts. |
| Wavelength | Confirm the machine's wavelength suitability for primary materials. |
Additionally, companies should evaluate brands and models based on industry reviews. Notable options include:
- TRUMPF: Known for precision and speed.
- Amada: Offers durability and user-friendly interfaces.
- Bystronic: Specializes in efficiency and excellent cutting quality.
- Mazak: Recognized for versatility and advanced control systems.
- Han's Laser: Provides cost-effective solutions with advanced technology.
Training Your Team
Effective training is essential for maximizing the benefits of laser cutting CNC bending integration. Companies should implement comprehensive training programs that cover various aspects of the technology. Recommended training options include:
| Training Program | Description |
|---|---|
| CNC Laser Cutting Machine Training | Comprehensive training essential for mastering CNC laser cutting machines. |
| Online Training Options | Flexible training available online for various skill levels. |
| In-Person Workshops | Hands-on workshops to enhance practical skills. |
| Certification Programs | Validates skills and knowledge, improving job prospects and professional credibility. |
Training should focus on software mastery, cutting parameter optimization, hardware knowledge, and safety protocols. Companies that invest in employee training often see improved productivity and reduced error rates, which are critical for successful integration.
Implementing a Seamless Workflow
To achieve a seamless workflow between laser cutting and CNC bending operations, companies should adopt best practices. Regularly reviewing software performance and establishing metrics to assess performance are essential steps. Companies should also consider the following:
- Select the appropriate material thickness for projects to ensure engraving quality.
- Maintain a minimum distance between cutting lines to prevent material melting.
- Keep a distance between the hole and the bending edge to ensure structural integrity.
- Expect misalignment before bending and consider alternatives like drilling holes after forming.
- Ensure the interior bend radii are at least as large as the material thickness to avoid distortion.
Familiarizing employees with CNC bending software functionalities is crucial. This knowledge reduces error rates and enhances productivity. Ensuring that the CNC bending machine communicates efficiently with the software minimizes downtime and improves workflow efficiency.
Troubleshooting Common Challenges in Integration
Addressing Equipment Compatibility
Equipment compatibility poses a significant challenge in laser cutting CNC bending integration. Companies can take several steps to ensure seamless operation between devices. First, they should source hardware from experienced solution providers. This approach helps eliminate compatibility issues. Next, companies must choose components that adhere to standardized protocols. This choice streamlines interoperability. Additionally, utilizing middleware solutions can ensure consistent communication between hardware and software. Engaging with vendors early in the process allows alignment of hardware and software specifications, reducing potential conflicts.
Managing Material Variability
Material variability can significantly affect the performance of integrated laser cutting and CNC bending processes. Key material properties, such as Young's modulus and yield strength, influence the bending angle. Increased values of these properties typically lead to a decrease in the bend angle, impacting overall performance. To manage inconsistencies, companies should focus on material selection based on mechanical properties. Implementing heat treatments, such as annealing, can enhance material characteristics. Furthermore, utilizing in-process sensing and monitoring can provide real-time data to manage variability effectively.
Ensuring Consistent Quality
Maintaining consistent quality in integrated fabrication processes is crucial. Companies should implement various quality control measures to ensure output meets specifications. For instance, dimensional accuracy and tolerance checks ensure parts conform to required dimensions. Surface finish and roughness impact both performance and aesthetics. Regular checks on material hardness and strength guarantee that materials withstand intended use conditions. Additionally, compliance with industry standards, such as ISO 9001:2008, ensures reliability and safety in machined parts.
Integrating laser cutting and CNC bending technologies offers numerous benefits for fabrication processes. Companies experience improved efficiency, enhanced precision, and reduced waste.
Key Future Trends:
- Automation and AI will drive efficiency and sustainability.
- The market for these technologies is set to grow, adapting to diverse materials.
- Localized supply chains will enhance control over manufacturing.
Adopting these technologies positions companies for success in a competitive landscape. The future of fabrication looks promising with these advancements.
FAQ
What materials can be used with laser cutting and CNC bending?
Laser cutting and CNC bending work well with metals, plastics, and composites. Common materials include steel, aluminum, acrylic, and stainless steel.
How does integration improve production speed?
Integration reduces setup times and streamlines processes. Automated systems enable faster cutting cycles, leading to increased production speed and shorter lead times.
What training is necessary for staff?
Staff should undergo training in CNC laser cutting, software operation, and safety protocols. Comprehensive training enhances productivity and reduces error rates in fabrication processes.
