Laser Cutting vs. CNC Punching: Cost-Effective Batch Production

For batch production, a laser cutting CNC punching comparison reveals that CNC punching offers considerable cost savings when dealing with large volumes and repetitive shapes. Laser cutting, on the other hand, provides consistent pricing and is particularly advantageous in terms of flexibility for smaller batches or intricate parts. The table below emphasises the key cost differences between these methods:

Batch Size (units)	Laser Cutting Cost per Unit	Stamping Cost per Unit	Cost Difference per Unit	Percentage Savings with Laser Cutting
1,000	£8.50	£39.50	£31.00	78%
3,000	£8.50	£22.53	£14.03	62%
4,800	£8.50	£8.50	£0	0%
10,000	£8.50	£10.30	-£1.80	Laser cutting less economical

Key Takeaways

• CNC punching is the best choice for large batches of simple, repetitive shapes because it offers faster production and lower costs per part as batch size grows.
• Laser cutting suits small to medium batches with complex or detailed designs, providing high precision and flexibility without the need for costly tooling.
• Combining laser cutting and CNC punching in hybrid systems can boost efficiency, reduce waste, and handle a wider range of materials and designs for batch production.

Laser Cutting CNC Punching Comparison: How Each Process Works

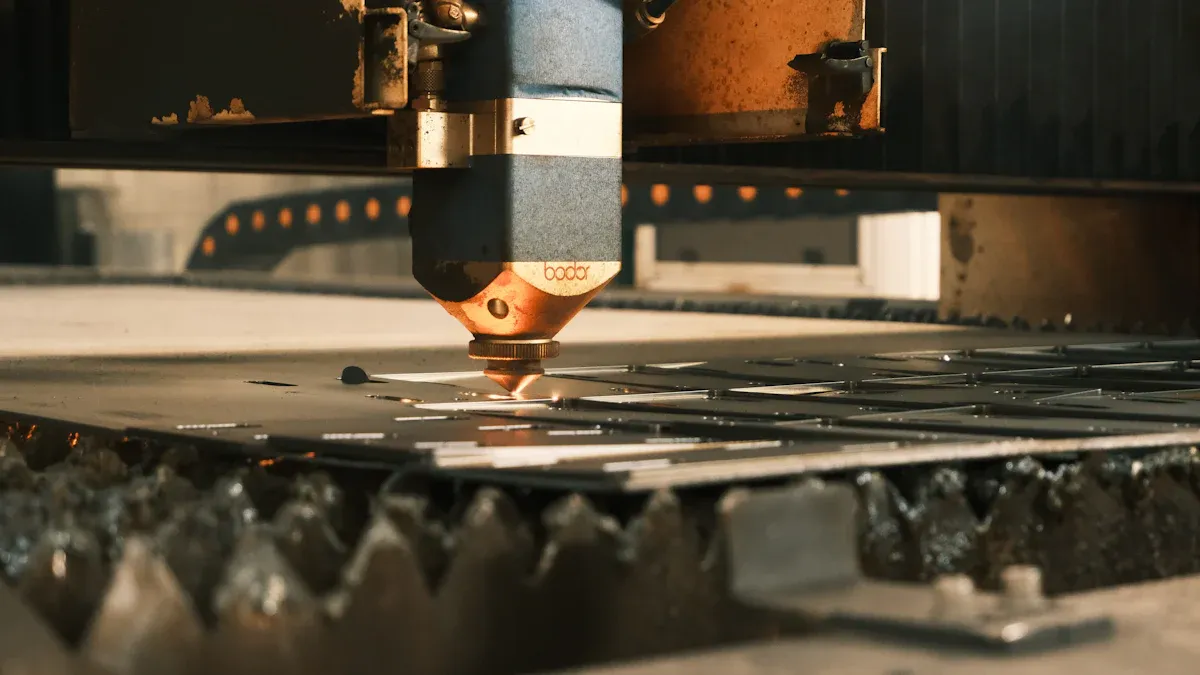

Laser Cutting Process

Laser cutting stands out for its precision and adaptability in metal fabrication. Operators begin by preparing detailed designs using CAD software, ensuring all outlines are closed and files are correctly scaled. They import these designs into CAM software, which generates the necessary G-code instructions. Material selection follows, with metals such as stainless steel, aluminium, copper, and brass commonly chosen for their compatibility.

The process unfolds in several steps:

1. The operator secures the workpiece on the cutting bed and sets laser parameters, including power, speed, and focal length.
2. The machine generates a coherent laser beam through stimulated emission, amplified within an optical cavity.
3. The laser beam heats and vaporises the metal along the programmed path, while a gas assist clears away molten material and cools the cut area.
4. The CNC-controlled cutting head or table moves precisely, following the design instructions.
5. After cutting, the operator cools the parts and removes them for post-processing, which may include deburring or applying protective coatings.

Tip: Laser cutting excels at producing intricate shapes and fine details, making it ideal for prototypes and small batch production.

CNC Punching Process

CNC punching offers speed and efficiency for batch production, especially when dealing with repetitive shapes. The process starts with machine setup, where operators configure punch and die sets to match design requirements. They then translate design parameters into machine instructions using specialised software.

The main stages include:

1. Cutting or blanking the sheet metal to size before punching.
2. Loading and positioning the cut sheets accurately on the CNC punch machine.
3. Executing the punching cycle, where the CNC controller guides the punching head and worktable to follow the programmed pattern.
4. Using multiple moulds to punch and separate parts arranged on a large sheet, performing repeated punchings as needed.
5. Operators ensure part alignment and manage gaps between parts to maximise material utilisation and maintain sheet integrity.

A laser cutting CNC punching comparison highlights that CNC punching is particularly effective for high-volume production runs, where speed and consistency are critical.

Laser Cutting CNC Punching Comparison: Cost, Speed, and Efficiency

Cost Breakdown for Batch Orders

A laser cutting CNC punching comparison reveals distinct cost structures for each process. Laser cutting involves several key cost components:

• Setup costs: Machine calibration, material preparation, and loading design files. Custom or one-off cuts require longer setup times.
• Material costs: Depend on type, thickness, and wastage. Thicker or tougher metals, such as stainless steel, increase energy use and expenses.
• Labour costs: Cover operator time for setup, machine operation, and quality checks, especially for complex jobs.
• Machine operational costs: Include energy consumption, maintenance, and wear.
• Pricing models: May be per hour (machine operation time) or per part (common for large batch orders).
• Bulk orders: Lower per-part costs by spreading setup and labour over more units.
• Additional costs: Post-processing, such as deburring or coating, may apply.

Material choice significantly affects costs. Stainless steel, for example, requires higher laser power and longer cutting times, raising expenses. Design complexity also impacts labour and machine time, with intricate patterns demanding more setup and programming. Economies of scale play a crucial role; larger batch sizes reduce costs by distributing fixed expenses and enabling bulk material discounts.

The following table summarises typical cost components for laser cutting:

Cost Component	Description	Estimated Time/Cost
Setup Time	Material positioning, laser calibration, testing	15–30 minutes; labour £16–£40/hr
Setup Labour Cost	Material setup, calibration, testing	£5–£25 total
Hourly Machine Rate	Laser cutting operation	£50–£120 per hour
Material Costs	Vary by type and thickness	Mild steel: £0.08–£0.50/inch; Stainless steel: £0.12–£0.80/inch
Volume Effect	Small batches cost more per part; large batches reduce per-part cost	10 parts: £8–£12/part; 1,000 parts: £1–£2.50/part
Post-Processing	Deburring, polishing, bending, painting	Deburring: £4–£12/hr; Painting: £8–£40/m²
Lead Time Surcharge	Expedited service adds 20%–50% surcharge	Example: £80–£200 on £400 order

CNC punching, in contrast, features a different cost profile. The hourly machine cost for CNC punching is typically higher than for laser cutting, and setup costs have a greater impact on small batches due to tooling requirements. Tooling costs can be significant, especially for custom shapes, but these costs are amortised over large batch sizes. Labour costs tend to be higher, as skilled operators are needed for setup and operation. Material waste is often greater due to less precise cutting, but CNC punching becomes more cost-effective as batch size increases and repetitive features dominate.

Cost Aspect	CNC Punching	Laser Cutting
Hourly Machine Cost	£22/hour	£10–£16/hour
Setup Impact	High for small batches	Lower for small batches
Energy Consumption	Moderate	High
Maintenance	Frequent tooling maintenance	Regular but less frequent
Material Waste	Higher	Lower
Labour Cost	Higher skill required	Lower skill required
Economies of Scale	Best for large batches	Flexible for small batches

Note: For large, repetitive batch orders, CNC punching often delivers lower per-part costs. For small or complex batches, laser cutting offers better value and flexibility.

Production Speed Comparison

Production speed is a critical factor in any laser cutting CNC punching comparison. CNC punching generally achieves faster production rates, especially for high-volume projects and thicker materials. The process can create multiple perforations in a single stroke, making it ideal for quick turnarounds and standard designs. For example, an 80-ton electric press with compound dies can process 500-piece orders in just 55 minutes, operating at 45 strokes per minute.

Laser cutting, while highly precise, processes one hole or shape at a time. Its speed decreases as material thickness increases, since the machine must slow down to maintain cut quality. Thinner materials allow for faster cutting, but as complexity or thickness rises, production speed drops. For a batch of 500 blanks, a 2kW fibre laser can complete the job in about 6 minutes at a 12 m/min feed rate, but this advantage diminishes with thicker or more intricate parts.

The following table highlights the difference in production times for traditional and advanced setups:

Process Type	Production Time (hours)	Shift Equivalent	Notes on Efficiency and Speed
Traditional punch/laser sheet-fed	~4000	2 full shifts	Sequential punching then laser cutting; includes loading/unloading delays
Coil fed punch/laser line	<2000	<1 full shift	Simultaneous punching and laser cutting; continuous coil feeding eliminates loading/unloading time; cycle time reduced by over 50%

Coil-fed systems, which combine both technologies, can reduce cycle times by more than 50% compared to traditional sheet-fed machines. This approach increases throughput by allowing simultaneous punching and laser cutting, and by eliminating delays from manual loading and unloading.

Efficiency and Setup Times

Efficiency in batch production depends on setup times, machine uptime, and scrap rates. Laser cutting machines offer minimal setup times due to quick parameter adjustments and easy sheet mounting. Batch processing time scales linearly with the number of parts, so producing 10,000 parts takes roughly ten times longer than 1,000 parts.

CNC punching machines require moderate setup times, involving loading, aligning, and securing punch presses. However, the setup time per batch remains relatively constant, regardless of batch size. Quick-change magnetic tooling can reduce setup from 45 minutes to just 90 seconds, significantly improving uptime.

Machine Type	Setup Time Characteristics	Batch Processing Characteristics
Laser Cutting	Minimal setup due to quick adjustments and easy sheet mounting	Processing time scales linearly with batch size
CNC Punching	Moderate setup, including loading and aligning punch presses	Setup time per batch remains roughly constant, ideal for large batch runs

Machine efficiency also relates to maintenance and scrap rates. Laser cutting machines require regular, scheduled maintenance to avoid costly downtime, with annual costs typically 2–3% of the initial investment. CNC punching machines, when properly maintained, have lower maintenance complexity and costs, supporting efficient batch production.

Scrap rates differ between the two methods. Laser cutting achieves low scrap rates due to its precision and advanced nesting capabilities. CNC punching, especially with compound dies, can also achieve low scrap rates by eliminating part handling and tolerance accumulation. Both methods benefit from automation and programmable controls, which increase uptime and consistency.

Tip: For maximum efficiency in batch production, manufacturers should consider not only setup and cycle times but also maintenance schedules and scrap reduction strategies.

Laser Cutting CNC Punching Comparison: Material and Design Considerations

Material Compatibility

Material selection plays a crucial role in determining the most suitable process for batch production. Laser cutting demonstrates remarkable versatility, handling a wide range of materials such as metals, plastics, wood, fabrics, paper, foam, glass, rubber, and leather. It excels with thin to medium thickness metals, including stainless steel and aluminium, and produces clean, precise edges on non-metals like acrylic and plywood. However, highly reflective metals, such as copper and some aluminium grades, can challenge standard lasers, requiring specialised equipment or settings. For materials thicker than 25mm, alternative methods like waterjet or plasma cutting often deliver better results.

CNC punching, by contrast, works best with thicker sheet metals and is less suitable for non-metals. It offers cost-effective production for simple shapes in large batches but cannot process materials like glass, ceramics, or most plastics. The table below summarises compatibility:

Material Type	Laser Cutting Compatibility	CNC Punching Compatibility
Metals	Excellent (thin to medium)	Excellent (thicker sheets)
Plastics	Good (acrylic, polycarbonate)	Poor
Wood	Good	Not typical
Fabrics, Paper	Good	Not typical
Glass, Ceramics	Limited	Not suitable
Rubber, Leather	Good	Not typical

Note: Laser cutting is not recommended for certain plastics (e.g., PVC, ABS) due to toxic fumes.

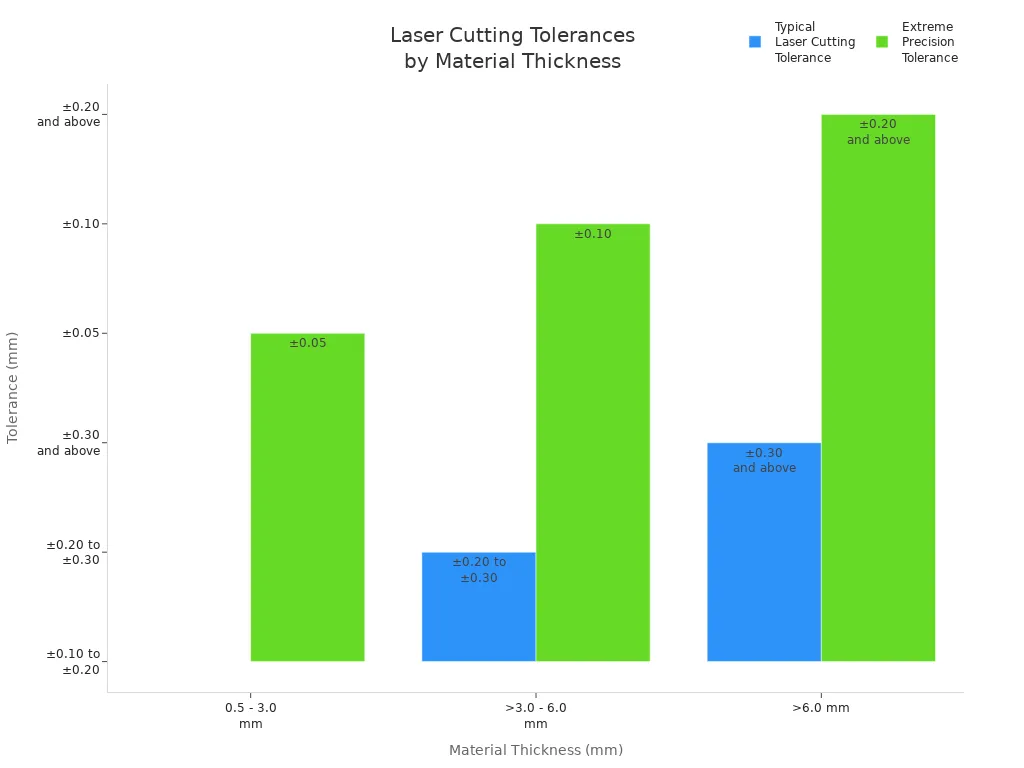

Design Complexity and Flexibility

A laser cutting CNC punching comparison highlights significant differences in design capability. Laser cutting achieves high precision and supports intricate 2D designs, making it ideal for complex contours and detailed features. It allows for rapid changes between designs without tool changes, which increases flexibility for small or varied batch orders. Minimum feature sizes can reach approximately 0.5 mm, with tolerances as tight as ±0.1 mm for thin materials.

CNC punching excels in producing large volumes of simple, repetitive shapes. It operates efficiently for thicker metals but faces limitations with complex patterns due to die wear and the need for frequent tool changes. Minimum hole diameters typically measure about 1.2 times the material thickness, and tolerances are generally looser, around ±0.2 mm.

Tip: For highly detailed or variable designs, laser cutting offers unmatched flexibility and precision.

Choosing the Right Method for Batch Production

When to Choose CNC Punching

CNC punching stands out as the preferred method for batch production when manufacturers seek speed, cost efficiency, and repeatability. The process delivers rapid cycle times, making it ideal for projects that require quick turnaround. Automation in CNC punching reduces manual labour, which lowers overall production costs. Tooling costs become economical for medium to high batch sizes, as the expense spreads across many units. Consistent quality across large batches ensures uniform parts and minimises waste.

The following table summarises the main benefits of CNC punching for batch production:

Aspect	CNC Punching Benefits	Relevance to Batch Production Cost & Speed
Speed & Efficiency	High-speed punching enables fast cycle times	Ideal for batch production requiring quick turnaround
Cost Efficiency	Lower tooling and labour costs for medium to high runs	Economical for batch sizes where tooling amortisation matters
Repeatability	Consistent quality across large batches	Ensures uniform parts, reducing rework and waste
Labour Reduction	Automation reduces manual labour	Lowers overall production cost
Comparison to Laser	Faster for hole-heavy, repetitive patterns	Preferred when speed and cost for repetitive punching are key
Flexibility	Works with various materials and shapes	Supports diverse batch production needs

Manufacturers in electronics, automotive, aerospace, home appliances, and construction often rely on CNC punching for high-volume production. Common products include electronic components, chassis, body structure parts, aircraft casings, metal frames, and stair handrails. CNC punching provides efficiency and precision, especially for mass production where consistent quality is essential.

Typical applications for CNC punching in batch manufacturing:

• Electronics: connectors, chassis, and metal structural parts.
• Automotive: body and chassis components, interior parts.
• Aerospace: aircraft casings, spacecraft structures.
• Home appliances: metal casings and frames.
• Construction: stair handrails, window frames.

Tip: CNC punching offers the best value for large batches of simple, repetitive shapes where speed and cost control are priorities.

When to Choose Laser Cutting

Laser cutting excels in scenarios where design flexibility and material compatibility are crucial. Manufacturers choose laser cutting for projects that demand intricate or detailed designs, frequent design changes, or customisation. The process supports rapid prototyping and adapts easily to small or medium batch sizes without the need for physical tooling. Laser cutting minimises material waste through advanced nesting software and handles a wide variety of materials, including metals, acrylics, wood, and textiles.

Laser cutting proves optimal for:

• Projects requiring complex, detailed, or customised designs.
• Frequent design changes or rapid adaptation to market trends.
• Small to medium production volumes where tooling costs would be prohibitive.
• Synthetic fabrics needing sealed, fray-free edges, such as polyester or nylon.
• Delicate or heat-sensitive materials, especially when using UV lasers.
• Businesses targeting niche or high-value markets with variable product requirements.

Industries favouring laser cutting for batch orders include household appliance manufacturing, electrical cabinets, medical devices, automotive, kitchenware, fitness equipment, and advertising signage. These sectors benefit from high precision, burr-free edges, and the ability to process complex shapes without mould changes.

Industry/Application	Reasons Laser Cutting is Favoured Over CNC Punching for Batch Orders
Household Appliance Manufacturing	High precision; no mould needed; handles complex shapes; quick design adjustments; reduces production cycles; improves assembly precision and appearance quality.
Electrical Cabinets & Enclosures	Flexible for small batches; no mould changes needed; multi-pattern nesting; faster processing; reduces inventory and custom order costs.
Medical Device Manufacturing	High precision and surface finish; suitable for small batches and diverse specs; avoids micro-cracks; supports complex shapes and mesh structures.
Automotive Manufacturing	Burr-free edges; contactless processing; handles complex contours; supports prototyping and small batches; reduces mould development time; improves part reliability.
Kitchenware & Sanitary Ware	Fast and precise cutting; smooth edges without grinding; supports customisation; shortens production cycles; reduces rejection rates.
Fitness Equipment Industry	Cuts tubes and sheets of various shapes; ensures assembly accuracy; burr-free surfaces; reduces process switching; supports combined sheet and tube cutting.
Advertising Signage Industry	High precision and speed; smooth edges without rework; supports complex fonts and graphics; shortens delivery cycles; improves work efficiency and reduces costs.

Note: Laser cutting enables manufacturers to respond quickly to changing market demands and produce high-quality, customised parts with minimal lead time.

Batch Size and Complexity Factors

Batch size and design complexity play a decisive role in selecting the most cost-effective production method. CNC punching offers significant savings for large batches of simple, repetitive shapes. The process becomes more economical as tooling costs spread across many units. Manufacturers achieve the lowest per-part cost when producing thousands of identical components.

Laser cutting provides consistent pricing for small batches and excels with complex or variable designs. The absence of physical tooling allows for rapid changes and adaptation, making it ideal for prototypes, custom orders, or products with intricate features. As batch size increases, the cost advantage of laser cutting diminishes compared to CNC punching, especially for straightforward designs.

The following points help guide the decision:

1. Large batch, simple design: CNC punching delivers the best cost and speed.
2. Small batch, complex or variable design: Laser cutting offers flexibility and precision.
3. Medium batch, moderate complexity: Manufacturers should compare setup costs, material waste, and turnaround times to determine the optimal method.
4. Frequent design changes or customisation: Laser cutting supports rapid iteration without additional tooling expense.

Manufacturers should evaluate batch size, design complexity, material requirements, and turnaround expectations before selecting a production method. The right choice ensures cost savings, high quality, and efficient delivery for every batch order.

Hybrid and Combined Approaches for Batch Orders

Integrating Both Methods for Optimal Results

Manufacturers increasingly adopt hybrid systems that combine laser cutting and CNC punching to maximise productivity and flexibility in batch production. This approach leverages the unique strengths of each process, creating a powerful solution for modern manufacturing needs.

Key advantages of hybrid manufacturing include:

• Punching delivers rapid hole-making, shaping, and embossing for thicker materials with repetitive features.
• Laser cutting achieves high precision and handles intricate or variable designs with ease.
• The hybrid method reduces production timelines and increases flexibility, enabling tailored solutions for diverse batch orders.
• Productivity rises and material waste drops by up to 30%, lowering operational costs.
• Fewer machines are required, which simplifies setups and minimises downtime.
• Automation and CNC integration enhance efficiency, accuracy, and responsiveness to changing demands.
• Hybrid systems handle multi-material projects efficiently, from thin foils to thick sheets.
• Laser cutting minimises heat-affected zones, reducing distortion—critical for high-precision industries.
• Punching excels at repetitive geometric shapes, complementing laser cutting’s ability to manage complex cuts.
• The synergy of both methods supports innovative, sustainable manufacturing for batch production.

Tip: Hybrid systems allow manufacturers to respond quickly to market changes while maintaining high quality and cost control.

Real-world examples highlight the benefits of this approach:

Company	Machine Model	Cost Reduction	Efficiency Improvement	Key Benefits
Degelman Industries	Piranha-Whitney 4400 MAX	Up to 80%	3x faster than laser; 20-24 hrs/day operation	Eliminated secondary operations; improved hole quality; lean manufacturing; high accuracy for robotic welding
Wilco	Whitney 3400 XP	Not quantified	50% higher throughput	Rapid varied part production; 90% plate utilisation; flexible nesting
Patrick Enterprises	Combination punch/plasma	Significant time saved	Higher throughput than laser alone	Improved speed and cost efficiency in batch production

Hybrid production lines do present technical challenges. Manufacturers must address programming complexities, manage slug removal, and handle tool wear, especially with abrasive or thick materials. They also need to ensure safe part removal and adapt cutting sequences for forming steps. Advanced programming, automated tool tracking, and smart part nesting help overcome these issues. Integration of Industry 4.0 features, such as real-time data management and predictive maintenance, further enhances efficiency and adaptability. By combining both methods, manufacturers achieve a robust, connected, and future-ready batch production environment.

---

A clear comparison shows CNC punching saves more for large, simple batch production due to lower secondary processing costs and faster speeds. Laser cutting suits small batches or complex designs.

Feature	CNC Punching	Laser Cutting
Best for	Large, simple runs	Small, complex runs
Tooling Cost	Higher	None

• Manufacturers should assess batch size, material, and design needs before selecting a process.
• Early design analysis prevents costly mistakes and ensures optimal cost savings.

FAQ

What batch size makes CNC punching more cost-effective than laser cutting?

Manufacturers usually find CNC punching more cost-effective for batches above 5,000 units with simple, repetitive shapes. Tooling costs spread over large runs, reducing per-part expenses.

Can laser cutting handle thick metal sheets efficiently?

Laser cutting works best with thin to medium sheets. For metals thicker than 25mm, waterjet or plasma cutting often provides better speed and edge quality.

Does CNC punching support rapid design changes?

CNC punching requires new tooling for design changes. This process increases lead time and cost. Laser cutting allows faster adaptation without physical tool changes.
