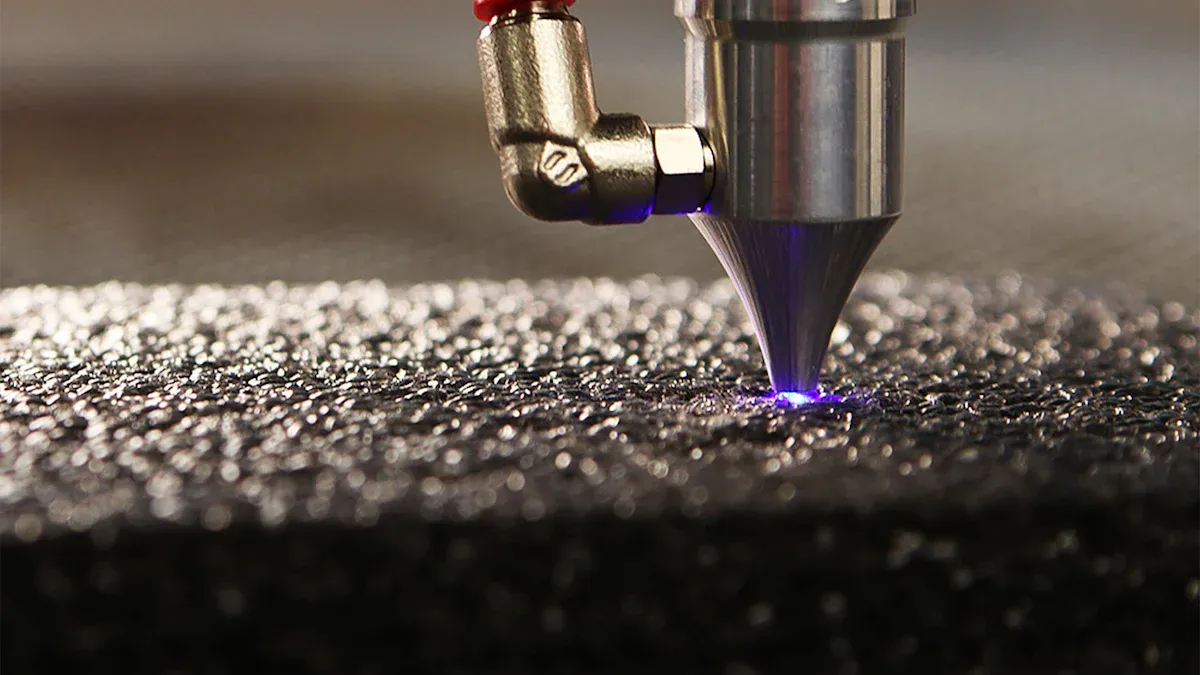

How Laser Cutting Ensures Biocompatibility in Titanium Parts

Laser cutting titanium provides high precision and clean edges. This process reduces contamination risks and keeps the metal pure. Medical device makers trust this method because it helps preserve the natural properties of titanium. Patients benefit from safer implants and better outcomes with this advanced technique.

Key Takeaways

• Laser cutting titanium provides high precision and clean edges, which are essential for creating safe medical implants.
• Using inert gases during the cutting process prevents oxidation, ensuring the titanium remains pure and biocompatible.
• The advanced techniques in laser cutting enhance the surface quality of titanium, promoting better bonding with human tissue and reducing infection risks.

Biocompatibility in Titanium Parts

Medical Requirements for Biocompatibility

Medical devices must meet strict standards to ensure safety for patients. International guidelines require that materials used in implants do not cause harm when they touch human tissues. These standards help prevent problems like inflammation or infection.

• Materials must be safe for both direct and indirect contact with human tissues.
• They should not induce adverse reactions such as inflammation or infection.

Regulatory agencies, such as the FDA and the European Union, set clear rules for testing. The table below shows some important standards:

Researchers use a series of tests to check if titanium parts are safe. These tests include hemocompatibility, cytotoxicity, sensitization, irritation, systemic toxicity, and implantation. All tests follow ISO 10993 standards.

Titanium’s Role in Implants

Titanium stands out as a top choice for medical implants. Its chemical makeup makes it safe for the body. Medical-grade titanium alloys, such as Ti-6Al-4V, are widely used because they do not react with tissues. The passive oxidation layer on titanium prevents corrosion and chemical reactions, which lowers the risk of negative responses.

Common titanium implants include:

• Artificial hip joints
• Artificial knee joints
• Bone plates
• Screws for fracture fixation
• Cardiac valve prostheses
• Pacemakers
• Artificial hearts

Titanium also works well for dental implants. These implants bond with bone, creating a strong and lasting connection.

Laser cutting titanium helps keep these parts clean and precise, which supports their biocompatibility. This process ensures that the material’s surface stays smooth and free from contamination, making it ideal for use inside the human body.

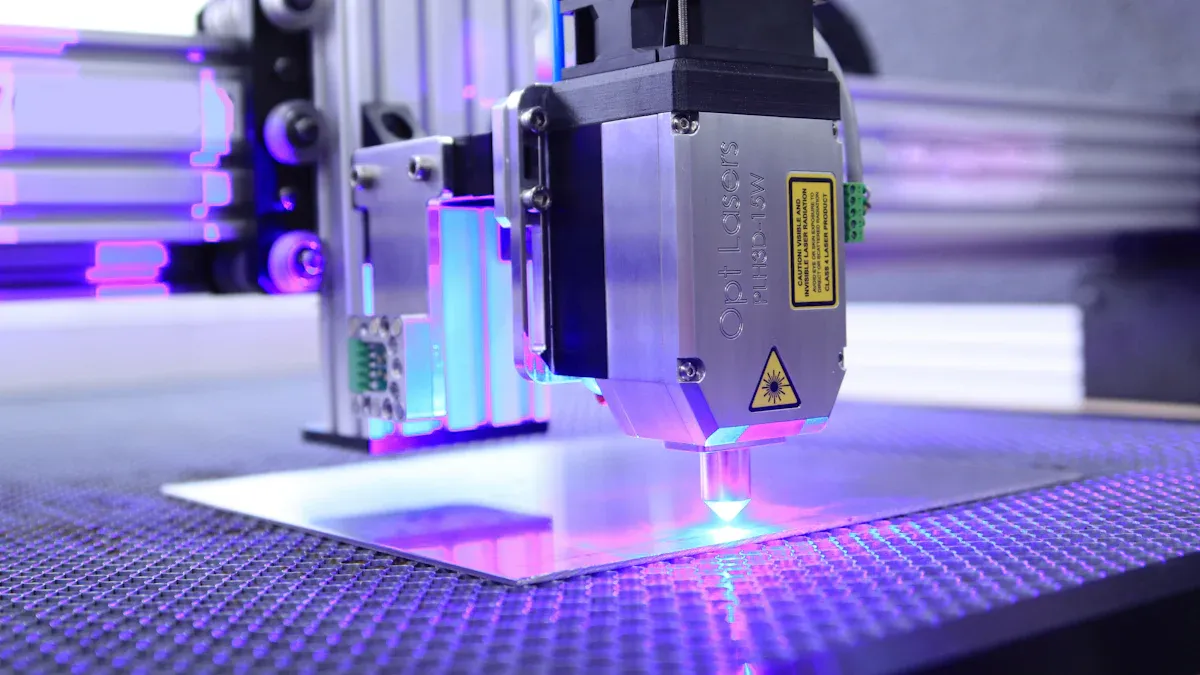

Laser Cutting Titanium for Biocompatible Results

Precision and Cleanliness in the Cutting Process

Laser cutting titanium delivers unmatched precision, which is vital for medical device manufacturing. This process allows manufacturers to achieve tolerances as tight as ±0.1mm. Such accuracy ensures that each part fits perfectly and functions as intended inside the human body.

• Laser cutting enables the creation of intricate designs and complex shapes with tight tolerances.
• The process produces cleaner edges compared to traditional methods. Localized heat input minimizes chemical reactions, which reduces surface roughness.
• The minimum cut edge roughness can reach 4.98 ± 0.40 μm, making it suitable for fine bone implants.
• Unlike milling, laser cutting avoids high tool wear, resulting in more consistent and efficient production.

Clean edges and precise cuts help prevent contamination and support the long-term safety of titanium implants.

Use of Inert Gases to Prevent Oxidation

During laser cutting titanium, oxidation poses a significant risk to biocompatibility. Manufacturers use inert gases to create a protective environment around the cutting area. This step prevents the formation of unwanted oxide layers and maintains the purity of the titanium.

• Nitrogen forms a protective atmosphere around molten metal, stopping oxidation and preventing oxide film formation.
• Argon also prevents oxidation and nitridation, especially effective for titanium and its alloys.

By using these gases, manufacturers keep the titanium surface clean and free from harmful contaminants. This approach supports the material’s ability to bond with human tissue and reduces the risk of adverse reactions.

Maintaining Surface Quality and Material Strength

Surface quality and mechanical strength play a crucial role in the biocompatibility of titanium parts. Laser cutting titanium, when optimized for laser power, cutting speed, and gas pressure, achieves lower surface roughness than conventional methods. For example, using a 3 kW laser, a cutting speed of 2400 mm/min, and 8 bars of gas pressure produces superior surface integrity.

• Studies show that laser cutting improves surface morphology and chemical composition, which enhances biocompatibility.
• Highly regular laser-induced periodic surface structures (HR-LIPSS) increase early adhesion of bone cells and promote collagen production, supporting osseointegration.
• Microgroove structures created by lasers further enhance cell adhesion and influence cell behavior by regulating hydrophilicity and roughness.

Manufacturers must balance surface modification with the need to maintain long-term wear resistance. The low surface hardness of titanium alloys can lead to wear debris, which may cause inflammation in surrounding tissues. Post-processing steps, such as cooling and thorough inspection, ensure that each part meets strict quality standards.

Laser cutting titanium continues to evolve with new technologies. Recent advancements, such as HR-LIPSS and laser-generated microgrooves, further improve the biocompatibility of medical implants by promoting better cell attachment and tissue integration.

Laser Cutting Titanium vs. Other Methods

Mechanical Cutting Comparison

Mechanical cutting uses tools like saws or mills to shape titanium. This method often leaves rough edges and may introduce contaminants from cutting fluids or worn tools. Parts sometimes need extra finishing to meet medical standards. The table below shows how mechanical cutting compares to laser cutting titanium:

Laser cutting titanium produces smoother edges and holds tighter tolerances. This reduces the need for extra processing and helps keep the material clean for medical use.

Waterjet and EDM Cutting Comparison

Waterjet and EDM (Electrical Discharge Machining) methods use water or electrical sparks to cut titanium. These methods can cause problems for biocompatibility:

• Surface contamination or oxidation may occur, which can lead to early crack formation.
• Improper cleaning or handling introduces dust, fingerprints, or fluids that affect the surface.
• Long exposure to air causes oxidation, especially in titanium.
• Microcracks or pits at the edges act as stress points, increasing the risk of fracture.

These issues can lower the quality of medical implants and make them less safe for patients.

Unique Benefits for Biocompatibility

Laser cutting titanium offers several advantages for medical parts:

• Laser treatment improves the surface, helping the body accept the implant.
• The process increases titanium’s hardness, making parts stronger.
• Enhanced corrosion resistance supports long-term use inside the body.
• Titanium’s natural properties, such as being lightweight and strong, make it ideal for surgery.
• Laser cutting supports osseointegration, which helps implants bond with bone.

Laser cutting also saves money over time. It reduces waste and works faster than other methods, making it cost-effective for large production runs. Maintenance costs stay low because the machines have fewer moving parts.

Laser cutting titanium supports safer medical devices by providing clean, precise parts. Surgeons report better bone growth and implant strength.

• Amnovis offers an FDA Master File for 3D printed titanium implants, speeding up regulatory approval.
• The Medical Device Master File helps protect data and ensures compliance with authorities.

FAQ

What makes laser cutting titanium suitable for medical implants?

Laser cutting creates smooth, precise edges. The process keeps titanium clean and strong. Medical implants need these qualities for safe use inside the body.

Tip: Clean edges help reduce infection risk.

Does laser cutting titanium affect its strength?

Laser cutting preserves titanium’s natural strength. The process avoids cracks and weak spots. Medical parts stay durable and reliable after cutting.

How do manufacturers prevent contamination during laser cutting?

Manufacturers use inert gases like argon or nitrogen. These gases protect titanium from oxidation. The result is a pure, safe surface for medical use.
