Exploring Pulsed Laser Solutions for Cutting Copper and Aluminum in 2025
Pulsed laser solutions have transformed Laser Cutting Copper and aluminum. Since 2020, advancements like high-power fiber lasers, improved energy efficiency, and real-time adaptive control have increased precision and reduced waste.
| Advancement Type | Description |
|---|---|
| Power Levels | Fiber lasers now exceed 100 kW, boosting cutting power. |
| Low Thermal Damage | Pulsed lasers minimize heat-affected zones for fine work. |
Key Takeaways
- Pulsed lasers provide high precision cutting for copper and aluminum, achieving tolerances of ±0.001 inches. This accuracy is crucial for industries like aerospace and electronics.
- Using the right assist gases, such as oxygen and nitrogen, enhances cutting speed and quality. These gases help prevent oxidation and improve overall efficiency.
- Regular maintenance and understanding of laser technology are essential for optimal results. Operators should prioritize safety and equipment care to ensure effective cutting.
Laser Cutting Copper and Aluminum: Pulsed Laser Principles and Advantages
How Pulsed Lasers Enable Precise Cutting
Pulsed lasers have become the preferred choice for Laser Cutting Copper and aluminum in modern manufacturing. These lasers deliver energy in short, intense bursts, which allows for high precision and minimal heat transfer to the surrounding material. This approach is especially important because copper and aluminum both have high thermal conductivity and reflectivity, making them difficult to process with traditional methods.
Tip: Fiber lasers offer excellent beam quality and high peak power, which are essential for cutting copper efficiently.
Key principles behind pulsed laser operation include:
- Fiber lasers provide superior beam quality and peak power, making them ideal for challenging metals.
- Oxygen-assisted cutting increases speed and efficiency, while nitrogen ensures a clean, oxide-free finish.
- The focused laser beam enables fine control over the cutting process, resulting in sharp, burr-free edges.
The advantages of pulsed lasers over traditional cutting methods become clear when comparing performance metrics:
| Feature | Pulsed Lasers | Traditional Methods |
|---|---|---|
| Precision | High precision with tolerances of ±0.001 inches | Generally lower precision |
| Heat Affected Zone | Minimal heat-affected zones | Larger heat-affected zones |
| Edge Quality | Sharp, burrless edges | May produce rough edges |
| Control over Cutting Process | Fine control with focused laser beam | Less control, more mechanical tools |
Fiber lasers achieve high accuracy in cutting copper, often reaching tolerances of ±0.001 inches. The process produces smooth finishes and minimal burring, which preserves the material’s structural integrity. These qualities make pulsed lasers suitable for industries that demand exacting standards, such as aerospace, automotive manufacturing, and electronics.
Pulsed lasers also minimize the heat-affected zone, reducing the risk of thermal damage to sensitive components. The short, powerful bursts of energy allow for clean and efficient processing, even with materials that traditionally present challenges.
Note: Operators must understand laser technology, safety protocols, and machine maintenance to achieve optimal results with pulsed laser systems.
Importance of Pulse Duration and Shape for Copper and Aluminum
Pulse duration and shape play a critical role in the quality and efficiency of Laser Cutting Copper and aluminum. The duration of each pulse determines how much energy is delivered to the material in a given time. Ultrafast pulses, such as those in the picosecond or femtosecond range, prevent thermal diffusion and help maintain the integrity of the workpiece. This level of precision is vital for applications in medical device manufacturing and microelectronics, where even minor thermal impact can affect performance.
Different pulse durations serve different industrial needs:
- Femtosecond lasers excel at intricate cutting and detailing, often requiring little to no post-processing.
- Nanosecond pulses are better suited for large-scale industrial cutting or welding, where a slightly larger heat-affected zone is acceptable.
Research shows that pulse shape also influences the mechanical, electrical, and thermal properties of welded joints in aluminum and copper. Specific pulse shaping methods, such as ramp-down shaping, can enhance weld stability and joint performance. The correlation between mechanical strength and electrical resistance highlights the importance of optimizing pulse shape for the best results.
Performance metrics for pulsed laser cutting include power range, thickness capability, cutting speed, and precision:
| Metric | Description |
|---|---|
| Power Range | 1kW to 6kW+ for industrial applications |
| Thickness Capability | Up to 30mm aluminum sheets |
| Cutting Speed | Up to 140 IPM (inches per minute) |
| Precision | Tolerances of ±0.01 mm |

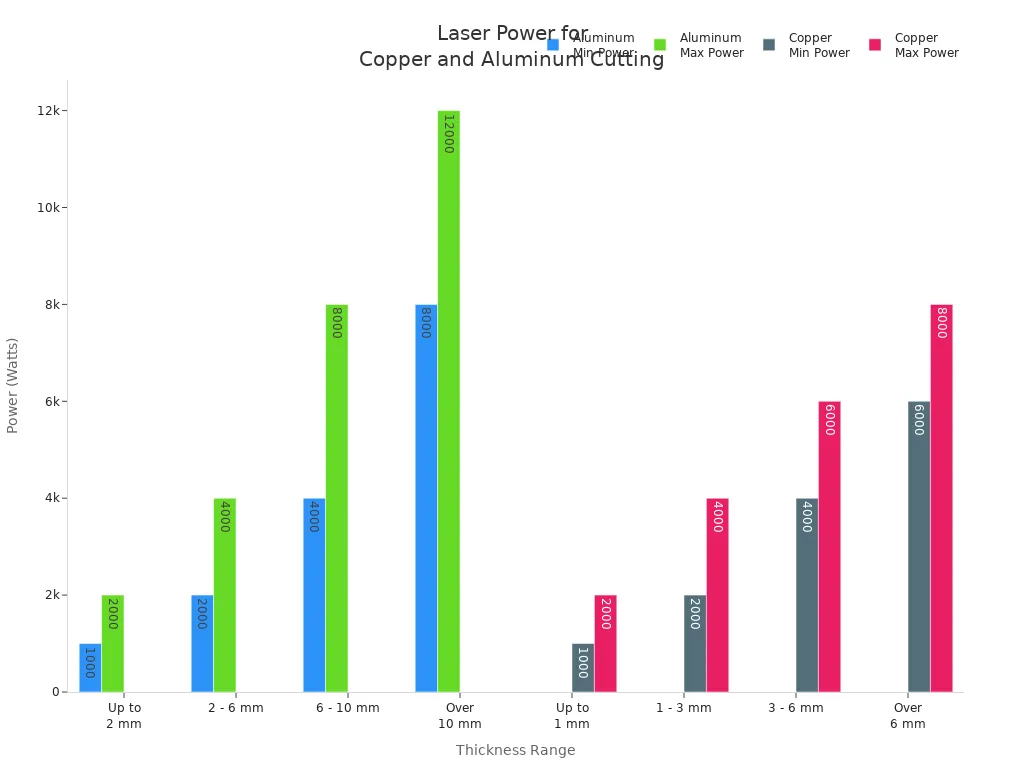

The choice of power and energy settings depends on the material and thickness. For example:
| Material Type | Thickness Range | Power Range (Watts) |
|---|---|---|
| Aluminum | Up to 2 mm | 1,000 - 2,000 |
| Aluminum | 2 - 6 mm | 2,000 - 4,000 |
| Aluminum | 6 - 10 mm | 4,000 - 8,000 |
| Aluminum | Over 10 mm | 8,000 - 12,000 |
| Copper | Up to 1 mm | 1,000 - 2,000 |
| Copper | 1 - 3 mm | 2,000 - 4,000 |
| Copper | 3 - 6 mm | 4,000 - 6,000 |
| Copper | Over 6 mm | 6,000 - 8,000 |
Manufacturers rely on these advanced pulsed laser systems for a wide range of applications, including aerospace, automotive, electronic equipment, signage, and construction. As technology continues to evolve, Laser Cutting Copper and aluminum will become even more precise and efficient, supporting the growing demands of modern industry.
Overcoming Challenges in Laser Cutting Copper and Aluminum
Managing High Reflectivity and Thermal Conductivity
Copper and aluminum present unique obstacles during laser cutting. Their reflective surfaces cause laser energy to bounce back, which decreases cutting efficiency. This reflection can damage the optical components of the laser system. Achieving clean cuts becomes complicated because these metals conduct heat quickly and require precise laser parameters.
- The reflective nature of copper means much of the laser beam is reflected away, reducing effectiveness.
- High reflectivity increases the risk of equipment damage, especially with conventional lasers.
- High thermal conductivity leads to rapid heat dissipation, making it difficult to maintain the necessary temperature for efficient cutting.
Engineers use several strategies to address these issues:
| Strategy | Description |
|---|---|
| Select the Right Laser Source and Wavelength | High-power fiber lasers and green lasers reduce reflectivity and improve stability during cutting. |
| Optimize Processing Parameters | Adjust cutting speeds and assist gas pressure to enhance energy delivery and minimize defects. |
| Recommendations for Long-Term Success | Regular maintenance and effective cooling systems help manage thermal stress and improve process stability. |
Specialized high-power fiber lasers improve cutting efficiency for highly reflective metals. Surface treatments can enhance the absorption of the laser beam, allowing deeper and cleaner cuts. Advanced cooling techniques help control thermal effects and maintain cut quality.
Safety remains a priority. Toxic fumes and reflected beams can pose health risks. Operators should use high-efficiency air filtration, anti-reflective coatings, and protective goggles to reduce hazards.
Pulsed Lasers vs. Continuous Wave Lasers for Difficult Metals
Manufacturers compare pulsed lasers and continuous wave lasers to determine the best approach for Laser Cutting Copper and aluminum. Pulsed lasers deliver high peak power in short bursts, which minimizes thermal impact and enables precision cutting. Continuous wave lasers provide a stable output and higher average power, making them suitable for larger scale operations.
| Laser Type | Cutting Speed | Quality of Cut |
|---|---|---|
| Pulsed Lasers | High peak power enables precision | Minimal thermal impact, ideal for fine detail |
| Continuous Wave | Higher average power | Stable output, suitable for larger areas |
- Pulsed lasers excel at precision cutting due to their short bursts and minimal thermal impact.
- Continuous wave lasers work well for bulk processing and larger areas.
Comparative studies show that millisecond pulsed lasers can achieve similar hardness as continuous wave lasers but with lower power consumption. Different laser emission modes affect melting and cooling, which impacts the final product's properties. In keyhole welding, researchers analyze the bond area and mechanical strength of welds made with both laser types.
Quality control measures play a vital role in both methods. Operators monitor power, frequency, duty cycle, feed rate, assist gas, and alignment to ensure optimal results.
| Quality Control Measure | Description |
|---|---|
| Power | The amount of energy delivered by the laser, crucial for cutting different material thicknesses. |
| Frequency | The rate at which the laser beam pulses, affecting the cutting speed and quality. |
| Duty Cycle | Controls the duration the laser is on during each pulse, impacting cooling and cut quality. |
| Feed Rate | The speed at which the material is fed into the laser, which must be optimized for quality cuts. |
| Assist Gas | A secondary gas stream that aids in cutting, with different gases used for various materials to prevent oxidation and improve cut quality. |
| Alignment and Focus | Ensures the laser beam is precisely aligned with the nozzle for optimal cutting accuracy. |
Optimizing Parameters: Assist Gases, Coatings, and Post-Processing
Engineers optimize several parameters to improve the results of Laser Cutting Copper and aluminum. Assist gases play a central role in laser fusion cutting. The aerodynamic interactions between the assist gas and the workpiece can affect cutting quality and performance. Shock waves and boundary layer separation may hinder results. New nozzle designs with improved efficiency of molten material removal enhance cut quality and speed.
Selecting the appropriate assist gas is critical for optimal laser cutting results. The right gas can significantly impact cutting quality, speed, and overall efficiency. Common assist gases include air, oxygen, and nitrogen, each with specific advantages for different materials.
Surface coatings and post-processing techniques also improve outcomes. The formation of hierarchical micro- and nanostructures on copper surfaces reduces reflectivity and enhances laser cutting efficiency. These structures improve corrosion resistance and wettability, which are essential for effective cutting. Ultrafast lasers create functional surfaces that enhance wettability and corrosion resistance in aluminum alloys. Some laser-treated aluminum samples show a significant reduction in corrosion rates compared to untreated samples. Thermal treatments after laser structuring can further enhance superhydrophobic properties and corrosion resistance.
| Findings | Description |
|---|---|
| Reflectivity Reduction | The formation of hierarchical micro- and nanostructures on copper surfaces significantly reduces reflectivity, enhancing laser cutting efficiency. |
| Surface Properties | The micro- and nanostructures improve properties like corrosion resistance and wettability, which are essential for effective laser cutting. |
| Comparison with Other Metals | The study notes that aluminum and titanium do not exhibit the same level of blackening and light trapping due to their surface oxide properties. |
Manufacturers continue to refine these parameters to achieve better results. Laser Cutting Copper and aluminum becomes more efficient and reliable as technology advances.
Pulsed laser solutions deliver unmatched precision and efficiency for copper and aluminum cutting. Manufacturers report tenfold improvements in accuracy and reduced costs. Recent innovations, such as high-power green and fiber lasers, expand industrial applications. Experts predict strong market growth, driven by automation and the demand for advanced, reliable cutting technologies.
| Research Direction | Key Finding |
|---|---|
| Laser Parameters | Pulse duration and wavelength boost performance. |
| Productivity Enhancement | Femtosecond lasers increase cutting speed. |
FAQ
What makes pulsed lasers better for cutting copper and aluminum?
Pulsed lasers deliver energy in short bursts. This method reduces heat damage and improves cutting accuracy for copper and aluminum.
Which industries use pulsed laser cutting for these metals?
- Aerospace
- Automotive
- Electronics
- Construction
These industries rely on pulsed lasers for precise, efficient metal processing.
How do assist gases improve laser cutting results?
| Assist Gas | Benefit |
|---|---|
| Oxygen | Increases cutting speed |
| Nitrogen | Prevents oxidation |
| Air | Cost-effective option |
Engineers select gases based on material and desired finish.
