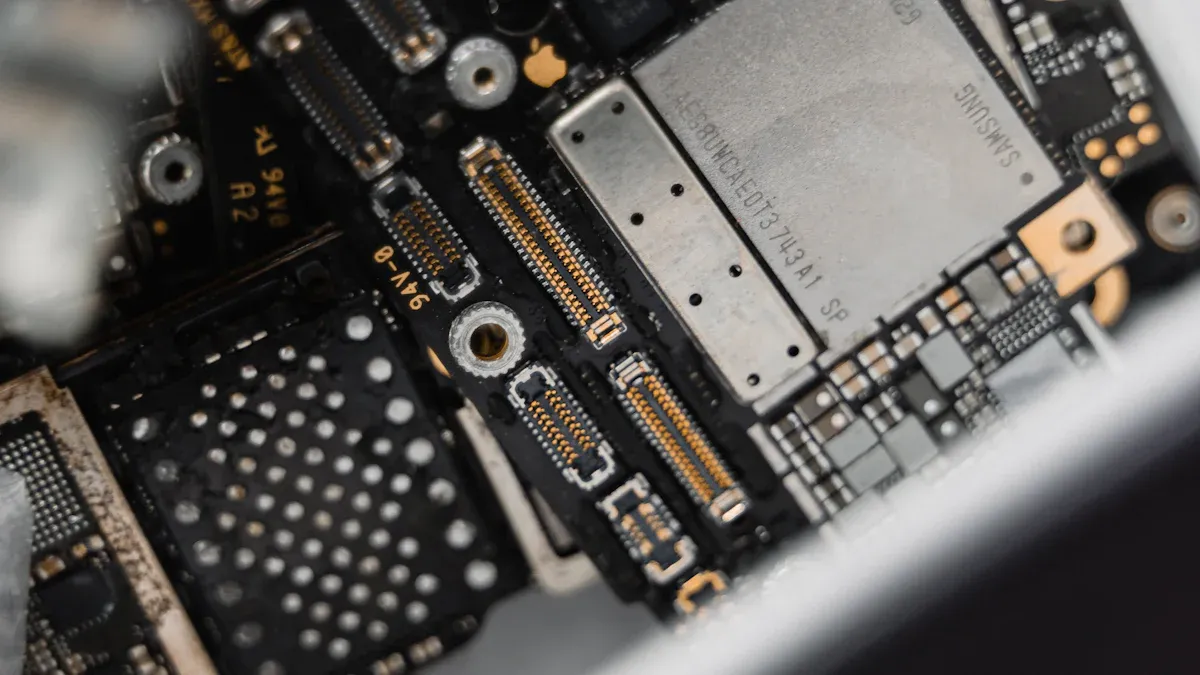

EMI Shielding Sheet Metal: Your Guide to Interference-Free Electronics
EMI shielding is crucial. It prevents electronic device malfunction, data corruption, and regulatory non-compliance. Companies face substantial financial losses without proper shielding.
"We spent nearly a million euros last year trying to fix what simulation could have prevented." – Design Director, Consumer Electronics
This demonstrates the high cost of unaddressed EMI. Preventing issues can save significant funds, as companies can save an estimated 187,500 euros annually by eliminating just 1.5 redesign test cycles. EMI shielding sheet metal offers an effective, durable, and versatile solution for electronics housings. Understanding EMI and its impact is essential. Sheet metal provides a primary solution for protection.
Key Takeaways
- EMI shielding protects electronics from interference. It stops devices from breaking and keeps data safe. This saves companies money by preventing costly repairs.
- Sheet metal blocks EMI well. It reflects and absorbs electromagnetic waves. Common metals like copper, aluminum, and stainless steel work for this.
- Good design is important for EMI shielding. Gaps and openings can let interference in. Use special gaskets and proper grounding to keep the shield strong.
- Coatings and platings make EMI shielding better. They improve how well the metal blocks interference. They also help the metal resist rust.
- EMI shielding is used everywhere. It protects consumer gadgets, medical tools, and aerospace systems. This ensures devices work correctly and safely.
Understanding EMI: The Invisible Threat to Your Devices
What is Electromagnetic Interference (EMI)?
Electromagnetic interference (EMI) occurs when electromagnetic fields from one device disrupt another device's function. This phenomenon can transfer electromagnetic energy in two main ways. Conducted EMI moves through physical connections like wires or cables. Radiated EMI transmits electromagnetic waves through the air.
Interference requires three elements. First, a noise source, or emitter, creates the disturbance. Second, a pathway, or method of coupling, allows energy transfer. Third, a receptor is susceptible to this interference. The disruption depends on the receptor's susceptibility and immunity.
EMI can couple in several ways:
- Capacitive Coupling: This transfers alternating electrical signals between circuit segments using a capacitor. It allows AC signals to pass while blocking DC energy.
- Inductive Coupling: This happens when EMI from a source couples to a target through a magnetic field. It induces currents due to varying magnetic fields.
- Radiated Coupling: EMI travels through air or vacuum to reach a receiver when the source and receiver are physically separated. This often involves higher-frequency signals, such as those in the microwave range. People also call it radio frequency interference (RFI).
Many sources generate EMI in modern environments. Electronic equipment operating in radio and microwave frequency bands, like cell phones, creates electromagnetic waves. These waves can disrupt electronic networks. Human activities and devices, known as anthropogenic sources, have greatly increased over the past century. These sources have significantly changed the electromagnetic environment. Natural sources like lightning and solar radiation also exist, but human-made sources are the primary drivers of increased environmental pollution today.
Why You Can't Ignore EMI: The Importance of Shielding
Ignoring EMI can have serious consequences for electronic systems. Unshielded Cat6 cables, for example, perform poorly in EMI-rich environments. This can lead to data corruption and slower speeds. In networking, EMI causes reduced data transfer speeds, higher error rates, and even complete signal loss. External sources like motors and radio transmitters generate EMI. This significantly impacts data integrity, especially in industrial settings. Shielded cables maintain signal integrity over longer distances in noisy conditions, which is crucial for data centers and industrial sites.
Regulatory bodies worldwide enforce strict standards for EMI. These standards ensure devices operate reliably and safely.
| Region/Country | Industry/Application | Regulatory Body/Standard |
|---|---|---|
| United States | Commercial/Consumer | FCC Part 15 (Class A for commercial/industrial, Class B for residential) |
| United States | Military | MIL-STD-461 (includes immunity and emissions) |
| European Union | All (general) | EU Directive 2014/30/EU, IEC 61000 (immunity), CISPR 32 (emissions) |
| United States | Medical Devices | U.S. Food and Drug Administration (FDA) |
Compliance with these regulations is not optional. It protects consumers and ensures product marketability.
EMI Shielding Sheet Metal: The Foundation of Effective Protection
How Sheet Metal Blocks EMI: Principles of Shielding
Sheet metal effectively blocks electromagnetic interference through two primary mechanisms: reflection and absorption. When electromagnetic waves encounter a conductive material like sheet metal, a significant portion of their energy reflects off the surface. This reflection occurs due to the impedance mismatch between the air and the highly conductive metal. The remaining energy penetrates the material. The metal then absorbs this energy, converting it into heat. The material's thickness and electrical conductivity determine the absorption effectiveness.
Materials like rubber matrices do not inherently provide shielding because they are electrical insulators. However, incorporating suitable conductive fillers, such as carbon-based materials or metals, imparts EMI shielding performance. These fillers enhance electrical conductivity throughout the composite materials. The impedance mismatch between the conductive shielding material and the ambient environment causes a significant portion of electromagnetic radiation to reflect. This reflection contributes significantly to the EMI shielding effect.
EMI/RFI elastomers combine the benefits of rubber with the electrical characteristics of metals. When manufacturers fill these elastomers with tiny metal or metal-coated particles, they achieve EMI shielding and electrical conductivity alongside environmental sealing capabilities.
| Filler Type | Electrical Conductivity | Typical Volume Resistivity (ohms/cm) |
|---|---|---|
| Silver | Extremely Conductive | 0.0009 |
| Silver-Aluminum | Super Conductive | 0.003 |
| Silver-Copper | Super Conductive | 0.003 |
| Silver-Glass | Very Conductive | 0.006 |
| Nickel-Graphite | Conductive | 0.01 |
| Carbon Black | Semi-Conductive | 8.0 |
Common Sheet Metal Materials for EMI Shielding
Selecting the right sheet metal material is crucial for effective EMI shielding. Engineers consider factors like conductivity, corrosion resistance, formability, and cost.
- High-performance materials like beryllium copper are not always necessary. Less expensive alternatives such as phosphor bronze, stainless steel, or cold-rolled steel can be acceptable choices.
- Cost is influenced by material specifications (alloy, gauge, finish), volume of orders, and the use of standard versus custom products.
- A generalized breakdown of costs for producing RF shielding materials is approximately one-third material, one-third labor, and one-third overhead.
Commonly used metals for EMI shielding, such as copper, aluminum, and stainless steel, provide adequate shielding. However, these materials also have drawbacks. They include susceptibility to corrosion, bulkiness, and difficulties in forming them into required shapes for modern electronic devices.
Enhanced Performance: Coatings and Platings for EMI Shielding Sheet Metal
Coatings and platings significantly enhance the performance of EMI shielding sheet metal. They improve conductivity, corrosion resistance, and overall shielding effectiveness.
| Plating Type | Key Enhancement for EMI Shielding |
|---|---|
| Nickel | Improves corrosion resistance, acts as an oxidation barrier, and enhances shielding effectiveness due to high magnetic permeability. |
| Tin | Offers good corrosion resistance and solderability, preventing oxidation and enhancing shielding effectiveness. |
| Silver | Boosts electrical conductivity and shielding performance, provides excellent solderability and corrosion resistance. |
| Plating Type | Conductivity | Typical Thickness (EMI Applications) |
|---|---|---|
| Nickel | 0.5-5 mΩ/square | 2.5-125 µm |
| Silver | <0.5 mΩ/square | 2-12 µm |
Specific coatings also offer durability and environmental resistance benefits:
- Nickel or Tin Coatings: These provide an additional layer of protection against corrosion. Corrosion is a common issue in outdoor environments due to exposure to moisture and chemicals.
- Conductive Coatings (Copper, Silver, or Nickel): These are highly effective at blocking electromagnetic interference. Manufacturers can apply them to various surfaces, including plastic, metal, and glass, creating a seamless and continuous shield.
- Conductive Polymers: These offer flexibility and can be molded to specific requirements. They show promising resistance to corrosion and maintain shielding effectiveness in challenging outdoor conditions.
- Advanced Alloys: Developed through metallurgical techniques, these alloys offer superior EMI shielding properties for outdoor environments. They combine high conductivity with resistance to corrosion and oxidation.

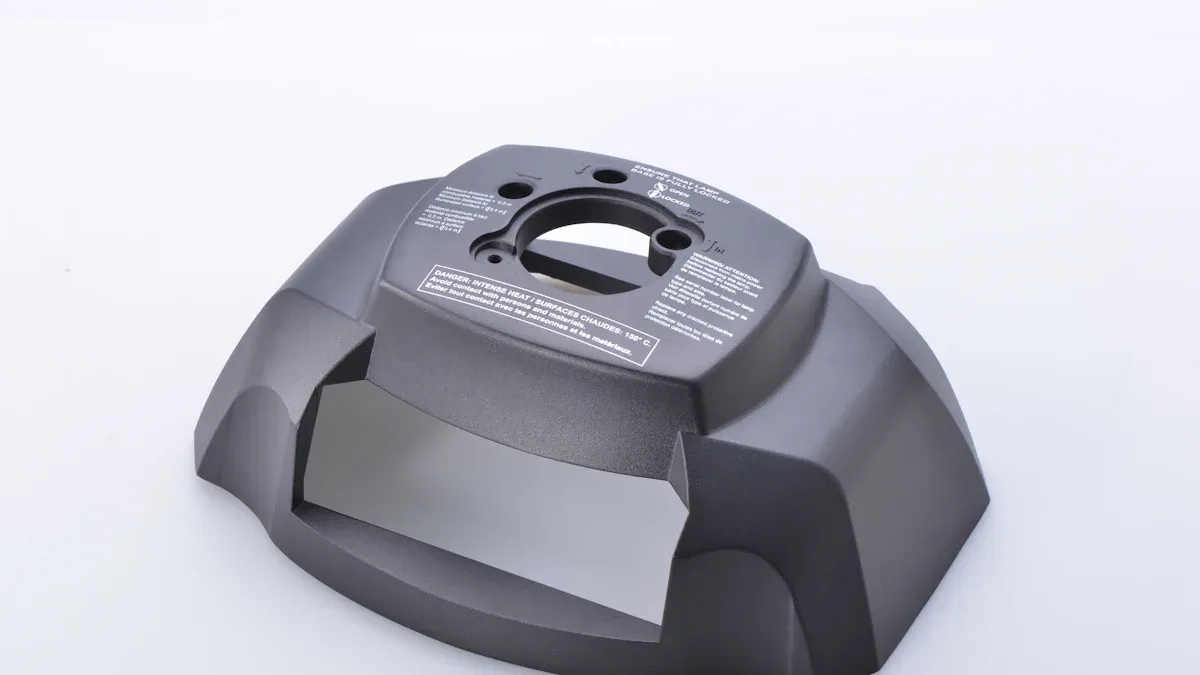

Designing for Success: Key Considerations for EMI Shielding Sheet Metal Housings
Effective EMI shielding requires more than just selecting the right material. Thoughtful design of the enclosure plays a critical role. Engineers must consider how seams, openings, and electrical connections impact the overall shielding effectiveness.
Seams and Gaps: Weak Points in Your Shield
Even the most robust EMI shielding sheet metal housing can fail if designers overlook seams and gaps. These discontinuities create apertures, allowing electromagnetic interference to leak into or out of the enclosure. A continuous conductive path is essential for effective shielding. Gaps act like slot antennas, becoming efficient radiators or receivers of EMI, especially when their length approaches a quarter wavelength of the interfering frequency.
To maintain shielding integrity across seams, engineers often use EMI gaskets. These conductive materials fill the gaps, ensuring electrical continuity between mating surfaces. Different gasket materials offer varying performance levels depending on the frequency range.
| Material Type | Frequency Range | Shielding Effectiveness |
|---|---|---|
| Silver-plated materials | 1 to 10 GHz (high) | Superior |
| Nickel-graphite or carbon-filled elastomers | Less than 500 MHz (lower) | Better |
Designers select gasket materials based on the specific EMI threats and environmental conditions. For instance, silver-plated materials provide superior shielding at higher frequencies, making them suitable for demanding applications. Conversely, nickel-graphite or carbon-filled elastomers offer good performance at lower frequencies. Proper compression of the gasket is also vital to ensure consistent electrical contact and prevent degradation over time.
Ventilation and Openings: Balancing Airflow with Shielding Integrity
Electronic devices often generate heat, requiring ventilation for proper operation. However, openings for airflow can compromise EMI shielding. These apertures can act as antennas, allowing EMI to enter or exit the enclosure. Designers must balance the need for cooling with the imperative of maintaining shielding integrity.
Several effective methods exist for maintaining EMI shielding around ventilation openings:
- Honeycomb panels offer high shielding effectiveness while allowing good airflow.
- The appropriate cell size and depth of honeycomb panels should be selected based on the required cutoff frequency and airflow needs.
- Conductive gaskets should be implemented around the perimeters of vents to ensure proper electrical contact.
- Multi-layer honeycomb designs can be considered for enhanced shielding, particularly at higher frequencies.
- Perforated metal sheets can serve as an alternative to honeycomb for applications with less stringent shielding requirements.
Designers minimize the size and number of openings, such as those for ventilation, as they can act as antennas if not properly managed. When airflow is necessary, they use honeycomb vents or conductive mesh. They integrate EMI-rated ventilation panels to maintain performance without compromising functionality. Precision in cutting shielded vents and I/O panels is crucial. Clean, burr-free cuts prevent the creation of microscopic radiating elements that could compromise shielding effectiveness.
When designing EMI-shielded air filters and honeycomb vents, engineers consider several factors:
- Cell Size: This refers to the width of individual hexagonal cells. Smaller cell sizes generally lead to lower airflow (higher pressure drop) but greater shielding effectiveness. Less electromagnetic energy can pass through. The design goal is to balance sufficient airflow for cooling with adequate shielding for undesired frequencies.
- Cell Thickness: This is the overall measurement of the honeycomb material. For a constant cell size, reduced thickness increases airflow but decreases shielding attenuation. The design requires finding a balance between good airflow (less pressure drop) and effective shielding.
- Honeycomb Construction: Aluminum honeycomb uses non-conductive adhesive at nodes, which can cause EMI leakage and directional shielding. Brass and steel vents have welded, conductive nodes. To reduce directionality, OMNI-CELL construction stacks a second layer of honeycomb at a 90-degree angle. This provides more equal attenuation in both directions, though it slightly reduces airflow.
- Platings and Coatings: Plating aluminum honeycomb (e.g., with electroless nickel or chromate conversion coating) bridges non-conductive nodes. This eliminates directional effects and improves shielding. Platings also enhance corrosion resistance and durability. Aesthetic paints, including CARC paints, can be applied to match enclosure designs.
Other considerations for EMI-shielded vents include:
- Cell Size and Depth: These parameters directly influence the cutoff frequency for EMI and the airflow capacity of the vent.
- Material Selection: Options include aluminum for lightweight needs, steel for robust applications, and copper alloys for superior conductivity.
- Surface Treatments: Platings such as nickel, tin, or chromate are applied to improve conductivity and resistance to corrosion.
- Framing and Gaskets: Frames are essential for structural integrity, while conductive gaskets or mesh seals prevent EMI leakage at mounting points.
- Environmental Resistance: Special coatings or treatments can be added to protect against humidity, dust, and salt spray in harsh operational environments.
Grounding and Bonding: Essential for EMI Control
Proper grounding and bonding are fundamental to effective EMI control within any electronic system. Grounding provides a low-impedance path for unwanted electrical currents, directing them away from sensitive circuitry. Bonding ensures that all conductive parts of an enclosure, including the EMI shielding sheet metal, maintain the same electrical potential. This prevents potential differences that could drive EMI currents.
Poor grounding can lead to several problems, including ground loops, which create unintended current paths and increase noise. It can also result in floating grounds, where parts of the system lack a stable reference potential, making them susceptible to EMI. Effective bonding involves creating direct, low-impedance electrical connections between different metallic components. This often uses braided straps, solid conductors, or direct metal-to-metal contact. Designers must ensure that all mating surfaces are clean and free of non-conductive coatings to achieve optimal bonding. Proper grounding and bonding techniques are crucial for maintaining the integrity of the shield and preventing EMI from disrupting device operation.
Material Thickness and Form Factor: Optimizing Performance and Cost
Engineers must carefully consider material thickness and form factor when designing EMI shielding sheet metal enclosures. These factors directly influence both the shielding effectiveness and the overall cost and manufacturability of the product. Achieving optimal performance often involves balancing these competing demands.
The thickness of the metal significantly impacts its EMI shielding effectiveness. For a given frequency, a thick-walled shield made of a high-permeability material, such as high-permeability steel, demonstrates superior absorption loss performance compared to a thin-walled, highly conductive shield made of materials like copper or brass. The EMI shielding effectiveness (SE) can be theoretically expressed by the formula: SE = 50 + 10log10(1/(ρ·f)) + 1.7t√(f/ρ). Here, ρ represents volume resistivity (the reciprocal of electrical conductivity), f is frequency (in MHz), and t is the thickness of the shielding material (in cm). This equation clearly indicates that higher conductivity or greater thickness of the shielding material leads to increased shielding effectiveness.
As the coating thickness increases, the EMI shielding effectiveness generally increases. This occurs due to enhanced electrical conductivity and absorption loss. This also associates with a decrease in porosity and an improvement in the material's morphology, leading to a denser and more compact coating. However, at higher frequencies (e.g., from 0.1 to 1 GHz), the shielding effectiveness of some coatings, like 100 µm Cu and Cu-Ni, can gradually decrease. This happens due to changes in reflection and absorption losses, and potential leakage through defects and pores.
Consider the impact of coating thickness on shielding effectiveness:
| Coating Type | Thickness (µm) | EMI Shielding Effectiveness (dB) at 1 GHz |
|---|---|---|
| Cu-Zn | 200 | 89 |
| Cu-Zn | 500 | 95 |
| Cu, Cu-Zn, Cu-Ni | >100 | ≥80 |
| Cu, Cu-Ni | 100 | Decreased from 0.1 to 1 GHz |
While thicker metals generally offer superior protection, they can be more costly and challenging to manufacture. The appropriate metal thickness depends on the required frequency range. Thinner metals may suffice for lower frequencies, while thicker metals become necessary for higher frequencies.
The form factor of the enclosure also plays a crucial role. Low-profile shields, characterized by their reduced height or thickness, are designed for space-constrained electronic devices. These shields aim to provide effective EMI shielding while minimizing their impact on the device's size, weight, and overall functionality. Designers must carefully consider the physical dimensions and shape of the enclosure to optimize both shielding and integration into the final product.
Ultimately, the actual performance of a finished product's EMI shielding can differ significantly from theoretical material effectiveness. The quality and precision of the fabrication process determine this discrepancy. Even with the best materials, an enclosure with holes, gaps, bends, or inaccurate cutouts will have highly impaired shielding performance. Therefore, precision fabrication is crucial for maintaining the integrity of the Faraday cage. This ensures perfectly mating seams and eliminates flaws that degrade shielding effectiveness, making the EMI shielding sheet metal enclosure truly effective.
Real-World Applications: Where EMI Shielding Sheet Metal Shines
Consumer Electronics: Protecting Everyday Devices
EMI shielding is vital for consumer electronics. Manufacturers use metallic sheets, often made from alloys, for electromagnetic (EM) shielding. They easily cut and form these sheets into specific shapes for various applications. Precision Sheet Metal forms PCB shield cases, shield covers, shim plates, and shield fingers. Beryllium-copper alloy is a common material for these parts. It provides electromagnetic wave shielding and grounding in devices like smartphones and smart home gadgets. Custom-made sheets also protect IoT terminals.
Consumer electronics must meet strict regulatory standards. These devices are governed by broad EMC directives. In the US, FCC Part 15 applies. Europe uses the EMC Directive 2014/30/EU. These regulations set limits for both intentional and unintentional electromagnetic radiators. Proper shielding techniques, such as conductive enclosures, help devices meet these requirements. This prevents interference with other equipment.
Industrial and Medical Equipment: Ensuring Reliability and Safety
EMI shielding sheet metal ensures the reliability of critical industrial control systems. It minimizes electromagnetic interference noise. Effective shielding and grounding techniques are crucial in complex electrical systems. These systems often have sensitive components operating under harsh conditions. Tin-plated steel protects equipment from low-frequency magnetic waves and enhances corrosion resistance. This contributes to the longevity of these systems. Conductive fillers and particles provide different levels of EMI reduction. This ensures reliable grounding and a higher signal-to-noise ratio (SNR) for accurate sensor applications.
Medical diagnostic equipment also relies on robust EMI shielding. Inadequate shielding can lead to patient safety risks. Signal disruptions can compromise patient monitoring and treatment accuracy. For example, pacemakers might deliver incorrect pulses. EMI can also introduce artifacts in diagnostic tools like ECGs and MRI scanners. This leads to incorrect diagnoses. Regulatory bodies like the FDA and Health Canada enforce standards such as IEC 60601-1-2. This standard sets immunity and emission thresholds for medical devices.
Aerospace and Defense: Critical Protection in Harsh Environments
Aerospace applications demand high levels of EMI shielding. Avionics systems require shielding for enclosures, connectors, and harnesses. Shielding effectiveness often starts at 60dB and can exceed 100dB. Compliance with standards like RTCA DO-160 and MIL-STD-461 is critical. Avionics systems contain many on-board frequency-generating systems. These include digital circuits and switching power supplies. Robust shielding is necessary to manage these sources. Achieving high shielding levels involves proper enclosure materials and effective gasketing.
EMI shielding sheet metal also protects sensitive defense electronics from electromagnetic pulse (EMP) threats. It redirects or absorbs excess energy from an EMP. Materials with high conductivity and magnetic permeability are essential. Copper and aluminum redirect electromagnetic energy. Steel and mu-metal block magnetic fields. Ferrite absorbs and dissipates interference. This comprehensive protection prevents high currents and voltages from damaging delicate circuits.
EMI shielding sheet metal plays a critical role in protecting electronics. It ensures device functionality and regulatory compliance. Thoughtful design, careful material selection, and proper implementation are essential for effective shielding. As our world becomes more interconnected and technologically advanced, the need for robust EMI solutions continues to grow.
FAQ
What is EMI shielding?
EMI shielding prevents electromagnetic interference from disrupting electronic devices. It protects against malfunctions, data corruption, and regulatory non-compliance. Shielding ensures reliable operation by blocking or absorbing unwanted electromagnetic energy.
Why is sheet metal effective for EMI shielding?
Sheet metal effectively blocks EMI through reflection and absorption. Its high conductivity reflects electromagnetic waves. The material then absorbs remaining energy, converting it into heat. This dual mechanism provides robust protection for electronics.
What common materials are used for EMI shielding sheet metal?
Common materials include copper, aluminum, and stainless steel. Beryllium copper offers high performance. Less expensive options like phosphor bronze or cold-rolled steel are also used. Material selection depends on conductivity, corrosion resistance, and cost.
How do seams and gaps affect EMI shielding effectiveness?
Seams and gaps create weak points in a shield. They act like slot antennas, allowing EMI to leak in or out. Designers use conductive gaskets to fill these gaps. This ensures electrical continuity and maintains shielding integrity.
Can EMI shielding sheet metal be used in harsh environments?
Yes, EMI shielding sheet metal is suitable for harsh environments. Coatings and platings, such as nickel or tin, enhance corrosion resistance. Advanced alloys also offer superior protection against humidity, dust, and salt spray.
