Driving Aerospace Forward 10 Critical Sheet Metal Applications
Advanced sheet metal plays an indispensable role in shaping aerospace manufacturing for 2025. The industry demands lightweight, durable parts capable of withstanding extreme conditions. Precision fabrication allows for lighter components without compromising strength, directly contributing to fuel efficiency. Material selection is critical for aircraft and spacecraft safety, requiring stringent quality control. These innovative aerospace sheet metal applications meet stringent requirements for performance, efficiency, and safety. This blog explores critical aerospace sheet metal applications propelling the industry into the future.
Key Takeaways
- Sheet metal makes airplanes lighter. Lighter planes use less fuel. This helps planes fly farther.
- Sheet metal helps build strong airplane parts. These parts include wings and engine covers. They keep planes safe in the air.
- Special sheet metal keeps people safe inside planes. It stops fires from spreading. It also makes sure seats are secure.
- New ways to make sheet metal help build better drones and spacecraft. These methods create small, strong parts. They also help make parts faster and cheaper.
Lightweight Structures: Core Aerospace Sheet Metal Applications
Advanced Fuselage and Wing Sheet Metal Components
Aerospace engineers consistently seek materials that offer both strength and lightness. Sheet metal components form the backbone of aircraft structures. They contribute significantly to the overall integrity of the fuselage and wings. Manufacturers often select specific alloys for these critical parts. For example, Chrome-molybdenum steel provides robustness and corrosion resistance. It performs well at high temperatures. This steel is nearly four times stronger than carbon steel for the same weight. It finds use in welded aircraft structural parts, fuselage tubings, engine mounts, and landing gears.
Aluminum-Copper (Al-Cu) alloys are another popular choice. They offer high strength, damage tolerance, and lightweight properties. These alloys are ideal for wing skins and fuselage structures. They provide exceptional damage tolerance, improved corrosion resistance, and better fatigue toughness. Aluminum-Zinc (AlZn) alloy reinforces aluminum aircraft structures. It also strengthens highly stressed, thick portions of the airframe. This alloy delivers high strength and a quality finish when anodized. Titanium, a grayish-white metal, boasts an excellent strength-to-weight ratio. It is twice as strong as aluminum and as strong as steel while being 45% lighter. Titanium resists corrosion and withstands high temperatures. It is suitable for aircraft firewalls, high-strength bolts, and gas turbine engine components. It also forms hot air pipes, hydraulic pipes, and structural components needing strength at high temperatures. High-performance airplanes use titanium on their skin where aluminum cannot handle heat from high speed. Other common aluminum alloys include Alloy 6061 for wings or fuselage due to its workability and corrosion resistance. Alloy 7050 is ideal for wing skins and military aircraft, known for its excellent strength-to-weight ratio. Alloy 7075, a common aluminum alloy, suits high-stressed parts like fuselages due to its high fatigue resistance and strength comparable to steel. These advanced aerospace sheet metal applications drive innovation.
Enhancing Fuel Efficiency and Payload Capacity with Sheet Metal
Lightweight sheet metal structures directly improve aircraft performance. Reducing the aircraft's empty weight allows for greater fuel efficiency. This also increases payload capacity. Every kilogram saved translates into either more cargo or longer flight ranges. Engineers design sheet metal components with precision. They optimize shapes and thicknesses to achieve maximum strength with minimum material. This careful design process ensures structural integrity. It also contributes to operational cost savings for airlines. The continuous development of new alloys and fabrication techniques further enhances these benefits.
High-Performance Engine Aerospace Sheet Metal Applications
Nacelles and Exhaust Systems from Specialized Sheet Metal
Aircraft engines operate under extreme conditions. They generate immense heat and pressure. Sheet metal plays a crucial role in forming engine components like nacelles and exhaust systems. Nacelles are the coverings that house the engine. They protect the engine and contribute to aerodynamics. Exhaust systems manage hot gases exiting the engine. Manufacturers use specialized sheet metal alloys for these parts. Titanium alloys offer excellent strength-to-weight ratios and high-temperature resistance. Nickel-based superalloys provide superior performance in very hot environments. Stainless steel also finds use due to its durability and corrosion resistance. These materials ensure the structural integrity and safe operation of the engine. Precision forming techniques create complex shapes for optimal performance.
Noise Reduction and Aerodynamic Optimization in Sheet Metal Designs
Engine design focuses on both power and efficiency. Sheet metal components contribute significantly to noise reduction. Engineers design acoustic liners using perforated sheet metal. These liners absorb engine noise, making flights quieter. Aerodynamic optimization is another key area. Smooth, precisely formed sheet metal surfaces reduce drag. This improves fuel efficiency. Complex contours in exhaust nozzles guide airflow effectively. These designs minimize turbulence. Advanced manufacturing processes ensure the exact dimensions and finishes required. These aerospace sheet metal applications enhance engine performance and passenger comfort.
Interior Cabin Sheet Metal Applications for Comfort and Safety
Fire-Resistant and Lightweight Sheet Metal for Cabin Interiors
Aircraft cabin interiors demand materials that prioritize both safety and weight reduction. Manufacturers select specialized sheet metal for its fire-resistant properties. These materials prevent the rapid spread of flames and minimize smoke generation during an emergency. For instance, glass or carbon/epoxy or phenolic/Nomex honeycomb floor panels are common. These materials offer structural integrity and inherent fire resistance, directly contributing to passenger safety. The lightweight nature of these sheet metal components also reduces the aircraft's overall mass. This weight saving translates into improved fuel efficiency and increased payload capacity. Flexible urethane seat track covers are also utilized, providing protection and contributing to the overall safety and durability of the cabin floor system.
Meeting Passenger Comfort and Safety Standards with Sheet Metal
Sheet metal applications significantly enhance passenger comfort and safety within the cabin. ACI™ premium Cabin Floor solutions ensure seamless walkway transitions. This prevents tripping hazards, contributing to passenger comfort and safety. These solutions also provide optimal cabin wiring protection, crucial for preventing electrical issues. Robust protection of seat tracks is offered, enhancing safety by securing seating components firmly. Impeccable carpet trim and perimeter seals contribute to both comfort and safety by maintaining a neat and secure cabin environment. Aircraft design and operation adhere to strict FAA regulations and supplemental design criteria, ensuring high safety standards. Key safety requirements include structural strength and stiffness, vital for the integrity of cabin components. Fire resistance, including control of smoke generation, is a critical safety standard for cabin materials. Interior configuration and emergency evacuation criteria are established to ensure passenger safety during emergencies. These aerospace sheet metal applications are fundamental to modern aircraft design.
Aerodynamic and Durable Landing Gear Sheet Metal Components
Fairings and Doors: Critical Aerospace Sheet Metal Applications
Landing gear systems require robust and aerodynamically efficient components. Fairings and doors play a crucial role in reducing drag during flight. They enclose the landing gear when retracted, creating a smooth surface. Manufacturers select specific sheet metal materials for these parts. For instance, 5052 H32 aluminum alloy often forms non-structural fairings and other aerodynamic components. This material offers a good balance of strength and formability. 304 Stainless Steel is also utilized for fairings, enclosures, and firewalls. It provides affordability and resistance to high temperatures and stress. Modern aircraft, like the Airbus A350, use advanced composites for landing gear doors. These doors feature a carbon fiber composite skin and carbon fiber composite omega stringers. Such designs enhance strength while minimizing weight.
Corrosion Protection and Durability in Landing Gear Sheet Metal
Landing gear components face harsh environmental conditions, making corrosion protection vital. Manufacturers employ various methods to ensure durability. For temporary protection, they oil or grease larger components like landing gear and wrap them in plastic sheets. This method can protect parts for up to two years. Permanent protection involves a multi-step process. First, thorough cleaning removes oil, grease, old coatings, surface rust, and welding scale. Techniques include electrolytic cleaning, vapor-degreasing, and pickling. After cleaning, primers are applied. Epoxy primer or red oxide primer prevents further oxidation and resists chemicals. Zinc chromate primer is a common choice, offering good adhesion. Finally, a durable coating, often epoxy paint, provides a hard finish. This process ensures the long-term integrity of the landing gear sheet metal. Preventing dissimilar metal corrosion is also critical. Insulating different metals with a protective coating, such as zinc chromate primer, stops galvanic corrosion.
Secure Fuel Tanks: Essential Aerospace Sheet Metal Applications
Aircraft fuel tanks demand exceptional reliability and safety. Sheet metal plays a critical role in constructing these vital components. Engineers design fuel tanks to contain highly flammable liquids securely. They must withstand extreme operational stresses. The integrity of these tanks directly impacts flight safety and mission success.
Leak-Proof Sheet Metal Designs for Fuel Storage Systems
Designing leak-proof fuel storage systems requires meticulous engineering and advanced manufacturing. Manufacturers primarily use aluminum alloys,such as 5052 and 6061, for their excellent corrosion resistance and formability. These alloys allow for complex shapes that maximize fuel capacity within limited spaces. Precision welding techniques, including TIG and laser welding, create strong, impermeable seams. Riveting, combined with specialized sealants, also forms robust, leak-tight joints. Integral fuel tanks, where the aircraft's wing structure itself forms the tank, rely heavily on precise Sheet Metal Fabrication and sealing. This design approach minimizes weight and maximizes volume. Rigorous testing, including pressure and leak detection, ensures every tank meets stringent safety standards before assembly.
Structural Integrity of Sheet Metal Under Extreme Conditions
Fuel tanks endure significant forces during flight. They experience constant vibration, rapid temperature changes, and pressure fluctuations. Fuel sloshing within the tank also creates dynamic loads. Engineers design sheet metal fuel tanks to maintain structural integrity under these extreme conditions. They incorporate internal baffles and ribs, often made from the same sheet metal, to prevent excessive fuel movement and reinforce the tank structure. These reinforcements distribute stress evenly and prevent fatigue cracks. Specialized heat treatments enhance the strength and durability of the sheet metal. This ensures the tanks resist deformation and damage throughout the aircraft's operational life. The robust construction of these tanks is paramount for safe and efficient aerospace operations.
Precision Environmental Control System Sheet Metal Ducting
Aircraft environmental control systems (ECS) maintain comfortable cabin temperatures and provide fresh air. They also cool critical avionics. Sheet metal ducting forms the backbone of these complex systems. It ensures efficient air distribution throughout the aircraft.
Airflow Efficiency Through Formed Sheet Metal Ducting
Formed sheet metal ducting is crucial for optimal airflow efficiency. Engineers design these ducts with smooth internal surfaces. This design minimizes friction and turbulence. Reduced turbulence means air moves more freely. This delivers conditioned air precisely where needed. Precision forming techniques create complex shapes and bends. These shapes fit within tight spaces inside the aircraft structure. They also maintain consistent airflow velocity. Efficient airflow directly impacts passenger comfort and the reliable operation of electronic equipment. Manufacturers use lightweight aluminum alloys for these ducts. This choice reduces overall aircraft weight.
Temperature and Pressure Resistance in ECS Sheet Metal
ECS ducting operates under varying conditions. It handles both hot and cold air. It also manages significant pressure differences. The sheet metal used must withstand these extremes. Materials like aluminum alloys and stainless steel offer excellent temperature and pressure resistance. Aluminum alloys provide good thermal conductivity and corrosion resistance. Stainless steel offers superior strength at higher temperatures. Proper sealing techniques prevent air leaks. This maintains system efficiency. The structural integrity of ECS sheet metal ensures consistent performance. It also guarantees safety throughout the aircraft's operational life. These critical components are essential for a comfortable and safe flight environment.

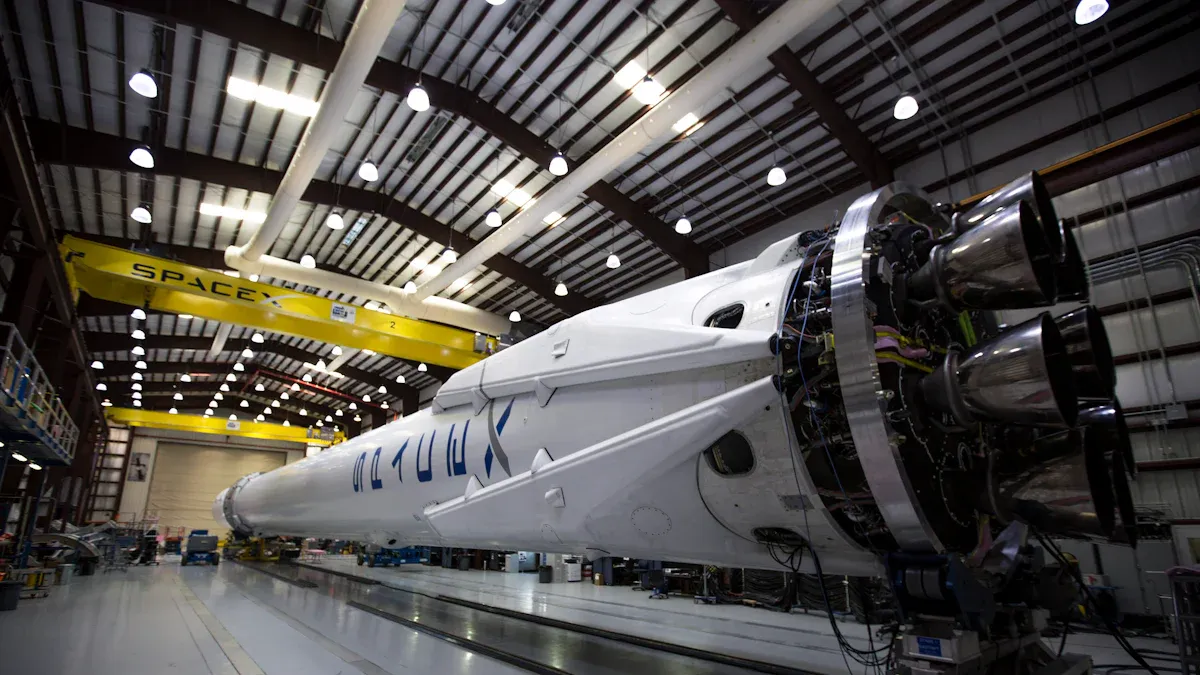

Satellite and Spacecraft Sheet Metal Structures
Ultra-Lightweight and High-Strength Sheet Metal for Orbital Use
Spacecraft demand materials that offer extreme lightness and exceptional strength. These materials must withstand the harsh environment of space. Engineers use specialized sheet metal alloys for orbital structures. Examples include AlSi10Mg and Scalmalloy®. These alloys provide the necessary performance.
Other advanced alloys are also critical. Alloy 2195, an Al-Li-Cu-Zr blend, offers high strength and modulus. It has 5% lower density than 2219. It also shows improved stress corrosion cracking resistance. This alloy forms cryogenic sections of the Space Shuttle's Super Light Weight External Tank. It also creates structures with plate thickness up to 2.25 inches. Alloy 2050 is an evolution of 2195. It matches or exceeds the tensile and fracture properties of 7050-T7451. It provides a 4% density reduction and up to 5% elastic modulus improvement. Engineers use it for thick frames, bulkheads, and wing ribs. It is also a preferred plate material for pressurized and non-pressurized structural components in space launchers and crew modules. These materials reduce launch mass. They increase payload capacity.
Thermal Management and Radiation Shielding in Space Sheet Metal
Spacecraft face extreme temperatures and harmful radiation. Sheet metal designs and materials manage these challenges. Effective shielding materials vary by radiation type. Paper or clothing blocks alpha radiation. Plastic or thin aluminum stops beta radiation. Lead, concrete, steel, and lightweight Demron® shield against gamma rays. Water, hydrocarbons, boron, and cadmium protect against neutrons. Lead, concrete, and dense materials block X-rays.
Specialized coatings also manage heat. The Silicon Oxide Coated Aluminized Polyimide Film Radiator Coating (SiOx) works for CubeSats. It uses all six exposed surfaces as radiators. This 0.05 mm thick polyimide film bonds to the CubeSat exterior. Engineers customize its absorptance and emittance by altering SiOx thickness. This meets specific thermal requirements.
Novel sheet metal designs also provide radiation protection. Flexible, lighter-weight shields use hybrid carbon/metal fabric. This involves plasma spray-coating high-density metal onto carbon fiber. Subsequent layers of metals with decreasing density follow. This material is moldable. It allows custom shielding for cabling and electronics. Another method uses Z-shielding. It layers high-density metals like tantalum or tungsten onto thin aluminum sheets. This extends CubeSat electronics life by an order of magnitude. It achieves an 18x reduction of total ionizing dose. Metal-Matrix Composites (MMCs) also offer significant advantages for thermal management. They are suitable for radiator panels, battery sleeves, and black box enclosures.
UAV Airframes: Modern Aerospace Sheet Metal Applications
Unmanned Aerial Vehicles (UAVs), or drones, rely heavily on advanced sheet metal for their airframes. These modern aircraft demand lightweight, durable, and precisely manufactured components. Sheet metal provides the ideal solution for creating the intricate structures that define UAV performance and functionality.
Miniaturization and Complex Geometries in UAV Sheet Metal
UAVs often require extremely small and complex parts. Sheet Metal Fabrication techniques enable the creation of miniaturized components with tight tolerances. Photo etching, for example, produces complex geometries like intricate meshes, filters, and shields with micron-level accuracy. This process creates burr- and stress-free components, which is critical for sensitive electronics and miniature parts within drones. It also facilitates rapid prototyping and production through digital tooling. This allows for quick design changes and iteration. When combined with Wire EDM, photo etching produces components with micro radii and extremely tight tolerances, such as profiling a 0.1mm feature to less than 10µm tolerances. These methods allow for the integration of fine features like tabs, slots, tapped holes, or hardware into compact drone designs.
Cost-Effective Manufacturing of UAV Sheet Metal Components
Cost-effective manufacturing is crucial for the widespread adoption and development of UAV technology. Sheet metal fabrication techniqueslike laser cutting and CNC bending are employed for UAV components. These methods achieve tight tolerances, often within 0.1 mm, for precise fitment. They also support complex designs such as intricate brackets and ventilated enclosures. The process is highly scalable for large-quantity production. Automated processes like stamping and robotic welding further reduce costs and lead times for high-volume applications. Sheet Metal Prototyping offers a cost-effective way to produce parts and prototypes using durable, hard-wearing, and inexpensive materials. This makes sheet metal an excellent choice for creating durable and lightweight designs for UAV frames, enclosures, and structural reinforcements.
Hypersonic Vehicle Sheet Metal Components for Extreme Conditions
Extreme Heat Resistance and Structural Stability of Sheet Metal
Hypersonic vehicles encounter extreme temperatures. These temperatures demand materials with exceptional heat resistance. They also require structural stability. Composite Metal Foam (CMF) shows remarkable resilience. It withstands repeated heavy loads. This occurs even at 400 and 600 degrees Celsius. CMF offers a high strength-to-weight ratio. This makes it a strong candidate for aerospace components. These include hypersonic vehicle airframes. It also suits hot trailing edges of wings. Equipment failure in these areas could impact public safety.
Engineers also consider other materials for their extreme heat resistance. Tantalum Hafnium Carbide (Ta4HfC5) boasts a melting point of 4,215°C. Hafnium Carbide (HfC) melts at 3,958°C. Tungsten (W), the pure metal with the highest melting point, reaches 3,422°C. Zirconium Diboride (ZrB2) melts at 3,240°C. Rhenium (Re) withstands temperatures up to 3,180°C. Molybdenum (Mo) melts at 2,623°C. Silicon Carbide (SiC) and Carbon-Carbon Composites also offer high thermal resistance. These materials ensure components maintain integrity. This is crucial during high-speed atmospheric flight. The table below summarizes some of these critical materials and their properties.
| Material | Melting Point (°C) | Applications |
|---|---|---|
| Tantalum Hafnium Carbide (Ta4HfC5) | 4,215 | Aerospace, heat shields, hypersonic vehicles |
| Hafnium Carbide (HfC) | 3,958 | Cutting tools, heat-resistant coatings, aerospace |
| Tungsten (W) | 3,422 | Rocket nozzles, electrical contacts, high-temp furnaces |
| Zirconium Diboride (ZrB2) | 3,240 | Aerospace, hypersonic vehicle protection |
| Rhenium (Re) | 3,180 | Jet engines, space applications, rocket thrusters |
| Molybdenum (Mo) | 2,623 | Furnace components, nuclear reactors, aerospace |
| Silicon Carbide (SiC) | ~2,700 | Power electronics, high-temp furnaces, spacecraft |
| Carbon-Carbon Composites | ~3,000 | Space shuttle tiles, aircraft brake discs |

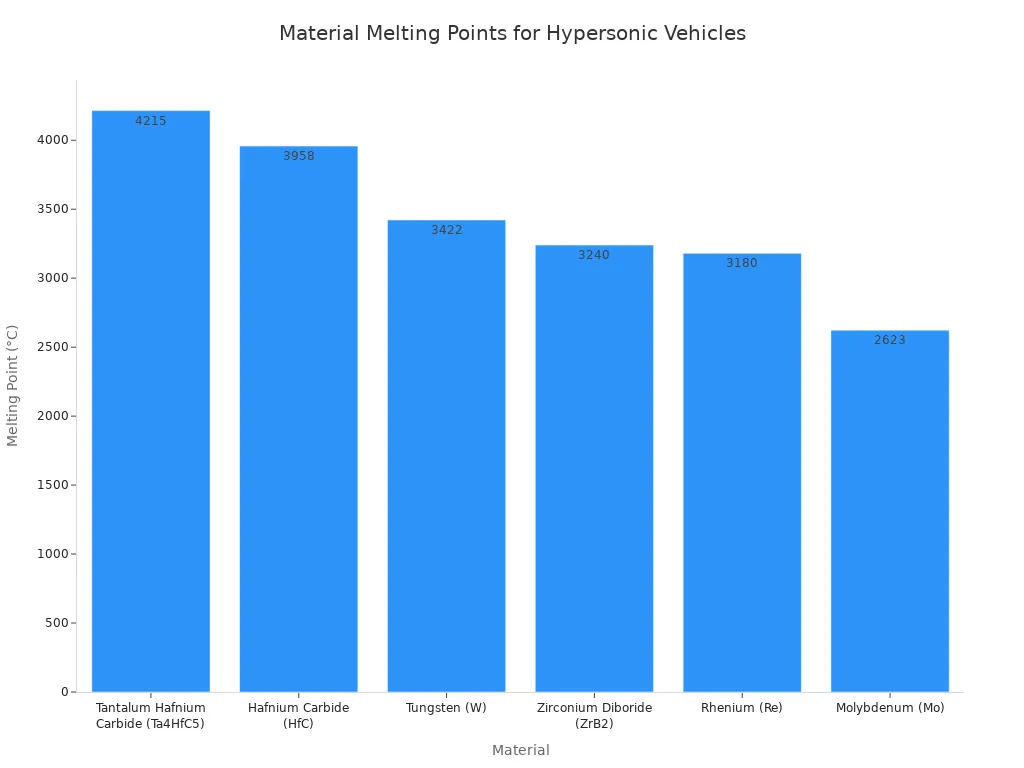

The chart below visually represents the melting points of these materials.
These materials are vital for the structural integrity of hypersonic vehicles.
Novel Material Development and Forming Techniques for Hypersonic Sheet Metal
Developing novel materials is essential for hypersonic flight. Engineers also need advanced forming techniques. These techniques shape the specialized sheet metal. They create complex geometries. These geometries withstand extreme aerodynamic forces. Traditional manufacturing methods often fall short. New processes like additive manufacturing for metals emerge. They allow for intricate designs. These designs optimize thermal management. They also enhance structural performance. Precision machining and advanced welding techniques are vital. They ensure the integrity of these components. Researchers explore ceramic matrix composites. They also investigate ultra-high-temperature ceramics. These materials push the boundaries of what is possible. They enable the next generation of hypersonic vehicles. These advancements in aerospace sheet metal applications are critical. Engineers continuously refine these processes. They aim for greater efficiency and reliability. This ensures the components perform flawlessly under extreme stress.
Advanced Prototyping and Tooling with Aerospace Sheet Metal
Additive Manufacturing Integration for Sheet Metal Prototyping
Aerospace manufacturers increasingly adopt advanced prototyping methods. Additive manufacturing (AM) integrates with traditional sheet metal processes through a hybrid approach. This strategy involves advanced manufacturing operations. These operations house both additive and subtractive systems. Companies leverage these systems together in a hybrid format for aerospace and defense applications. Traditional methods, like Sheet Metal Fabrication, continue alongside AM. The best solutions often combine multiple technologies. Companies that succeed in aerospace and defense effectively leverage both traditional manufacturing and additive manufacturing. They use these methods together in a hybrid format. This approach creates efficient and precise prototypes.
Rapid Iteration and Cost Reduction in Sheet Metal Development
Rapid iteration in sheet metal development offers significant cost reduction benefits. It reduces development lead times. This also realizes production cost savings. Manufacturers test and refine designs early in development. This ensures components meet stringent requirements. Performance remains uncompromised. Designing prototypes to reflect the actual production setup helps avoid costly redesigns later. This streamlines the development process. It also reduces production costs. Engineers can quickly modify and re-test designs. This accelerates the overall development cycle. Such efficiency is crucial for complex aerospace components. It ensures high quality while managing expenses.
These 10 critical aerospace sheet metal applications profoundly transform the industry. They demonstrate sheet metal's indispensable role. Innovation in materials, processes, and design is consistently driven by sheet metal advancements. This ensures the development of safer, more efficient, and advanced aircraft and spacecraft. The future outlook for aerospace relies heavily on continued progress in sheet metal technology.
FAQ
What makes sheet metal crucial for aerospace manufacturing?
Sheet metal provides the ideal balance of strength and lightness. It forms critical components like fuselages, wings, and engine parts. This ensures structural integrity and withstands extreme operational conditions. Manufacturers rely on its versatility for complex designs.
How does sheet metal contribute to an aircraft's fuel efficiency?
✈️ Lightweight sheet metal structures directly reduce an aircraft's empty weight. This allows for greater fuel efficiency. Smooth, precisely formed sheet metal surfaces also reduce drag. This further improves fuel economy and operational costs.
What types of materials are commonly used in aerospace sheet metal applications?
Aerospace commonly uses aluminum alloys, such as 6061 and 7075, for their excellent strength-to-weight ratio. Titanium offers superior strength and heat resistance. Nickel-based superalloys perform well in high-temperature engine environments. Composite Metal Foam (CMF) also shows promise.
How does sheet metal ensure safety in aircraft interiors?
Specialized fire-resistant sheet metal prevents flame spread in cabin interiors. It minimizes smoke generation during emergencies. Robust sheet metal components also ensure structural integrity for seating and other fixtures. This significantly enhances overall passenger safety.
