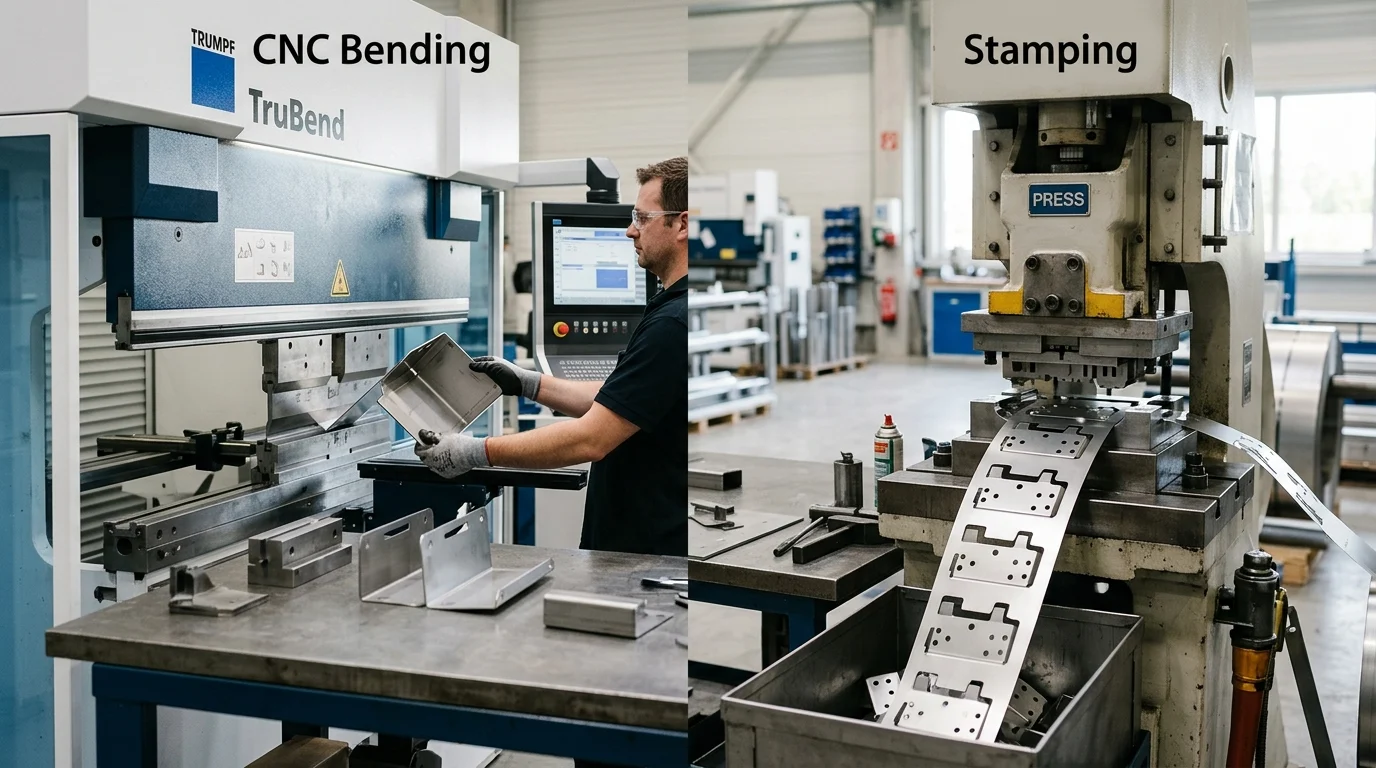

CNC Bending vs Stamping: Which Metal Forming Method Fits Your Project?

Choosing a metal forming process is not just a shop-floor preference—it can determine whether a part stays profitable from prototype through full production. CNC bendingand Metal Stamping both reshape sheet metal through controlled deformation, but their cost structures, tooling requirements, cycle times, and design-change risks are very different. A press brake offers flexibility and low startup expense, while a stamping die can unlock extremely low unit costs once volume is high enough. This guide compares the two methods through the lens of total cost, production scale, design stability, and practical sourcing decisions, helping engineers and buyers match the process to the project before committing budget.

Why CNC Bending vs Stamping Affects Project Cost

The choice between CNC bending and Metal Stamping represents a foundational engineering and procurement decision that dictates the entire financial trajectory of a sheet metal project. While both processes manipulate metal through plastic deformation to achieve a desired geometry, their economic models are diametrically opposed. The choice inherently forces project managers to weigh upfront capital expenditure against long-term unit cost efficiency.

Understanding this cost dichotomy requires analyzing the total cost of ownership (TCO) for the manufactured part over its expected lifecycle. A miscalculation in the early design phases can lead to either severely compromised margins due to unamortized tooling costs or excessive piece-price penalties incurred by relying on labor-intensive fabrication for high-volume runs.

Key Cost Drivers to Compare

The primary financial differentiator between these two manufacturing methods is the capital required for tooling. CNC bending relies on a press brake equipped with standard, interchangeable tooling. A typical set of precision-ground V-dies and gooseneck punches costs between $100 and $500 per linear foot. Because these tools are highly versatile and reused across thousands of different part geometries, the tooling cost absorbed by any single project is functionally negligible.

Conversely, Metal Stamping utilizes custom-engineered hard tooling. A progressive stamping die is a monolithic, highly complex asset designed specifically for a single part. The fabrication of a progressive die involves precision wire EDM, CNC milling, and specialized die-making labor, resulting in costs that typically range from $5,000 for simple single-hit tools to well over $150,000 for complex, multi-station progressive dies. However, once the die is commissioned, the per-unit labor and machine time costs drop to pennies, as a stamping press can output 40 to 120 strokes per minute (SPM), compared to the 15 to 60 seconds required for a single CNC bend.

Project Variables That Shape the Decision

Estimated Annual Usage (EAU) is the dominant variable in the CNC bending versus stamping decision. The breakeven point—the volume at which the high upfront tooling cost of stamping is justified by the lower unit cost—typically falls between 10,000 and 50,000 units, depending heavily on the part's complexity and the number of bends. For a simple bracket, the crossover point might be as low as 5,000 units; for a large, complex chassis, it could exceed 30,000 units.

Design stability is another critical variable. CNC bending programs can be modified in minutes via offline CAD/CAM software at zero structural cost. If an engineering revision requires moving a bend line by 0.100 inches, the operator simply updates the backgauge coordinates. In Metal Stamping, changing a bend line requires physical modification of the hardened tool steel die. Engineering Change Orders (ECOs) on stamping dies often incur costs ranging from $2,000 to $10,000 and can halt production for weeks, making stamping a high-risk choice for immature product designs.

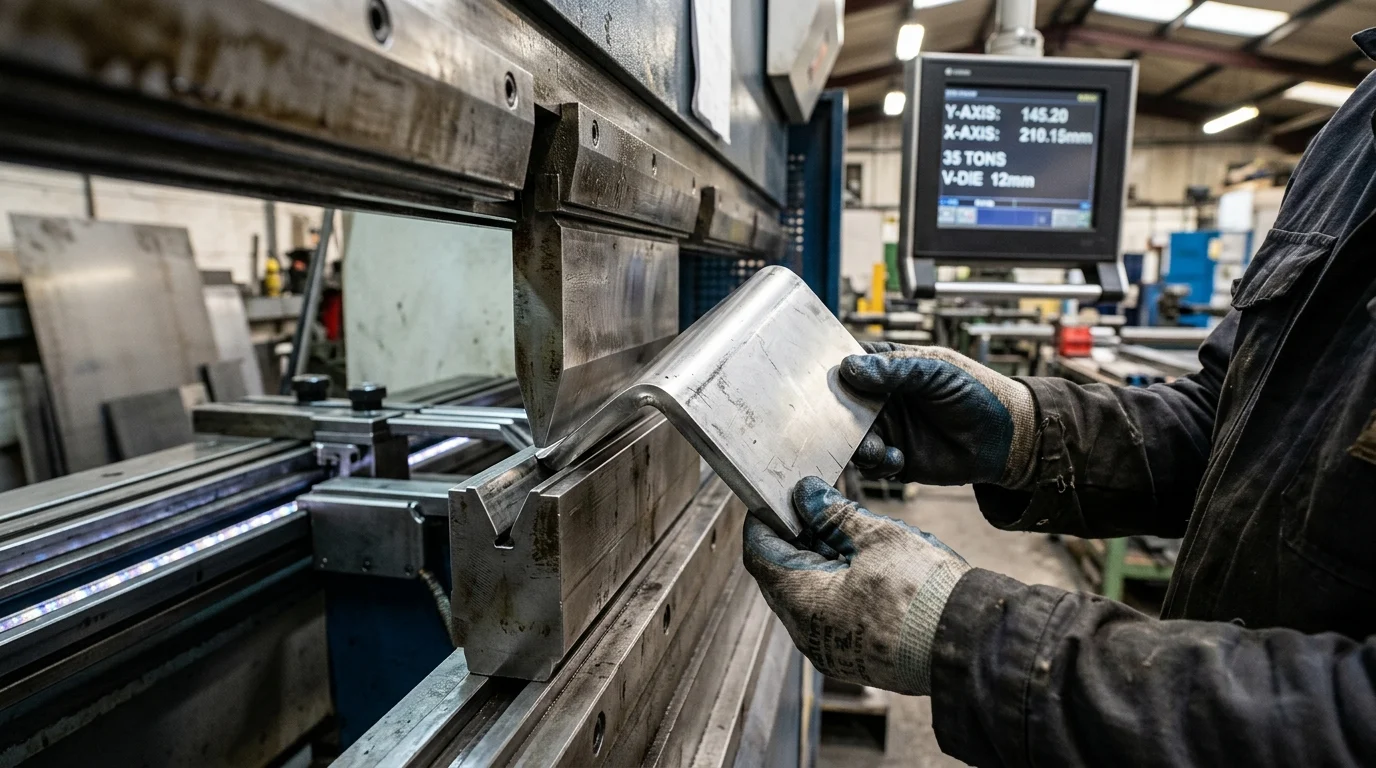

How CNC Bending and Metal Stamping Differ

While both processes achieve the same fundamental goal—permanently deforming sheet metal beyond its yield strength without exceeding its ultimate tensile strength—their mechanical kinematics and production workflows are vastly different. CNC bending is an incremental, sequential process, whereas Metal Stamping is a simultaneous, mass-deformation process.

These operational differences dictate not only the speed of production but also the physical footprint of the equipment, the skill level required by the operators, and the types of geometric features that can be successfully formed without tearing or fracturing the material.

What CNC Bending Involves

CNC bending is primarily executed on a press brake. The machine consists of a stationary bed holding a bottom die (usually a V-channel) and a descending ram holding a top punch. Tonnage capacities for modern press brakes typically range from 50 tons for light precision work to over 500 tons for heavy plate forming. The operator, or a robotic arm, places the sheet metal flat against a multi-axis CNC backgauge (often featuring up to 6 or 8 axes of independent movement) to ensure exact positioning.

Once positioned, the ram descends, forcing the punch into the material and driving it into the V-die. Air bending is the most common technique, where the material does not fully bottom out in the die. This allows a single 85-degree V-die to produce any bend angle between 90 and 180 degrees simply by controlling the descent depth of the ram to an accuracy of 0.0004 inches (0.01 mm). This flexibility is the hallmark of CNC bending.

What Metal Stamping Involves

Metal Stamping operates via a mechanical, hydraulic, or servo-driven press that houses the custom die. Tonnages in stamping are generally much higher than in press brakes, frequently ranging from 100 to 1,000+ tons to facilitate the simultaneous shearing and forming of the material. In progressive stamping, a continuous coil of sheet metal is fed through multiple stations within the die.

With every stroke of the press, the material advances one progression. Station one might pierce pilot holes, station two might blank the outer profile, station three might form a louver, and station four executes the final 90-degree bend and cuts the part from the carrier strip. This means a fully finished, multi-bend part drops into the collection bin with every single cycle of the machine, representing an unparalleled throughput rate for Sheet Metal Fabrication.

Geometry Limits for Each Process

Geometry limitations strictly govern which process can be utilized. CNC bending requires sufficient material on both sides of the bend line to bridge the V-die opening. As a rule of thumb, the minimum flange length must be at least 4.0 to 5.5 times the material thickness. Additionally, internal cutouts located closer than 2.5 times the material thickness to the bend line will distort during a press brake operation unless custom relief cuts are engineered.

Stamping bypasses many of these limitations because the material is securely clamped by stripper plates during deformation. Stamping can produce exceptionally short flanges, complex localized features like ribs, extrusions, and embossments, and can execute deep-drawing operations that are physically impossible on a standard press brake. However, stamping is limited by the die's fixed dimensions; it cannot easily accommodate parts with massive, sweeping radii or variable geometries without exorbitant tooling costs.

Engineering Comparison Points

Transitioning from theoretical differences to applied engineering requires a rigorous evaluation of specifications, tolerances, and material behaviors. Engineers must specify the correct process not just based on cost, but on the mechanical realities of how the chosen alloy will respond to the specific forming method.

Factors such as material grain direction, springback, and the precision of the final assembly play critical roles in determining whether a part should be routed to a press brake or a stamping press.

Tooling, Setup, and Unit Cost

The interaction between tooling costs, setup times, and unit economics is best understood through direct comparison. Press brake setups are fast, often taking 15 to 30 minutes to load standard punches and dies. Stamping setups require loading heavy dies via overhead cranes and meticulously threading coil steel, a process that can take 2 to 4 hours. However, the cycle time flips this dynamic entirely.

Tolerance, Repeatability, and Material Behavior

Tolerance and repeatability differ significantly due to how each process manages springback—the tendency of metal to return partially to its original flat shape after forming. CNC air bending is highly susceptible to variations in material thickness. A standard sheet of cold-rolled steel can have a thickness tolerance of +/- 5%. In air bending, this variation directly translates to angular variance, meaning CNC bent parts typically hold angular tolerances of +/- 0.5 to 1.0 degrees and linear tolerances of +/- 0.010 to 0.030 inches (+/- 0.25 to 0.75 mm).

Stamping achieves superior repeatability because it frequently utilizes "bottoming" or "coining" techniques. The die compresses the material at the bottom of the stroke, pushing the metal past its yield point and effectively neutralizing springback. As a result, stamping can consistently hold tighter linear tolerances of +/- 0.005 inches (+/- 0.127 mm) and angular tolerances within +/- 0.25 degrees across production runs of millions of parts, assuming the die is properly maintained.

Lead Time, Scalability, and Design Flexibility

Lead time and scalability heavily favor CNC bending during the prototyping and initial launch phases. A design can be finalized on a Tuesday, programmed on a Wednesday, and have physical, bent prototypes shipped by Friday. Standard lead times for CNC bent production parts range from 1 to 3 weeks.

Stamping requires immense patience during the pre-production phase. Designing, machining, assembling, and tuning a progressive die requires an average lead time of 8 to 16 weeks before the initial First Article Inspection (FAI) part is generated. However, once the die is approved, scalability is nearly infinite. A single stamping press can churn out 500,000 parts in a month, whereas scaling CNC bending requires linearly adding more press brakes and highly skilled operators to the factory floor.

Procurement and Supplier Evaluation

Procurement professionals face distinct challenges when sourcing sheet metal components depending on the chosen manufacturing process. The supplier ecosystem is divided; while many large contract manufacturers offer both services, the core competencies required to excel in high-mix CNC fabrication are very different from those needed for high-volume stamping.

Evaluating a supplier requires a deep dive into their capital equipment, their quality management systems, and their policies regarding tooling ownership and lifecycle maintenance.

Supplier Capabilities to Check

When auditing a CNC bending supplier, procurement should verify the age and technology of their press brakes. Modern machines with 6-axis CNC backgauges, active angle measurement systems (using lasers to measure and adjust the bend angle in real-time), and offline programming software (like Radan or BySoft) are critical for complex parts. A supplier relying on manual backgauges or older hydraulic machines will struggle to maintain tight tolerances.

For Metal Stamping suppliers, the focus shifts to press capacity, coil handling equipment, and, crucially, in-house tool and die capabilities. Sourcing stamping from a supplier that outsources their die maintenance is a major risk. An ideal stamping partner operates a fully equipped on-site tool room with wire EDM and surface grinding capabilities, allowing them to instantly repair a chipped punch or sharpen a dull die without disrupting the production schedule.

Quality Systems and Inspection Requirements

Quality expectations and inspection methodologies must align with the process. For CNC bending, the manual handling of parts between bends introduces human error. Defect rates in high-mix fabrication can hover around 500 to 1,000 Parts Per Million (PPM). Inspection usually involves digital calipers, protractors, and occasionally 3D laser scanning for complex profiles.

Stamping demands much stricter quality frameworks due to the sheer volume of output; a bad die can produce 10,000 scrap parts in a single shift. Procurement should require a Level 3 Production Part Approval Process (PPAP) for all stamped components. Stamping suppliers frequently utilize automated optical inspection and inline vision systems to ensure defect rates remain below 50 PPM. Furthermore, they must demonstrate strict adherence to statistical process control (SPC) to monitor die wear over time.

Tooling Ownership, Logistics, and Inventory

Tooling ownership is a complex logistical and legal issue unique to Metal Stamping. While the OEM typically pays for the die, it physically resides at the supplier's facility. Procurement contracts must clearly state that the OEM owns the tooling and retains the right to pull the die and move it to another supplier if performance drops. However, moving a die is risky, as it is often optimized for the specific shut height and stroke of the original supplier's press.

Additionally, procurement must account for die maintenance fees. Stamping dies wear out; punches become dull, and springs lose tension. Suppliers typically charge a maintenance fee—often structured as a fractional addition to the piece price or a flat annual fee representing 5% to 10% of the original tooling cost—to guarantee the die for the life of the product. CNC bending avoids all of these logistical hurdles, as the supplier owns and maintains the standard V-dies.

When to Choose CNC Bending or Stamping

Making the final determination between CNC bending and metal stamping requires synthesizing engineering requirements, production volumes, and capital budgets into a cohesive manufacturing strategy.

By clearly defining the ideal use cases for each method and utilizing a structured decision matrix, engineering and procurement teams can align their sheet metal sourcing with the overarching financial goals of the product lifecycle.

Best Use Cases for CNC Bending

CNC bending is the optimal choice for High-Mix, Low-Volume (HMLV) manufacturing environments. It is perfectly suited for heavy industrial equipment, aerospace components, and custom architectural enclosures where production runs rarely exceed 1,000 to 5,000 units per year. Because there are no custom tooling costs, it allows startups and agile manufacturers to launch products with minimal capital risk.

Furthermore, CNC bending is superior for heavy plate fabrication. Forming half-inch (0.500") or one-inch (1.0") thick steel plates for agricultural equipment or mining machinery requires massive tonnage that is more easily achieved on a heavy-duty press brake than in a progressive stamping die. It is also the default choice for parts with exceptionally large physical dimensions, such as 10-foot-long electrical busbars or full-size server rack panels, which would require impossibly large and expensive stamping dies.

Best Use Cases for Metal Stamping

Metal stamping dominates the high-volume consumer goods, automotive, and electronics sectors. If a project requires 100,000 battery contacts, automotive brackets, or EMI shields per year, stamping is the only economically viable path. The high upfront tooling cost is quickly amortized across the massive volume, resulting in a piece price that CNC fabrication cannot touch.

Stamping is also the necessary choice when a part design relies on complex, simultaneous features. If an engineering drawing specifies extruded holes for thread tapping, coined chamfers, and localized stiffening ribs alongside standard 90-degree bends, a progressive die can execute all of these operations in a single pass. Attempting to replicate these features via CNC bending would require secondary machining or manual press-working, destroying any potential cost efficiency.

Decision Checklist for Final Selection

To finalize the selection, cross-functional teams should utilize a weighted decision checklist. By scoring the project against strict thresholds for volume, budget, and design maturity, the correct path becomes mathematically evident.

Key Takeaways

• Use CNC bending for prototypes, low-volume runs, or designs likely to change because standard press-brake tooling keeps startup costs low and revisions can be made through CAD/CAM.
• Consider metal stamping when annual volume approaches the typical 10,000 to 50,000 unit breakeven range, especially if the part design is stable.
• Account for tooling economics early, since CNC bending tools may cost about $100 to $500 per linear foot while progressive stamping dies can range from $5,000 to more than $150,000.
• Validate bend locations, tolerances, and fit before investing in stamping, because die modifications can cost $2,000 to $10,000 and may interrupt production for weeks.
• Choose stamping for mature high-volume parts where press speeds of 40 to 120 strokes per minute can outweigh the upfront die investment.
