Can Robotic Welding Simplify Your Sheet Metal Projects?
Robotic welding significantly enhances the efficiency and precision of sheet metal projects. For instance, General Motors achieved a remarkable 30% increase in productivity and a 20% reduction in operational costs after adopting robotic systems. Such advancements make robotic welding an attractive option for manufacturers aiming to streamline their operations.
Key Takeaways
- Robotic welding boosts efficiency, reducing cycle times by up to 90%, allowing manufacturers to complete projects faster.
- Precision in robotic welding leads to fewer defects, with companies achieving tolerances as tight as ± 0.005 inches, enhancing overall quality.
- Investing in robotic welding can lower operational costs by reducing material waste and improving production speed, ultimately increasing profit margins.

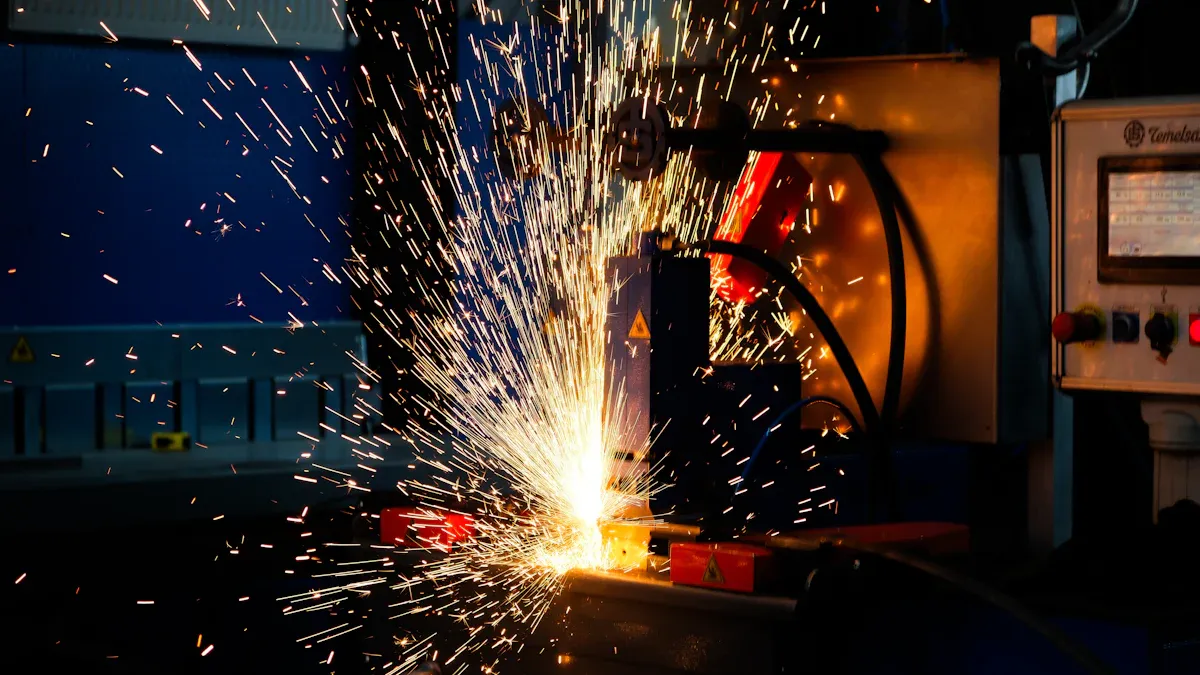

Benefits of Robotic Welding
Increased Efficiency
Robotic welding significantly boosts efficiency in sheet metal projects. Robots can perform tasks faster than humans, leading to higher productivity and shorter lead times. For instance, manufacturers often report that robotic systems can reduce cycle times by as much as 90% in serial production. In contrast, manual welding typically achieves only 10-30% arc time. This means robotic welding can be 4-5 times more efficient than traditional methods.
- Robots can complete complex tasks in a fraction of the time.
- An example project demonstrated a reduction of 12 work hours into just 45 minutes, showcasing the efficiency of robotic welding.
- By minimizing manual labor, companies can allocate resources to other critical areas, enhancing overall operational efficiency.
Enhanced Precision
Precision is another significant advantage of robotic welding. The technology allows for consistent and accurate welds, which reduces defects and the need for rework. For example, Schenke Tool Co. achieved tolerances within ± 0.005" on a weldment measuring 6" x 6" x 2". This level of accuracy is challenging to achieve with manual welding.
- High-precision positioning ensures consistent weld quality.
- Intelligent monitoring systems optimize welding parameters in real-time, leading to fewer errors.
- The Optimyzer case study illustrates that companies can achieve 45% faster welding with 95% less spatter, enhancing surface quality.
Cost-Effectiveness
Implementing robotic welding can lead to substantial cost savings for manufacturers. By reducing scrap and rework, companies lower material waste and repair costs. Many businesses, such as Vortex Companies, have reported increased profits by reducing overtime hours and improving throughput with robotic systems.
- Cost reduction occurs through less material waste and fewer repairs.
- Speeding up production leads to faster order fulfillment and improved profit margins.
- Companies that adopt robotic welding often unlock new revenue opportunities by meeting higher standards and securing premium contracts.

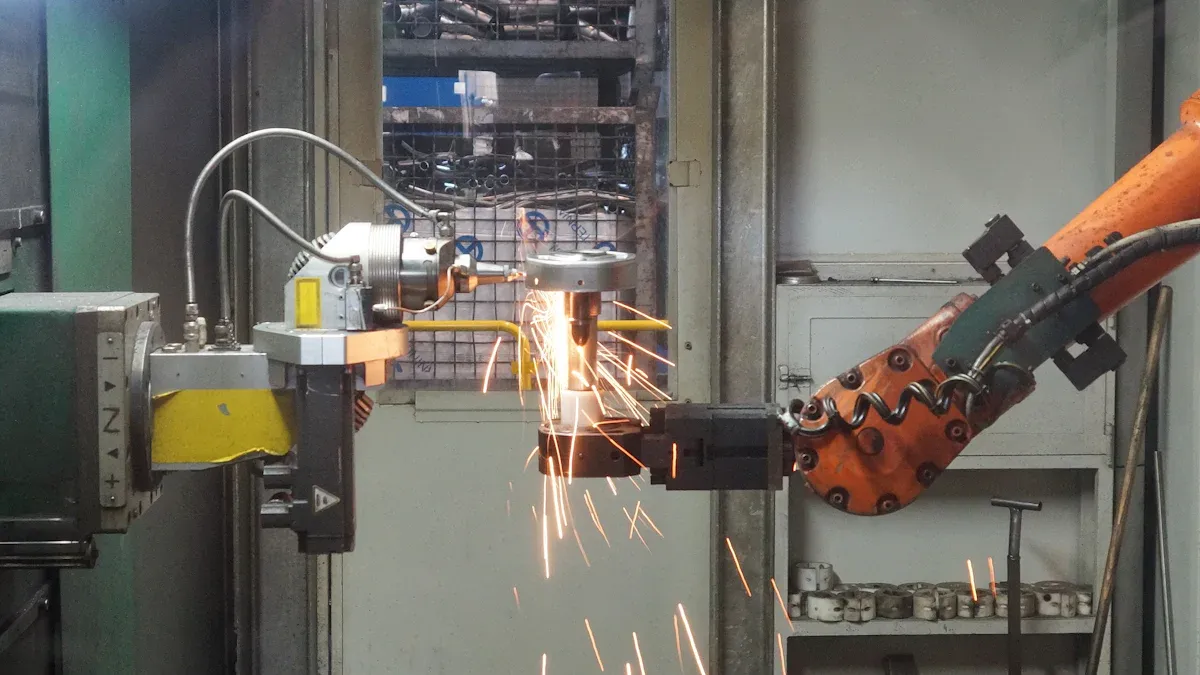

Robotic Welding Applications in Sheet Metal Assemblies
Automotive Industry
Robotic welding plays a crucial role in the automotive industry. Manufacturers utilize robotic systems to enhance production efficiency and ensure high-quality welds. The following applications highlight the significance of robotic welding in automotive sheet metal projects:
| Application Type | Description |
|---|---|
| Vehicle Body Panels | Robots weld components like doors, fenders, roofs, hoods, and trunk lids with precision. |
| Chassis Construction | Ensures strong and durable construction of frame rails, cross members, suspension mounts, etc. |
| Fuel Tank Production | Automation enhances efficiency and reduces human error in the production process. |
Robotic welding accounts for over 70% of body-in-white assembly tasks in automotive manufacturing. Additionally, 95% of spot welding tasks in automotive factories are performed by robots. This widespread adoption demonstrates the industry's reliance on robotic welding for improved productivity and quality.
Aerospace Manufacturing
In aerospace manufacturing, robotic welding is essential for creating strong and precise welds in critical components. The technology meets stringent quality standards required for aerospace applications. Key applications include:
- Robotic welders create strong, high-precision welds in aircraft frames and turbine engines.
- They help meet stringent quality standards required for aerospace applications.
- The technology improves production speed while ensuring reliability.
Robotic systems provide the precision necessary to meet industry standards. They ensure high-quality welds that are crucial for the safety and performance of aerospace components.
HVAC Systems
Robotic welding is increasingly utilized in the production of HVAC systems. The technology offers several advantages in this sector, including:
- Robotic welding cells are widely employed for automated arc welding, spot welding, and adhesive bonding of sheet metal joints.
- Robotic welding systems are increasingly utilized for their precision and consistency in modern sheet metal foundries.
These applications demonstrate how robotic welding enhances the efficiency and quality of HVAC system production, making it a preferred choice for manufacturers.
Comparison of Robotic Welding with Traditional Welding
Speed and Productivity
Robotic welding significantly outpaces traditional welding methods. Robots can achieve speeds of up to 90 inches per minute (IPM), while manual welding typically operates between 10 to 20 IPM. This substantial difference enhances productivity and efficiency in sheet metal fabrication. Robotic systems control weld heat more effectively, resulting in less distortion and improved weld quality. They excel in performing repetitive tasks, making them ideal for large-scale projects.
Quality and Consistency
Quality and consistency are critical in welding. Robotic welding systems produce fewer defects due to their automated processes. They ensure high accuracy and repeatability, especially in high-volume projects. In contrast, manual welding allows for human oversight, which can help troubleshoot issues during the welding process. However, robotic systems yield more accurate results for repetitive welds, while manual welding remains preferable for smaller or more technical tasks.
Labor Costs and Skill Requirements
The labor costs associated with robotic welding are generally lower than those for traditional welding. The following table summarizes the differences:
| Factor | Robotic Welding | Traditional Welding |
|---|---|---|
| Manpower Costs | Significantly lower due to automation | Higher due to manual labor |
| Production Efficiency | Higher, as robots can work continuously | Lower, due to breaks and downtime |
| Injury and Insurance Costs | Reduced, as robots handle hazardous tasks | Higher, due to worker injuries |
| Repair and Downtime Costs | Potentially high for repairs | Generally lower, but dependent on labor availability |
Robotic welding operators require foundational knowledge of welding techniques and specific training in robotic operations. In contrast, traditional welders focus on manual skills without the need for programming. This difference highlights the evolving skill set required in modern manufacturing environments.
Challenges of Robotic Welding and Solutions
Initial Investment
The initial investment for robotic welding can be substantial. For example, Laser Welding cobots typically require around$150,000. Robotic MIG welding systems range from$75,000 to $200,000 or more. Companies often justify these costs through various factors:
| Aspect | Description |
|---|---|
| Labor Costs | Reduction in labor costs by automating welding processes. |
| Consumables | Robots use contact tips more efficiently, leading to less waste and lower consumable costs. |
| Rework | Decreased need for rework due to improved accuracy and reduced spatter. |
| Quality Improvement | Enhanced weld quality results in less scrap and rework, positively affecting the bottom line. |
| Opportunity Costs | Skilled workers can be redirected to more valuable tasks, increasing overall productivity. |
Technical Expertise
Technical expertise is crucial for operating and maintaining robotic welding systems. Skilled labor is essential for maximizing the potential of these automated systems. Training the workforce poses a significant challenge. In-house technical expertise ensures effective operation and maintenance. Experts with a deep understanding of robotics can optimize production processes, leading to efficiency and cost savings.
Training programs, such as "Robotic Welding Applications 1" and "Robotic Welding Applications 2," focus on programming and advanced skills development. These programs equip workers with the necessary knowledge to operate robotic welders effectively.
Maintenance and Downtime
Maintenance challenges can hinder robotic welding efficiency. Common issues include burnback, contact tip wear, and programming errors. Manufacturers can minimize downtime by implementing regular maintenance schedules and adhering to manufacturer guidelines.
To address these challenges, companies can:
- Schedule Preventative Maintenance
- Optimize Consumable Lifespan
- Ensure Accurate Tool Center Point
- Maintain Proper Wire Feeding
- Invest in Robot Operator Training
- Capture Robotic Welding Data
By proactively managing these aspects, manufacturers can enhance the reliability and performance of their robotic welding systems.
Robotic welding offers a practical solution for simplifying complex sheet metal projects. It enhances weld quality, increases output, and reduces scrap. Companies benefit from lower labor costs and improved production rates. While challenges exist, such as higher initial investments and maintenance costs, strategic planning can help overcome these obstacles.
Key Recommendations:
- Invest in high-quality tooling.
- Train skilled programmers.
- Utilize advanced technologies for accuracy.
FAQ
What is robotic welding?
Robotic welding uses automated machines to perform welding tasks. These robots enhance efficiency, precision, and consistency in various manufacturing processes.
How much does robotic welding cost?
The initial investment for robotic welding systems ranges from $75,000 to over $200,000, depending on the technology and complexity of the setup.
What industries benefit from robotic welding?
Industries such as automotive, aerospace, and HVAC systems benefit significantly from robotic welding due to improved productivity and weld quality.
