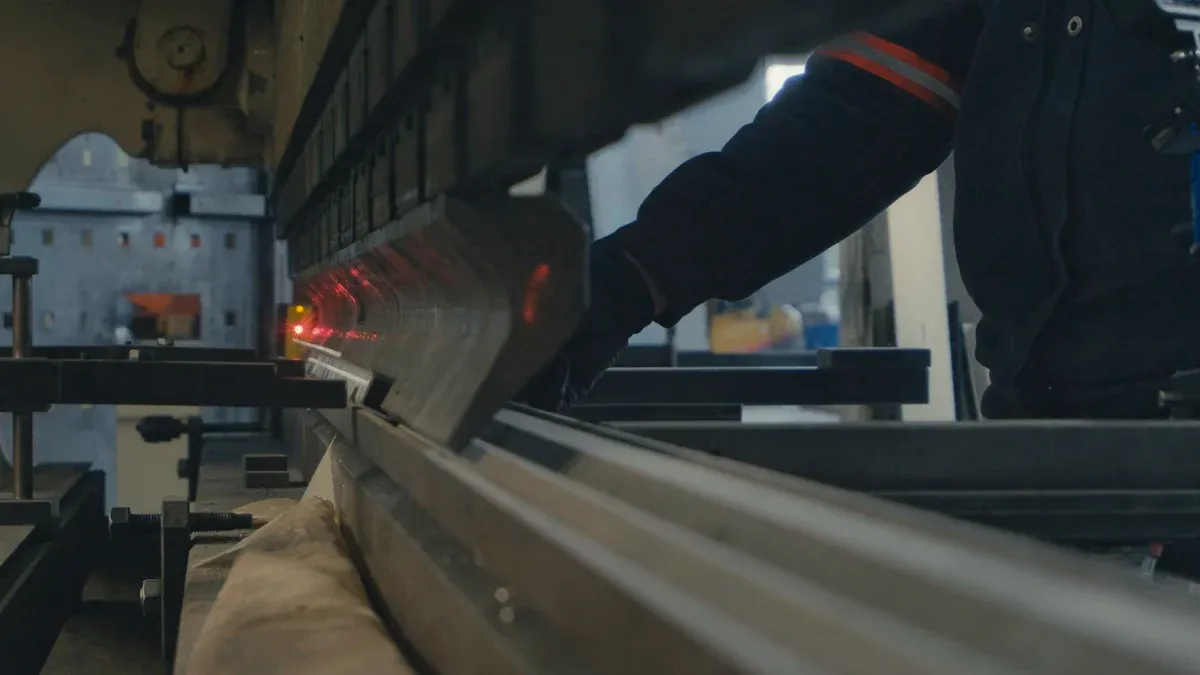

Beyond Basics: Sheet Metal Bending Techniques Explained

Achieving precise and efficient results in complex Sheet Metal Bending is crucial for modern manufacturing. The global metal sheet bending machine market was valued at USD 988.1 million in 2024, underscoring its significant role. Experts project the broader metal fabrication market to grow at a compound annual growth rate of 5.1% from 2024 to 2029. Mastering advanced Sheet Metal Bending techniques, understanding material properties, and utilizing specialized tooling are essential for creating intricate geometries. These skills drive innovation and efficiency in a growing industry.

Key Takeaways

• Complex sheet metal bending needs careful planning and special tools to make tricky shapes.
• Understanding how materials like steel and aluminum bend helps prevent cracks and other problems.
• Advanced methods like air bending, coining, and robotic systems make bending more precise and efficient.
• Choosing the right material and preparing it well stops mistakes and makes stronger parts.
• Using computer programs to plan bends helps avoid errors and saves time and money.

Understanding Complex Sheet Metal Bending Challenges

Defining Complex Bends

Complex bends in Sheet Metal Fabrication involve more than simple 90-degree angles. They require careful planning and execution to achieve intricate geometries. Fabricators encounter various types of complex bends. These include sharp vee bends, radius vee bends, and deep vee bends (troughs). Other complex forms are compound corners, top hats, hems, and press or boss bends. Each type presents unique challenges. Differentsheet metal bending techniques apply to these. For example, air bending involves minimal contact between the workpiece and the die, allowing for flexibility. Bottom bending offers greater accuracy and less springback. Coining uses high tonnage to create a precise angle with high repeatability.

Common Bending Issues

Several issues can arise during Sheet Metal Bending, impacting the final product's quality. Cracking or fracturing often occurs from tight bend radii, bending against the material's grain, or using low-ductility materials. Springback is another common problem. The material tries to return to its original shape after bending. This happens due to incorrect die or punch angles or underestimating material stiffness. Wrinkling results from compressive forces, long unsupported flanges, or poor die design. These factors fail to control material flow. Surface scratches or galling can happen from dirty or worn tooling, inadequate lubrication, or metal-to-metal contact. Dimensional inaccuracy or poor angle control stems from inaccurate press brake calibration, material thickness variations, or tooling mismatches. Ignoring grain direction also causes problems. Bending along the grain can lead to cracks. Poor slot placement near bends can deform or collapse during the process.

Impact of Material Properties

Material propertiessignificantly influence Sheet Metal Bending outcomes. Yield strength is a critical property. It defines the amount of stress that permanently deforms a material. This marks its transition from elastic to plastic behavior. Materials with high yield strength are difficult to bend intentionally. Those with low yield strength deform easily. Selecting materials with appropriate yield strength is essential for desired bending outcomes. For example, steel bends at 250 MPa, while aluminum bends easily at 150 MPa. Tensile strength represents the maximum stress a material can withstand before fracturing. Steel remains intact up to 450 MPa. Understanding both yield and tensile strength helps prevent permanent deformation and fracture in Sheet Metal Bending applications.

Advanced Sheet Metal Bending Techniques for Precision

Achieving high precision in Sheet Metal Fabrication often requires moving beyond basic methods. Fabricators employ severaladvanced sheet metal bending techniques to create intricate parts with tight tolerances. These methods offer distinct advantages for specific applications, ensuring both accuracy and efficiency.

Air Bending, Bottoming, and Coining Applications

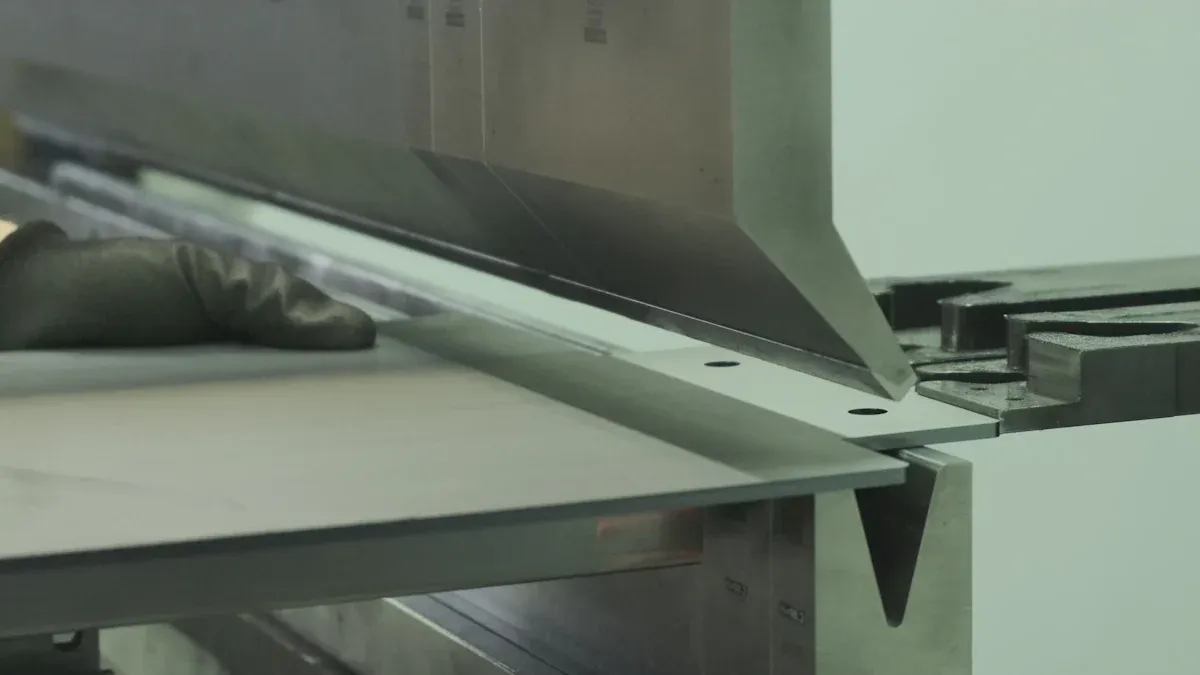

Three fundamental press brake bending methods are air bending, bottoming, and coining. Each technique offers unique benefits for different production needs.

• Air Bending involves the punch pressing the material into the die opening without the material fully contacting the bottom of the die. This method is versatile and suitable for small to medium mass production runs. It allows for flexibility in angle adjustment by controlling the punch depth.
• Bottom Bending occurs when the punch forces the material to fully contact the die's bottom surface. This technique provides greater angle accuracy than air bending and reduces springback. It is a common bending method suitable for a widespread range of metal materials with various types and thicknesses.
• Coining applies significant force, causing the punch to penetrate and compress the material into the die. This process permanently sets the bend angle. Coining is applied to uses requiring precise bending angles due to its high precision and reduced springback, resulting in consistent and reliable bends. Specific applications highlight its value:
  • Automotive Manufacturing: Coining is crucial for structural body components. Examples include A/B/C pillar reinforcement plates, seat rails, and high-strength steel crash beams. It ensures dimensional uniformity for precise assembly and passive safety performance. This method eliminates springback for millions of uniform parts, which is vital for automated welding systems.
  • Aerospace: Manufacturers use coining for engine guide vanes, wing stringers, and critical landing gear connectors. Absolute reliability and unmatched precision, often better than ±0.1°, are vital in these components. Coining also enhances fatigue life and reliability through work-hardening and compressive stress.
  • Precision Instruments & Medical Devices: This technique forms surgical instrument arms, implantable orthopedic fixation plates, and micro-brackets. These parts often use difficult-to-form materials. Coining achieves sharply defined, ultra-small internal radii and micron-level tolerances without disturbing grain structure. This safeguards biocompatibility and long-term stability.

Multi-Stage Bending Operations

Multi-stage bending operations involve performing several bends on a single workpiece in a sequential manner. This process often uses different tooling or different sections of the same tool. Fabricators employ this technique to create complex geometries that a single bend cannot achieve. It also helps to manage material flow and prevent collisions between the workpiece and the press brake components. Multi-stage bending can significantly reduce setup times compared to moving parts between multiple machines. This approach improves overall efficiency and maintains high accuracy for intricate parts. Programmed press brakes often automate these sequences, ensuring consistent results across production runs.

Wipe and Rotary Bending Techniques

Beyond traditional press brake methods, wipe and rotary bending offer specialized solutions for unique bending requirements.

• Wipe Bending involves clamping one end of the sheet metal while a wiping die moves across the material, forming the bend. This technique is preferred when the goal is to produce sheet metal with bent edges. It is also ideal for achieving a soft, rounded finish on sheet metal components.
• Rotary Bending uses a rotating die to form the bend. The material bends around a rotating cylinder or roller. This method is preferred for achieving scratch-free outcomes on delicate surfaces. It is also excellent for bending materials to cross-sections greater than 90 degrees. Rotary bending produces a more uniform and aesthetic output without scratching the surface. Fabricators prefer it when a bend greater than a 90-degree angle is required. It is also ideal for creating round or spiral shapes and intricate, circular profiles.

Incremental Bending for Curves

Incremental bending offers a specialized approach for creating smooth, continuous curves in sheet metal. This method differs significantly from traditional single-stroke bending. Instead of forming the entire bend at once, incremental bending achieves the desired curve through a series of small, successive bends. A press brake typically performs this process. It uses a standard punch and die, or sometimes a specialized roller tool. The machine makes small indentations along the bend line. Each indentation slightly deforms the material. The cumulative effect of these small deformations creates a large, smooth radius.

This technique proves particularly valuable for forming large radii or complex, non-uniform curves. Traditional press brakes often struggle with these shapes. Incremental bending avoids the need for expensive custom tooling for every unique curve. This makes it a cost-effective solution for prototyping and low-volume production. It also reduces stress on the material compared to forcing a large radius in a single operation. This minimizes the risk of cracking or tearing, especially with less ductile materials.

The process requires precise control over punch depth and material advancement. Advanced press brake controls and simulation software help engineers program the exact sequence of bends. This ensures the final curve matches the design specifications. While slower than single-stroke bending, incremental bending provides unparalleled flexibility in curve design. It allows fabricators to produce intricate architectural elements, aerospace components, and large diameter pipes or ducts. These applications often demand smooth, aesthetically pleasing curves without visible sharp angles. This method expands the capabilities of various sheet metal bending techniques.

One consideration with incremental bending is the potential for "witness marks" or slight facets along the curve. These marks result from the individual indentations. Fabricators can minimize these marks through careful programming, smaller step increments, and post-processing like sanding or polishing. Despite this, the ability to create virtually any curve shape makes incremental bending an indispensable tool for complex Sheet Metal Fabrication.

Tooling and Equipment for Complex Sheet Metal Bending

Achieving precision in complex sheet metal bending requires specialized tools and advanced equipment. These components work together to form intricate parts accurately and efficiently. Fabricators rely on specific tooling designs and press brake features to meet demanding specifications.

Specialized Punches and Dies

Specialized punches and dies are crucial for complex Sheet Metal Bending. Their design directly impacts the quality and feasibility of a bend. Engineers aim for a "golden radius," where the internal radius approximately equals the material thickness. This ensures stable forming and predictable springback. They also respect grain direction. Critical bend lines should be perpendicular to the material's grain to prevent cracking. Designers allow enough "safe deformation zones" around holes and notches. This prevents distortion near bend lines. The flange length must also "stand firm" on the V-opening. This prevents it from dropping into the die. Fabricators always calculate tonnage to ensure it remains below the press brake's and tooling's rated limits. This prevents damage. Standard tooling is often the most profitable choice. Customization becomes a last resort. Gooseneck punches offer clearance for complex geometries. However, they are not suitable for heavy-duty work. Simulation software helps optimize bending sequences and detect collision risks before physical production.

Sectional Tooling for Flexibility

Sectional tooling significantly advances setup optimization. It allows operators to configure tool lengths precisely. This maintains consistent shut heights across various setups. This capability directly enhances flexibility. It also reduces the time required for setup. Fabricators can quickly adapt to different part geometries without changing entire tool sets. This improves efficiency in production.

Press Brake Features for Accuracy

Modern press brakes incorporate several features to achieve high accuracy. Crowning systems, both hydraulic and mechanical, distribute pressure evenly across the bend length. They counteract natural deflection under pressure. This leads to accurate bends from one edge to the other. Advanced CNC control systems enable real-time adjustments during bending. They use sensors to monitor angle deviation and material feedback. The software makes on-the-fly corrections. This maintains precision. Ram and back gauge precision ensures consistent depth and angle. High-accuracy machines use ball screw drives or linear encoders for accurate material positioning. A rigid press brake frame is fundamental to accuracy. It resists deflection and vibration under full load. This prevents movement that could compromise bend angle. The condition and proper alignment of tooling are also critical. Worn or misaligned tools reduce accuracy. Advanced CNC systems can compensate for material property variations. This ensures high standards of quality and precision for every bend.

Robotic Bending Cells for Automation

Robotic bending cells represent a significant leap in Sheet Metal Fabrication. They integrate press brakes with robotic arms. This creates a fully automated system. These cells offer high precision, consistency, and efficiency. They handle repetitive tasks with unwavering accuracy. This reduces human error and improves overall production quality.

Implementing robotic bending cells often yields a positive return on investment (ROI). Many companies see this return within 18 to 36 months. These systems also significantly improve first-pass yield. This can range from 5% to 15%. They also increase effective capacity by 30% to 50%.

Metric	Value
Positive ROI Timeline	18-36 months
First-Pass Yield Improvements	5-15%
Effective Capacity Increase	30-50%

Beyond financial returns, these cells offer several operational advantages:

• Reduced Lead Times: They enable companies to secure profitable, fast-turnaround projects. This strengthens their supply chain position.
• Expanded Capabilities: Robotic cells open doors to lucrative aerospace, medical, or architectural contracts. They handle complex shapes or specialized materials with ease.
• Improved Workplace Safety & Ergonomics: Automating bending tasks lowers turnover and boosts morale. This reduces hiring and training costs.

Large manufacturers often experience substantial long-term benefits. A 3-year ROI for large manufacturers can exceed 200%. High-volume manufacturers report a 3-year ROI of 220%. These systems also dramatically increase throughput by up to 300%. They can reduce the need for skilled operators by 60%.

Metric	Value
3-year ROI for Large Manufacturers	Exceeding 200%
3-year ROI for High-Volume Manufacturers	220%
Throughput Increase	300%
Reduction in Skilled Operators	60%

Robotic bending cells transform manufacturing processes. They deliver consistent, high-quality parts with minimal human intervention. This makes them a valuable asset for modern fabrication shops.

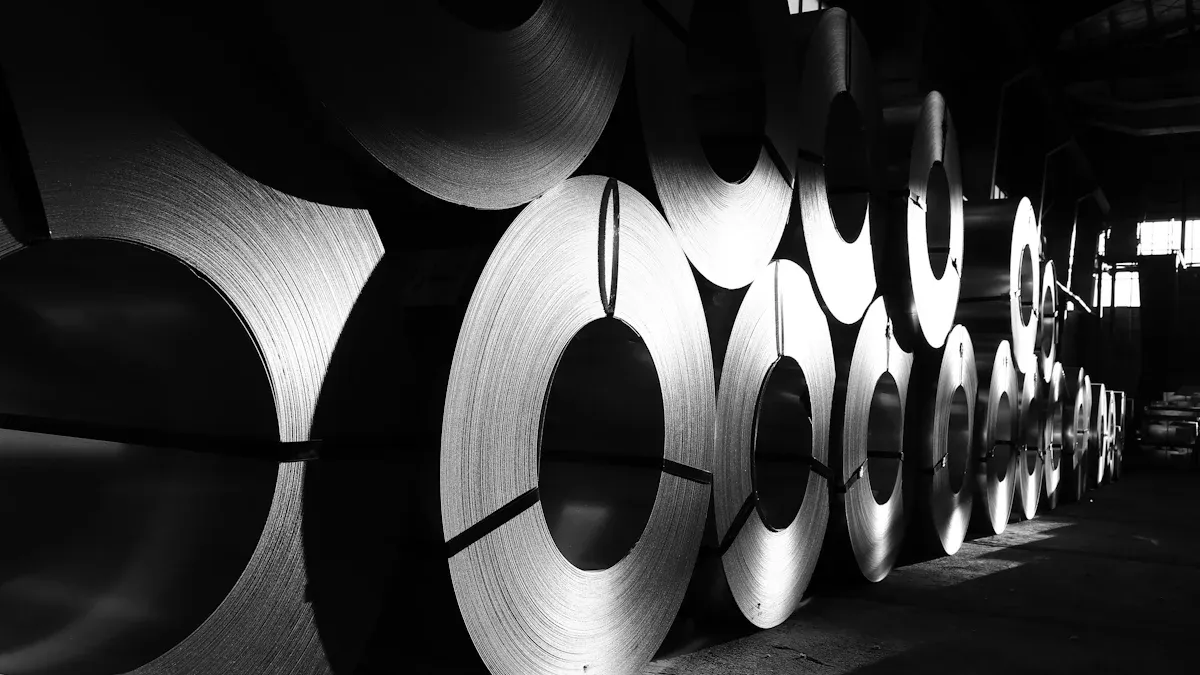

Material Considerations and Preparation for Sheet Metal Bending

Grain Direction Influence

Material properties significantly impact Sheet Metal Bending outcomes. Grain direction, a result of the rolling process, creates anisotropic properties. Strength, ductility, and formability vary with the direction of force. Misalignment can lead to defects like cracks and uneven stretching. Strength is higher along the grain, while ductility is lower. Springback is also affected because grains resist deformation differently based on their alignment. For aluminum alloys in automotive panels, the rolling direction offers higher tensile strength but lower ductility. This can cause cracking if not considered during stamping. In deep-drawn automotive fenders, orienting the blank with the grain parallel to the major strain direction can resist excessive stretching, preventing tears. Rotating the blank 45 or 90 degrees can improve formability by leveraging transverse ductility. Studies on dual-phase steels show aligning the grain at a 45-degree angle to the principal strain direction can reduce cracking by up to 20% in complex geometries. For simple bends, aligning the bend line perpendicular to the grain often reduces cracking risks due to increased ductility in the transverse direction.

Material Selection for Forming

Selecting the correct material is crucial for achieving specific bend radii and strength requirements. For 6061 aluminum, a minimum bend radius of 1-2 times the material thickness (1-2T) is recommended for clean forming. For 304 stainless steel, a minimum bend radius of 2-3 times the material thickness (2-3T) is necessary due to its work-hardening characteristics. This prevents cracking. General sheet metal parts often require bend radii between 0.5T to 4T, depending on the material thickness. To calculate the minimum safe bend radius (R) and prevent cracking, use the formula R = K × T. Here, T is the material thickness and K is the K-factor. Recommended K-factors are 0.45 for 6061 aluminum, 0.50 for 304 stainless steel, and 0.33 for mild steel. Apply a safety factor of 2x above theoretical minimums to prevent production failures. Use 1.5-2T for aluminum and 3-4T for stainless steel in production environments. This accounts for variations and tooling wear. Larger bend radii contribute to improved fatigue resistance by distributing stress more evenly across the material. Conversely, tight radii create stress concentrations. These can lead to crack initiation, especially under cyclic loading or thermal cycling conditions. This affects the part's overall strength and durability.

Material	Thickness (T ≤ 6 mm)	Thickness (6–12 mm)	Thickness (12–25 mm)
Aluminum Alloy	1 × T	1.5 × T	2–3 × T
Low Carbon Steel	0.8 × T	1.2 × T	1.5–2.5 × T
Stainless Steel	2 × T	2.5 × T	3–4 × T

Surface Finish and Coatings

Surface finish and coatings play a vital role in the success of sheet metal bending techniques. They affect friction and potential damage during the bending process. Surface finishing processes and coatings are crucial for increasing the load capacity of parts and preventing damage like scuffing and micropitting. Optimized coating processes can prevent negative effects on tooth root bending strength. Pulsator tests confirm this. Combining surface finishing processes with WC/C coatings can increase pitting load capacity. The effectiveness depends on the coating strategy. For example, coating only the pinion versus both gears. The low roughness of isotropic superfinished surfaces, when combined with a coating on the pinion, helps avoid extensive wear of the uncoated flank. This increases pitting load capacity. Tool coatings, such as various types of titanium nitride and titanium, applied to countersamples, provide a more stable coefficient of friction during the entire friction test compared to dry friction conditions. The electron pulse irradiated countersample showed the highest stability of the coefficient of friction throughout the sample elongation until fracture. The highest temperature in the contact zone during friction was observed for the uncoated countersample. This suggests coatings can reduce heat generation.

Pre-processing Steps

Effective pre-processing steps are vital for successful sheet metal bending. These actions prepare the material for forming. They prevent defects and ensure high-quality results. Fabricators often begin with thorough cleaning. This removes oils, dirt, and other contaminants from the sheet metal surface. Contaminants can cause surface imperfections or tool wear during bending. They also interfere with subsequent finishing processes.

Deburring is another critical pre-processing step. It removes sharp edges or burrs left from cutting operations like laser cutting or punching. Burrs can cause several problems. They can scratch tooling, leading to premature wear. Burrs also create stress concentrations in the material. This increases the risk of cracking during bending. Removing burrs ensures a smoother, safer bending process. It also improves the final part's aesthetic and functional quality.

Sometimes, material requires specific heat treatments before or after bending. These treatments manage internal stresses. While annealing is often a post-bending treatment, it directly addresses residual stresses generated during forming. This enhances the part's performance. It also increases fatigue resistance by up to 30% compared to untreated parts. Fabricators use light annealing for aluminum alloys like 5052/6061. They apply stress-relief heat treatment for high-strength steels. These treatments ensure the material maintains its integrity and desired properties after the bending process. Proper pre-processing minimizes risks and optimizes the bending operation. It contributes significantly to the durability and reliability of the final product.

Overcoming Common Complex Sheet Metal Bending Problems

Fabricators often encounter several challenges during complex sheet metal bending. These issues can compromise part quality and increase production costs. Understanding and applying effective strategies helps overcome these common problems.

Mitigating Springback

Springback occurs when a bent sheet metal part partially returns to its original shape after the bending force releases. This happens because the material retains some elastic memory. Fabricators employ several effective sheet metal bending techniques to mitigate springback across various materials.

One common approach involves overbending. Fabricators intentionally bend the part to a more acute angle. They expect the material to spring back to the desired final dimension. This method is simple but often requires extensive trial and error to perfect. Another technique, coining or staking, applies high compressive pressure at the bend radius. This plastically deforms the material, reducing internal stresses and minimizing springback. However, coining can thin the material and requires presses with higher tonnage.

Advanced methods include Hot Stamping (Press Hardening). This process heats the steel blank to over 900°C. Fabricators then form it and rapidly quench it within the die. This transforms the microstructure to hard martensite. The result is virtually zero springback and ultra-high strength, especially for complex Advanced High-Strength Steel (AHSS) parts.

Die design also plays a crucial role. Die Design Compensation uses Finite Element Analysis (FEA) to simulate the forming process. This predicts springback. Engineers then modify the die CAD geometry to create a compensated tool face. The part forms into an 'incorrect' shape, which then springs back into the correct geometry. Improvements in process parameters during simulation also help. Optimizing Blank Holder Force (BHF) ensures uniform material flow. Controlling tool movement and dwell time allows for stress relaxation. Proper bead design balances bending and unbending. Correct blank geometry avoids excess deformation.

Other effective strategies include:

• Open Wall Angles: This minimizes metal flow over die radii. It reduces angular change and sidewall curl.
• Applying In-Plane Tension: Using stake-beads, hybrid beads, or active binder force control applies tension to sidewalls after forming. This reduces springback. Higher strength steels may require lock beads.
• Geometric Stiffeners: Incorporating darts, beads, and flanges locks elastic strains. This prevents springback. Subsequent operations might relieve these stresses.
• Robust System and Process Design: Designing the part and tool desensitizes springback to variations in material, gauge, tools, and forming processes. This focuses on minimizing effects rather than just compensation.
• Forming Simulation Programs: These programs predict springback trends and test countermeasures. They are especially useful with complete material characterization and appropriate models, even if full accuracy is not always achieved.
• Tighter Clearances and Smaller Punch Radii: These reduce angular change and sidewall curl. However, for AHSS grades, sharp radii (below 3T for 590 MPa tensile strength or 5T for draw beads) can promote shear fracture and excessive thinning.
• Higher Drawbead Restraining Forces: These also reduce angular change and sidewall curl.
• Minimizing Unwanted Bending and Unbending: Keeping die clearance as tight as allowed by formability and press capability prevents work hardening and increased springback.
• Material Selection: Choosing materials with lower elasticity minimizes springback. A case study showed this significantly improved dimensional accuracy.
• Design Considerations: Optimizing die geometry avoids small internal radii. It ensures large contact areas for even load distribution. Considering grain direction helps orient it with deformation.
• Tooling Modifications: Using appropriate die materials with higher deformation resistance, such as hardened steel, helps. Implementing compensating springs in the die counteracts elastic recovery. Compensating dies with special geometry and high-precision guides and punches ensure proper material alignment.
• Process Adjustments: Employing pre-bending introduces initial deformation. Adjusting forming pressure finds the right balance. Too high or too low pressure can increase springback or lead to incomplete formation.

For example, in a B-Pillar Inner case study, transitioning from HSLA 340/440 to DP 550/980 involved adding sidewall beads and geometry. This improved section stiffness to control springback effectively.

Preventing Cracking and Tearing

Cracking and tearing represent critical failures in sheet metal bending. They often result from material limitations or improper bending parameters. Understanding these factors helps prevent such defects.

Material properties significantly influence the risk of cracking. Yield strength and elongation are key indicators. Poor elongation shows low plastic deformation capacity. This leads to cracking when tensile stress exceeds the material's limit. Materials with insufficient ductility cannot stretch enough during bending.

The bending direction relative to the material's fiber orientation also matters. Bending lines aligned with fiber orientation can localize stress. This increases the chances of cracking. Experienced technicians adjust the setup to align the bending line parallel to the fiber orientation. This distributes stress more evenly.

Process parameters also contribute to cracking. An excessively narrow lower die V-groove width results in a small inner radius. This over-stretches and thins the outer material layer, causing tearing. The bend radius must precisely match the sheet thickness and V-groove width. This prevents over-stretching and minimizes cracking. Fabricators must ensure the bend radius is not too tight for the material's ductility.

Managing Distortion

Distortion in sheet metal parts, especially large or thin ones, can compromise dimensional accuracy and structural integrity. Effective strategies help manage this problem.

Material selection and stress relief are fundamental. Fabricators choose materials that maintain their shape better under pressure, such as certain mild steels or aluminum. They also apply stress-relief methods like annealing. This prevents warping caused by uneven stress distribution.

Designing for the correct bend radius is crucial. The inner bend radius should be at least 1 to 1.5 times the material thickness. This prevents cracking or excessive springback. More ductile materials might allow a smaller radius.

Optimizing the bend sequence helps maintain part integrity. Fabricators bend from the outside in, or from the least to most complex bends. This distributes stresses evenly, preventing distortion.

Fabricators must account for material expansion and contraction. Materials like aluminum have a high coefficient of thermal expansion. They react to heat and pressure. Designs should allow for expansion or consider cooling times to prevent deformation.

Including tolerances for springback in the design ensures the final part meets specifications. Fabricators incorporate bend allowances or deductions to compensate for springback.

Finally, adding support features helps control the material during bending. Tabs or flanges provide extra holding points. This allows proper clamping and control, which reduces wrinkling or distortion.

Achieving Tight Tolerances

Achieving tight tolerances in complex sheet metal bending operations demands meticulous attention to detail across design, tooling, and process control. Fabricators must implement best practices to ensure parts meet exact specifications. This precision is crucial for the functionality and assembly of intricate components.

Design considerations form the foundation for achieving tight tolerances. Engineers optimize part geometry by simplifying complex features. This reduces deviations and makes manufacturing more efficient. It directly enables tighter tolerances. Incorporating adequate bend radii prevents material cracking. It also improves dimensional accuracy and ensures structural integrity. Designers strategically space holes and edges. This properly positions holes and maintains minimum edge distances. It avoids material distortion and ensures consistent quality. Early collaboration between engineers, quality control, and fabricators helps understand manufacturing limitations. This prevents delays. Fabricators also match the tolerance to the function. They apply tight tolerances only to critical features affecting functionality. This allows looser tolerances for non-essential areas.

Tooling precision plays an equally vital role. Manufacturers invest in durable, wear-resistant materials for tooling. This ensures consistent precision across production runs. They perform regular tool maintenance and calibration. This keeps tools within tolerance, reduces defects, and maintains efficiency. Employing advanced manufacturing techniques significantly improves accuracy. Technologies like CNC machining, precision grinding, and Wire Electrical Discharge Machining (WEDM) achieve tighter tolerances.

Effective process control and monitoring are essential for maintaining precision throughout production. Fabricators implement real-time quality inspections. They continuously monitor part dimensions during production. This allows for immediate corrective actions. It reduces scrap and ensures high-quality standards. Utilizing Statistical Process Control (SPC) helps analyze manufacturing process variations. It identifies deviations and proactively addresses problems. This maintains stability and reduces defects. Providing continuous training for operators equips them with necessary skills. Operators learn best practices and precision methods. This helps them maintain tight tolerances as equipment and design complexities increase. Furthermore, fabricators use the model to drive the print. They ensure the CAD model is current and reflects all design changes. The print generates directly from the updated model. This eliminates discrepancies and ensures accuracy.

By integrating these comprehensive strategies, fabricators consistently achieve the tight tolerances required for today's most demanding sheet metal applications.

Design for Manufacturability (DFM) in Complex Sheet Metal Bending

Design for Manufacturability (DFM) ensures that sheet metal parts are easy and cost-effective to produce. Applying DFM principles early in the design phase prevents costly errors and rework later. This approach optimizes the entire fabrication process.

Early Design Considerations

Designers must collaborate with manufacturers early to align material attributes with design aesthetics and functionality. This collaboration is crucial for successful outcomes. They account for the interplay between bend radius and material thickness. This prevents cracks and deformities, especially when bending thick metal into tight curves. Strategically placing holes for fasteners, ventilation, and fixtures ensures structural integrity and manufacturing optimization. Establishing realistic tolerances through collaboration with manufacturers supports both precision and practicality in production. Designers also avoid sharp corners. Rounded corners mitigate stress concentrations and are a safety-conscious design choice. Tailoring parts to specific manufacturing processes, like laser cutting, CNC machining, bending, and forming, allows for intricate geometries, high precision, and expedited production.

Bend Reliefs and Notches

Bend reliefs and notches are small cuts or openings designers incorporate into sheet metal parts. Their primary purpose is to minimize stress concentration at bend lines. This prevents material deformation, tearing, and other issues. Tear-drop relief cuts, shaped like a teardrop, combine directional stress relief with smooth edges. They are particularly effective for complex bends or when multiple bends intersect. Their tapered end ensures a gradual release of stress. This makes them useful in precision parts requiring strength and durability.

Designers must avoid over-cutting. A relief cut that is too deep or wide can weaken the part. They size relief cuts just enough to relieve stress without removing excessive material. CAD rules and bend charts guide this process. Correct placement is also vital. Placing relief cuts too close to the bend line can cause distortion. Best practice dictates offsetting the relief slightly away from the bend zone. This ensures smooth material flow without tearing. Bend relief mitigates material flow problems by providing additional space for the material to stretch and compress during bending. This reduces stress concentration, allowing the material to flow more smoothly around the bending tooling. It minimizes the risk of material failure or damage like tearing or cracking. This process also enables more accurate and consistent part shapes, especially in complex designs with multiple or small gaps between bends. These sheet metal bending techniques improve part quality and prevent potential failure.

Minimum Bend Radii and Flange Lengths

Designers must specify appropriate minimum bend radii. This prevents material cracking and ensures part integrity. The minimum bend radius depends on the material type and thickness. Similarly, flange lengths must be sufficient to allow proper clamping and bending without distortion. Insufficient flange length can lead to material slippage or inaccurate bends. Designers consider tooling limitations when determining these dimensions.

Simulation Software for Optimization

Simulation software plays a crucial role in optimizing complex sheet metal bending processes. It allows designers and fabricators to virtually test and refine designs before physical production. This approach significantly reduces errors and material waste. Engineers can predict how a material will behave under various bending conditions. This helps them identify potential issues like springback or cracking early in the design phase.

Simulation software, such as TruTops Bend, optimizes bend sequencing and tooling selection for complex sheet metal designs. It calculates the optimal bending sequence. It also determines the correct tool combination. This software integrates all components of the bending process. These components include the bending machine, BendMaster, and gripper. It brings them into the programming interface. The software utilizes state-of-the-art algorithms. These algorithms support and optimize tool selection. They calculate bending sequences. They also determine exact gripping positions. This minimizes programming time. It also calculates optimal traverse paths.

This advanced capability ensures efficient material utilization. It also enhances part quality. Fabricators can experiment with different bend orders and tool configurations. They do this without consuming valuable shop floor time or materials. The software provides visual feedback. This helps engineers understand complex material deformations. It also helps them make informed design decisions. Ultimately, simulation software streamlines the entire bending process. It leads to faster production cycles and more accurate final products.

Optimizing Bend Order and Automation in Sheet Metal Bending

Fabricators achieve peak efficiency in sheet metal bending through strategic planning and advanced technology. Optimizing bend order and embracing automation significantly enhances productivity and precision. These approaches minimize errors and reduce production costs.

Strategic Bend Sequencing

Strategic bend sequencing is crucial for efficient sheet metal bending. It minimizes part handling and maximizes machine utilization. One common method involves a two-step heuristic. This approach first determines the order of bending stations. Then it sequences the segments within those stations. This method can sometimes lead to more reshuffled segments between unconnected stations. An approximated Mixed-Integer Linear Programming (MILP) heuristic offers a more efficient alternative. This advanced technique determines both the order of stations and segments in a single step. It results in the lowest number of repositioning operations and reshuffled segments. This makes it highly effective for minimizing part handling during complex sheet metal bending techniques.

Automated Sheet Metal Bending Benefits

Automated sheet metal bending systems offer numerous advantages. They significantly increase production capacity. These systems operate around the clock, allowing companies to handle larger volumes. Automation minimizes error rates. This leads to consistent part quality and reduced waste. Companies achieve long-term cost savings. This comes from reduced material consumption, minimized waste, and increased production efficiency. Automation also enables flexible adjustment of production capacities. This offers better scalability for manufacturers. Automated systems enhance throughput by streamlining operations. They increase precision and speed. They eliminate human error and minimize production delays. This leads to faster project completion and reduced cycle times. Cost reduction also occurs through optimized material utilization. This minimizes waste and lowers raw material costs. Advanced software enables accurate nesting and cutting. Labor costs decrease by streamlining processes and minimizing human intervention.

Laser Cutting for Complex Flat Patterns

Laser cutting plays a vital role in preparing materials for complex sheet metal bending. It creates highly precise flat patterns. These patterns serve as the foundation for intricate bent parts. Laser technology allows for complex geometries and tight tolerances. This ensures the bent parts fit together perfectly. The accuracy of laser-cut blanks reduces errors in subsequent bending operations. This contributes to overall product quality and efficiency.

---

Mastering complex sheet metal bending requires a comprehensive approach. Fabricators integrate advanced sheet metal bending techniques, specialized tooling, and careful material selection. They also apply thoughtful design and automation strategies. This ensures precise, high-quality results for intricate geometries. This holistic method drives innovation and efficiency in modern manufacturing.
